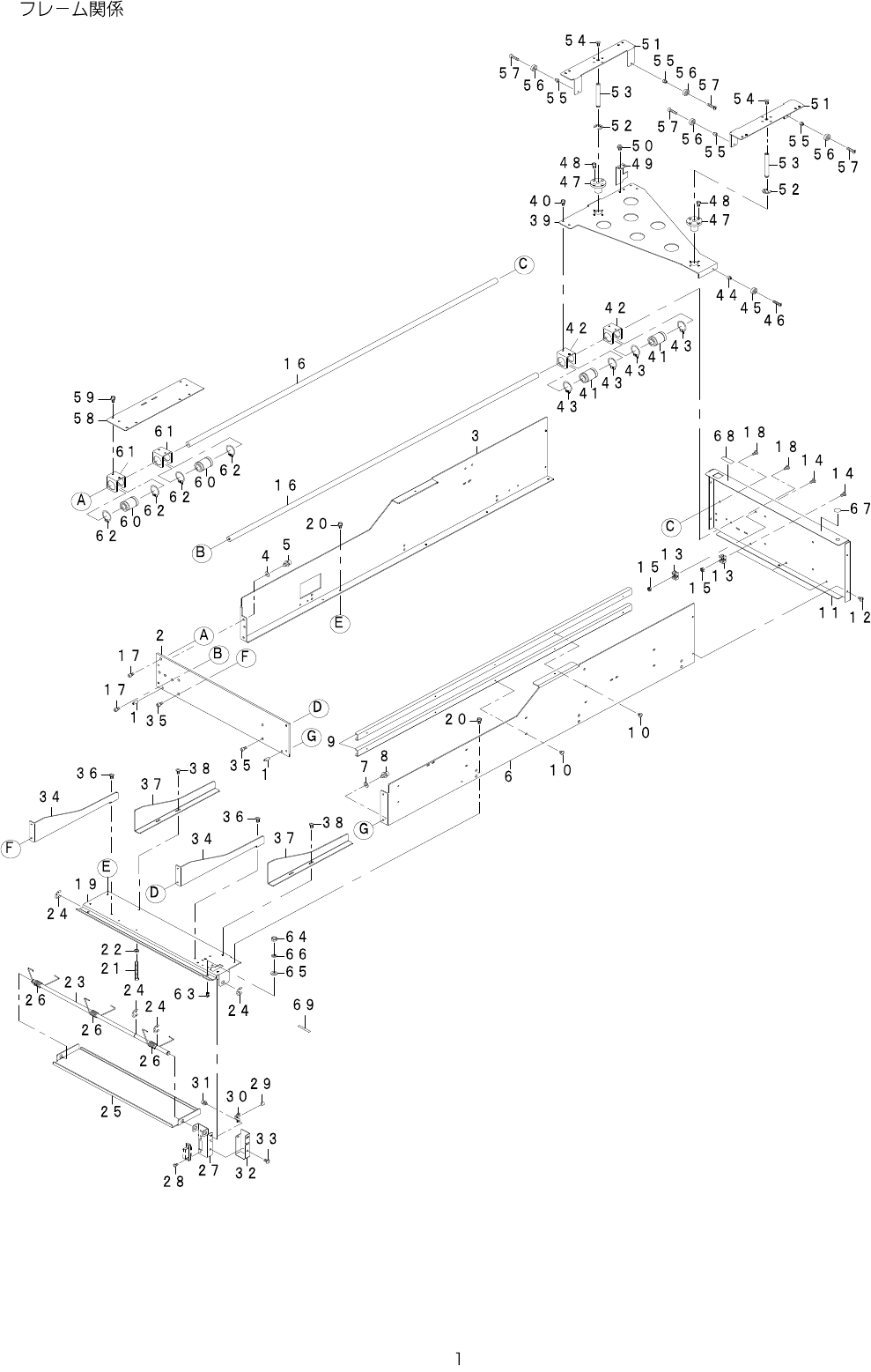

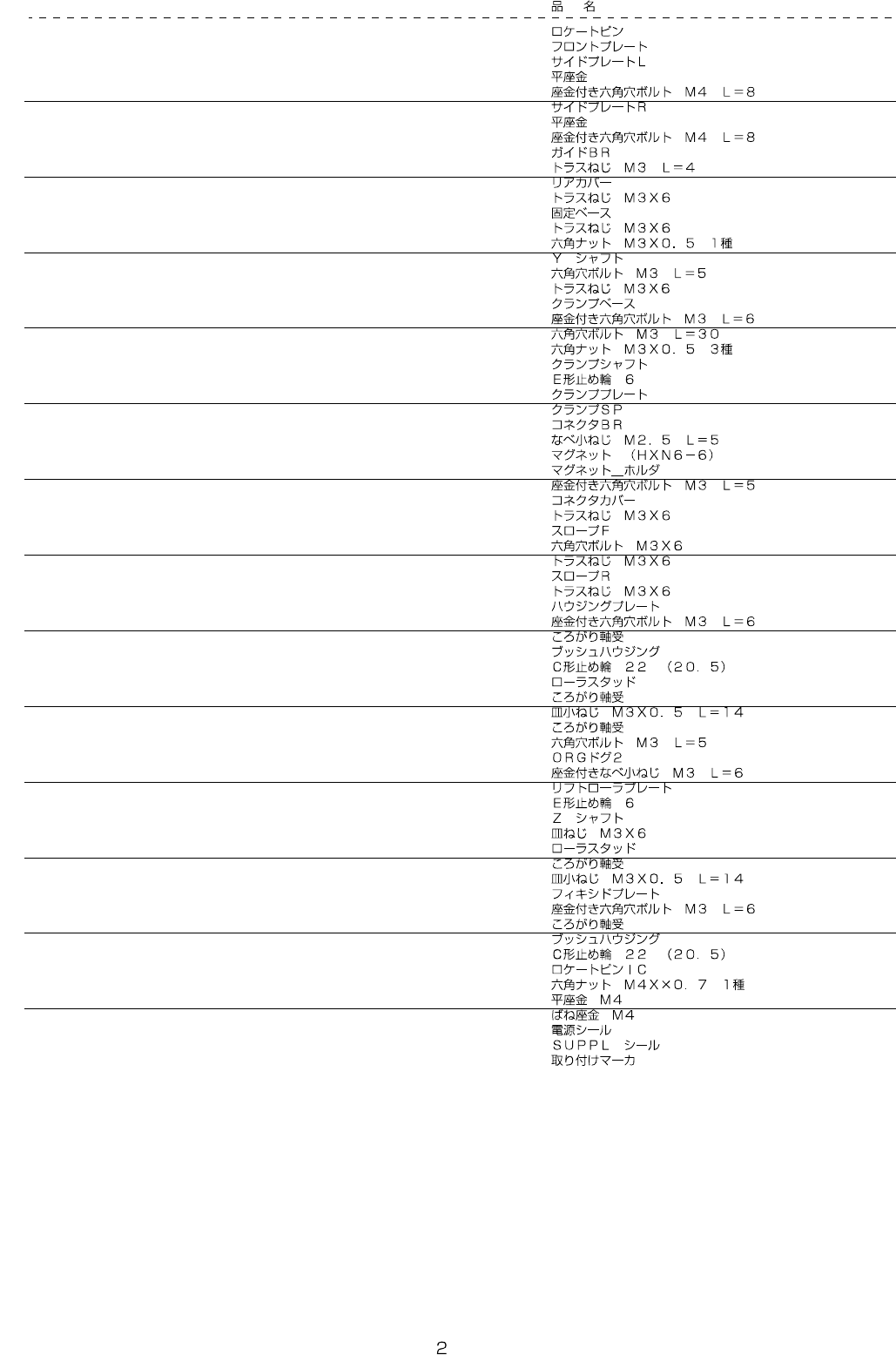

1. FRAMECOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-91524 LOCATE_PIN 2

2 401-91525 FRONT_PLATE 1

3 401-91526 SIDE_PLATE_L 1

4 WP-0431005-SP PLAINWASHER 2

5 SL-6040892-TN SCREWM4L=8 2

6 401-91527 SIDE_PLATE_R 1

7 WP-0431005-SP PLAINWASHER 2

8 SL-6040892-TN SCREWM4L=8 2

9 E1113-723-000 GUIDEBR 2

10 SM-0030401-SC SCREWM3L=4 10

11 401-91528 REAR_COVER 1

12 SM-0030601-SC SCREWM3X6 4

13 HX-0029400-00 FIXEDBASE 4

14 SM-0030601-SC SCREWM3X6 4

15 NM-6030001-SC NUTM3X0.5TYPE1 4

16 E1105-723-000 YSHAFT 2

17 SM-6030502-TN SCREWM3L=5 2

18 SM-0030601-SC SCREWM3X6 2

19 401-91529 CLAMP_BASE 1

20 SL-6030692-TN SCREWM3L=6 4

21 SM-6033002-TN SCREWM3L=30 1

22 NM-6030003-SC NUTM3X0.5TYPE3 1

23 401-91530 CLAMP_SHAFT 1

24 RE-0600000-K0 E-RING6 4

25 401-91531 CLAMP_PLATE 1

26 401-91532 CLAMP_SP 3

27 401-91533 CONNECTOR_BR 1

28 SM-4850501-SC SCREWM2.5L=5 2

29 EZ-4456320-01 MAGNET(HXN6-6) 1

30 401-61592 MAGNET_HOLDER 1

31 SL-6030592-TN SCREWM3L=5 2

32 401-91534 CONNECTOR_COVER 1

33 SM-0030601-SC SCREWM3X6 2

34 401-91536 SLOPE_F 2

35 SM-6030602-TN SCREWM3X6 4

36 SM-0030601-SC SCREWM3X6 2

37 401-91537 SLOPE_R 2

38 SM-0030601-SC SCREWM3X6 4

39 401-91538 HOUSING_PLATE 1

40 SL-6030692-TN SCREWM3L=6 4

41 SB-7120001-00 BEARING 2

42 E1106-723-000 BUSHINGHOUSING 2

43 RC-0220001-KP C-RING22(20.5) 4

44 E1153-723-000 ROLLERSTUD 1

45 SB-1050003-00 BEARING 1

46 SM-1031401-SC SCREWM3X0.5L=14 1

47 SB-8080001-00 BEARING 2

48 SM-6030502-TN SCREWM3L=5 8

49 401-94851 ORG_DOG2 1

50 SL-4030691-SC SCREWM3L=6 2

51 401-91539 LIFT_ROLLER_PLATE 2

52 RE-0600000-K0 E-RING6 2

53 E1174-723-000 ZSHAFT 2

54 SM-1030601-SC SCREWM3X6 2

55 E1153-723-000 ROLLERSTUD 4

56 SB-1050003-00 BEARING 4

57 SM-1031401-SC SCREWM3X0.5L=14 4

58 401-91540 FIXED_PLATE 1

59 SL-6030692-TN SCREWM3L=6 4

60 SB-7120001-00 BEARING 2

61 E1106-723-000 BUSHINGHOUSING 2

62 RC-0220001-KP C-RING22(20.5) 4

63 401-87780 LOCATE_PIN_IC 1

64 NM-6040001-SC NUTM4X0.7TYPE1 1

65 WP-0430801-SC WASHERM4 1

66 WS-0410002-KN SPRINGWASHERM4 1

67 E2106-716-000 POWERSUPPLYSEAL 1

68 E4037-717-000 SUPPLYSEAL 1

69 E1602-723-000 MARKER 1
