- - 3. DRIVINGUNIT COMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-91535 SAFETY_COVER_SHAFT 1

2 WP-2103001-SE PLAINWASHER 2

3 SM-0050801-SC SCREW 2

4 HX-0007900-0B SPACER 4

5 SM-0030601-SC SCREWM3X6 4

6 SL-4030691-SC SCREWM3L=6 8

7 SM-0030601-SC SCREWM3X6 2

8 E1251-723-000 INTERLOCKBASE 1

9 E1252-723-000 LATCHSTUD 1

10 E1253-723-000 LATCHPLATE 1

11 SL-4031691-SC SCREWM3L=16 1

12 SM-4031201-SC SCREWM3X0.5L=12 1

13 NM-6030001-SC NUTM3X0.5TYPE1 1

14 E1055-717-000 DOORLOCKSP 1

15 PS-0200062-KH SPRINGPIN2X6 1

16 SL-4030591-SC SCREWM3L=5 2

17 SL-4031481-SC SCREWM3L=14 2

18 E4809-172-000 RUBBERFOOT 2

19 SM-4031201-SC SCREWM3X0.5L=12 2

20 401-91542 BOTTOM_COVER 1

21 SM-0030601-SC SCREWM3X6 5

22 E2134-172-000 RUBBERSTOPPER 2

23 401-91543 PWB_COVER 1

24 SM-0030601-SC SCREWM3X6 2

25 E1202-723-000 SAFTYCOVERHINGEL 1

26 E1203-723-000 SAFTYCOVERHINGER 1

27 401-91544 JOINT_PLATE 1

28 SM-0030601-SC SCREWM3X6 4

29 401-91545 SAFETY_COVER 1

30 SM-0030601-SC SCREWM3X6 7

31 E1206-723-000 COVERHOOK 1

32 WP-0430801-SC WASHERM4 4

33 NM-6040001-SC NUTM4X0.7TYPE1 2

34 E1023-760-000 PANELHANDLE 1

35 E1210-723-000 SAFTYCOVERSTAYL 1

36 SM-0030801-SC SCREWM3X8 2

37 NM-6030003-SC NUTM3X0.5TYPE3 2

38 SM-0030601-SC SCREWM3X6 2

39 NM-6030003-SC NUTM3X0.5TYPE3 2

40 401-91550 TOP_COVER 1

41 SM-0030601-SC SCREWM3X6 2

- -

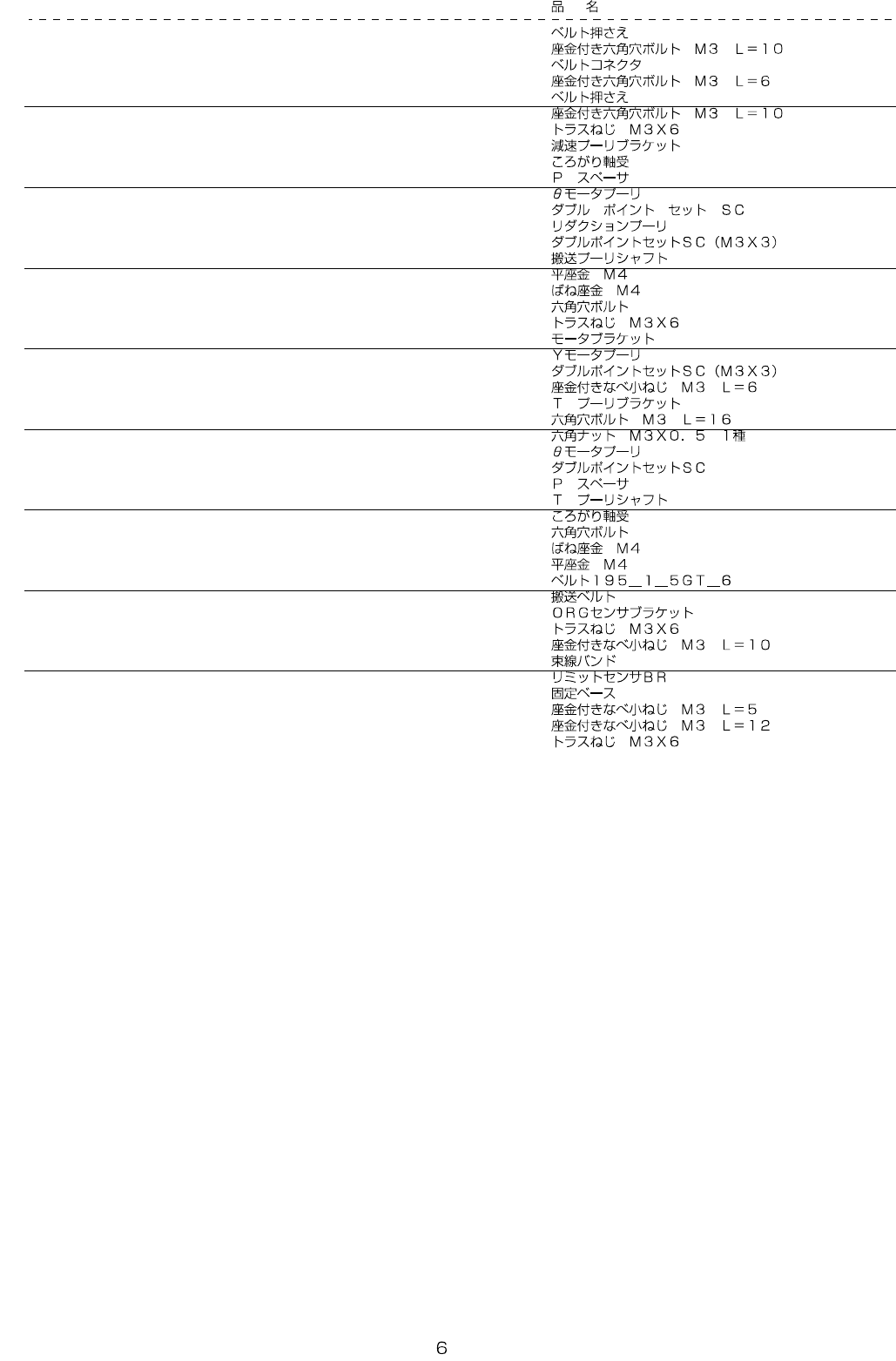

3. DRIVINGUNITCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E1310-723-000 BELTSTOPPER3GT-9 1

2 SL-6031092-TN SCREWM3L=10 4

3 E1309-723-000 BELTCONNECTOR 1

4 SL-6030692-TN SCREWM3L=6 2

5 E1310-723-000 BELTSTOPPER3GT-9 1

6 SL-6031092-TN SCREWM3L=10 4

7 SM-0030601-SC SCREWM3X6 3

8 E1303-723-000 SLOWDOWNPULLEYBR 1

9 SB-1070004-00 BEARING 2

10 E1306-723-000 PSPACER 3

11 E3035-715-000 THETAMOTORPULLEY 1

12 E2211-524-000 SCREW 4

13 401-91547 REDUCTION_PULLEY 1

14 E2250-525-000 SETSCREW 2

15 E1307-723-000 PULLEYSHAFT 1

16 WP-0430801-SC WASHERM4 2

17 WS-0410002-KN SPRINGWASHERM4 2

18 SM-6040602-TN SCREW 2

19 SM-0030601-SC SCREWM3X6 2

20 E1301-723-000 MOTERBRACKET 1

21 401-91548 Y_MOTOR_PULLEY 1

22 E2250-525-000 SETSCREW 1

23 SL-4030691-SC SCREWM3L=6 4

24 E1311-723-000 TPULLEYBR 1

25 SM-6031602-TN SCREWM3L=16 2

26 NM-6030001-SC NUTM3X0.5TYPE1 2

27 E3035-715-000 THETAMOTORPULLEY 1

28 E2211-524-000 SCREW 2

29 E1306-723-000 PSPACER 2

30 E1312-723-000 TPULLEYSHAFT 1

31 SB-1070004-00 BEARING 2

32 SM-6040602-TN SCREW 2

33 WS-0410002-KN SPRINGWASHERM4 2

34 WP-0430801-SC WASHERM4 2

35 401-91549 BELT_195_1_5GT_6 1

36 E1308-723-000 BELT 1

37 401-94850 ORGSENSORBR 1

38 SM-0030601-SC SCREWM3X6 2

39 SL-4031081-SC SCREWM3L=10 1

40 EA-9500B01-00 CABLEBAND 10

41 401-94852 LIMIT_SENSOR_BR 1

42 HX-0029400-00 FIXEDBASE 1

43 SL-4030581-SC SCREWM3L=5 1

44 SL-4031291-SC SCREWM3L=12 2

45 SM-0030601-SC SCREWM3X6 2
