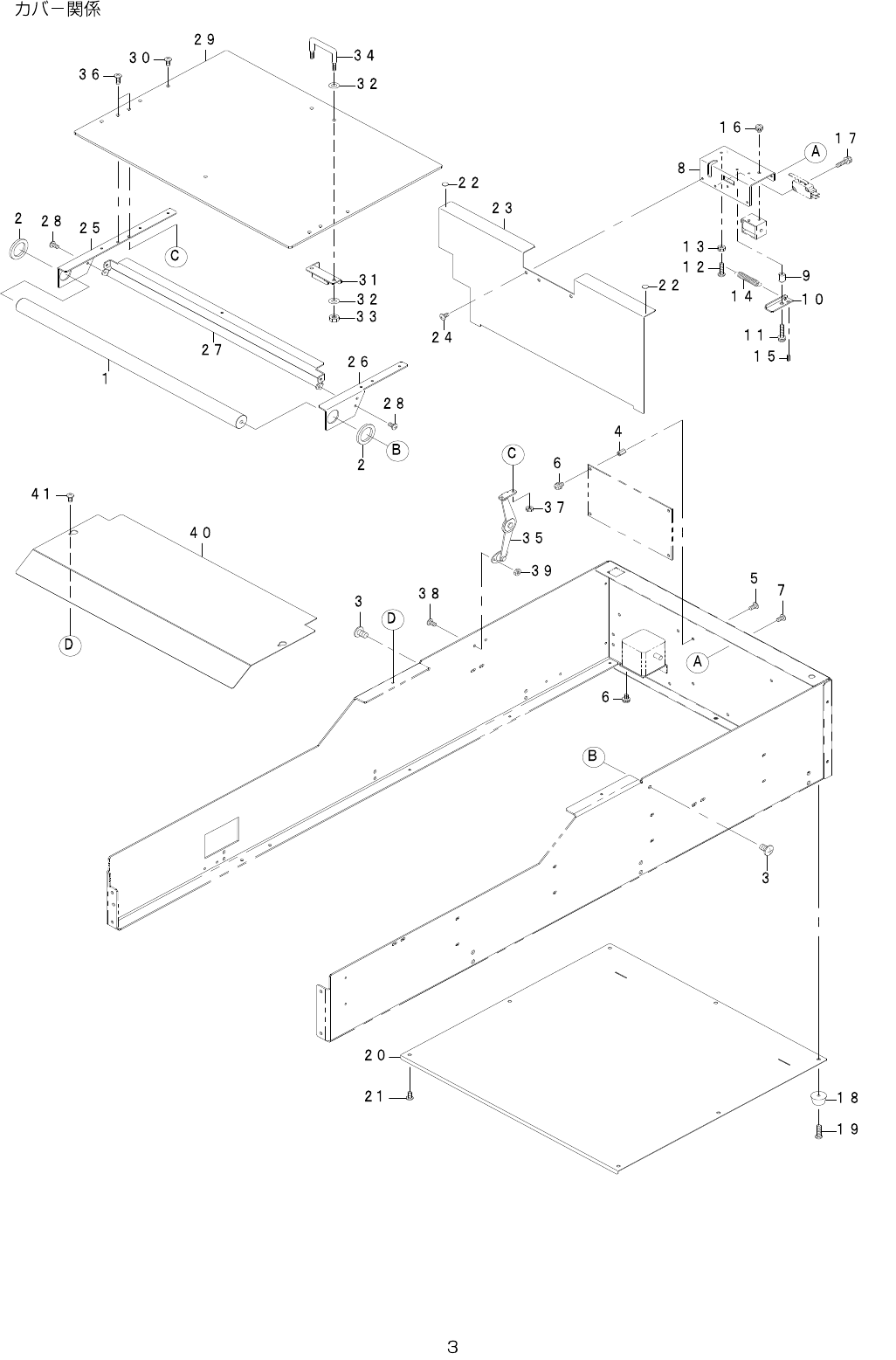

2. COVERCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-91535 SAFETY_COVER_SHAFT 1

2 WP-2103001-SE PLAINWASHER 2

3 SM-0050801-SC SCREW 2

4 HX-0007900-0B SPACER 4

5 SM-0030601-SC SCREWM3X6 4

6 SL-4030691-SC SCREWM3L=6 8

7 SM-0030601-SC SCREWM3X6 2

8 E1251-723-000 INTERLOCKBASE 1

9 E1252-723-000 LATCHSTUD 1

10 E1253-723-000 LATCHPLATE 1

11 SL-4031691-SC SCREWM3L=16 1

12 SM-4031201-SC SCREWM3X0.5L=12 1

13 NM-6030001-SC NUTM3X0.5TYPE1 1

14 E1055-717-000 DOORLOCKSP 1

15 PS-0200062-KH SPRINGPIN2X6 1

16 SL-4030591-SC SCREWM3L=5 2

17 SL-4031481-SC SCREWM3L=14 2

18 E4809-172-000 RUBBERFOOT 2

19 SM-4031201-SC SCREWM3X0.5L=12 2

20 401-91542 BOTTOM_COVER 1

21 SM-0030601-SC SCREWM3X6 5

22 E2134-172-000 RUBBERSTOPPER 2

23 401-91543 PWB_COVER 1

24 SM-0030601-SC SCREWM3X6 2

25 E1202-723-000 SAFTYCOVERHINGEL 1

26 E1203-723-000 SAFTYCOVERHINGER 1

27 401-91544 JOINT_PLATE 1

28 SM-0030601-SC SCREWM3X6 4

29 401-91545 SAFETY_COVER 1

30 SM-0030601-SC SCREWM3X6 7

31 E1206-723-000 COVERHOOK 1

32 WP-0430801-SC WASHERM4 4

33 NM-6040001-SC NUTM4X0.7TYPE1 2

34 E1023-760-000 PANELHANDLE 1

35 E1210-723-000 SAFTYCOVERSTAYL 1

36 SM-0030801-SC SCREWM3X8 2

37 NM-6030003-SC NUTM3X0.5TYPE3 2

38 SM-0030601-SC SCREWM3X6 2

39 NM-6030003-SC NUTM3X0.5TYPE3 2

40 401-91550 TOP_COVER 1

41 SM-0030601-SC SCREWM3X6 2

- -
