6 Description of the test results 6.12 Force measurement P&P module (TH) 56 Software Manual SIPLACE Head Verification 03/2018 6.12 Force measurement P&P module (TH) 6.12.1 Measurement principle During force measu…
6 Description of the test results
6.11 Force measurement for C&P heads
Software Manual SIPLACE Head Verification 03/2018 55
7 Values of the Force180° measurement
8 Values of the Force270° measurement
9 Graph showing the Force values for each segment.
10 Graph showing the Force values measured at the 4 different angles.
11 Graph showing a sample of the Force measurement in detail.
6.11.3 Interpretation of the results obtained
‘Force’ error for all segments
Cause Solution
Z-Axis strong running / defective ► Exchange of Z-axis if possible.
► -Exchange head / send in head for repair.
‘Force’ error for individual segments
Cause Solution
Linear guide of segment (DP) strong run-
ning / defective
► Exchange segment (DP).
6 Description of the test results
6.12 Force measurement P&P module (TH)
56 Software Manual SIPLACE Head Verification 03/2018
6.12 Force measurement P&P module (TH)
6.12.1 Measurement principle
During force measurement, the placement force is measured for the segment at several angles.
The following force measurements are available for P&P modules:
●
Force 1N (dynamic)
●
Force 2N (dynamic)
●
Force 5N (dynamic)
●
Force 10N (dynamic)
●
Force 15N (dynamic)
6.12.2 Measurement result

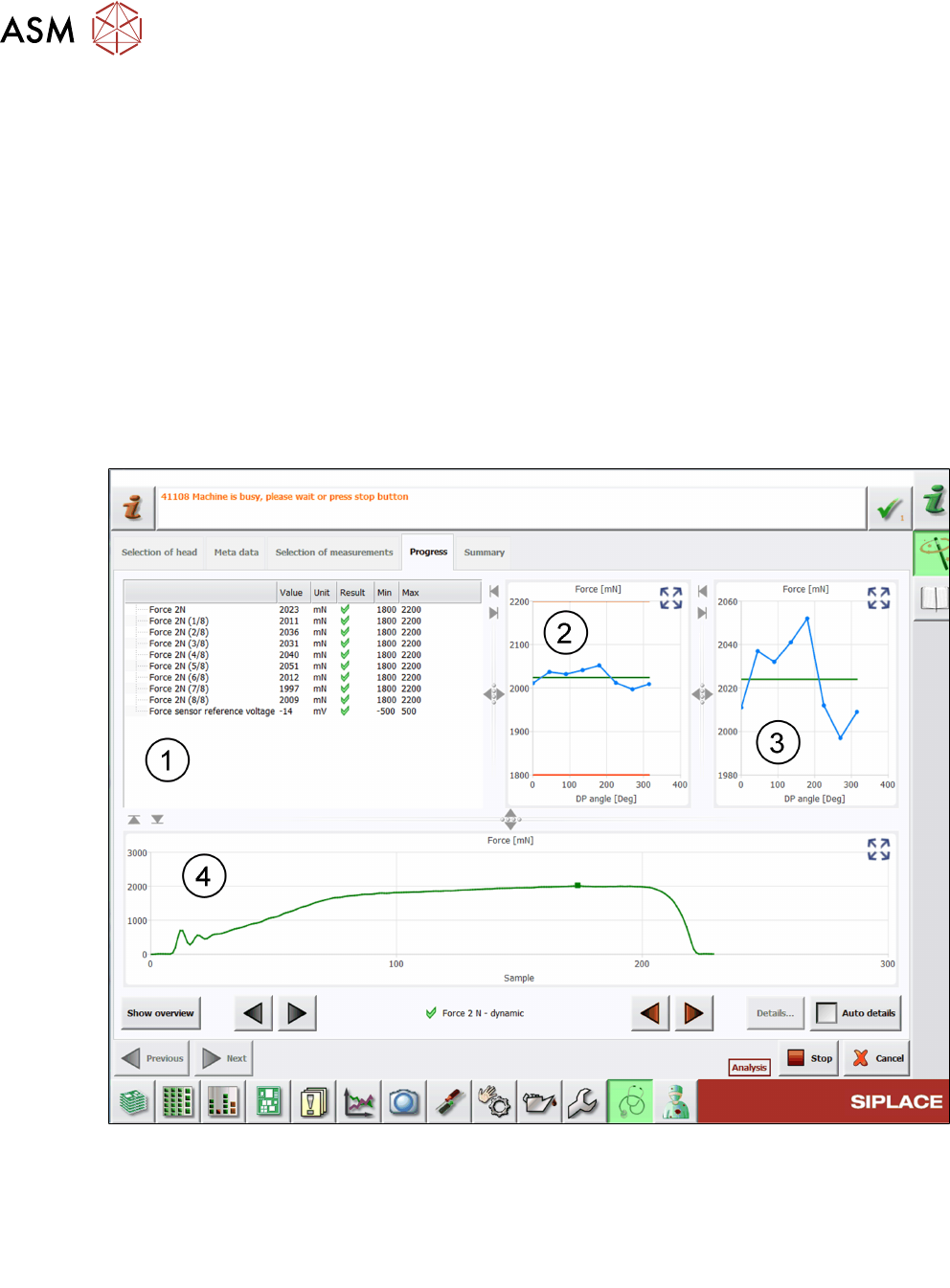

The following image shows an example of the Force2N(dynamic) measurement:
Fig.44: Result view – Force 2N (dynamic)
1 Table showing the Force measured at different angles.
2 Graph showing the Force measured at different angles and the limits specified.
3 Graph showing the Force measured at different angles in more detail.
4 Graph showing a sample of the Force measurement in detail.
6 Description of the test results
6.12 Force measurement P&P module (TH)
Software Manual SIPLACE Head Verification 03/2018 57
6.12.3 Interpretation of the results obtained
‘Force’ error
Cause Solution
Force sensor settings misaligned ► Adjust the spring force settings.
Force measuring unit defective ► Exchange the force measuring unit.
► Exchange / repair the P&P module.
Trick & feather unit defective ► Exchange the Trick & feather unit.
► Exchange / repair the P&P module.
