0305-001 Tg0860-PM-MM 1-21 Air Filters Cleaning (1) Remove the air filter . Align the mark with the release position by pressing and turning the button at the same time. Then, draw the outer case downward to remove. Remo…

0305-001 Tg0860-PM-MM

1-20

Fig. 4A26 Clamp Sections of Tray Traverse

Cam Follower

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Apply new grease by hand or with

a brush.

Note: For the lubrication

procedure, refer to

“10.2 Traverse Clamp

Section”.

Large Linear Guide

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Lubricate the 2 nipples with new

grease from a grease gun.

Notes: (a) For the lubrication

procedure, refer to

“10.2 Traverse

Clamp Section”.

(b) The attachments to

be used are U type

and N type.

Small Linear Guide

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Apply new grease by hand or with

a brush.

Note: For the lubrication

procedure, refer to

“10.2 Traverse Clamp

Section”.

Beam A Side

Beam B Side

Nipple

Belt

U Type

N Type

7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)

0305-001 Tg0860-PM-MM

1-21

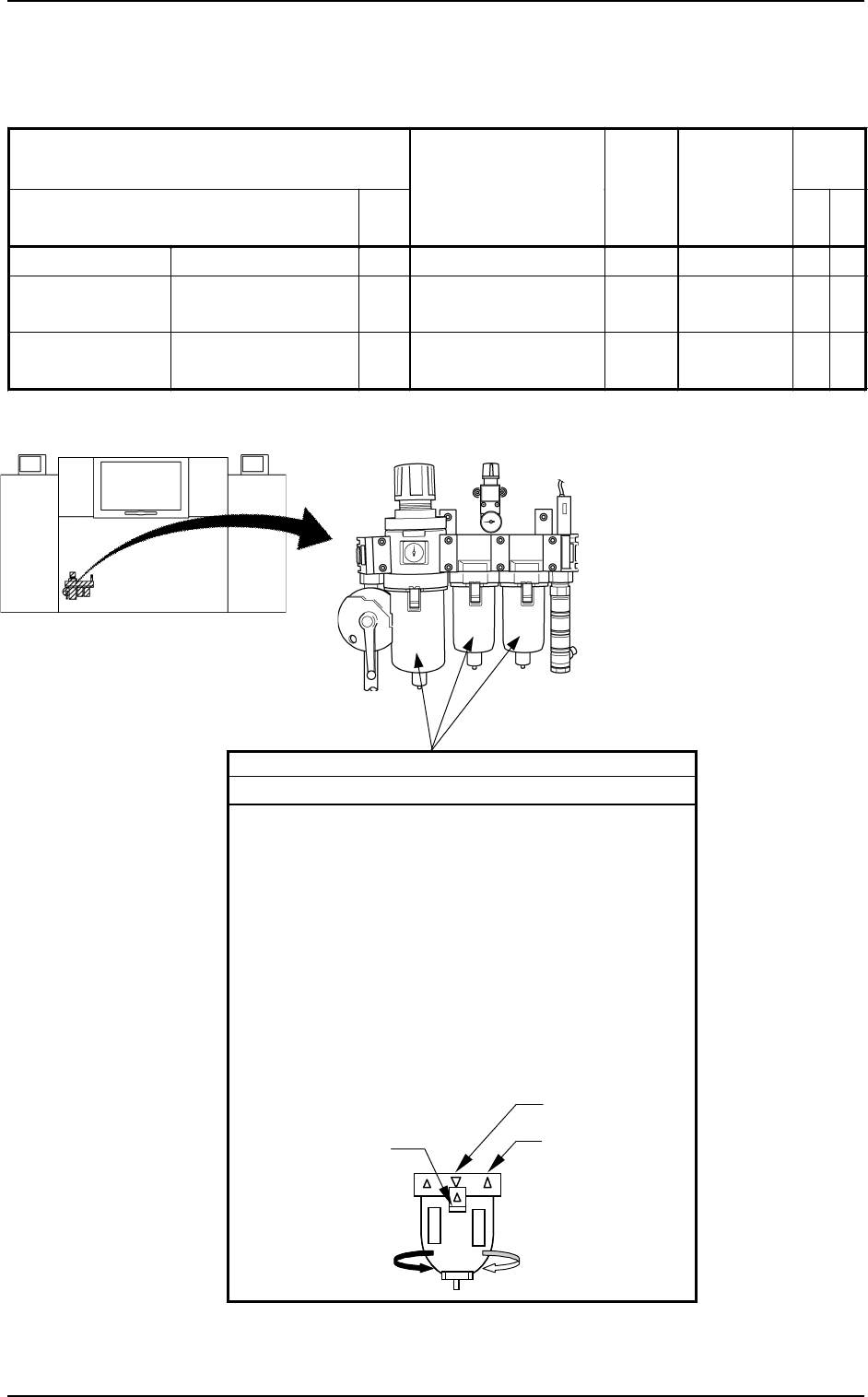

Air Filters

Cleaning

(1) Remove the air filter.

Align the mark with the release position by pressing

and turning the button at the same time. Then, draw the

outer case downward to remove. Remove the inner air

filter by turning it in the direction of Arrow A.

(2) Blow off dust with compressed air.

(3) Mount the air filter.

Mount the air filter turning it in the direction of Ar-

row B.

Mount the outer case and at the same time press and

turn the button to align the mark with the locking

position.

Button

Lock

Unlock

Table 4A9

8. Maintenance (Every 3 Months)

Fig.4A27 Air Regulator

Maintenance Spots Check

Name

Fig.

No.

Description Grease

Cleaning

Tools,

Nozzles, etc.

Air Regulator Air Filters 4A27 Cleaning − − − Air Gun

Vacuum Pressure

System

Aggregated Vacuum

Filter

4A28 Cleaning − − − Air Gun

Control Box Dust Filter 4A29 Cleaning − − − Vacuum

Cleaner

Beam A side

Tg0860-PM-MM

0307-002 1-22

8. Maintenance (Every 3 Months)

Fig. 4A29 Control Box

Dust Filter

Cleaning

(1) After removing the setscrews,

draw it out, holding the knobs on

the right and left sides.

(2) Clean dirt and dust with a vacuum

cleaner.

Fig. 4A28 Vacuum Pressure System

Filter Case

Aggregated Vacuum Filter

Cleaning

(1) Remove the filter case by turn-

ing in the direction of Arrow C

and remove the inner filter.

(2) Blow off dust with compressed air.

Beam A side

Unit : mm

Note: The dimensions in the figures

are design values.

Knob

Setscrew

CAUTION

Use protective devices to avoid any accident which

may be caused due to the tight work space.

954

810

523
