10. Replace the carbon\pre-filter as required and refit the pre-filter into the
carbon filter unit.
11. Refit the carbon filter unit to the vacuum filtration unit.
NOTE

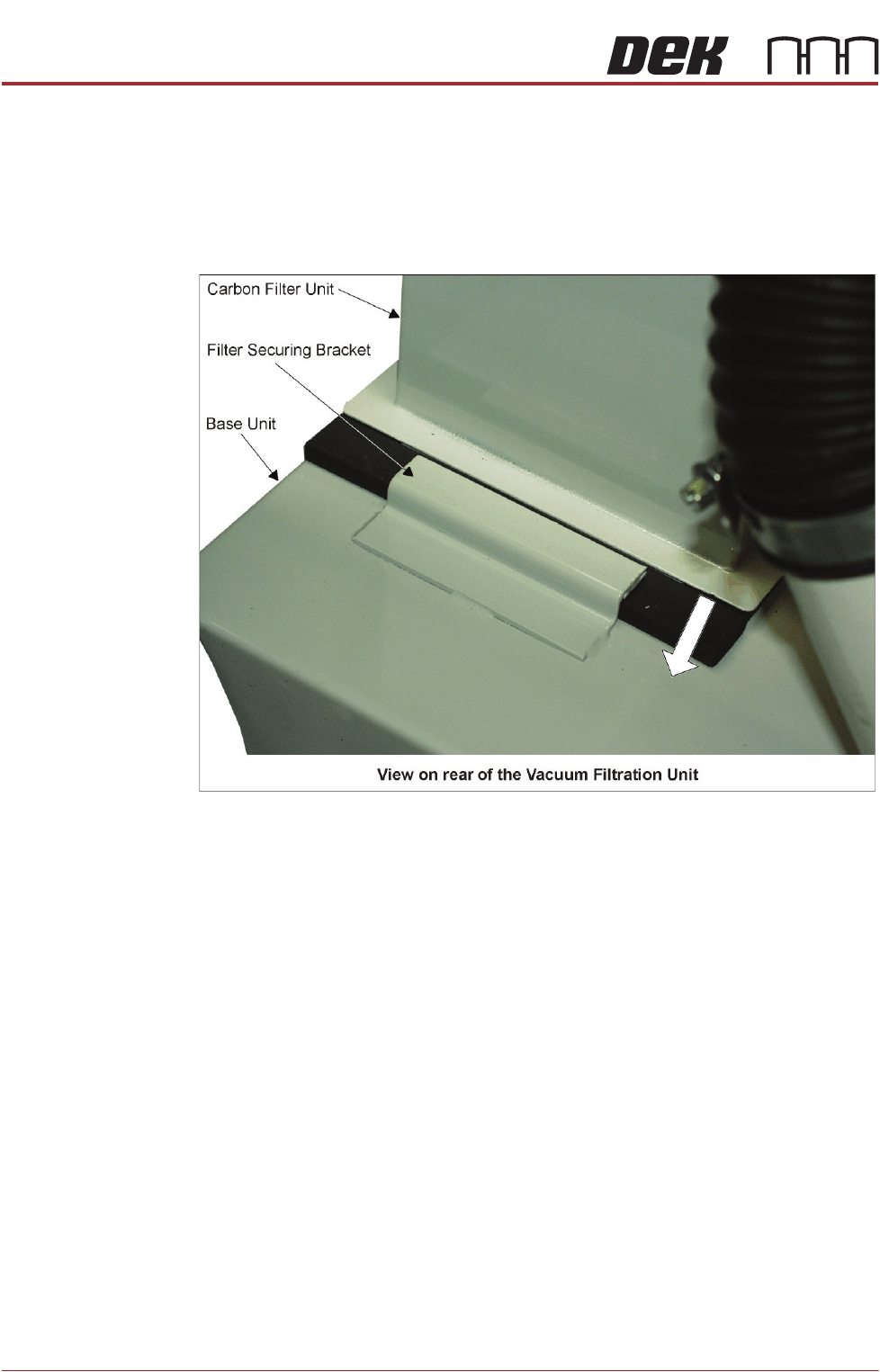

When refitting the carbon filter unit to the base unit, ensure that the rear of
the carbon filter unit is located beneath the filter securing bracket.
12. Secure the carbon filter unit using the filter retaining clip.
13. Refit and secure the air duct to the carbon filter unit.
14. Refit the panel removed in Step 4.
15. Move the machine carefully back into line.
16. Reconnect the loom to the lower rear panel socket.
