Installing Flex Option 2 Assembly Instructions SIPLACE E 17 3 3 I n s t a llin g F le x O p t io n 2 Installing Flex Option 2 ▪ A sta ndard ma chine with NC FLEX std. cpl [ 03107775-xx] is equipped with one m agazine ho …
Installing Flex Option 1
16 Assembly Instructions SIPLACE E

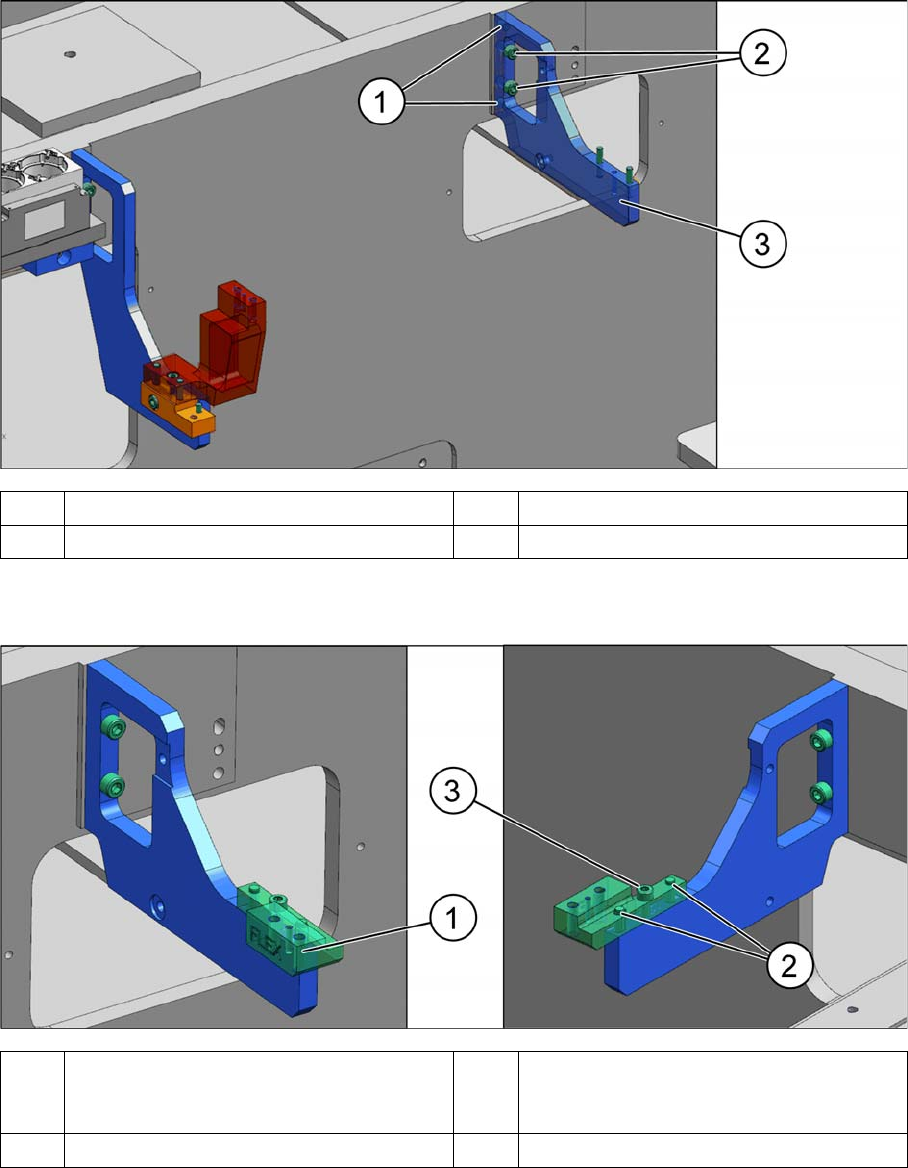

► Place the mounting extension right cpl. (3) onto the two dowel pins (1).
► Fix the mounting extension on the machine frame using two M5x20 cap screws (2).
► Place the mounting block right 2B FLEX (1) onto the two dowel pins (2).
► Fix the mounting block on the mounting extension using one M4x16 cap screw (3).
► Continue with the same installation steps for the followings at location 2.2:
⇨ Shim cover nozzle station [03108393-xx]
⇨ Shim nozzle station [03108395-xx]
⇨ Magazine holder cpl. [03103612-xx]
⇨ Passive nozzle magazines [03103613-xx] or [03109863-xx]
1 Dowel pins 2 M5x20 cap screws
3 Mounting extension right cpl.[03112585
-
xx]
1 Mounting block right 2B FLEX
[03112578
-
xx]
2 Dowel pins
Preinstalled in [03112585-xx] (part in blue)
but not [03112578-xx] (part in green)
3 M4x16 cap screw
Installing Flex Option 2
Assembly Instructions SIPLACE E 17
3
3 Installing Flex Option 2
Installing Flex Option 2
▪ A standard machine with NC FLEX std. cpl [03107775-xx] is equipped with one magazine holder with
two passive nozzle magazines of type [03103613-xx] and one passive nozzle magazine of type
[03109863-xx] at location 2.1.

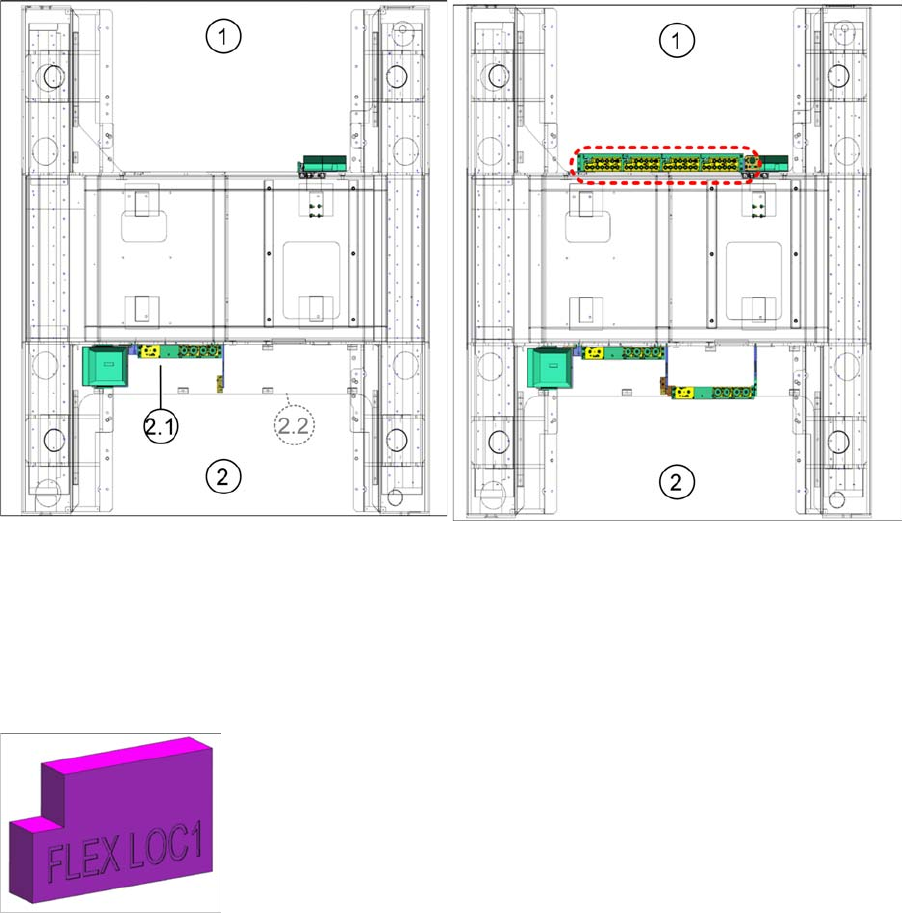

Standard Flex Flex Option 2
1 Location 1 2 Location 2
The Flex Option 2 configuration NC FLEX LOC1 cpl. [03113131-xx] is located at the highlighted area.
It consists of a single row nozzle changer base plate [03106322-xx] with a flexible combination of active
nozzle magazines [03104048-xx], or [03105864-xx], or [03081446-xx] as shown above.
The order quantity depends on the customer's preference.
► The height measurement block FLEX LOC 1 [03118538-xx] is required to
upgrade in the field.
Installing Flex Option 2
18 Assembly Instructions SIPLACE E

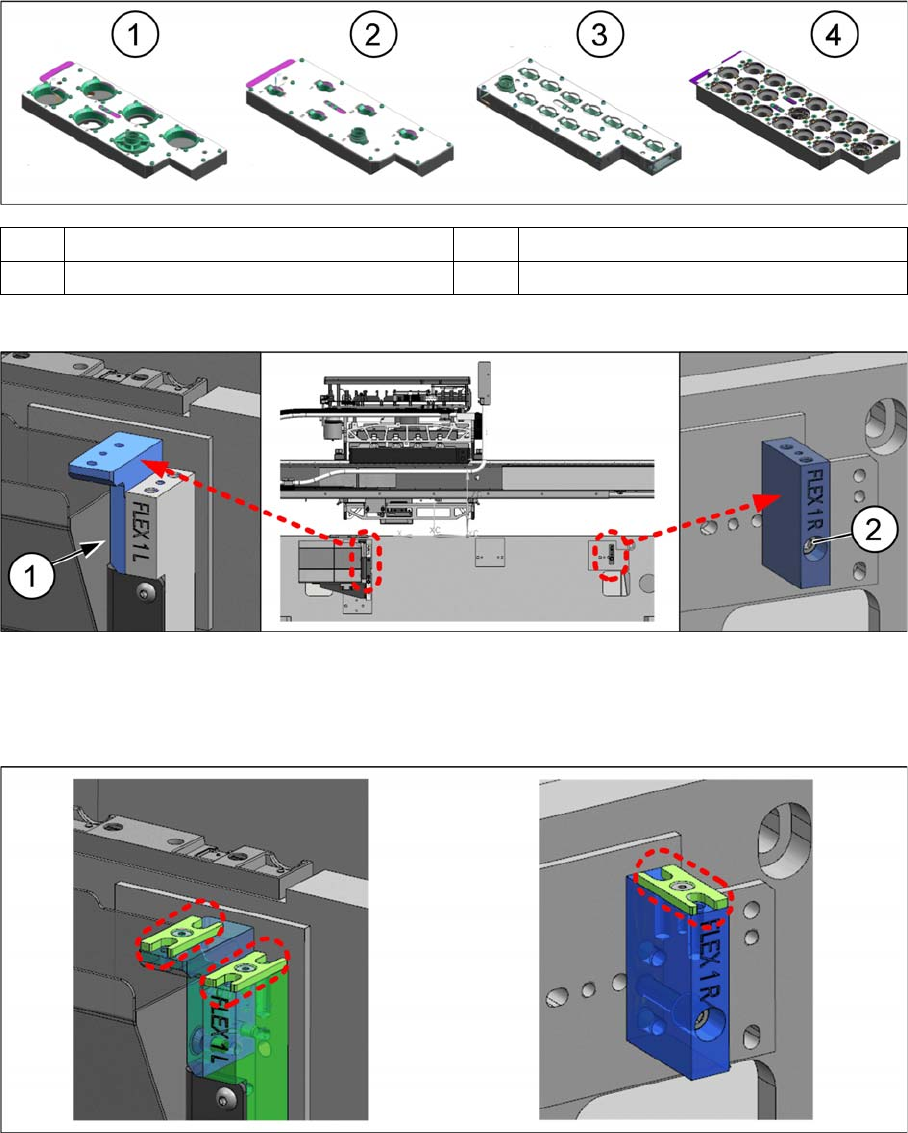

Active Nozzle Magazine Types (Quick Reference)
Installation Procedures
► Mount the nozzle station support [03105456-xx] onto the NC mounting bracket FLEX 1 Left
[03109945-xx] with two M4x10 countersunk screws (1) (screws not visible in the figure).
► Mount the NC mounting bracket FLEX 1 Right [03109942-xx] onto the machine base frame with one
M5x30 cap screw (2).
► Mount one shim cover each [03108393-xx] onto the nozzle station support [03105456-xx], the NC
mounting bracket FLEX 1 Left [03109945-xx], and the NC mounting bracket FLEX 1 Right
[03109942-xx].
1 Nozzle magazine type 38xx for RV6 2 Nozzle magazine type 39xx for RV6
3 Nozzle magazine type 30xx for RV12 4 Nozzle magazine type 40xx for CP14
