1. Scope This specially specified function recognizes all electrodes of BGA and CSP (BGA T ype) components collectively , position the components through image processing, and detect if the components have elec- trodes o…
0202-002 3 AGQ01EGP
Contents
Page
11. Component Library Data Sheets
............................................
............................................
...................... 63
11.1 Sheets for BGA/CSP Components
....................................
....................................
.................. 63
12. Material
..................................................................................
..................................................................................
......................................... 68
12.1 Parts Location
....................................................................
....................................................................
.................................. 68
Recognition Lighting Section (TCM-X200)
........................
........................
............ 68
Recognition Lighting Section (TCM-X100J)
......................
......................
........... 69
12.2 Electrical Circuit Diagram
..................................................
..................................................
......................... 70
Lighting Controller Circuit Diagram (TCM-X200)
................
................
........ 70
Lighting Controller Circuit Diagram (TCM-X100J)
..............
..............
....... 71
12.3 Connection Diagram
..........................................................
..........................................................
............................. 72
Cord Connection Diagram
(Front Lighting 3) (TCM-X200)
..............................
..............................
............... 72
Cord Connection Diagram
(Front Lighting 3) (TCM-X100J)
............................
............................
.............. 73
1. Scope
This specially specified function recognizes all electrodes of BGA and
CSP (BGA Type) components collectively, position the components
through image processing, and detect if the components have elec-
trodes or not, making it possible to place the components accurately.

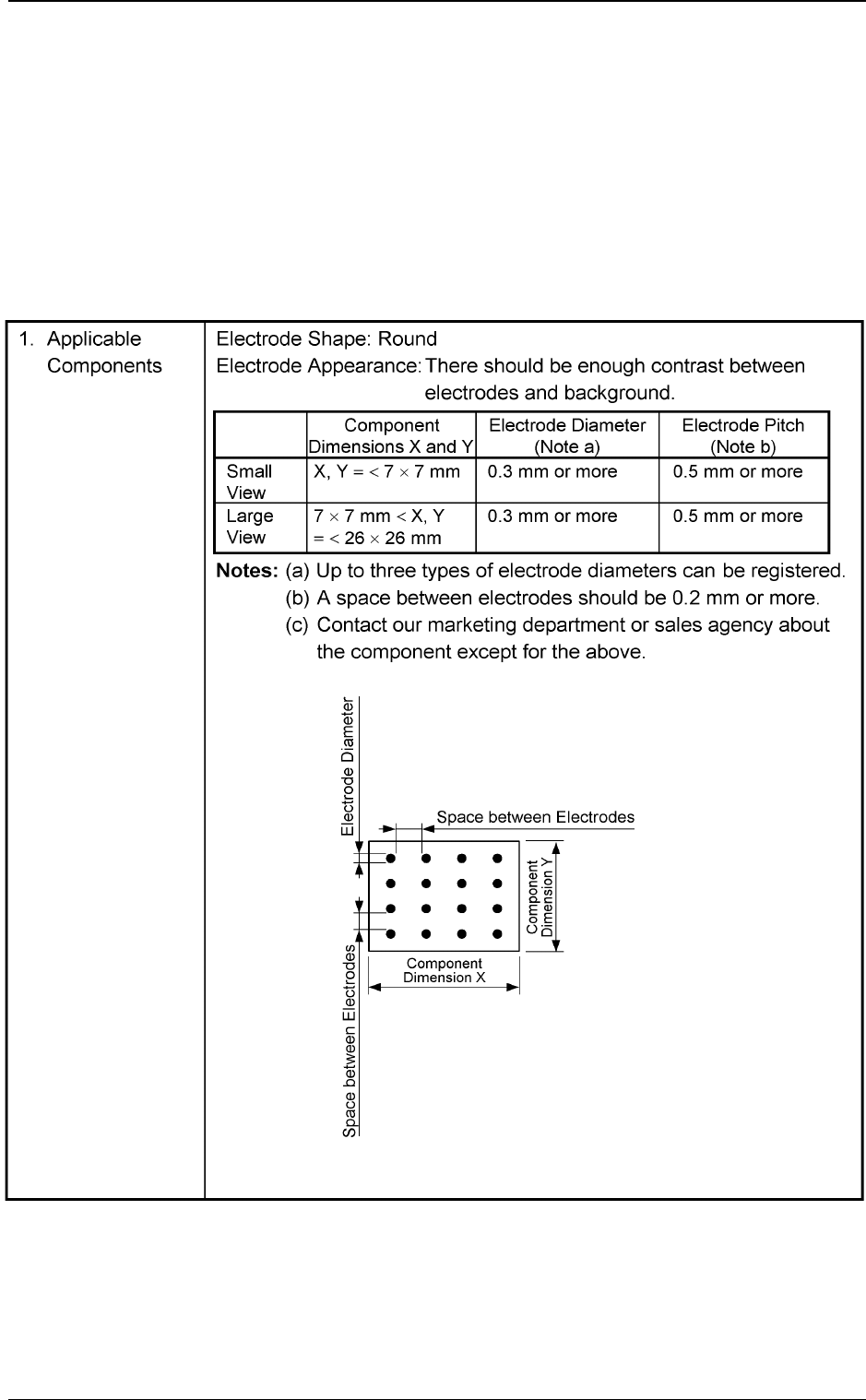

2. Specifications
Table 1
1. Scope
0308-002 4 AGQ01EGP
2. Specifications
0308-003 5 AGQ01EGP

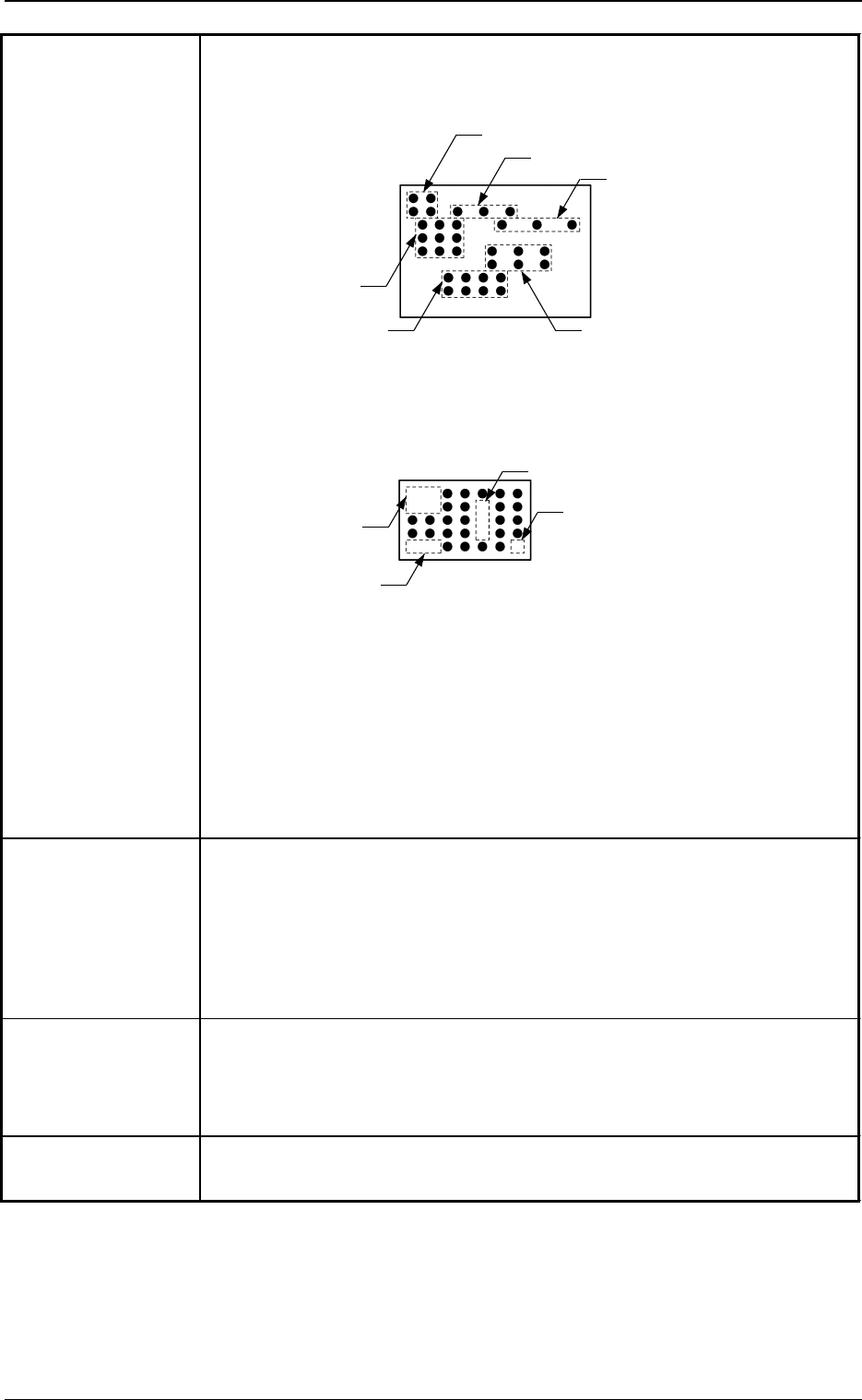

Number of Electrode Groups: Max. 6 electrode groups per
component
Example:
Electrode Group 1
Electrode Group 4
Electrode Group 5
Electrode Group 6
Electrode Group 2
Electrode Group 3
Number of Electrode Missing Blocks: Max. 40 blocks per electrode
group
Example:
Missing Block 2
Missing Block 4
Missing Block 3
Missing Block 1
Number of Electrodes: Max. 255 x 255 per electrode group
(Min. 3 pieces per electrode group)
Note:
The effective range differs according to
the relation between the component
dimensions and the electrode diameters.
Note:
Some CSP components (BGA type) cannot be used, depending
on the shape, the material, etc.
Contact our marketing department or sales agency for details.
2. Inspectable
Items
•
Electrode Detection
•
Electrode Position (Deviation)
•
Electrode Size
Note:
An enough inspection might not be able to be made,
depending on how the image of an electrode is captured.
Contact our marketing department or sales agency for details.
3. Recognition
Time
0.3 second
(This time was measured when all electrodes (diameter: 0.5 mm,
number of electrodes: 255) of the BGA/CSP components were
detected. The time to capture the images is excluded.)
4. Recognition
Condition
Front Lighting 3 (Ring)
