3. Rough View Fig. 1 Light Source Device (TCM-X200) The -marked area is specially specified. Fig. 2 Lighting Unit The -marked area shows the lighting (Front Lighting 3 Ring) for BGA/CSP components. 3. Rough View 0202-002…
2. Specifications
0308-003 5 AGQ01EGP
Number of Electrode Groups: Max. 6 electrode groups per
component
Example:
Electrode Group 1
Electrode Group 4
Electrode Group 5
Electrode Group 6
Electrode Group 2
Electrode Group 3
Number of Electrode Missing Blocks: Max. 40 blocks per electrode
group
Example:
Missing Block 2
Missing Block 4
Missing Block 3
Missing Block 1
Number of Electrodes: Max. 255 x 255 per electrode group
(Min. 3 pieces per electrode group)
Note:
The effective range differs according to
the relation between the component
dimensions and the electrode diameters.
Note:
Some CSP components (BGA type) cannot be used, depending
on the shape, the material, etc.
Contact our marketing department or sales agency for details.
2. Inspectable
Items
•
Electrode Detection
•
Electrode Position (Deviation)
•
Electrode Size
Note:
An enough inspection might not be able to be made,
depending on how the image of an electrode is captured.
Contact our marketing department or sales agency for details.
3. Recognition
Time
0.3 second
(This time was measured when all electrodes (diameter: 0.5 mm,
number of electrodes: 255) of the BGA/CSP components were
detected. The time to capture the images is excluded.)
4. Recognition
Condition
Front Lighting 3 (Ring)

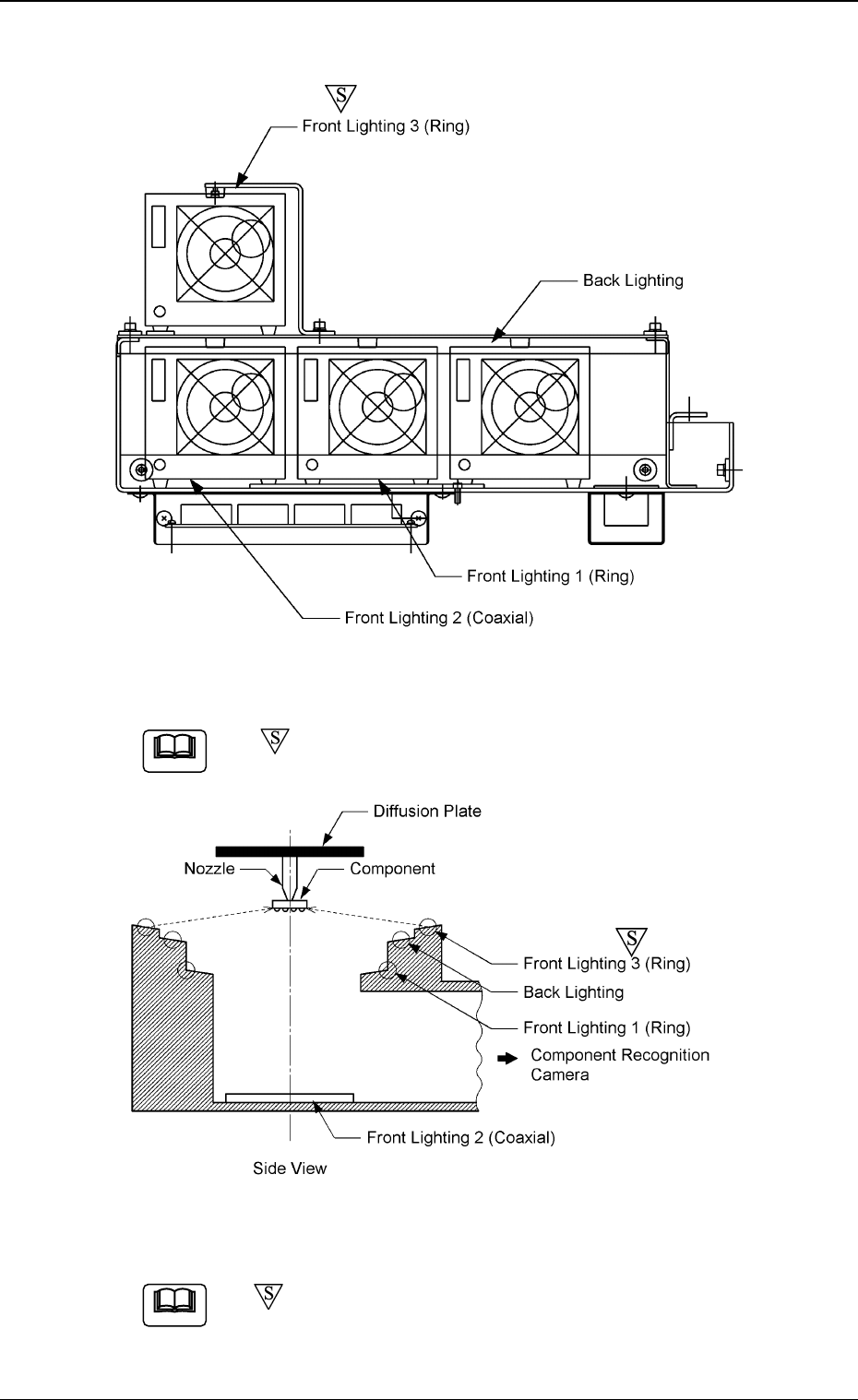

3. Rough View
Fig. 1 Light Source Device (TCM-X200)
The
-marked area is specially specified.
Fig. 2 Lighting Unit
The
-marked area shows the lighting (Front Lighting 3 Ring)
for BGA/CSP components.
3. Rough View
0202-002 6 AGQ01EGP
Note
Note

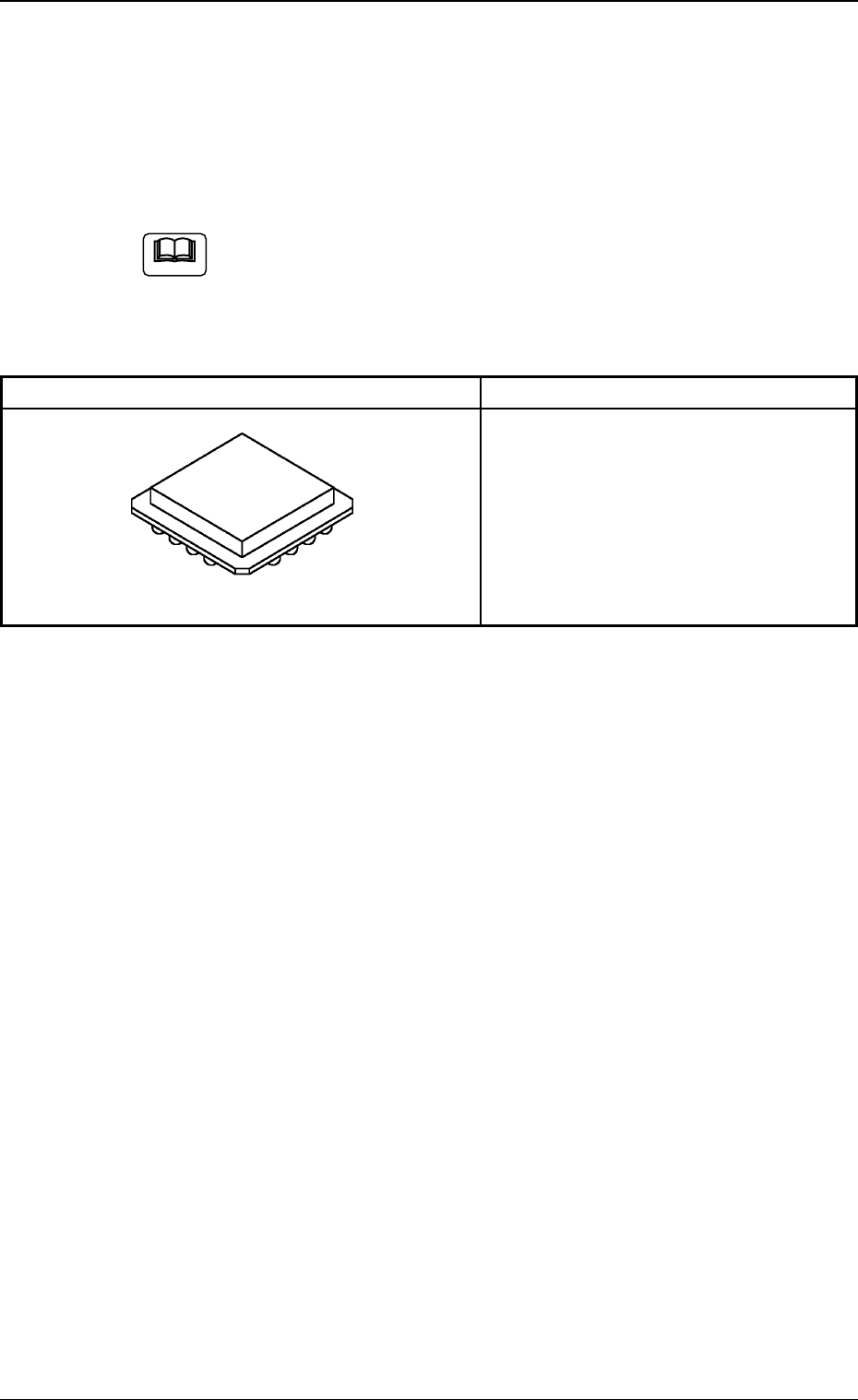

4. Classification of Component Shapes
Component shapes are classified to distinguish each component library
data group.
The BGA/CSP components are included in the “Area Array” group.
BGA: Ball Grid Array
CSP: Chip Scale Package
LGA: Land Grid Array
Table 2
Component Shape Applicable Components (Reference)
BGA/CSP • Grid Array Components
BGA, LGA, CSP, and other similar-
shaped components
Fig. 3
0202-002 7 AGQ01EGP
Note
4. Classification of Component Shapes
