SMT Software Engineeri ng Group IMOperationsYAMAHAMOTORCO. ,LTD. MD OC-SOFT50037 4/11 2. S tart fro m the Board Exp lorer of Y .FacT . It st arts by selecting [F ile] – [Progra m List Editor]. …
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50037
3/11
3. Setting
The Program List Editor requires the Automatic Program Change-Over. For details on this
setting, refer to the manual of “Automatic Program Change-Over”.
4. Usage
4.1 Start of the Program List Editor
The Program List Editor starts from the following two places.
1. Start from the machine
It starts by selecting [Monitor] – [Production] – [Auto Plan Change] – [Program List Viewer] –
[Program List Edit]. However, it is necessary to set the Automatic Program Change-Over be
effective at the machine.
Figure4.1.1 Start of the Program List Editor (machine)
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50037
4/11
2. Start from the Board Explorer of Y.FacT.
It starts by selecting [File] – [Program List Editor]. There is especially no condition to start.
Figure4.1.2 Start of the Program List Editor (Board Explorer)
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50037
5/11
4.2 Open and Save
The program list data is opened and saved by the [File] menu.

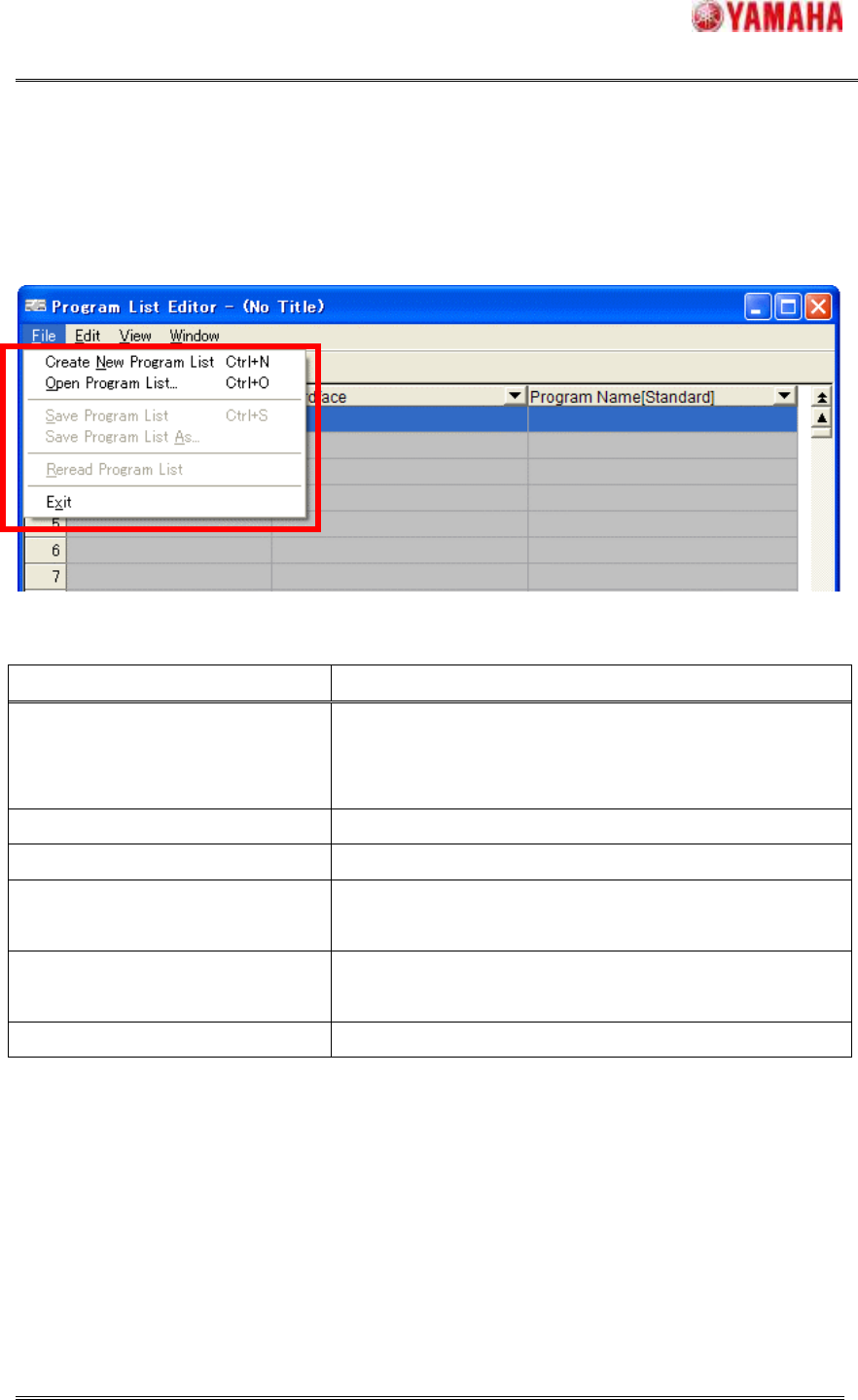

Figure4.2.1 Program List Editor Menu (File)
Table4.2.2 File Menu Items and Operation
Menu Items Operation
Create New Program List
Create new program list.
When there is the program list being edited now, it is
closed.
Open Program List Select the program list already registered and open it.
Save Program List Save the program list being edited now.
Save Program List As
Save the program list being edited now as another file
name.
Reread Program List
Reread the program list without saving it. The data
being edited is discarded.
Exit Exit the Program List Editor.
