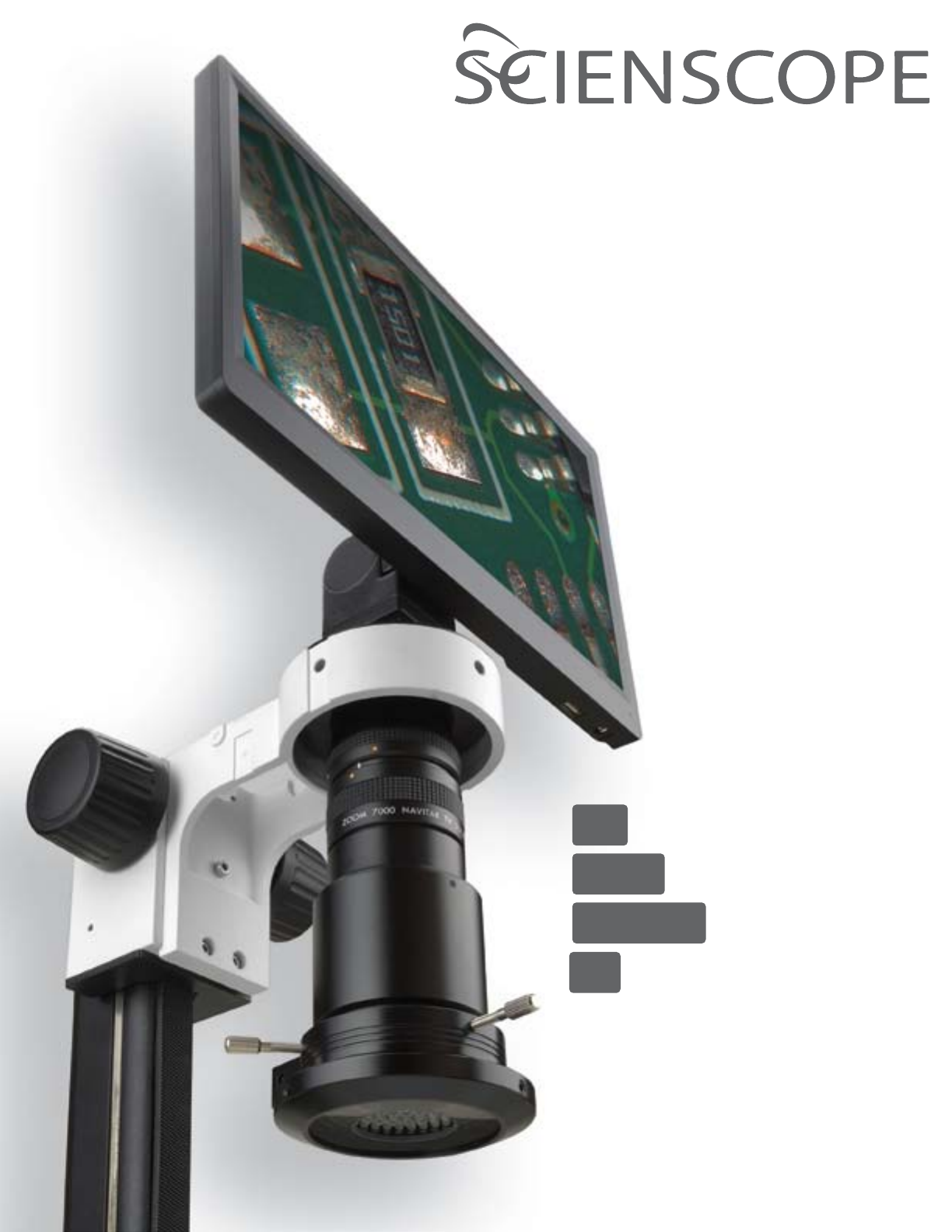

DIGITAL INSPECTION CATALOG 2016

MAC

3

Egro-Inspection

MZ

7A

Micro Inspection

SmartCam2

Desktop Measurement

MACRO

with Versa-Cam

2

3

Features

MAC3 System Specications and Optical Data

Electronics Medical Devices Precision Machining

Capable of a remarkably

large eld of view or IPC spec

magnication (Up to 60x) the

MAC3 system makes electronics

inspection a more comfortable

and ecient process. If you need

to document your work, images

or video can be captured with one

click of the mouse and stored to a

removable SD card. You can also

rework or repair in comfort with

an ergonomically placed monitor

(No eyepieces!) and easy to reach

zoom and focus controls.

Whether you are inspecting

catheters, stents, pacemakers

or surgical implements, medical

devices require 100% inspection

with the utmost possible scrutiny.

Inspect, document, and compare

with ease and condence. Use the

integrated side-by-side capture

to live image comparison feature

to be certain that what you are

seeing is a defect.

Precision machined parts are used

in a wide range of industries, from

aerospace and automotive ap-

plications, to watchmaking and

traditional manufacturing. Clear

and crisp live video with simplicity

and ergonomics in mind makes

the MAC3 system and camera an

irreplaceable instrument to assist

in any visual inspection task.

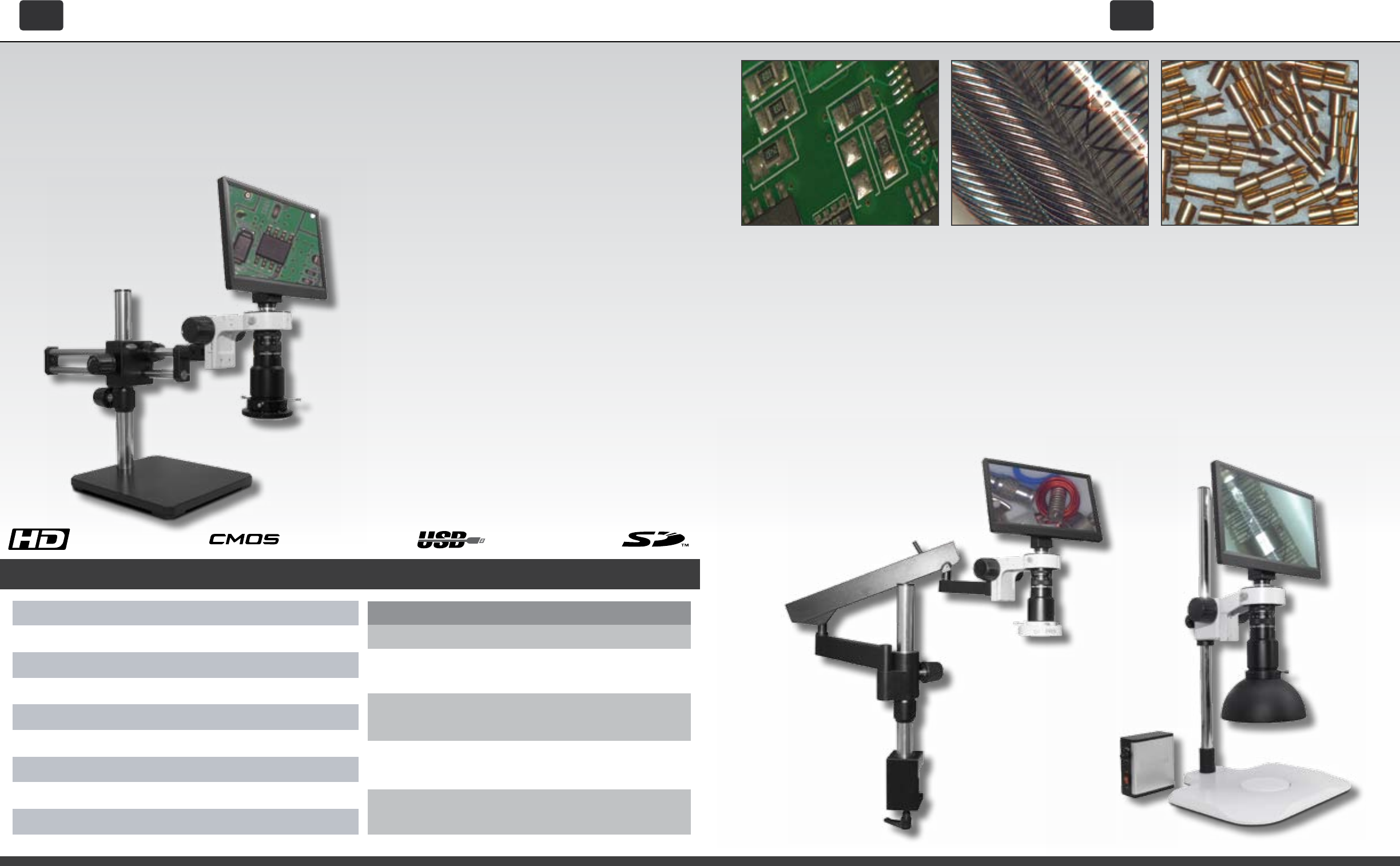

MAC3 HD w/

Post Stand

Option

MAC3 HD w/

Articulating

Arm

The new MAC3 Ergonomic Digital Inspection system is the next step in the evolution of

our powerful line of digital/video inspection systems. The revolutionary MAC3 series from

Scienscope merges the latest in HD video technology with the clearest macro video optics

to provide an easy to use ergonomic inspection system for your most fatiguing and dicult

to see quality processes.

Overview

Select from a

variety of stands

and lighting

for the system

that best ts

your needs. See

precongured

packages on

page 18.

Iris Control Manual

ManualFocus control

Camera Mount

C-Mount

Sensor Type ½.5” CMOS

Resoluon

1080p HD @ 60fps

Working Distance 4.5” to 12”

FOV

33.75mm to 4.75mm (Variable depending on WD)

Magniﬁcaon 7.75x to 60x (Variable depending on WD)

Opcs Macro Zoom

Working Distance

4.5” WD

7.75” WD

10” WD

MAG FOV

Low 7.75x 33.75mm

High 21.5x 11.8mm

Low 8.75x 30mm

High 24.5x 10.75mm

Low 9.75x 25.5mm

High 28x 9mm

Low 10x 25mm

High 30x 8.8mm

High 60x 4.75mm

8” WD

9” WD

• Integrated operating system

• Image and Video capture to SD or via USB

• Split-Screen live image/captured image compari-

son

• Image gallery and image/video preview and

playback

• Vertical and horizontal line generators with 8

presets

• Onscreen mouse-controlled video settings

• Digital image sharpening and frame averaging

• Auto White balance

• Auto shutter and brightness

• 12” LCD monitor

• 2 USB 2.0 ports

MAC

3 HD

Egro-Inspection System

MAC

3 HD

Egro-Inspection System

4

5

MAC

3 Camera

MAC

3 Camera

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

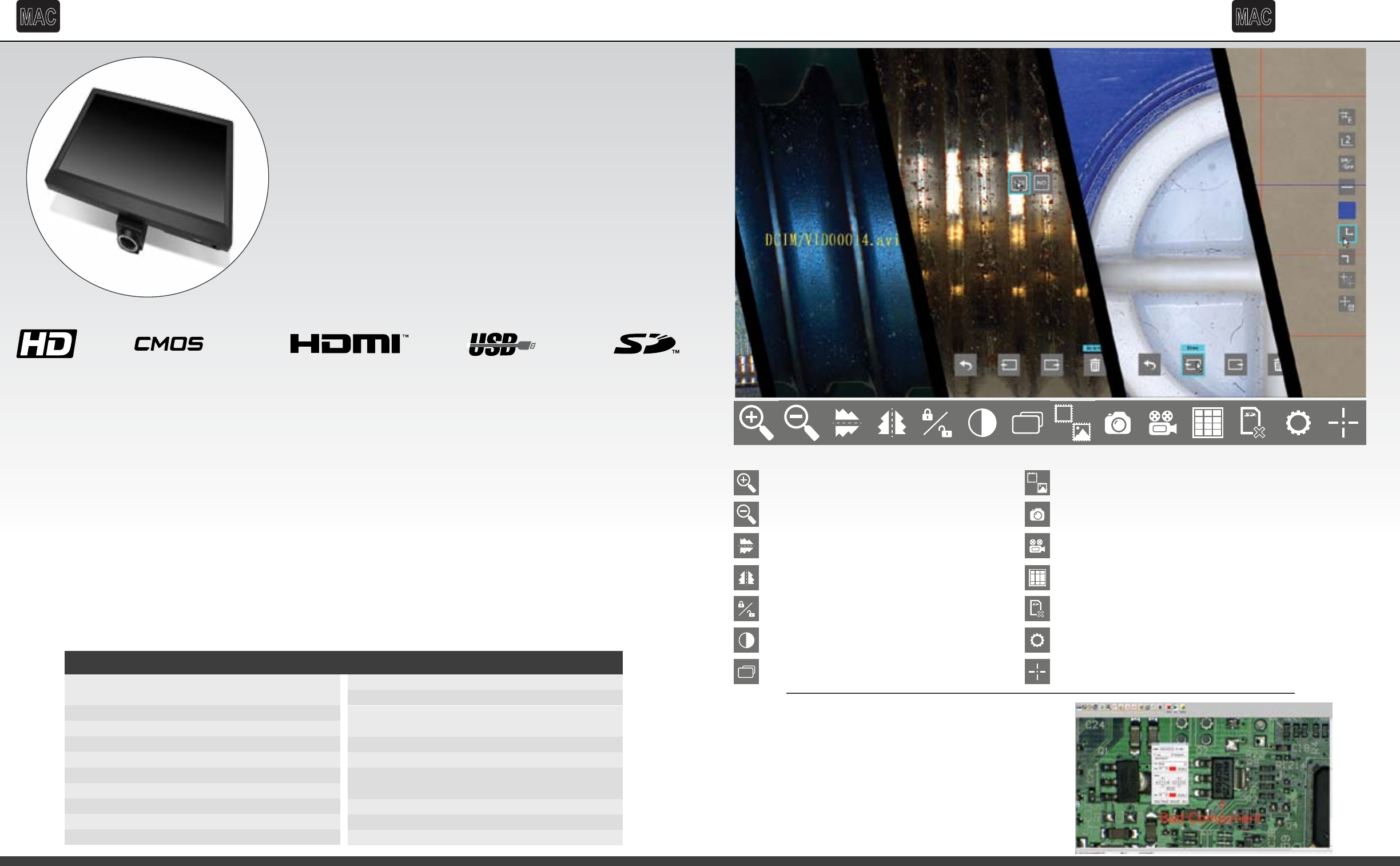

The New MAC3 Camera (Part number: CC-CMC-12H) from

Scienscope is an all-in-one camera with integrated monitor

and software. The MAC3 Camera can be used as a “live

image” HD (1080p) camera or as a USB 2.0 camera with USB

cable connected to any computer or Windows Tablet. The

camera can be connected to any microscope or optical

system with a C mount so you can instantly upgrade

your system. With monitor mounted directly to the camera

limited work space is never a problem and your ergonomics

will improve as well.

• 1080p (1920 x 1080)HD image @60fps

• Onscreen control bar and setting menu

• Image and video capture to SD card

• Split-screen live image/

Captured image comparison

(Picture in Picture)

• Image and video gallery/

Image and video review

• Vertical and horizontal line generator

• Save line generator congurations

• Wireless mouse support and control

• 2 Mega-pixel resolution

• Image and Video Capture with Windows 8 or

10 camera app

• Email, Save, or Print from software

• Image and video capture with included soft-

ware

• Annotation and drawing tools on live or cap-

tured images

• Send images directly to local le location or

network

• Time and date stamp images

• Includes DirectShow drivers

• Upgrade software with FOV measurement

tools

Overview

HD / HDMI Mode Features

USB 2.0 Mode Features

MAC3 Camera (CC-CMC-12H) | Specications

HDR

Intergrated Software With Convieniently Located Control Bar

HDR

Digital Zoom / Increase Magnification

Digital Zoom / Decrease Magnification

Flip Image Horizontal

Mirror Image Vertical

Freeze Image / Unfreeze Image Toggle

Color to Black and White Toggle

High Dynamic Range Toggle

Side-by-Side Live/Captured Image Comparison

Still Image Capture

Video Capture

Gallery / Image Preview / SD Card Management

Clear SD Card and SD Format

Settings Menu

Integrated Video Caliper and Cross-hair

With the included software you can use your USB port

to connect your camera directly to computer for large

volumes of image capture. The software is the perfect

solution for adding a simple and easy way to capture,

annotate and draw on images. Once the software is

installed you can also download eld of view measure-

ment tools for quick and easy measurement capability.

USB Software
