Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

The SmartCam 2 is the next generation of all-in-one Smart

Camera technology. Now with a more user friendly graphi-

cal interface performing manual eld of view measure-

ments is made even more simple…and all without the use

of a computer. The camera features a lite version of Linux

that runs an inspection and capture interface and a simple

calibration and measurement interface. Precongured sys-

tems are available (See pages 20 and 21) or you can con-

nect the camera to any C or CS mount optical system and

transform it into a powerful measurement tool.

• Includes 9 FOV Measurement tools, Diameter,

Radius, Circumference, Length, Angles, Area,

Center to Center, Arc, Average and Width.

• System measurement resolution at 140x up to

+/- 0.005”

• Easy calibration procedure

• English and metric units

• Export measurement data to included SD card

• Capture images with embedded measurement

data and tools

• Up to 20 calibration les

• Integrated digital gaging calipers

• Adjustable crosshairs with edge detection and

skew

• 1080p (1920 x 1080) HD @ 60fps

• Digital image enhancement

• Capture HD images and Record HD Video to

included SD card or USB stick

• Video enhancement and control tools

• Easy-to-use, intuitive software that is mouse and

keyboard controlled

• Image and video preview gallery

• Onscreen memory card eject button

• Connects to any C or CS mount coupler

Overview

Features

Versa-Cam (CC-HDMI-CD2) | Specications

SmartCam2

Use the newly upgraded

operating system and

digital image acquisition

screen to capture HD

images and video with

the click of a mouse. The

user can also control all

aspects of the image

in one conveniently

located menu. The

ability to set your

exposure, saturation,

image enhancement,

and auto white balance

can be changed to meet

your application. Use the

image gallery to review

and delete images

saved to your SD card.

Inspection Controls

Measurement Tools

The SmartCam 2

features all of the FOV

measurement tools

that stand-alone or

add-on PC field of view

measurement software

includes. Now you can

measure with ease

and without some

of the issues that a

computer requirement

can come with.

Measure diameters,

radius, circumference,

distance, angles, arcs,

widths, areas, and

polygons within your

camera and without a

computer.

Circle.

Find the Diameter, circumference,

and radius of a circle with three

clicks.

Angle.

Find and measure an angle with

four clicks.

Average

Width.

Find the average width of two

non-parallel or parallel lines with

four clicks.

Perpendicular

With Distance.

Find and measure the perpen-

dicular distance from a point to

a line.

Arc.

Find and measure an arc with

three clicks.

Point to

Point, Line.

Measure a distance or line with

two clicks.

Area.

Measure the X, Y, Diagonal and

area with two clicks.

Polygon.

Find the area of a polygon with

innite clicks.

Center to

Center.

Measure from the center of one

circle to the center of another.

14

15

Features

Our industry standard Micro video/digital inspection systems now feature the powerful

Versa-Cam. The Versa-Cam can be used as a “live image” HD (1080p) camera connected to

a monitor using an HDMI cable or as a USB 2.0 camera with USB cable connected to any

computer or Windows Tablet. Now the choice between live HD monitor inspection and

high resolution USB camera capture and annotation is made at the camera…not between

cameras.

Overview

Micro-Zoom Optical Specications

• System Mag. up to 1200x

• Integrated operating system

• Image and Video capture to SD or via USB

• Split-Screen live image/captured image

comparison

• Image gallery and image/video preview

and playback

• Vertical and horizontal line generators

with 8 presets

• Onscreen mouse-controlled video set-

tings

• Digital image sharpening and frame

averaging

• Auto White balance

• Auto shutter and brightness

• 23” LCD monitor

• 1 USB 2.0 ports

•

MICRO

with Versa-Cam Systems

High Magnication

Optical Accessories

Applications for Micro-Zoom

Capable of up to 1200x the Micro-

Zoom Systems with Versa-CAM

makes detailed inspection a

more comfortable and ecient

process. If you need to document

your work, images or video can

be captured with one click of the

mouse and stored to a removable

SD card. For high volumes of

documentation use the USB port

to capture images with your

computer.

The included Micro-Zoom lens

oers a wide variety of optical

accessories to suit your changing

inspection requirements. All

systems feature a detent zoom

lens for repeatable magnication

settings. Modular design allows

you to interchange couplers

and objective lenses to vary

magnication, FOV, and working

distance.

• Medical devices

• Research and Development

• Surface analysis

• Forensics

• Semiconductor

• Micro machining

• Materials analysis

• Quality Control

• Aerospace

MICRO

with Versa-Cam Systems

Auxiliary Lens

0.5X 0.67X 1X 2X

0.25X

Mag: 6.1X - 39.3X 8.2X - 52.6X 12.2X - 78.6X 24.4X - 157.2X

FOV (mm): 91.4 - 14.2 68.2-10.6 45.7-7.1 22.9-3.6

WD (mm): 302 302 302 302

0.5X

Mag: 12.2X - 78.6X 16.4X - 105.3X 24.4X - 157.2X 48.9X - 314.3X

FOV (mm): 45.7-7.1 34.1-5.3 22.8-3.6 11.4-1.7

WD (mm): 176 176 176 176

0.75X

Mag: 18.3X - 117.9X 24.6X - 157.9X 36.7X - 235.7X 73.3X - 471.5X

FOV (mm): 30.5-4.5 22.7-3.5 15.2-2.4 7.6-1.2

WD (mm): 117 117 117 117

1X

Mag: 24.4X - 157.2X 32.8X - 210.6X 48.9X - 314.3X 97.8X - 628.7X

FOV (mm): 22.8-3.6 17.1-2.7 11.4-1.8 57.-0.9

WD (mm): 96 96 96 96

2X

Mag: 48.9X - 314.3X 65.5X - 421.2X 97.8X - 628.7X 195.6X - 1257.3X

FOV (mm): 11.4-1.8 8.5-1.3 5.7-0.9 2.8-0.4

WD (mm): 35 35 35 35

Video Couplers

*Optical specications based on 23” monitor.

Contact us for special congurations.

16

17

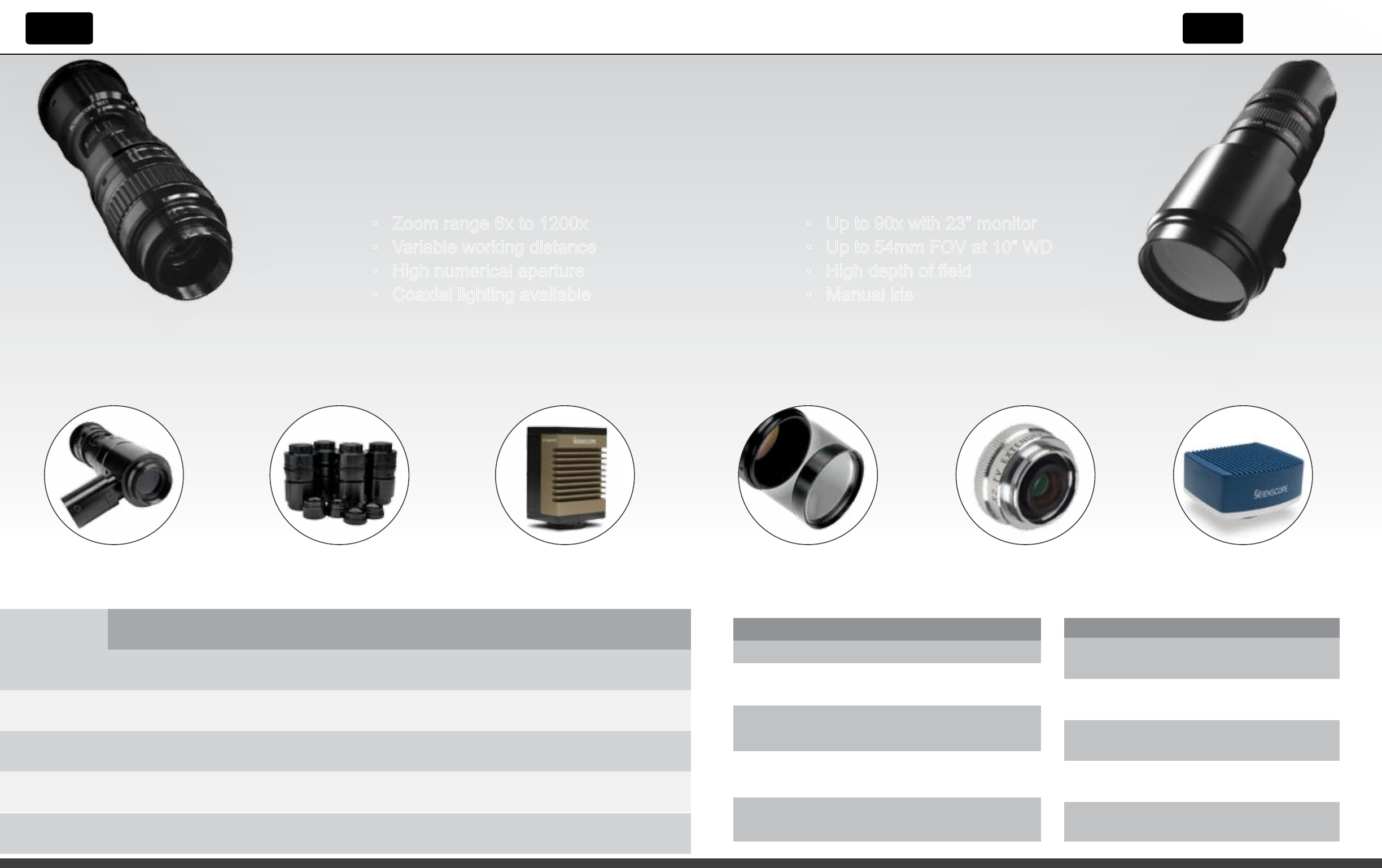

• Zoom range 6x to 1200x

• Variable working distance

• High numerical aperture

• Coaxial lighting available

Scienscope’s MZ7A Micro-Zoom lens is a modular zoom lens sys-

tem that can be congured to t nearly any application. Choose

from a diverse assortment of video couplers, accessory optics,

and a coaxial lighting option. A magnication range of 6x-1200x

offers incredible versatility, high contrast images and vivid colors.

Features

Overview

Detented zoom for repeatable magnication settings and built-in internal focus module are perfect

for FOV measurement applications as well as general inspection. Modular design allows you to inter-

change couplers and objective lenses to vary magnication, eld of view, and working distance.

Clarity and High Magnication

MZ7A Micro Zoom Video Specications Based On 23” Monitor

Macro Zoom Specications Based On 12” Monitor Macro Zoom Specications Based On 23” Monitor

The Zoom 7000 is a close-focusing macro video lens which is

versatile and specically designed to be used in applications

where objects over 1” in diameter must be imaged. It offers un-

surpassed clarity and parfocal zoom capabilities and is com-

patible with cameras 2/3” or smaller.

Overview

Features

The Navitar® Zoom 7000 is ideal for quality assurance, biomedical imaging, or assembly applications

where an easy-to-view, sharp and true-to-life magnied image of your product can mean the dierence

between a shippable, top-quality end product and a costly manufacturing failure.

Clarity and Wide Field of View

Largest Field of View Double Magnication

• Up to 90x with 23” monitor

• Up to 54mm FOV at 10” WD

• High depth of eld

• Manual iris

Perfect for Versa-Cam

Working Distance

4.5” WD

7.75” WD

10” WD

MAG FOV

Low 7.75x 33.75mm

High 21.5x 11.8mm

Low 8.75x 30mm

High 24.5x 10.75mm

Low 9.75x 25.5mm

High 28x 9mm

Low 10x 25mm

High 30x 8.8mm

High 60x 4.75mm

8” WD

9” WD

Working Distance

5.5” WD

7” WD

8” WD

9” WD

10” WD

MAG FOV

Low 9x 54mm

High 42x 12mm

Low 10x 48mm

High 47x 10.5mm

Low 11.5x 43mm

High 55x 9.5mm

Low 13x 34mm

Low 20x 23mm

High 64x 8mm

High 90x 5mm

MZ7A

Micro Zoom

MAC

Macro Zoom

Auxiliary Lens

0.5X 0.67X 1X 2X

0.25X

Mag: 6.1X - 39.3X 8.2X - 52.6X 12.2X - 78.6X 24.4X - 157.2X

FOV (mm): 91.4 - 14.2 68.2-10.6 45.7-7.1 22.9-3.6

WD (mm): 302 302 302 302

0.5X

Mag: 12.2X - 78.6X 16.4X - 105.3X 24.4X - 157.2X 48.9X - 314.3X

FOV (mm): 45.7-7.1 34.1-5.3 22.8-3.6 11.4-1.7

WD (mm): 176 176 176 176

0.75X

Mag: 18.3X - 117.9X 24.6X - 157.9X 36.7X - 235.7X 73.3X - 471.5X

FOV (mm): 30.5-4.5 22.7-3.5 15.2-2.4 7.6-1.2

WD (mm): 117 117 117 117

1X

Mag: 24.4X - 157.2X 32.8X - 210.6X 48.9X - 314.3X 97.8X - 628.7X

FOV (mm): 22.8-3.6 17.1-2.7 11.4-1.8 57.-0.9

WD (mm): 96 96 96 96

2X

Mag: 48.9X - 314.3X 65.5X - 421.2X 97.8X - 628.7X 195.6X - 1257.3X

FOV (mm): 11.4-1.8 8.5-1.3 5.7-0.9 2.8-0.4

WD (mm): 35 35 35 35

Video Couplers

Perfect for SmartCam2Flexible CongurationCoaxial Light Module
