Features

Measure

Inspection and

Documentation

Endless Applications

Measure your critical parts with

ease and without a computer us-

ing the systems integrated eld of

view measurement software. With

nine powerful and simple tools

built in to the camera itself you

will be able to quickly verify that

your manufacturing process can

move along without the delays of

more complicated systems. The

SmartCam 2 makes It simple…set

up, calibrate, and measure.

SmartCam 2 systems include pow-

erful Micro or Macro zoom op-

tics. Inspection and image/video

capture of tiny parts and features

using the standard Micro optics

(Up to 1200x with optional acces-

sories) produces stunning 1080p

images with impressive detail.

Never miss a microscopic defect

and capture small issues before

they become big problems.

• Medical devices

• Automotive

• Defense

• Electronics and contract

• Semiconductor

• Machining and micro machining

• Materials analysis

• Plastics

• Aerospace

• Micro-stamping

The SmartCam 2 is a camera with an integrated computer running a lite version of Linux with

a eld of view measurement suite built-in! Now you can inspect and measure right on your

desktop without the use of a computer. All of your measurements and image capture take

place within the camera itself with the ability to capture and export your measurement data

directly to the included SD card. The systems also include the new horizontal zoom control

Micro-Zoom lens with calibration feedback to the camera so changing between preset

calibrations is just the twist of a knob.

Overview

Select from a

variety of stands

and lighting

for the system

that best ts

your needs. See

precongured

packages on

pages 20 and 21.

Ports 2 USB 2.0, SD, and HDMI out

6 Detented presetsCalibraon Method

Camera Mount

C-Mount

Storage 8GB SD

Resoluon

1080p HD @ 60fps

Working Distance 3.8”

System measurement Resoluon @ 140x up to +/- 0.005”

Magniﬁcaon 32x to 203x

Opcs Micro or Macro Zoom

All Systems Include

• HD SmartCam 2 with integrated

software

• Micro lens and 0.5x coupler or Macro

Zoom lens

• Adjustable LED ring light

• 23” Color HD LCD monitor

• Glass calibration master (1mm and

0.1mm targets)

• 8GB SD card, Mouse, and HDMI cable

• Choice of dual illuminated track

stand or dual arm boom stand.

SmartCam 2 System Specications

SmartCam2

Systems

SmartCam2

Systems

SmartCam 2 systems are used in

• The SmartCam 2 is an all-in-one HD camera, Com-

puter, and Field of View Software Suite.

• Includes 9 FOV Measurement tools, Diameter, Ra-

dius, Circumference, Length, Angles, Area, Center

to Center, Arc, and Average

• System measurement resolution at 140x up to

+/- 0.005”

• Capture images and Record HD Video to included

SD card

• Export measurement data to included SD card

• Video enhancement and control tools

• Integrated digital gaging calipers

• Easy-to-use, intuitive software that is mouse and

keyboard controlled

• Your choice of dual arm boom stand or lab style

track stand with built-in transmitted and reected

LED light

• Choice of diused LED ring light or polarized LED

ring light

12

13

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

The SmartCam 2 is the next generation of all-in-one Smart

Camera technology. Now with a more user friendly graphi-

cal interface performing manual eld of view measure-

ments is made even more simple…and all without the use

of a computer. The camera features a lite version of Linux

that runs an inspection and capture interface and a simple

calibration and measurement interface. Precongured sys-

tems are available (See pages 20 and 21) or you can con-

nect the camera to any C or CS mount optical system and

transform it into a powerful measurement tool.

• Includes 9 FOV Measurement tools, Diameter,

Radius, Circumference, Length, Angles, Area,

Center to Center, Arc, Average and Width.

• System measurement resolution at 140x up to

+/- 0.005”

• Easy calibration procedure

• English and metric units

• Export measurement data to included SD card

• Capture images with embedded measurement

data and tools

• Up to 20 calibration les

• Integrated digital gaging calipers

• Adjustable crosshairs with edge detection and

skew

• 1080p (1920 x 1080) HD @ 60fps

• Digital image enhancement

• Capture HD images and Record HD Video to

included SD card or USB stick

• Video enhancement and control tools

• Easy-to-use, intuitive software that is mouse and

keyboard controlled

• Image and video preview gallery

• Onscreen memory card eject button

• Connects to any C or CS mount coupler

Overview

Features

Versa-Cam (CC-HDMI-CD2) | Specications

SmartCam2

Use the newly upgraded

operating system and

digital image acquisition

screen to capture HD

images and video with

the click of a mouse. The

user can also control all

aspects of the image

in one conveniently

located menu. The

ability to set your

exposure, saturation,

image enhancement,

and auto white balance

can be changed to meet

your application. Use the

image gallery to review

and delete images

saved to your SD card.

Inspection Controls

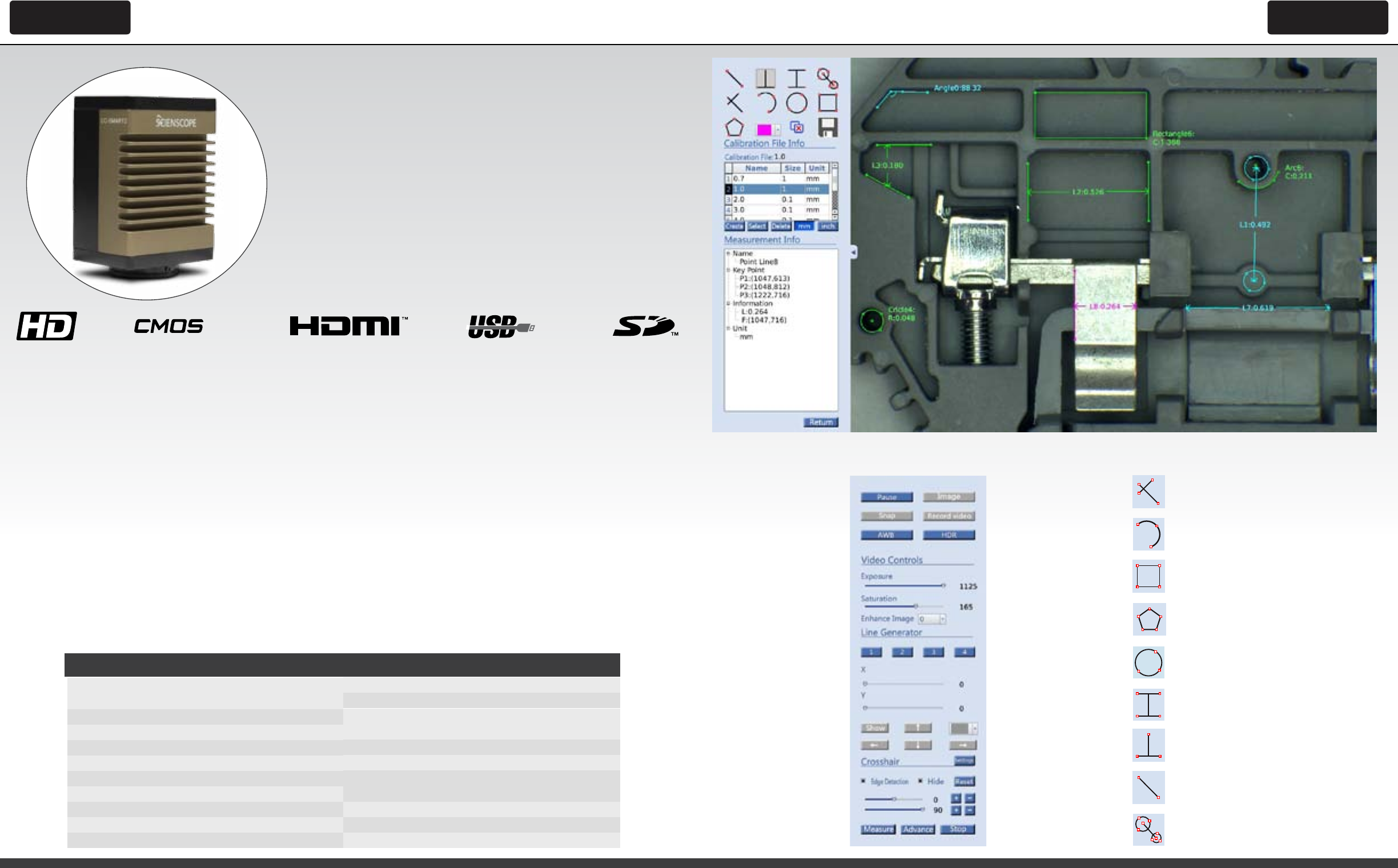

Measurement Tools

The SmartCam 2

features all of the FOV

measurement tools

that stand-alone or

add-on PC field of view

measurement software

includes. Now you can

measure with ease

and without some

of the issues that a

computer requirement

can come with.

Measure diameters,

radius, circumference,

distance, angles, arcs,

widths, areas, and

polygons within your

camera and without a

computer.

Circle.

Find the Diameter, circumference,

and radius of a circle with three

clicks.

Angle.

Find and measure an angle with

four clicks.

Average

Width.

Find the average width of two

non-parallel or parallel lines with

four clicks.

Perpendicular

With Distance.

Find and measure the perpen-

dicular distance from a point to

a line.

Arc.

Find and measure an arc with

three clicks.

Point to

Point, Line.

Measure a distance or line with

two clicks.

Area.

Measure the X, Y, Diagonal and

area with two clicks.

Polygon.

Find the area of a polygon with

innite clicks.

Center to

Center.

Measure from the center of one

circle to the center of another.

14

15

Features

Our industry standard Micro video/digital inspection systems now feature the powerful

Versa-Cam. The Versa-Cam can be used as a “live image” HD (1080p) camera connected to

a monitor using an HDMI cable or as a USB 2.0 camera with USB cable connected to any

computer or Windows Tablet. Now the choice between live HD monitor inspection and

high resolution USB camera capture and annotation is made at the camera…not between

cameras.

Overview

Micro-Zoom Optical Specications

• System Mag. up to 1200x

• Integrated operating system

• Image and Video capture to SD or via USB

• Split-Screen live image/captured image

comparison

• Image gallery and image/video preview

and playback

• Vertical and horizontal line generators

with 8 presets

• Onscreen mouse-controlled video set-

tings

• Digital image sharpening and frame

averaging

• Auto White balance

• Auto shutter and brightness

• 23” LCD monitor

• 1 USB 2.0 ports

•

MICRO

with Versa-Cam Systems

High Magnication

Optical Accessories

Applications for Micro-Zoom

Capable of up to 1200x the Micro-

Zoom Systems with Versa-CAM

makes detailed inspection a

more comfortable and ecient

process. If you need to document

your work, images or video can

be captured with one click of the

mouse and stored to a removable

SD card. For high volumes of

documentation use the USB port

to capture images with your

computer.

The included Micro-Zoom lens

oers a wide variety of optical

accessories to suit your changing

inspection requirements. All

systems feature a detent zoom

lens for repeatable magnication

settings. Modular design allows

you to interchange couplers

and objective lenses to vary

magnication, FOV, and working

distance.

• Medical devices

• Research and Development

• Surface analysis

• Forensics

• Semiconductor

• Micro machining

• Materials analysis

• Quality Control

• Aerospace

MICRO

with Versa-Cam Systems

Auxiliary Lens

0.5X 0.67X 1X 2X

0.25X

Mag: 6.1X - 39.3X 8.2X - 52.6X 12.2X - 78.6X 24.4X - 157.2X

FOV (mm): 91.4 - 14.2 68.2-10.6 45.7-7.1 22.9-3.6

WD (mm): 302 302 302 302

0.5X

Mag: 12.2X - 78.6X 16.4X - 105.3X 24.4X - 157.2X 48.9X - 314.3X

FOV (mm): 45.7-7.1 34.1-5.3 22.8-3.6 11.4-1.7

WD (mm): 176 176 176 176

0.75X

Mag: 18.3X - 117.9X 24.6X - 157.9X 36.7X - 235.7X 73.3X - 471.5X

FOV (mm): 30.5-4.5 22.7-3.5 15.2-2.4 7.6-1.2

WD (mm): 117 117 117 117

1X

Mag: 24.4X - 157.2X 32.8X - 210.6X 48.9X - 314.3X 97.8X - 628.7X

FOV (mm): 22.8-3.6 17.1-2.7 11.4-1.8 57.-0.9

WD (mm): 96 96 96 96

2X

Mag: 48.9X - 314.3X 65.5X - 421.2X 97.8X - 628.7X 195.6X - 1257.3X

FOV (mm): 11.4-1.8 8.5-1.3 5.7-0.9 2.8-0.4

WD (mm): 35 35 35 35

Video Couplers

*Optical specications based on 23” monitor.

Contact us for special congurations.
