4

5

MAC

3 Camera

MAC

3 Camera

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

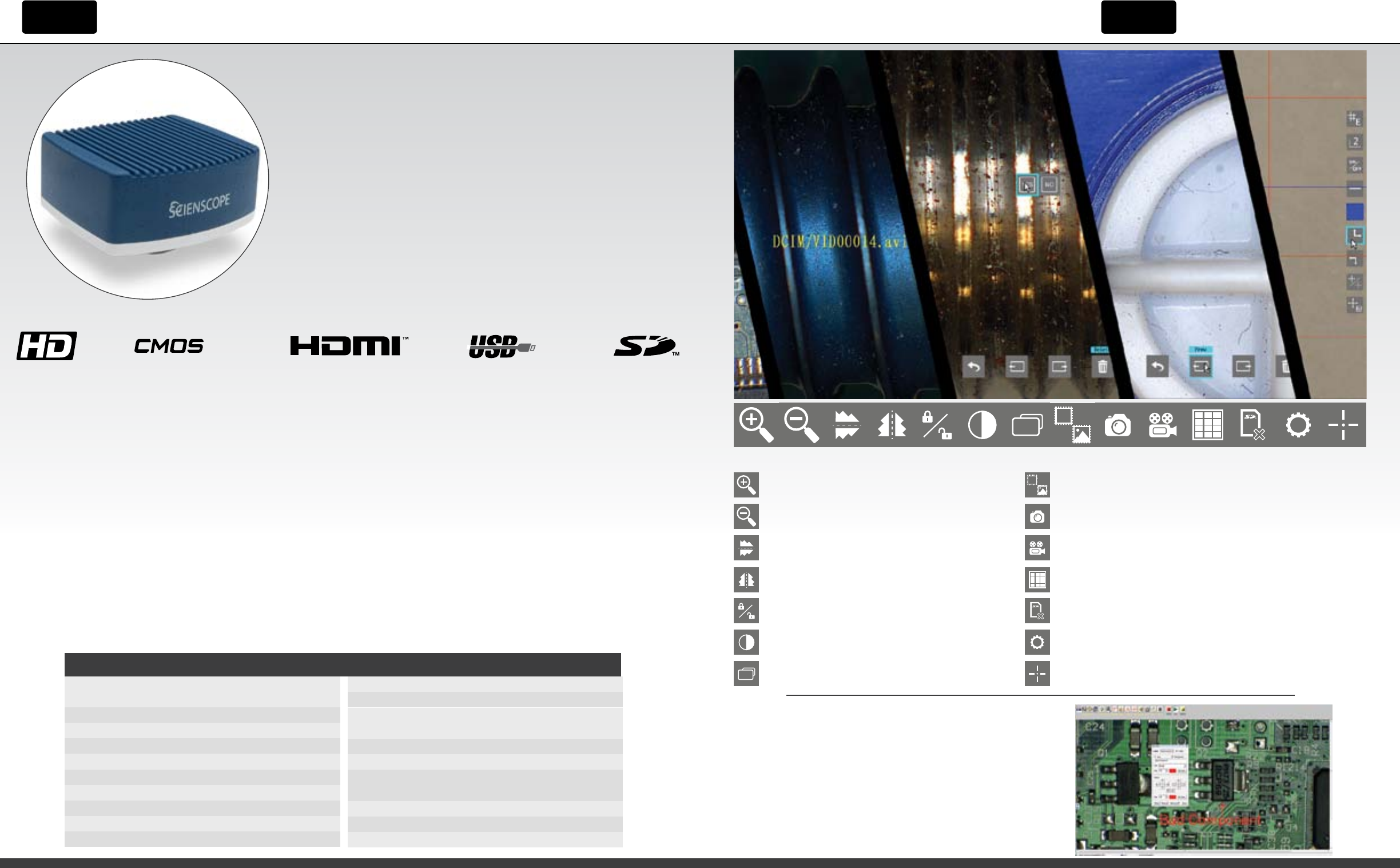

The New MAC3 Camera (Part number: CC-CMC-12H) from

Scienscope is an all-in-one camera with integrated monitor

and software. The MAC3 Camera can be used as a “live

image” HD (1080p) camera or as a USB 2.0 camera with USB

cable connected to any computer or Windows Tablet. The

camera can be connected to any microscope or optical

system with a C mount so you can instantly upgrade

your system. With monitor mounted directly to the camera

limited work space is never a problem and your ergonomics

will improve as well.

• 1080p (1920 x 1080)HD image @60fps

• Onscreen control bar and setting menu

• Image and video capture to SD card

• Split-screen live image/

Captured image comparison

(Picture in Picture)

• Image and video gallery/

Image and video review

• Vertical and horizontal line generator

• Save line generator congurations

• Wireless mouse support and control

• 2 Mega-pixel resolution

• Image and Video Capture with Windows 8 or

10 camera app

• Email, Save, or Print from software

• Image and video capture with included soft-

ware

• Annotation and drawing tools on live or cap-

tured images

• Send images directly to local le location or

network

• Time and date stamp images

• Includes DirectShow drivers

• Upgrade software with FOV measurement

tools

Overview

HD / HDMI Mode Features

USB 2.0 Mode Features

MAC3 Camera (CC-CMC-12H) | Specications

HDR

Intergrated Software With Convieniently Located Control Bar

HDR

Digital Zoom / Increase Magnification

Digital Zoom / Decrease Magnification

Flip Image Horizontal

Mirror Image Vertical

Freeze Image / Unfreeze Image Toggle

Color to Black and White Toggle

High Dynamic Range Toggle

Side-by-Side Live/Captured Image Comparison

Still Image Capture

Video Capture

Gallery / Image Preview / SD Card Management

Clear SD Card and SD Format

Settings Menu

Integrated Video Caliper and Cross-hair

With the included software you can use your USB port

to connect your camera directly to computer for large

volumes of image capture. The software is the perfect

solution for adding a simple and easy way to capture,

annotate and draw on images. Once the software is

installed you can also download eld of view measure-

ment tools for quick and easy measurement capability.

USB Software

6

7

Features

MAC3 System Specications and Optical Data

MAC3 HD w/ Post

Stand Option

MAC3 HD w/

Articulating Arm

Our industry standard Macro video/digital inspection systems now feature the powerful Versa-

Cam. The Versa-Cam can be used as a “live image” HD (1080p) camera connected to a monitor

using an HDMI cable or as a USB 2.0 camera with USB cable connected to any computer or

Windows Tablet. Now the choice between live HD monitor inspection and high resolution

USB camera capture and annotation is made at the camera…not between cameras.

Electronics

Capable of a remarkably large eld

of view or higher magnication

(Up to 90x) the Macro Systems

with Versa-CAM makes electronics

inspection a more comfortable

and ecient process. If you need

to document your work, images

or video can be captured with

one click of the mouse and stored

to a removable SD card. For high

volumes of documentation use

the USB port to capture images

with your computer.

Medical Devices

Whether you are inspecting

catheters, stents, pacemakers

or surgical implements, medical

devices require 100% inspection

with the utmost possible scrutiny.

Inspect, document, and compare

with ease and condence. Use the

integrated side-by-side capture

to live image comparison feature

to be certain that what you are

seeing is a defect.

Macro Documentation

Macro photography is extreme

close-up photography, usually

of very small subjects, in which

the size of the subject in the

photograph is greater than

life size. The Macro Systems

with Versa-CAM makes macro

biological or industrial image

capture and observation simple.

With easy to control optics,

lighting, and camera functions

macro photography for education

or industry is a snap.

Overview

Iris Control Manual

ManualFocus control

Camera Mount

C-Mount

Sensor Type ½.5” CMOS

Resoluon

1080p HD @ 60fps

Working Distance 4.5” to 12”

FOV 33.75mm to 4.75mm (Variable depending on WD)

Magniﬁcaon 7.75x to 60x (Variable depending on WD)

Opcs Macro Zoom

Working Distance

5.5” WD

7” WD

8” WD

9” WD

10” WD

MAG FOV

Low 9x 54mm

High 42x 12mm

Low 10x 48mm

High 47x 10.5mm

Low 11.5x 43mm

High 55x 9.5mm

Low 13x 34mm

Low 20x 23mm

High 64x 8mm

High 90x 5mm

Select from a

variety of stands

and lighting

for the system

that best ts

your needs. See

precongured

packages on

page 19.

• Integrated operating system

• Image and Video capture to SD or via USB

• Split-Screen live image/captured image comparison

• Image gallery and image/video preview and playback

• Vertical and horizontal line generators with 8 presets

• Onscreen mouse-controlled video settings

• Digital image sharpening and frame averaging

• Auto White balance

• Auto shutter and brightness

• 23” LCD monitor

• 1 USB 2.0 ports

MACRO

with Versa-Cam Systems

MACRO

with Versa-Cam Systems

8

9

The new Versa-Cam from Scienscope is the next step

in the evolution of our powerful line of digital HD cam-

eras for microscopy. The Versa-Cam can be used as

a “live image” HD (1080p) camera connected to a

monitor using an HDMI cable or as a USB 2.0 camera

with USB cable connected to any computer or Windows

Tablet.

• 1080p (1920 x 1080)HD image @60fps

• Onscreen control bar and setting menu

• Image and video capture to SD card

• Split-screen live image/

Captured image comparison

(Picture in Picture)

• Image and video gallery/

Image and video review

• Vertical and horizontal line generator

• Save line generator congurations

• Wireless mouse support and control

• 2 Mega-pixel resolution

• Image and Video Capture with Windows 8 or

10 camera app

• Email, Save, or Print from software

• Image and video capture with included soft-

ware

• Annotation and drawing tools on live or cap-

tured images

• Send images directly to local le location or

network

• Time and date stamp images

• Includes DirectShow drivers

• Upgrade software with FOV measurement

tools

Now the choice between live HD monitor inspection

and high resolution USB camera capture and annota-

tion is made at the camera…not between cameras.

Overview

HD / HDMI Mode Features

USB 2.0 Mode Features

Versa-Cam (CC-HDMI-CD2) | Specications

-

Cam

HD 1080p/USB 2.0

VERSA

-

Cam

HD 1080p/USB 2.0

VERSA

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum/Plastic

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

Edge enhancement: Yes

Color R/G/B adjustable

OSD: Yes, in HDMI mode

Brightness control Automatic/Manual/Continuous

White balance Automatic/Manual/Continuous

Housing Aluminum

Definition More than 1200lines (the highest level)

Frame rate 60fps

Effective pixels 1920 x 1080

Image sensor 1/2.86 Inch Panasonic

FULL HD 2.0 Megapixel

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

USB USB 2.0

HDMI 1080p

Noise Reduction Support

Horizontal/Vertical Lines Multi-color, two lines for each

(Position can be adjusted)

Cross hair Multi-color, small or large

SD card slot Support up to 32GB SD card

Edge enhancements Yes

/Sharpening

HDR Yes

Freeze image Yes

HDR

Intergrated Software With Convieniently Located Control Bar

HDR

Digital Zoom / Increase Magnification

Digital Zoom / Decrease Magnification

Flip Image Horizontal

Mirror Image Vertical

Freeze Image / Unfreeze Image Toggle

Color to Black and White Toggle

High Dynamic Range Toggle

Side-by-Side Live/Captured Image Comparison

Still Image Capture

Video Capture

Gallery / Image Preview / SD Card Management

Clear SD Card and SD Format

Settings Menu

Integrated Video Caliper and Crosshair

With the included software you can use your USB port

to connect your camera directly to computer for large

volumes of image capture. The software is the perfect

solution for adding a simple and easy way to capture,

annotate and draw on images. Once the software is

installed you can also download eld of view measure-

ment tools for quick and easy measurement capability.

USB Software
