16 17 • Zoom range 6x to 1200x • V ariable working distance • High numerical aperture • Coaxial lighting available Scienscope’s MZ7A Micro-Zoom lens is a modular zoom lens sys- tem that can be congured to t nearly any …
14
15
Features
Our industry standard Micro video/digital inspection systems now feature the powerful
Versa-Cam. The Versa-Cam can be used as a “live image” HD (1080p) camera connected to
a monitor using an HDMI cable or as a USB 2.0 camera with USB cable connected to any
computer or Windows Tablet. Now the choice between live HD monitor inspection and
high resolution USB camera capture and annotation is made at the camera…not between
cameras.
Overview
Micro-Zoom Optical Specications
• System Mag. up to 1200x
• Integrated operating system
• Image and Video capture to SD or via USB
• Split-Screen live image/captured image
comparison
• Image gallery and image/video preview
and playback
• Vertical and horizontal line generators
with 8 presets
• Onscreen mouse-controlled video set-
tings
• Digital image sharpening and frame
averaging
• Auto White balance
• Auto shutter and brightness
• 23” LCD monitor
• 1 USB 2.0 ports
•
MICRO
with Versa-Cam Systems
High Magnication
Optical Accessories
Applications for Micro-Zoom
Capable of up to 1200x the Micro-
Zoom Systems with Versa-CAM
makes detailed inspection a
more comfortable and ecient
process. If you need to document
your work, images or video can
be captured with one click of the
mouse and stored to a removable
SD card. For high volumes of
documentation use the USB port
to capture images with your
computer.
The included Micro-Zoom lens
oers a wide variety of optical
accessories to suit your changing
inspection requirements. All
systems feature a detent zoom
lens for repeatable magnication
settings. Modular design allows
you to interchange couplers
and objective lenses to vary
magnication, FOV, and working
distance.
• Medical devices
• Research and Development
• Surface analysis
• Forensics
• Semiconductor
• Micro machining
• Materials analysis
• Quality Control
• Aerospace
MICRO
with Versa-Cam Systems
Auxiliary Lens
0.5X 0.67X 1X 2X
0.25X
Mag: 6.1X - 39.3X 8.2X - 52.6X 12.2X - 78.6X 24.4X - 157.2X
FOV (mm): 91.4 - 14.2 68.2-10.6 45.7-7.1 22.9-3.6
WD (mm): 302 302 302 302
0.5X
Mag: 12.2X - 78.6X 16.4X - 105.3X 24.4X - 157.2X 48.9X - 314.3X
FOV (mm): 45.7-7.1 34.1-5.3 22.8-3.6 11.4-1.7
WD (mm): 176 176 176 176
0.75X
Mag: 18.3X - 117.9X 24.6X - 157.9X 36.7X - 235.7X 73.3X - 471.5X
FOV (mm): 30.5-4.5 22.7-3.5 15.2-2.4 7.6-1.2
WD (mm): 117 117 117 117
1X
Mag: 24.4X - 157.2X 32.8X - 210.6X 48.9X - 314.3X 97.8X - 628.7X
FOV (mm): 22.8-3.6 17.1-2.7 11.4-1.8 57.-0.9
WD (mm): 96 96 96 96
2X
Mag: 48.9X - 314.3X 65.5X - 421.2X 97.8X - 628.7X 195.6X - 1257.3X
FOV (mm): 11.4-1.8 8.5-1.3 5.7-0.9 2.8-0.4
WD (mm): 35 35 35 35
Video Couplers
*Optical specications based on 23” monitor.
Contact us for special congurations.
16
17
• Zoom range 6x to 1200x
• Variable working distance
• High numerical aperture
• Coaxial lighting available
Scienscope’s MZ7A Micro-Zoom lens is a modular zoom lens sys-
tem that can be congured to t nearly any application. Choose
from a diverse assortment of video couplers, accessory optics,
and a coaxial lighting option. A magnication range of 6x-1200x
offers incredible versatility, high contrast images and vivid colors.
Features
Overview
Detented zoom for repeatable magnication settings and built-in internal focus module are perfect
for FOV measurement applications as well as general inspection. Modular design allows you to inter-
change couplers and objective lenses to vary magnication, eld of view, and working distance.
Clarity and High Magnication
MZ7A Micro Zoom Video Specications Based On 23” Monitor
Macro Zoom Specications Based On 12” Monitor Macro Zoom Specications Based On 23” Monitor
The Zoom 7000 is a close-focusing macro video lens which is
versatile and specically designed to be used in applications
where objects over 1” in diameter must be imaged. It offers un-
surpassed clarity and parfocal zoom capabilities and is com-
patible with cameras 2/3” or smaller.
Overview
Features
The Navitar® Zoom 7000 is ideal for quality assurance, biomedical imaging, or assembly applications
where an easy-to-view, sharp and true-to-life magnied image of your product can mean the dierence
between a shippable, top-quality end product and a costly manufacturing failure.
Clarity and Wide Field of View
Largest Field of View Double Magnication
• Up to 90x with 23” monitor
• Up to 54mm FOV at 10” WD
• High depth of eld
• Manual iris
Perfect for Versa-Cam
Working Distance
4.5” WD
7.75” WD
10” WD
MAG FOV
Low 7.75x 33.75mm
High 21.5x 11.8mm
Low 8.75x 30mm
High 24.5x 10.75mm
Low 9.75x 25.5mm
High 28x 9mm
Low 10x 25mm
High 30x 8.8mm
High 60x 4.75mm
8” WD
9” WD
Working Distance
5.5” WD
7” WD
8” WD
9” WD
10” WD
MAG FOV
Low 9x 54mm
High 42x 12mm
Low 10x 48mm
High 47x 10.5mm
Low 11.5x 43mm
High 55x 9.5mm
Low 13x 34mm
Low 20x 23mm
High 64x 8mm
High 90x 5mm
MZ7A
Micro Zoom
MAC
Macro Zoom
Auxiliary Lens
0.5X 0.67X 1X 2X
0.25X
Mag: 6.1X - 39.3X 8.2X - 52.6X 12.2X - 78.6X 24.4X - 157.2X
FOV (mm): 91.4 - 14.2 68.2-10.6 45.7-7.1 22.9-3.6
WD (mm): 302 302 302 302
0.5X
Mag: 12.2X - 78.6X 16.4X - 105.3X 24.4X - 157.2X 48.9X - 314.3X
FOV (mm): 45.7-7.1 34.1-5.3 22.8-3.6 11.4-1.7
WD (mm): 176 176 176 176
0.75X
Mag: 18.3X - 117.9X 24.6X - 157.9X 36.7X - 235.7X 73.3X - 471.5X
FOV (mm): 30.5-4.5 22.7-3.5 15.2-2.4 7.6-1.2
WD (mm): 117 117 117 117
1X
Mag: 24.4X - 157.2X 32.8X - 210.6X 48.9X - 314.3X 97.8X - 628.7X
FOV (mm): 22.8-3.6 17.1-2.7 11.4-1.8 57.-0.9
WD (mm): 96 96 96 96
2X
Mag: 48.9X - 314.3X 65.5X - 421.2X 97.8X - 628.7X 195.6X - 1257.3X
FOV (mm): 11.4-1.8 8.5-1.3 5.7-0.9 2.8-0.4
WD (mm): 35 35 35 35
Video Couplers
Perfect for SmartCam2Flexible CongurationCoaxial Light Module
18
19
Illumination Options
MAC3-PK5D-R3 Shown
Illumination Options
MAC3-PK3-R3 Shown

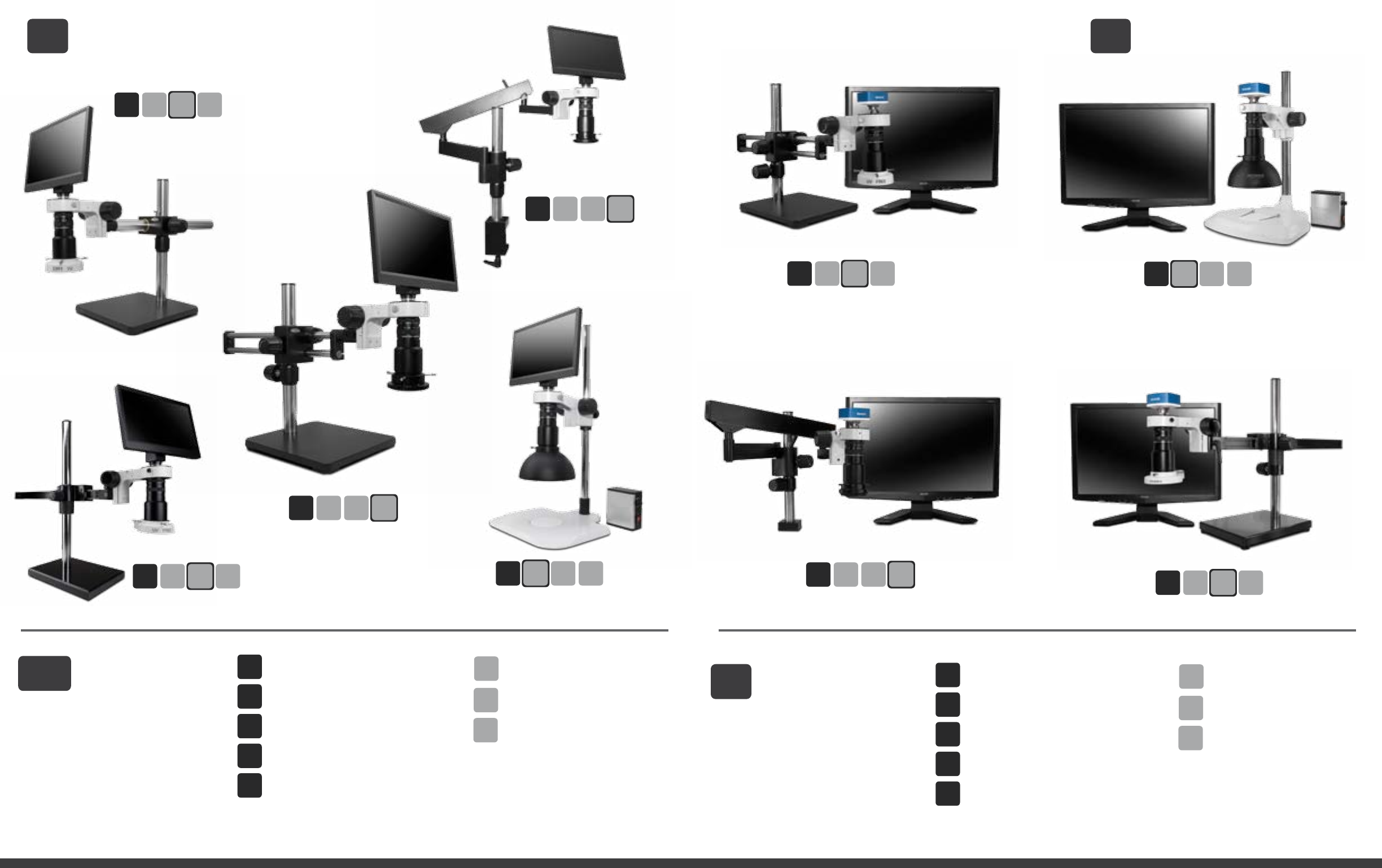

MAC3 Macro Zoom
Video Packages
All Systems include Macro-Zoom 7000
optics, The MAC3 camera/monitor
combination, wireless mouse, USB 2.0
cable, USB software, and power sup-
ply. All systems include your choice
of stand and LED lighting. See the
icons to the right to choose the com-
bination that best suits your needs..
Illumination Options
MAC3-PK5S-E2D Shown
Illumination Options
All Systems include Macro-Zoom 7000
optics, The Versa-Cam and 23” monitor,
wireless mouse, USB 2.0 cable, USB
software, and power supply. All systems
include your choice of stand and LED
lighting. See the icons to the right to choose
the combination that best suits your needs.
Illumination Options
MAC-PK1-DM Shown
MAC-PK3-R3 Shown
Illumination Options
MAC-PK5D-E2D Shown
• Your package number should look
like this MAC-PK1-DM
Illumination Options
MAC-PK5-E2D Shown
Illumination Options
MAC3-PK1-DM Shown
Illumination Options
MAC3-PK5-E2D Shown
DM E2D
R3
PK
5D
DM E2D
R3
PK
1
DM E2D
R3
PK
5
DM E2D
R3
PK
5S
DM E2D
R3
PK
3
MAC3
Ergo Post Stand | 76mm Focus Rack
PK
1
Articulating Arm | 76mm Focus Rack
PK
3
Gliding Arm Boom Stand | 76mm e-Arm
PK
5
Dual Arm Boom Stand | 76mm e-Arm
PK
5D
Single arm boom stand / 76mm Focus E-arm
PK
5S
Diffused LED Dome Light
DM
E2D
5S
High Intensity LED Ring Light
w/ Polarizer
E2D
R3
Diffused LED Ring Light
DM
E2D
Ergo Post Stand | 76mm Focus Rack
PK
1
Articulating Arm | 76mm Focus Rack
PK
3
Gliding Arm Boom Stand | 76mm e-Arm
PK
5
Dual Arm Boom Stand | 76mm e-Arm
PK
5D
Single arm boom stand / 76mm Focus E-arm
PK
5S
MAC
System Packages3
MAC
System Packages
DM E2D
R3
PK
5D
DM E2D
R3
PK
1
DM E2D
R3
PK
3
DM E2D
R3
PK
5
MAC Macro Zoom
Video Packages
MAC
• Your package number should look
like this MAC3-PK5-E2D.
Optics
Optics
Stands
Stands
Lighting
Lighting
Diffused LED Dome Light
DM
E2D
5S
High Intensity LED Ring Light
w/ Polarizer
E2D
R3
DM
E2D
Diffused LED Ring Light
