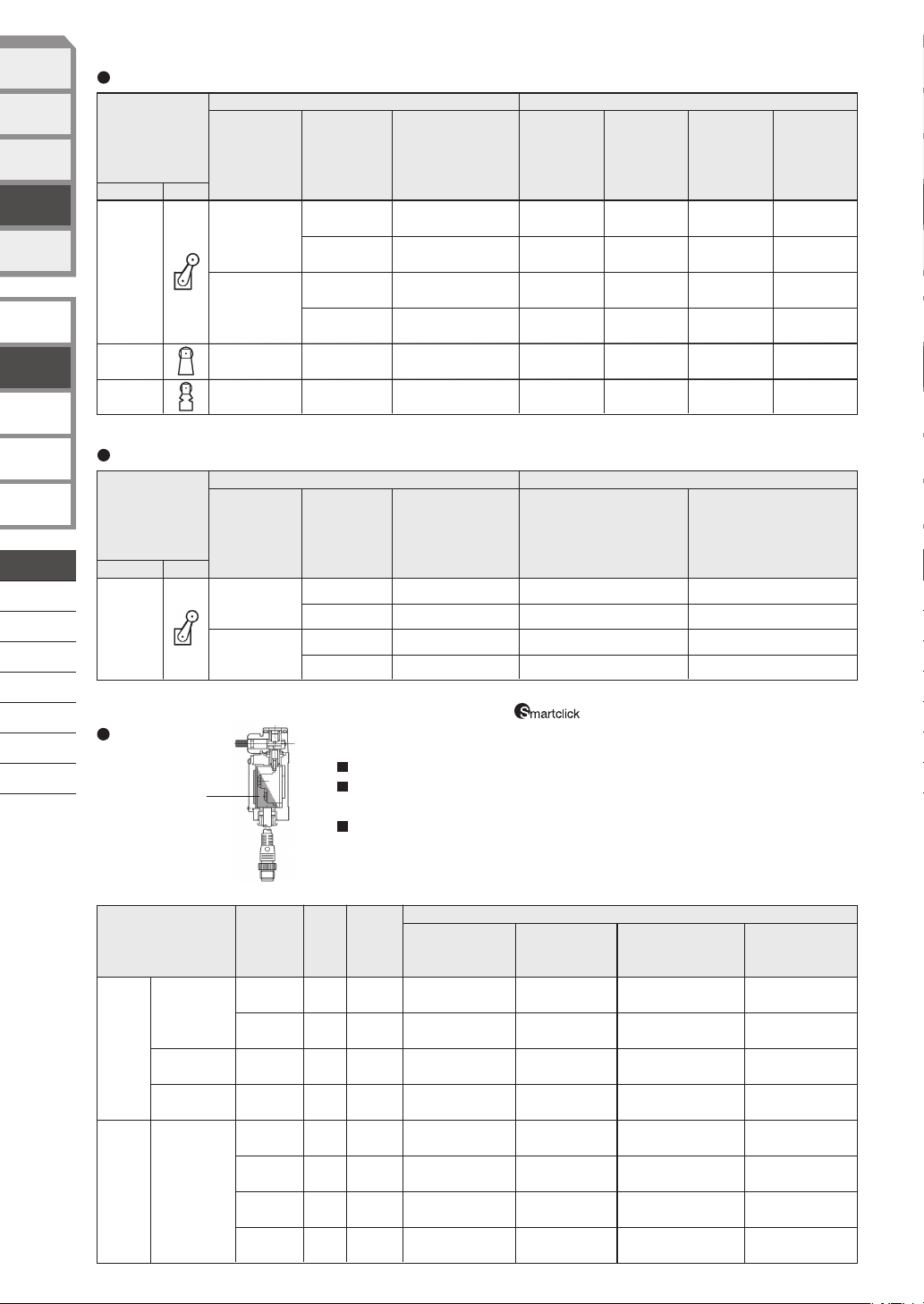

General-purpose General-purpose (high sensitivity) General-purpose, double seal General-purpose, gold plated contacts General-purpose (high sensitivity), dbl seal General-purpose, DC connector/ preleaded connector Genera…
Operating characteristics Options
Actuator
Name Shape
13.4 N
8.9 N
15.7 N
26.7 N
Max. O.F.
(operating) force
Max. P.T.
(pretravel)
Min. T.T.
(total travel)
Connector
+LED
EC-PD
Preleaded connector
+LED
EC-PD03
Connector+
double seal+LED
SEC-PD
Preleaded connector
+dbl seal+LED
SEC-PD03
Roller
lever
Roller
plunger
Boot seal
roller plunger
Standard model
20˚
High sensitivity
5˚
Standard model
20˚
High sensitivity
10˚
1.7 mm
1.7 mm
Standard travel 50˚
Standard travel 35˚
High overtravel
75˚
High overtravel
75˚
7.3 mm
7.3 mm
1LS1-JEC-PD
1LS19-JEC-PD
1LS-J500EC-PD
1LS-J550EC-PD
5LS1-JEC-PD
5LS7-JEC-PD
1LS1-JEC-PD03
1LS19-JEC-PD03
1LS-J500EC-PD03
1LS-J550EC-PD03
5LS1-JEC-PD03
5LS7-JEC-PD03
1LS1-JSEC-PD
1LS19-JSEC-PD
1LS-J500SEC-PD
1LS-J550SEC-PD
5LS1-JSEC-PD
5LS7-JSEC-PD
1LS1-JSEC-PD03
1LS19-JSEC-PD03
1LS-J500SEC-PD03
1LS-J550SEC-PD03
5LS1-JSEC-PD03
5LS7-JSEC-PD03
Resin filling
Resin filled
PT TT
Base catalog
listing
Preleaded connector
with 4 assignable pins,
30 cm + LED
DC preleaded
connector, 30 cm
Preleaded, 5 m
+LED
DC preleaded
connector, 30 cm
+ LED
Catalog listing
Roller lever
Roller plunger
Boot seal roller
plunger
Roller lever
Note: Specifications and dimensions are the same as those of the base catalog listing.
Standard model 20˚
High sensitivity 10˚
1.7 mm
1.7 mm
Standard model 20˚
High sensitivity 5˚
Standard model 20˚
High sensitivity 10˚
80˚
80˚
7.3 mm
7.3 mm
50˚
50˚
80˚
80˚
1LS-J500
1LS-J550
5LS1-J
5LS7-J
1LS-J700
1LS-J710
1LS-J720
1LS-J730
Standard
LS
Long life
LS
1LS-J500SEC-MD03
1LS-J550SEC-MD03
5LS1-JSEC-MD03
5LS7-JSEC-MD03
1LS-J700SEC-MD03
1LS-J710SEC-MD03
1LS-J720SEC-MD03
1LS-J730SEC-MD03
1LS-J500S-MD03
1LS-J550S-MD03
5LS1-JS-MD03
5LS7-JS-MD03
1LS-J700S-MD03
1LS-J710S-MD03
1LS-J720S-MD03
1LS-J730S-MD03
1LS-J500SEC-MP03
1LS-J550SEC-MP03
5LS1-JSEC-MP03
5LS7-JSEC-MP03
1LS-J700SEC-MP03
1LS-J710SEC-MP03
1LS-J720SEC-MP03
1LS-J730SEC-MP03
1LS-J500SEC-N35
1LS-J550SEC-N35
5LS1-JSEC-N35
5LS7-JSEC-N35
1LS-J700SEC-N35
1LS-J710SEC-N35
1LS-J720SEC-N35
1LS-J730SEC-N35
Double-seal type has a sealed internal switch
Places where coolant might seep, like the body cover and
conduit, are filled with epoxy resin.
Resin filling plus an ultra long life limit switch, for enhanced
reliability.
Connector type switch body
Resin filled type
*(
UL/CSA
(
C-UL
)
approved products
)
* *
Operating characteristics Options
Actuator
Name Shape
13.4 N
8.9 N
Max. O.F.
(operating) force
Max. P.T.
(pretravel)
Min. T.T.
(total travel)
Preleaded connector
+LED
EC-SD03
Connector+
double seal+LED
SEC-SD03
Roller
lever
Standard model
20˚
High sensitivity
5˚
Standard model
20˚
High sensitivity
10˚
Standard travel 50˚
Standard travel 50˚
High overtravel
80˚
High overtravel
80˚
1LS1-JEC-SD03
1LS19-JEC-SD03
1LS-J500EC-SD03
1LS-J550EC-SD03
1LS1-JSEC-SD03
1LS19-JSEC-SD03
1LS-J500SEC-SD03
1LS-J550SEC-SD03
Quick Lock type
*(
UL/CSA
(
C-UL
)
approved products
)
*
Compatible with OMRON Smartclick connectors.
Smartclick is a registered trademark of OMRON Corporation.
D-027
LIMIT SWITCHES
WITH POSITIVE
OPENING MECHANISM
GENERAL PURPOSE
LIMIT SWITCHES
TECHNICAL GUIDE
FOR
LIMIT SWITCHES
EXPLOSION-PROOF
SWITCHES
TECHNICAL GUIDE FOR
EXPLOSION-PROOF
SWITCHES
SPATTER-GUARDED
LS
1LS-J7
1LS-J8
VCL-
1LS-J401
SL1-
SL1-C
PHOTOELECTRIC
SENSORS &
SWITCHES
MEASUREMENT
SENSORS
PROXIMITY
SWITCHES
LIMIT
SWITCHES
SAFETY
KEY SWITCHES
STANDARD
LS
General-purpose
General-purpose
(high sensitivity)
General-purpose,
double seal
General-purpose,
gold plated contacts
General-purpose
(high sensitivity),
dbl seal
General-purpose,
DC connector/
preleaded connector
General-purpose,
AC connector/
preleaded connector
Indicator type None 100/200 Vac with neon lamp 12 to 125 Vac/dc with LED lamp
Model Catalog listing Electrical rating Catalog listing Electrical rating Catalog listing Electrical rating
—
—
—
—
—
—
—
—
125 Vac 0.1A
30 Vdc 0.1A
125, 250, 480 Vac 10A
125 Vac 1/2HP
250 Vac 1HP
125 Vdc 0.8A
250 Vdc 0.4A
125, 250 Vac 5A
125 Vac 1/8HP
250 Vac 1/4HP
125 Vdc 0.8A
250 Vdc 0.4A
125, 250, 480 Vac 10A
125 Vac 1/8HP
250 Vac 1/4HP
125 Vdc 0.4A
250 Vdc 0.2A
125, 250 Vac 5A
125 Vac 1/8HP
250 Vac 1/4HP
125, 250 Vac 5A
125, 250 Vac 5A
125, 250 Vac 5A
125, 250 Vac 5A
125 Vac 0.1A
125 Vac 5A
125 Vac 5A
125 Vac 5A
125 Vdc 0.8A
125 Vac 5A
125 Vdc 0.8A
125 Vac 0.1A
30 Vdc 0.1A
30 Vdc 3A
125 Vac 3A
30 Vdc 3A
ELECTRICAL RATING
2-circuit double break
LS-J
LS-JS
LS-JK
1LS19-J
1LS-J55
1LS19-JS
1LS-J55S
LS-JE
LS-JSE
LS-JKE
1LS19-JE
1LS-J55E
1LS19-JSE
1LS-J55SE
LS-JEC
LS-JSEC
LS-JKEC
1LS19-JEC
1LS-J55EC
1LS19-JSEC
1LS-J55SEC
LS-JEC-PD
LS-JEC-PD03
LS-JEC-PA
LS-JEC-PA03
Application category Rating Rated thermal current (Ith)
Standard load type
3.0A 240 VacAC-15 10A
0.4A 30 VdcDC-12 10A
0.1A 125 VacAC-12 1A
0.1A 30 VdcDC-12
1A
Low current load type
AC rating
125 Vac 250 Vac 480 Vac
Typical model:
1LS1-J
Typical model:
1LS1-J
Resistance
Induction
Electric motor
N.C. N.O.
Resistance
Induction
Electric motor
N.C. N.O.
Resistance
Induction
6 43
DC rating
8 Vdc 14 Vdc 30 Vdc 115 Vdc 230 Vdc
Resistance
Induction
Resistance
Induction
Resistance
Induction
Resistance
Induction
Resistance
Induction
10
10
10
10
6
6
6 1.5
4 2
66 4 0.8 0.2 0.4 0.1
Note: "Induction" refers to a load having a power factor of 0.4 and time constant of 7 ms (DC). "Electric motor" refers to a load having a value of six times the inrush current.
EN/GB-compliant model ratings (G type, with ground terminal)
Reference rating (Ratings fluctuate according to the operating environment and type of load. Verify values on an actual operating unit.)
UL electrical ratings
Electrical rating Load No. of cycles
1LS1-J
No indicator lamp
Ag
A300 Pilot Duty 6,000
3 A, DC 30 V DC General 6,000
0.4 A, DC 125 V DC General 6,000
Au
0.1 A, AC 125 V AC General 6,000
0.1 A, DC 30 V DC General 6,000
1LS1-JEC
With a neon lamp
Ag A300 Pilot Duty 6,000
Au 0.1 A, AC 125 V AC General 6,000
1LS1-JEC
With an LED
Ag
B150 Pilot Duty 6,000
3 A, DC 30 V DC General 6,000
0.4 A, DC 125 V DC General 6,000
Au
0.1 A, AC 125 V AC General 6,000
0.1 A, DC 30 V DC General 6,000
1LS1-JE7-PD
With an LED (with a connector/connector and cable)
Ag 3 A, DC 30 V DC General 6,000
Au 0.1 A, DC 30 V DC General 6,000
Enclosure: Type 1
Maximum allowable ambient temperature: 40 °C
D-028
LIMIT SWITCHES
WITH POSITIVE
OPENING MECHANISM
GENERAL PURPOSE
LIMIT SWITCHES
TECHNICAL GUIDE
FOR
LIMIT SWITCHES
EXPLOSION-PROOF
SWITCHES
TECHNICAL GUIDE FOR
EXPLOSION-PROOF
SWITCHES
F-001
See page
Connector
with cable
SPATTER-GUARDED
LS
1LS-J7
1LS-J8
VCL-
1LS-J401
SL1-
SL1-C
PHOTOELECTRIC
SENSORS &
SWITCHES
MEASUREMENT
SENSORS
PROXIMITY
SWITCHES
LIMIT
SWITCHES
SAFETY
KEY SWITCHES
STANDARD
LS
LS Series connectors
Catalog listing Name Appearance
Power supply
Number of leads
2 leads 4 leads
LS-PA5A2
LS-PA5A4
LS-PA5D2
LS-PA5D4
2-lead type 4-lead type
AC
—
—
DC
—
—
Assembly method
PA5 Series
sealed connector
with cable
Models (e.g. 2LS-J, 8LS-J) for which a complete model No. is not given can be modified
into the connector type by attaching the separate parts indicated below to a standard LS Series body.
Wiring method
2-lead type: catalog listing LS-PA52 4-lead type: catalog listing LS-PA54
Connector
Connector
*Even in an N.C. wiring connection, N.C. contact assignments are Nos. 3 and 4.
1
2
3
4
Contact No.
Internal switch
Terminal No.
NO.1
(
N.C.
)
NO.2
(
N.C.
)
NO.3
(
N.O.
)
NO.4
(
N.O.
)
Lead color
Red
Green
Black
White
Contact No.
1
2
3
4
Internal switch
Terminal No.
—
—
NO.3
NO.4
Lead color
—
—
Black
White

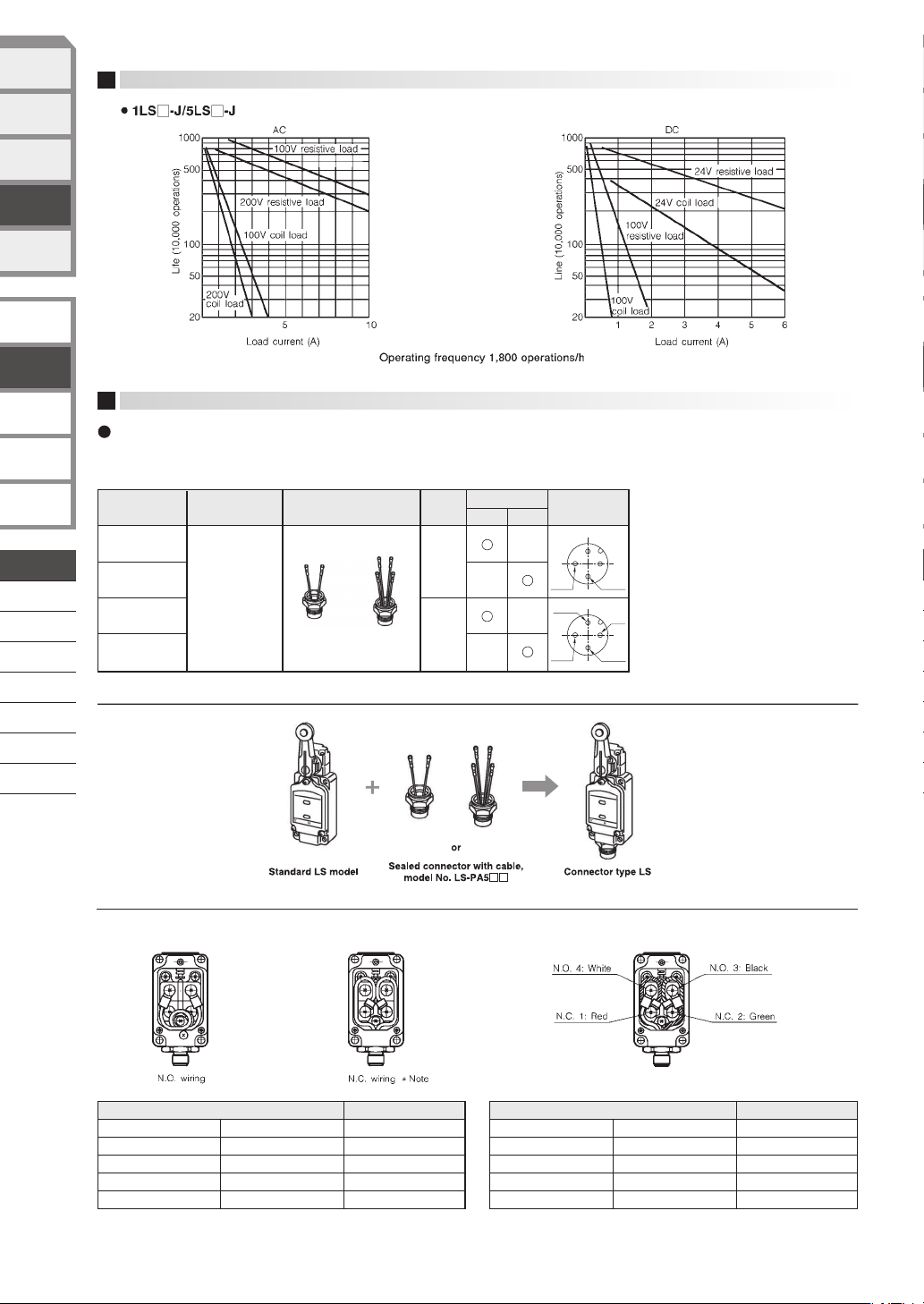

LIFE VS. LOAD CURRENT CHARACTERISTICS
