Installation Manual, Station Software Version 605.02 11/2009 Edition
5 Installing the station software
Note:
The operation system must be installed on the machine controller and Vision computer
before installing the station software.

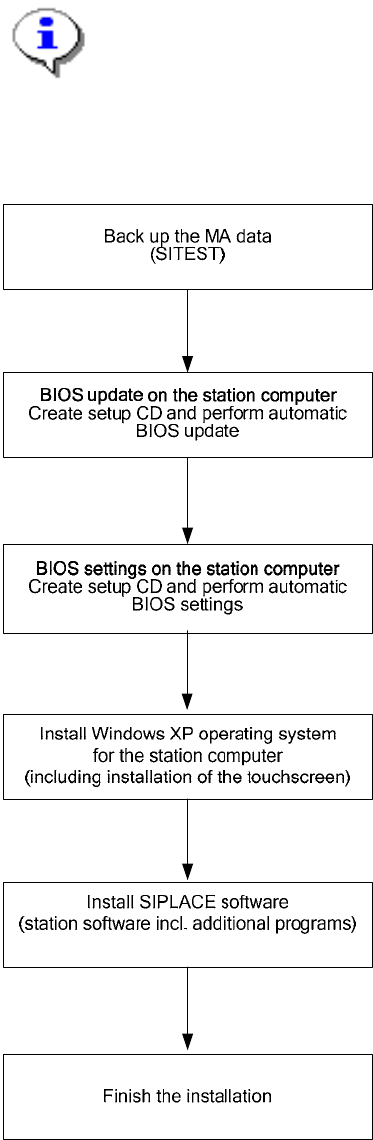

5.1 Installation sequence
See section 5.2.
See section 5.3.
See the separate installation manual for installing the "Windows
XP operating system" (item no. 00194575-02)
For calibrating the touchscreen, see sections 5.4.3.
See sections 5.4 and 5.5.
See section 5.6.
21 of 48
Installation Manual, Station Software Version 605.02 11/2009 Edition
5.2 Automatic BIOS update on the station computer
Note:
If the BIOS version is ≤ 1.50, you must update the BIOS at first.
A setup CD must first be created to automatically make the BIOS update on the station computer. To do
this, you require a computer running Windows XP that is fitted with a CD-RW drive.
The image files necessary for creating the CD (see table below) are in the "BIOS-Images" folder of the
second CD for version 605.02 of the software.
Station computer / computer type BIOS settings / ISO image
SMP16-CPU086 CPU086_MC_SR_BIOS_Update.iso
(contains the BIOS update for station
computer and machine controller, see the
installation manual "Windows Embedded XP
operating system for the MC German and
English" (00195327-xx).
Table 5-1: File required for creating the Setup CDs for making the BIOS update on the station computer
5.2.1 Creating a setup CD
→ Insert an empty writable CD in the drive on any computer equipped.
→ Insert the CD for version 605.02 of the software in the drive.
→ In the Windows Explorer, open the "BIOS-Images" folder on the CD.
→ Open the image file (see table above) using the installed CD writing program and follow the
instructions on screen.
Note:
It is recommended to burn the CD with slow write speed (4x or 8x) to avoid reading
problems, that might occur at the station.
→ Once the CD has been written, remove the CDs from the drives.
22 of 48
Installation Manual, Station Software Version 605.02 11/2009 Edition
5.2.2 Making the BIOS update on the station computer
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from CD.
→ Insert the CD you have created in the drive on the station computer and boot from the CD by
switching the machine on.
The BIOS update is now performed automatically.
→ After the settings have been made, remove the CD from the drive and switch the machine off again.
23 of 48
