Installation Manual, Station Software Version 605.02 11/2009 Edition
5.5.1 Language selection
→ Select the language to be used during installation.
You can choose between German (Germany) and English (United States).

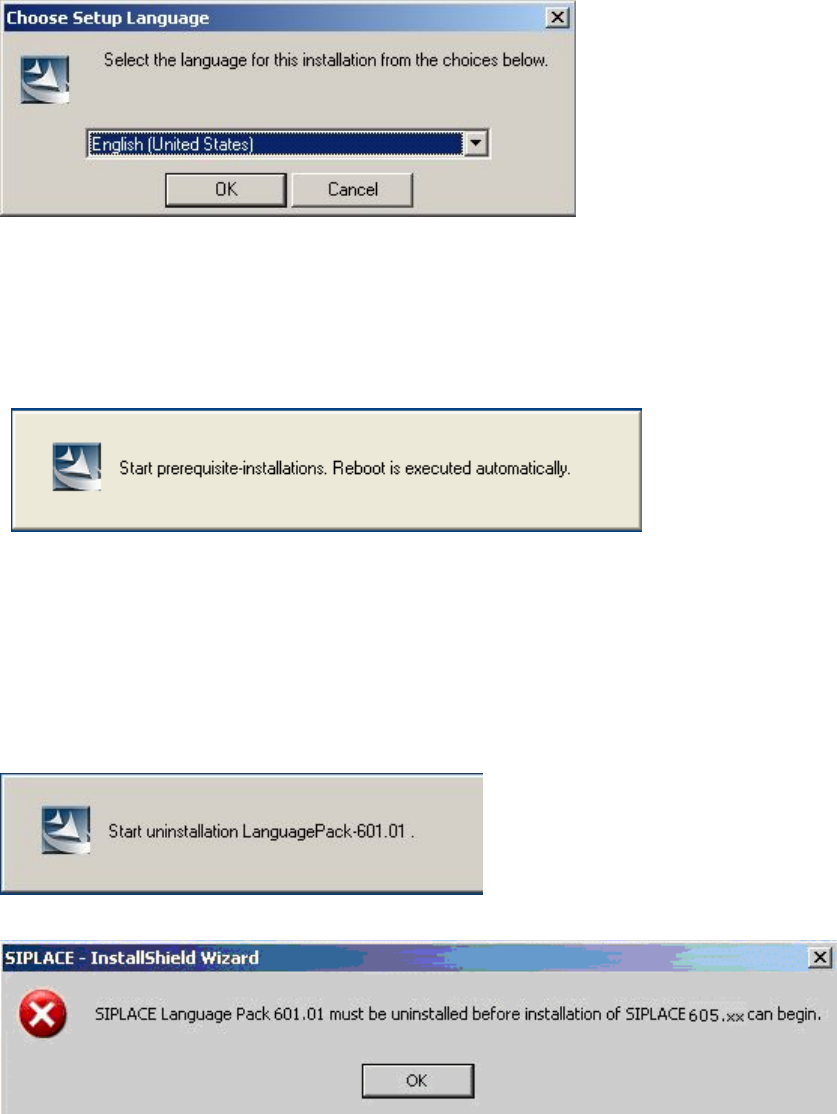

Fig. 5-17: Language selection
→ Click the OK button.
5.5.2 Installing the system files
The necessary system files are installed if they are not already on the station computer. The station
computer is rebooted automatically after installation. You are automatically logged in as administrator.
5.5.3 Uninstalling Language Pack of a previous version (if installed)
If a Language Pack of a previous version is still installed on the computer, uninstallation is started
automatically.
If uninstallation of the Language Pack is cancelled, the following error message appears:
→ Click the OK button. Installation of the station software is cancelled and must be restarted.
Installation of the station software continues with the welcome screen.
34 of 48
Installation Manual, Station Software Version 605.02 11/2009 Edition
5.5.4 Welcome screen

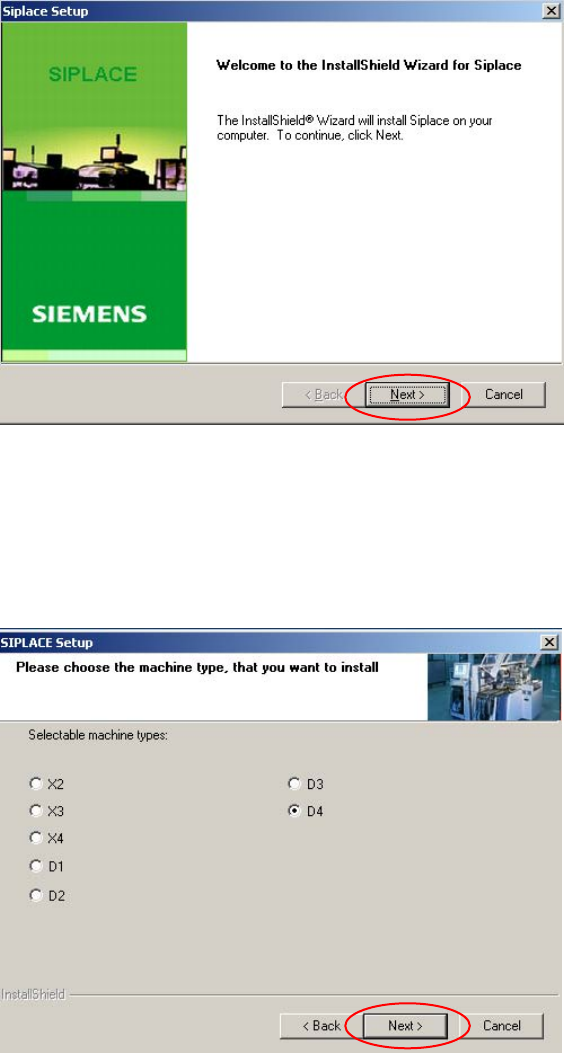

Fig. 5-18 Welcome screen
→ Click the Next button.
5.5.5 Selecting the machine type
Fig. 5-19 Selecting the machine type
→ Select the option for the machine type for which the software is to be configured.
→ Click the Next button.
35 of 48
Installation Manual, Station Software Version 605.02 11/2009 Edition
5.5.6 Entering the Machine Identification Number (MID)

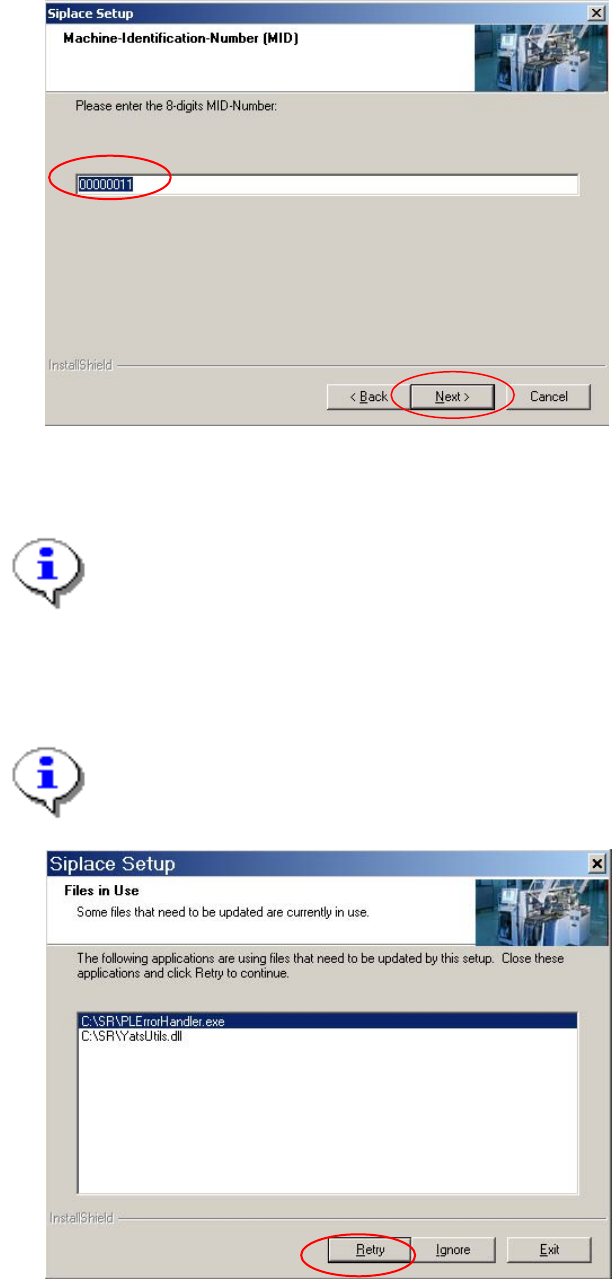

Fig. 5-20: Entering the Machine Identification Number (MID)
→ In the text box, enter the 8-digit machine identification number.
Note:
You will find the MID on an adhesive label on the side of the protective covers directly below
the label for the number of the relevant location. Only the first eight digits with leading zeros
must be entered. The number following the dash after the MID specifies the location
(e.g. 00000001-2 stands for location 2).
→ Click the Next button.
Note:
The following screen only appears if applications are open which use files which must be updat
e
during installation of SIPLACE.
Fig. 5-21: Open applications
36 of 48
