5 Optional accessories:
4
MPP1-VIS - Description
MPP1 - Pick & Place Manipulator (Manipulator) is a compact system intended for manual
assembling of PCB prototypes or small series PCBs. Assembly head performs a smooth movement in
both X and Y axs and therefore it allows the user to comfortably pick the components from the feeders
and put them gently on a PCB. Precise movement of the header in Z axis direction, allows very gentle
placing of larger components (Integrated circuits, Processors) into the solder paste, using the
integrated vacuum switch. Rotation of components can be regulated by a button on a manipulator
head. Effective lighting is also integrated in an assembling head. Vision system makes assembly of
small components like 0603, 0402 and large like QFP much easier. The captured image from the CCD
camera is displayed on the LCD monitor. The quiet high-performance vacuum pump is equipped with
a control valve that allows change the level of vacuum.
Standard delivery contains:
5
Optional accessories:
6
Technical data:
Manipulator dimensions: 760 x 385 x 195 (H) mm
Manipulator + feeders dimensions: 1145 x 430 x 195 mm
Motion of head in X/Y/Z axes: 480 x 235 x 15 mm
Weight: 6 kg
Maximum PCB dimensions : 380 x 295 mm
Working area dimensions: 380 x 250 mm
Power supply: 230 V /12 V
Vacuum pump power supply: 230 V, 6 W
Vacuum/flow: >0,024 MPa / 5 dm
3
/min

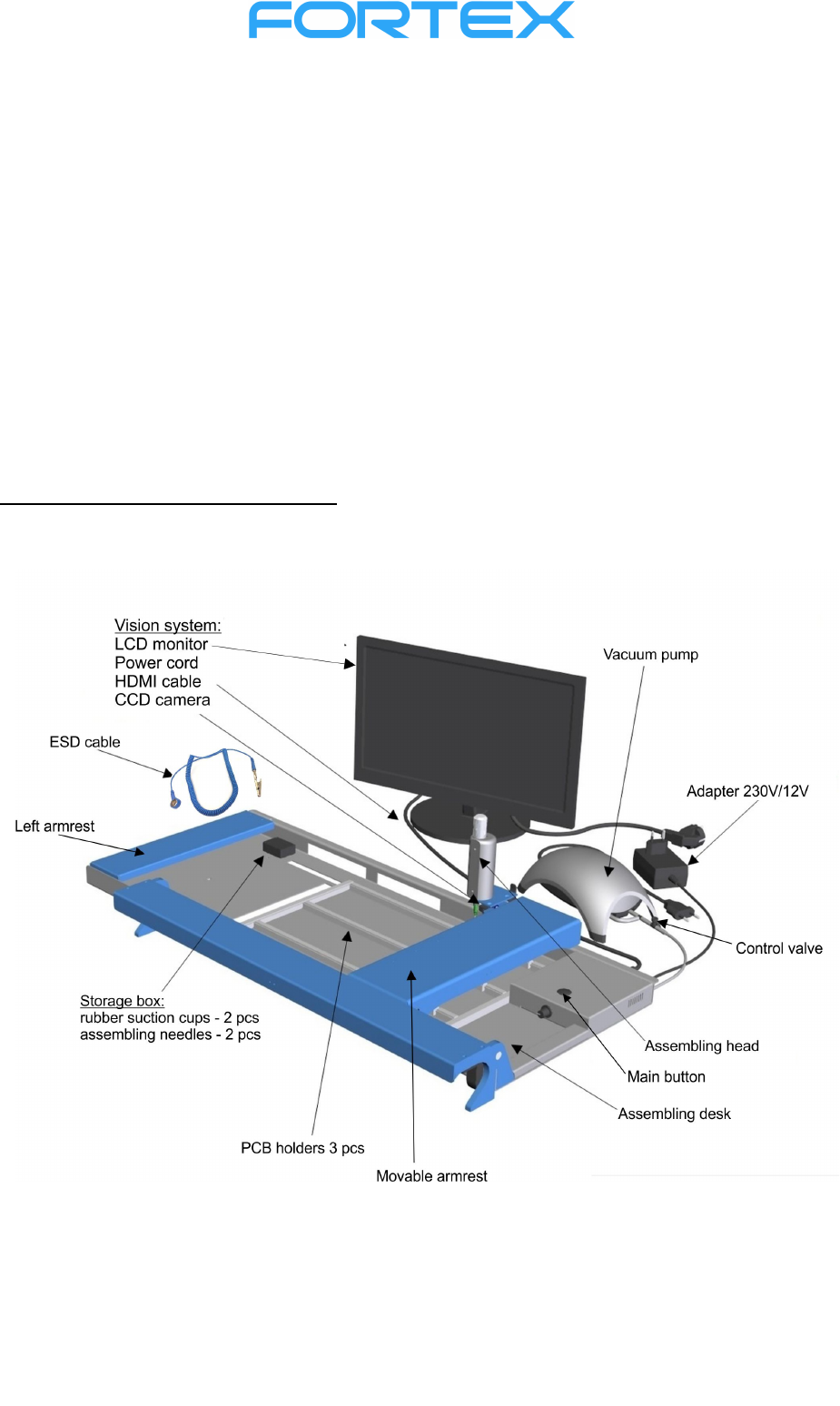

Scheme:
Caution!!!
Before switching-on the device, make sure that all cables are connected correctly and that the
vacuum hose is connected to both the pump and the manipulator. Ground the device with an
ESD cable (included).
Plug the monitor, vacuum pump, and adapter into an electrical socket (AC 230V).
Do not disconnect any cables, disconnect the adapter or the vacuum pump from the socket while
working with the manipulator! Always switch off the device with the main button!
After switching-off the manipulator, you can disconnect the monitor, adapter, and vacuum
pump from the socket.
