Overview of the Modules DLM 14 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4
Overview of the Modules
DLM
Maintenance Manual SIPLACE Placement Heads DLM3/DLM4 13
2
2 Overview of the Modules
Overview of the Modules
2.1
2.1 DLM
DLM

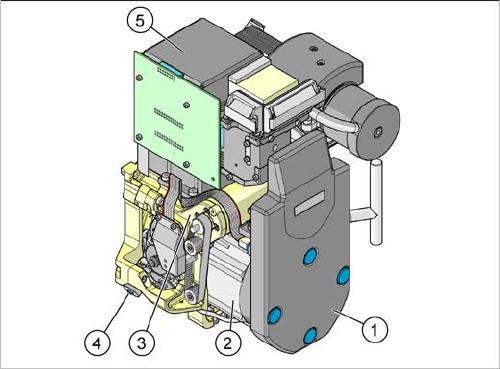

1. Intermediate distributor, digital (under the cover)
2. Star motor
3. Z axis motor
4. Stepping motor
5. Component camera
Overview of the Modules
DLM
14 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4
Minor Maintenance
3.1.1 Maintenance Intervals Maintenance Tasks for DLM
Maintenance Manual SIPLACE Placement Heads DLM3/DLM4 15
3
3 Minor Maintenance
Minor Maintenance
3.1
3.1 Maintenance Tasks for DLM
Maintenance Tasks for DLM
3.1.1
3.1.1 Maintenance Intervals
Maintenance Intervals
5000 - Minor - DLM C&P6/12
3.1.2
3.1.2 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
NOTICE
Differences between the heads
The instructions apply in principle to all DLM variants from DLM3 onwards.
Any differences will be explicitly indicated.
Maintenance Tasks
DLM
Duration
[min]
CP6/12
Each
week
Every 3
months
Every 6
months
Every 12
months
Removing the Valve Plungers 2/4 X
Cleaning the Valve Casings 1/2 X
Cleaning the Valve Plungers 3/6 X
Greasing the Valve Plungers 3/6 X
Inserting the Valve Plungers 2/4 X
Replacing the Sleeves 3/5 X
Checking, Cleaning and Greasing the Sleeves 20/40 X
Consumables Item no.
Interflon Fin Grease 03020782- xx
Protective latex gloves 00372972- xx
Cotton gloves, size 8 00359087- xx
Ethanol
Isopropanol – IPA can be used as an alternative.
Microtips medium precision applicators (cleaning sticks) 03020860Sxx
ISOFLEX TOPAS, NCA 52 Tube 50 g 00330850- xx
Lint-free cloths 03082092- xx
Cleaning sticks 00352931- xx
Wear parts Item no.
O-ring for valve plunger 00359382- xx
Suction plate assembly DLM/R light beige 03037984Sxx
C&P6 only:
Valve plunger C&P6 (6 in one pack) 00351500- xx
C&P12 only:
Valve plunger C&P12 (6 in one pack) 00351498- xx
