13 40 mm 50 mm 60 mm 80 mm 100 mm 130 mm 130 mm par a manuales - c olor g r is 200 mm 300 mm Fume Extractor Configurations Som e pa ram eter s, fe atur es a nd th e pe r for ma nc e var y d ep en di ng on f um e ex trac t…
12
Extraction Control via the Pedal
The fume extractor aspiration can be activated/deactivated by using JBC’s pedal P405 or P005.
Pedal Connection
Connect the pedal to the pedal connector and read the description for “Pedal / Activation” and
“Pedal/Mode” on the previous page.
Filter Set
Parameter Description
Carbon life
It shows remaining activated carbon lifetime expressed in %. It is also dis-
played on the main screen. When 0% is reached the system will show pop-
up message STOP#1 to replace the filter.
Saturation
It shows saturation status of HEPA + carbon filter set, expressed in %. It is
also displayed on the main screen. When 100% is reached the system will
show pop-up message STOP#2 to replace the filter.
Reset carbon
Perform this action after replacing the HEPA + carbon filter set. The carbon
lifetime counter will not start until the filter is detected for the first time. After
executing that function carbon filter life will be 100%.
P405 Pedal
or
P005 Pedal
13
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Fume Extractor Configurations
Some parameters, features and the performance vary depending on fume extractor configuration,
see the following table:
230V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/ h (47.08 cfm) 80 m
3
/h (47.08 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 130 W 300 W
120V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/ h (47.08 cfm) 75 m
3
/h (44.14 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 135 W 270 W
100V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/h (47.08 cfm) 65 m
3
/h (38.28 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 135 W 200 W
FRONT

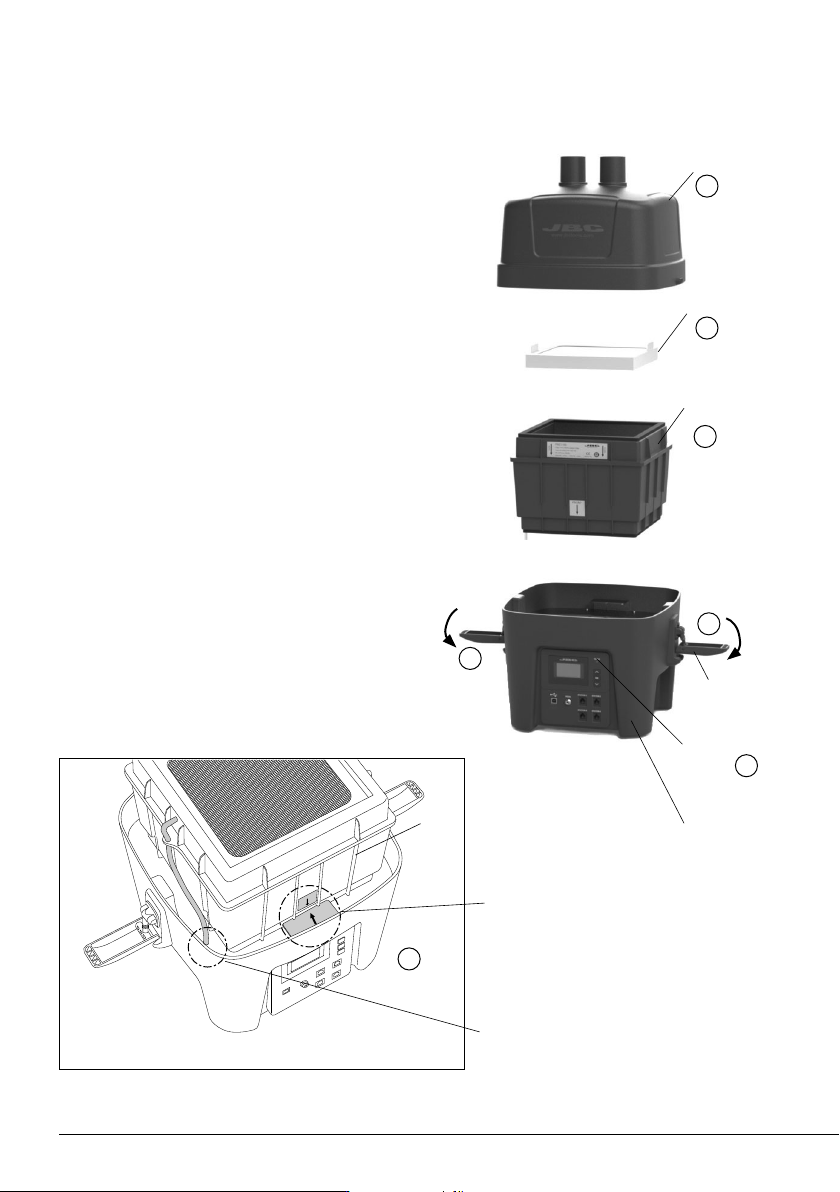

Maintenance and Filter Replacement
- The fume extractor unit indicates by means
of display and LED’s that the fi lters need to
be replaced.
- To replace the fi lters remove the cover (1) by
opening the quick release levers (2), located
on both sides of the casing.
- If the indicator LED (3) remains in red after
replacing the pre-fi lter (4), it means that the
main fi lter (5) is saturated and must also be
replaced (see fi gure below) (6).
- After replacing the main fi lter (5), the carbon
fi lter counter must be reset (Main Menu >
Filter Set > Reset Carbon).
- The service life of the maint fi lter is
a maximum of 1 year after opening its
packaging.
- If the fi lter is changed while the fume
extractor is switched on, the fume extractor
unit automatically starts the fi lter detection
process and activates the aspiration for a few
seconds.
Cover
Indicator LED
Pre-Filter
Main Filter
(carbon + HEPA)
Connect the fi lter tube to the
quick-coupling placed on the metal
sheet
Note: The main fi lter has a given
position. Make sure the fi lter ribs
mate with the corresponding slots.
Quick Release
Lever
Filter
Ribs
Casing
1
2
3
4
5
2
6
14
