Features and Connections
Aspiration Intakes
Quick Release
Lever for Filter
Replacement
Power Socket
Main Switch
Display
USB-B Connector
(Firmware update)
Jack Connector
(Pedal connection)
RJ12 Connector
(Control unit and
station connection)
Filter Saturation Indicator
-Green: Filter OK
-Yellow: ≤ 20% carbon lifetime or about to saturate
-Red: End of carbon lifetime or filter saturated
FlowFlow
H M L
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20%
100%
FilterFilter
Carbon life 90%
Aspiration
ON
4
FAE1
Fume Extractor for 1 Workbench
FAE040
Accessory for Stand
Aspiration with Clamp
- For flexible hose Ø50 mm.
- To be fixed in place with
the included clamp.
- For up to 4 stands.
FAE030
Accessory for Stand
Aspiration
- For flexible hose Ø50 mm.
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE050
Fume Inlet Duct
for Modular
Stand (stands from
versions Ref. xx-SD
onwards)
FAE060
Fume Inlet Duct
for Compact
Stations (stations
from versions
Ref.xx-xB onwards)
FAE070
Flexible Arm with
Clamp Ø50
- Length: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Length: 1 m / 39.37 in
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Length: 1.5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.
Standard Assembly
Main Screen
Custom program screen
Aspiration Programs:
high, medium and low.
Aspiration Status
Flow Rate
Preset program screen
Configuration for 1 Workbench
Access by and to change the aspiration program.
FlowFlow
H M L
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20%
100%
FilterFilter
Carbon life 90%
Aspiration
ON
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Main Screen
Note: For this configuration stand aspiration is not available.

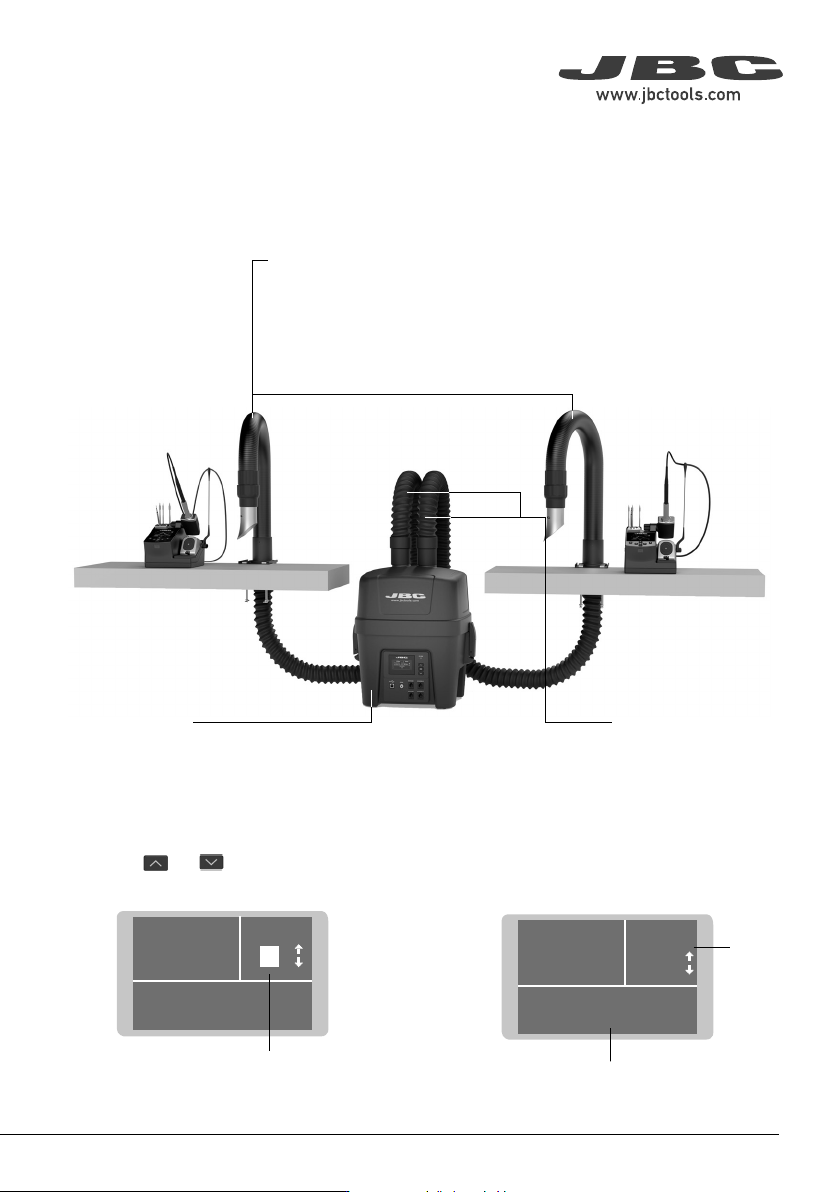

Configuration for 2 Workbenches
This configuration is activated by setting Workbench option to “2” in the FAE1 main menu.
Alternative Assembly Option
FAE070
Flexible Arm with
Clamp Ø50
- Length: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Length: 1 m / 39.37 in
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Length: 1.5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.
FAE1
Fume Extractor
for 1 Workbench
Custom program screen
Aspiration Programs:
high, medium and low.
Aspiration Status
Flow Rate
Preset program screen
Access by and to change the aspiration program.
