Step 3. Match your needs
Find the right match between your application and the soft starter features you need.
• Eltwin SMC Soft Starter
• VLT® Compact Starter MCD 201 or 202
• VLT® Soft Starter MCD 600
Eltwin SMC MCD 201 MCD 202 MCD 600
Power size
0.1-15 kW (3-25 A) 7-110 kW (17-200 A) 7-110 kW (17-200 A) 7.5 - 1400 kW (20-1250 A)
Voltage range
3 x 400 - 480 VAC, 45-66 Hz 3 x 200 - 575 VAC, 45-66 Hz 3 x 200 - 575 VAC, 45-66 Hz 3 x 200 - 690 VAC, 45-66 Hz
Start/ Stop mode
Timed voltage ramp Timed voltage ramp
Timed voltage ramp
Current-controlled ramp
Current-controlled ramp
Adaptive-controlled ramp
Protection
None (external components) None (external components) 7 features 19 features
Inputs
1 DI 1 DI 2 DI 4 DI
Outputs
0 0 2 DO 3 DO/ 1 AO
Control
2-wire control
3 rotary switches
2-3 wire control
3 rotary switches
Remote operator
2-3 wire control
8 rotary switches
Remote operator
2-wire control
Built-in graphical display
Remote graphical display
Integrated functions
- - -
Reverse control
Pump Clean / deragging
Power Through
and many more
Options
None PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP
1]
1]
For full details see Options, page 26.
Serial communication
Eltwin SMC MCD 201 MCD 202 MCD 600
Start/stop, reset
· · · ·
LED for start, run, trip
· · · ·
Trip codes
· · · ·
Current display
· ·
Motor temperature display
· ·
4 – 20 mA output
·
Programming keypad, graphical display
·
MCD 600 includes a full warning and
alarm handling system to interface
controls either via digital I/O or fieldbus
options: serial- or Ethernet-based such
as PROFINET or EtherNet/IP. Check the
specifications for more details.
VLT® Compact Starter MCD 201 and
202, and VLT® Soft Starter MCD 600
come with optional plug-in modules
for serial communication.
• DeviceNet
• EtherNet/IP
• PROFIBUS
• Modbus RTU
• USB
AD437153353153en-010301 > VLT® Soft Starter
9
S1 S2 S3
Feature Benefit Description
Intuitive application setup Save commissioning time.
Easy and uncomplicated commissioning. Just enter motor
current, select your application, then you are ready to run
Extended simulation mode with full
simulation of start behaivor
Test your soft starter without connecting mains
supply or motor.
Test your soft starter functions and integration with controllers,
without connecting mains supply or motor
Built-in timers and schedulers
Easy to set up a timer. No need to install external
controller or components.
Easy to set up weekly planned watering programs for
agriculture, or just a a single timer to start the pump on
demand. No need for external controller or components
Pump Clean (Deragging) function More uptime and longer pump life.
For a blocked pump, trigger the Pump Clean function. MCD
600 will automatically start a program to run the motor
alternately in reverse/forward. No extra external components
required. Just select the input and Pump Clean starts.
Reverse control function
Run the MCD 600 in both forward and reverse
directions. MCD 600 will maintain full control over
starting current and protection. To use this function,
install a reversing contactor in the application.
Run the MCD 600 in both forward and reverse directions.
MCD 600 will maintain full control over starting current and
protection. To use this function, install a reversing contactor in
the application.
Power Through function
More uptime - bypasses damaged components to
keep your motor running.
If an SCR is damaged, and you don’t have time for repair, start
the Power Through function. This will bypass the damaged
SCR and keep your motor running
Emergency mode
Asset protection - keeps the pump or fan running
for as long as possible in an emergency.
If required, MCD 600 can Switch to Emergency mode. In this
mode, MCD 600 ignores all messages and keeps the pump or
fan running for as long as possible.
The VLT® Soft Starter MCD 600 combines the latest in advanced controls and
protections with an increased level of intelligence for superior performance in
fixed-speed applications.
The MCD 600 is more flexible than ever to install, thanks to a wide variety of
Ethernet and serial-based communication option cards, application-dedicated
smart cards and support for eight languages.
The integrated bypass ensures both extremely high efficiency and harmonic-free
operation at full speed, reducing energy consumed and required cooling capacity.
Ease of use is also greatly increased with new capabilites, such as the pump-clean
function, PowerThrough operation, and calendar or run timebased scheduling.
Furthermore, enhanced protection ensures more uptime.
VLT® Soft Starter MCD 600
at a glance:
Mains voltage range
• 3 x 200-525 VAC (T5)
• 3 x 380-690 VAC (T7)
Current range and enclosure
• IP20: 20-129 A (nominal)
• IP00: 144-1250 A (nominal)
VLT® Soft Starter MCD 600 is a total motor starting solution.
Current transformers measure motor current and provide
feedback for controlled motor ramp profiles.

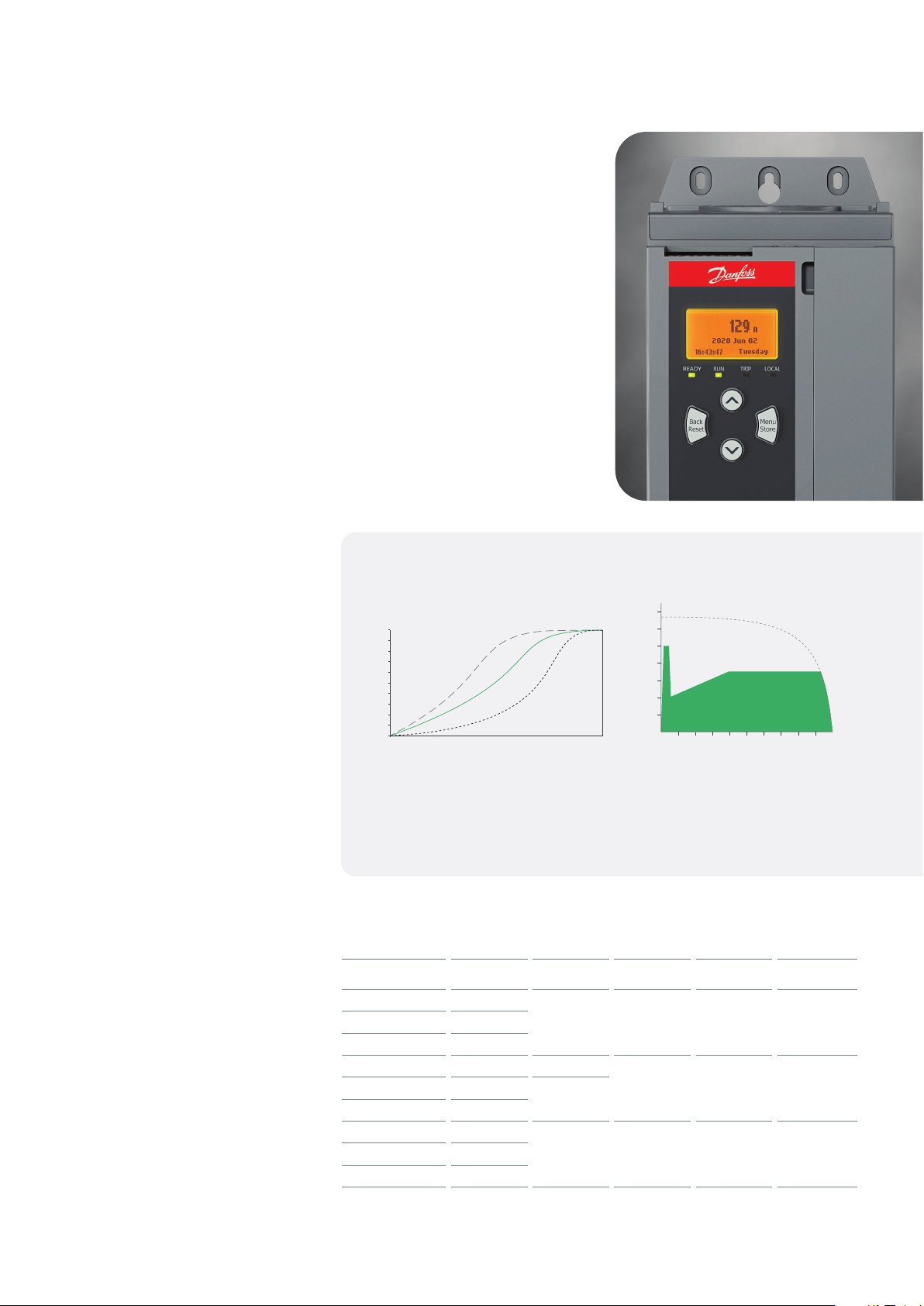

VLT® Soft Starter MCD 600
AD437153353153en-010301 > VLT® Soft Starter 10
VLT® Local Control Panel
LCP 601
Everything you can do with the
VLT® Soft Starter MCD 600 controls
is also possible via the
VLT® Local Control Panel LCP 601
Select a screen view set-up from one
user-programmable and 7 standard
views.
Language selection
English, Chinese, German, Spanish,
Portuguese, French, Italian, Russian.
The LCP 601 is connected to the
MCD 600 by using a 3 m cable using a
9-pin (D-sub) plug and 3 m cable
provided with the IP65 (NEMA 12)
door-mount kit.
Once connected, the soft starter asks
whether you want to copy parameters
from LCP to starter or starter to LCP
(if different).
100% easy connection
• The Modbus, PROFIBUS, EtherNet/IP
and DeviceNet modules use another
port on the MCD 600, located at the
side of the soft starter
• Separate LCP 601 output at the
bottom for 9 pin plug and 3 m cable
• One ordering number (LCP with
door-mount kit and cable)
• Plug & play connection, even when
the soft starter is powered up
• One cable for power and
communication
• Powered up by soft starter
• Copy of parameter set-up
Current rating
[A]
Weight
[kg]
Height
[mm]
Width
[mm]
Depth
[mm]
Enclosure
size
20 - 42 4.8
336 152 231 S163 - 69 4.9
86 - 128 5.5
144 - 215 12.7 495
216 243 S2244 - 448 15.5
523
527 - 579 19.0
590 - 736 51.0
618 447 310 S3839 - 979 62.0
1134 - 1250 65.0
Dimensions
Fieldbus communication
modules:
Starting
• AAC Adaptive Acceleration
• EtherNet/IP
• PROFINET
• Modbus TCP
• PROFIBUS
• DeviceNet
• Modbus RTU
• Remote LCP Option
• Application card
• Smart Pump
• PC software:
• WinStart
• VLT® Motion Control Tool MCT 10
0
10%
20%
30%
40%
50%
Time
60%
70%
80%
90%
100%
Speed
700%
600%
500%
300%
100%
400%
200%
10% 20% 30% 40% 50%
Rotor speed (% full speed)
60% 70% 80% 90% 1
00%
Current (% motor full load current)
Three Adaptive Acceleration Control (AAC) start
profiles; early, constant and late acceleration
Constant current/ current ramp – shown here
with kickstart
