VL T® Local C ontrol P anel L CP 601 Everything you can do with the VL T® Soft Star ter MCD 600 controls is also possible via the VL T® L ocal Control P anel L CP 601 Select a screen view set-up from one user-prog rammab…

S1 S2 S3

Feature Benefit Description

Intuitive application setup Save commissioning time.

Easy and uncomplicated commissioning. Just enter motor

current, select your application, then you are ready to run

Extended simulation mode with full

simulation of start behaivor

Test your soft starter without connecting mains

supply or motor.

Test your soft starter functions and integration with controllers,

without connecting mains supply or motor

Built-in timers and schedulers

Easy to set up a timer. No need to install external

controller or components.

Easy to set up weekly planned watering programs for

agriculture, or just a a single timer to start the pump on

demand. No need for external controller or components

Pump Clean (Deragging) function More uptime and longer pump life.

For a blocked pump, trigger the Pump Clean function. MCD

600 will automatically start a program to run the motor

alternately in reverse/forward. No extra external components

required. Just select the input and Pump Clean starts.

Reverse control function

Run the MCD 600 in both forward and reverse

directions. MCD 600 will maintain full control over

starting current and protection. To use this function,

install a reversing contactor in the application.

Run the MCD 600 in both forward and reverse directions.

MCD 600 will maintain full control over starting current and

protection. To use this function, install a reversing contactor in

the application.

Power Through function

More uptime - bypasses damaged components to

keep your motor running.

If an SCR is damaged, and you don’t have time for repair, start

the Power Through function. This will bypass the damaged

SCR and keep your motor running

Emergency mode

Asset protection - keeps the pump or fan running

for as long as possible in an emergency.

If required, MCD 600 can Switch to Emergency mode. In this

mode, MCD 600 ignores all messages and keeps the pump or

fan running for as long as possible.

The VLT® Soft Starter MCD 600 combines the latest in advanced controls and

protections with an increased level of intelligence for superior performance in

ﬁxed-speed applications.

The MCD 600 is more ﬂexible than ever to install, thanks to a wide variety of

Ethernet and serial-based communication option cards, application-dedicated

smart cards and support for eight languages.

The integrated bypass ensures both extremely high eﬃciency and harmonic-free

operation at full speed, reducing energy consumed and required cooling capacity.

Ease of use is also greatly increased with new capabilites, such as the pump-clean

function, PowerThrough operation, and calendar or run timebased scheduling.

Furthermore, enhanced protection ensures more uptime.

VLT® Soft Starter MCD 600

at a glance:

Mains voltage range

• 3 x 200-525 VAC (T5)

• 3 x 380-690 VAC (T7)

Current range and enclosure

• IP20: 20-129 A (nominal)

• IP00: 144-1250 A (nominal)

VLT® Soft Starter MCD 600 is a total motor starting solution.

Current transformers measure motor current and provide

feedback for controlled motor ramp profiles.

VLT® Soft Starter MCD 600

AD437153353153en-010301 > VLT® Soft Starter 10

VLT® Local Control Panel

LCP 601

Everything you can do with the

VLT® Soft Starter MCD 600 controls

is also possible via the

VLT® Local Control Panel LCP 601

Select a screen view set-up from one

user-programmable and 7 standard

views.

Language selection

English, Chinese, German, Spanish,

Portuguese, French, Italian, Russian.

The LCP 601 is connected to the

MCD 600 by using a 3 m cable using a

9-pin (D-sub) plug and 3 m cable

provided with the IP65 (NEMA 12)

door-mount kit.

Once connected, the soft starter asks

whether you want to copy parameters

from LCP to starter or starter to LCP

(if diﬀerent).

100% easy connection

• The Modbus, PROFIBUS, EtherNet/IP

and DeviceNet modules use another

port on the MCD 600, located at the

side of the soft starter

• Separate LCP 601 output at the

bottom for 9 pin plug and 3 m cable

• One ordering number (LCP with

door-mount kit and cable)

• Plug & play connection, even when

the soft starter is powered up

• One cable for power and

communication

• Powered up by soft starter

• Copy of parameter set-up

Current rating

[A]

Weight

[kg]

Height

[mm]

Width

[mm]

Depth

[mm]

Enclosure

size

20 - 42 4.8

336 152 231 S163 - 69 4.9

86 - 128 5.5

144 - 215 12.7 495

216 243 S2244 - 448 15.5

523

527 - 579 19.0

590 - 736 51.0

618 447 310 S3839 - 979 62.0

1134 - 1250 65.0

Dimensions

Fieldbus communication

modules:

Starting

• AAC Adaptive Acceleration

• EtherNet/IP

• PROFINET

• Modbus TCP

• PROFIBUS

• DeviceNet

• Modbus RTU

• Remote LCP Option

• Application card

• Smart Pump

• PC software:

• WinStart

• VLT® Motion Control Tool MCT 10

10%

20%

30%

40%

50%

Time

60%

70%

80%

90%

100%

Speed

700%

600%

500%

300%

100%

400%

200%

10% 20% 30% 40% 50%

Rotor speed (% full speed)

60% 70% 80% 90% 1

00%

Current (% motor full load current)

Three Adaptive Acceleration Control (AAC) start

proﬁles; early, constant and late acceleration

Constant current/ current ramp – shown here

with kickstart

AD437153353153en-010301 > VLT® Soft Starter

Feature Benefit

Small footprint and compact size – Saves panel space

Built-in bypass

– Minimizes installation cost and

eliminates power loss

– Reduces heat build up. Savings in

components, cooling, wiring and labor

Advanced accessories –

Allows enhanced functionality

Advanced SCR control algorithms

balance output waveform

–

Allows more starts per hour,

at higher load

Reliable Maximum up-time

Essential motor protection (MCD 202) – Reduces overall project investment

Max. ambient temperature 60

°C

without derating

– No external cooling or oversizing necessary

User friendly Save commissioning

Easy to install and use

Easy DIN rail mounting for sizes up to 30 kW – Saves time and space

VLT® Compact Starter MCD 200

VLT® Compact Starter MCD 200 series from Danfoss

includes two soft starters in the power range 7.5-110 kW.

The series oﬀers easy DIN rail mounting

for sizes up to 30 kW, 2-wire or 3-wire

start/stop control and excellent

starting duty (4 x Ie for 6 seconds).

Heavy starting ratings at 4x Ie

for 20 seconds.

Compatible with grounded delta

power systems.

Power range

7.5 – 110 kW

Remote operation

The dedicated remote operator

kit facilitates remote operation of

VLT® Compact Starter MCD 201 and

VLT® Compact Starter MCD 202 .

The operator (IP54/NEMA 12) is

mounted on the cabinet front and

allows remote control, status indication

and motor monitoring of an individual

VLT® Compact Starter using RS485

serial communication.

MCD 201

MCD 202

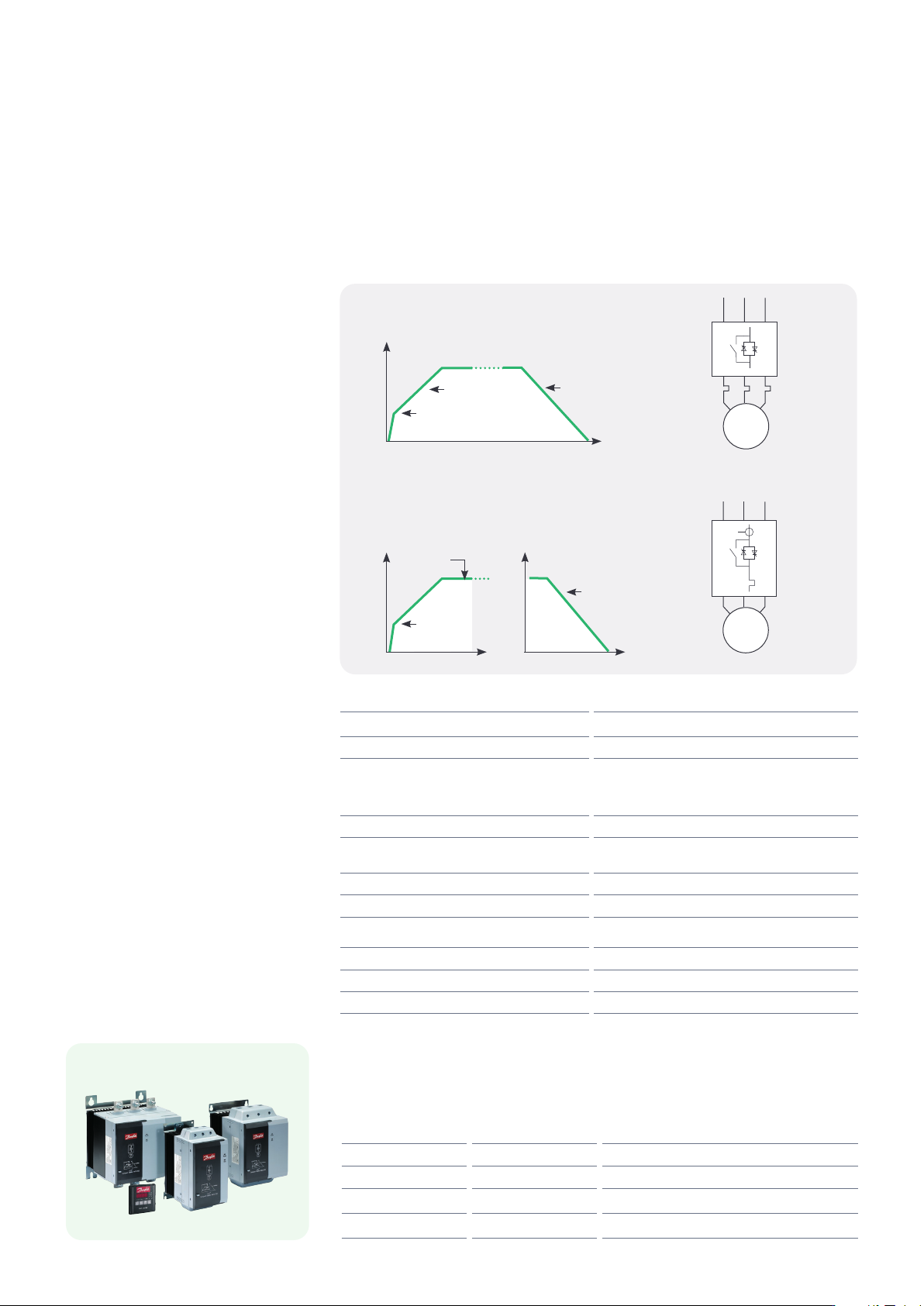

MCD 202 provides enhanced soft start functionality

and various motor protection features

Ramp up

Initial torque

Ramp

down

Ramp up

Initial current

Current

limit

Ramp

down

Power range (400 V) 7-30 kW 37-55 kW 75-110 kW

Height [mm] 203 215 240

Width [mm] 98 145 202

Depth [mm] 165 193 214

Dimensions
