2
Important
Please read this manual and its safety guidelines thoroughly before using the product.
Note: Even if the display is turned off and the charging base is disconnected from the mains, the tool
remains operational as long as the batteries are charged, even when the cartridge is taken out.
The tool turns off automatically only under the following conditions:
- The tool is out of the charging holder (without safety cap on) and remains completely
still for 5 minutes (see page 8).
- The tool has the safety cap on and remains completely still for 60 minutes (see page 9).
The tool can be manually switched off and on by tapping the tool power button on the
display (see page 9).
Packing List
The following items are included:
This manual corresponds to the following reference:
B500-B
Manual .............................. 1 unit
Ref. 0034642
Handle for
B·IRON .......................... 1 unit
Cartridge not included, sold
separately.
Sealing Plug* for B·100 &
B·500 Handles ............ 1 unit
*available as ref. OB4000
(ref. contains 10 Sealing Plugs)
Grip* for
B·IRON Handles ......... 1 unit
*availabel as ref. B5050
(ref. contains 4 grips)
Grip Fitters ................ 2 units
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
B·500
Handle
for B·IRON
Power Socket
USB Connector
Bluetooth
Connection
PDS
Portable Display 7”
for B·IRON *
B1596
Safety Cap
for B·IRON Handles
C210
Cartridge
Range
* Not included, sold separately.
Connection with B·IRON Station
Cable USB-A to USB-C *
Ref. 0032705
ESD Safe Connection
Note: All B·IRON components comply with CE standards, but the tool by itself is not grounded. Therefore,
to comply with ESD regulations, the user of the B·IRON tool must be ESD-compliantly grounded.
JBC offers ESD tablemats, earthing cables, plugs and wristbands. More information on www.jbctools.com.
Reference Mark
Reference Mark
Reference Ring
Reference Ring
Ring
Ring
Inserting C115 Cartridges
Push the cartridges inside the handle until the
reference ring rests against the sealing plug.
Inserting C115 Cartridges
Push the cartridges inside the tweezers until
the first ring rests against the tool.
Inserting C210 Cartridges
Push the cartridges inside the handle until
the reference mark is aligned with the edge
of the handle.
C210 Cartridge Holder
The cartridge holder (4x slots) is used to
store cartridges. It allows having different
cartridges quickly at hand and it works with
C210 Cartridges.
Cartridge Holder
Slots
C115 Cartridge Adapters
(Ref. B0643 includes 4 adapters)
Since C115 Cartridges have a smaller diameter
than C210 Cartridges, adapters must be used
to store them in the cartridge holder.
These adapters must simply be inserted from
above into the slots of the cartridge holder.
C115 Cartridge Adapters
(Ref. B0643 includes 4 adapters)
Since C115 Cartridges have a smaller diameter
than C210 Cartridges, adapters must be used
to store them in the cartridge holder.
These adapters must simply be inserted from
above into the slots of the cartridge holder.
Cartridge
Adapters
Cartridge
Adapters
ø 1
ø 1,5
ø 3,5
4
Conical Chisel Conical Bent Bevel
B·500 Handle works with C210 Cartridges.
Find the model that best suits your soldering
needs on www.jbctools.com
Compatible Cartridges*

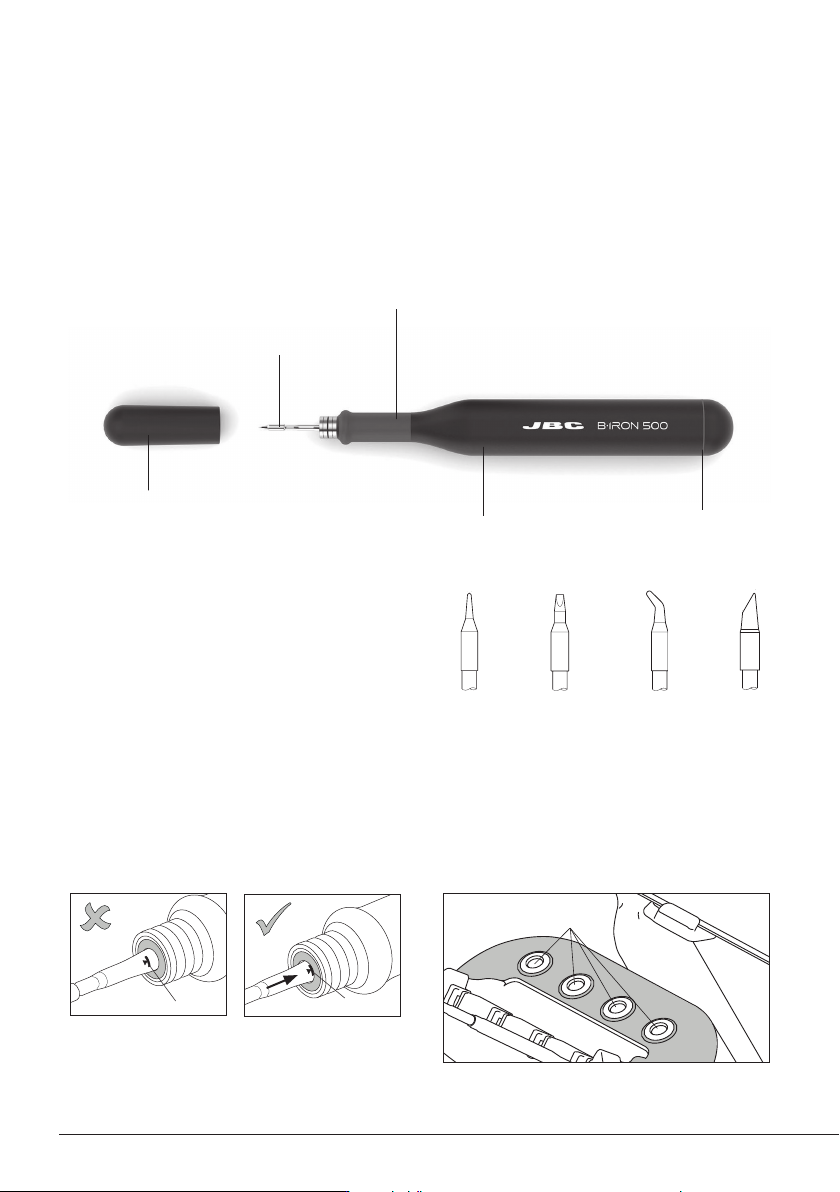

Features
C210*
Cartridge Range
Status LightbandHandle
B5050
Grips for B·IRON
Handles
B1596
Safety Cap
for B·IRON Handles
* Not included, sold separately.
B·500 performs up to 500 medium-sized SMD soldering joints per charge and is the ideal tool for
continuous and intensive work with larger components or ones connected to ground planes.
Note: To charge the tool a B·IRON station is needed.
