1. Head Part
(CP-40)
NO Symptom Possible Cause Error Code Action
Instruction
25
Pick Up Error
Bad Blow Rate Adjust or Replace Vacuum Generator Level. 1-3-8
26 Head is set High. Set Head Height. -
27 No Head Vacuum Volume Adjust or Replace Vacuum Generator Level. 1-3-8
28 Excessive Head Vacuum Volume Adjust or Replace Vacuum Generator Level. 1-3-8
29 Excessive Foreign Materials Inside Head Filter Remove Foreign Materials from Head Filter. -
30 Head Image Test is not Performed Properly. Set up Head Aligner. 1-3-3
31 Damage to Spring of Head Ass'y Z-Axis Replace Spring of Head Ass'y Z-Axis. -
32 Head R-Axis Malfunction
Check and Replace Head R-Axial Motor
Connector.
33
Data is indicated as "0" When Head Vacuum is
"ON".
Replace Vacuum Generator. 1-3-4
34
Difference between Head Vacuum Volumes is over
50.
Replace Vacuum Generator. 1-3-4
35 Head Vacuum Volume is under 560. Adjust Head I/F Board VR1. 1-3-5
1-2. Trouble Diagnosis
1. Head Part
(CP-40)

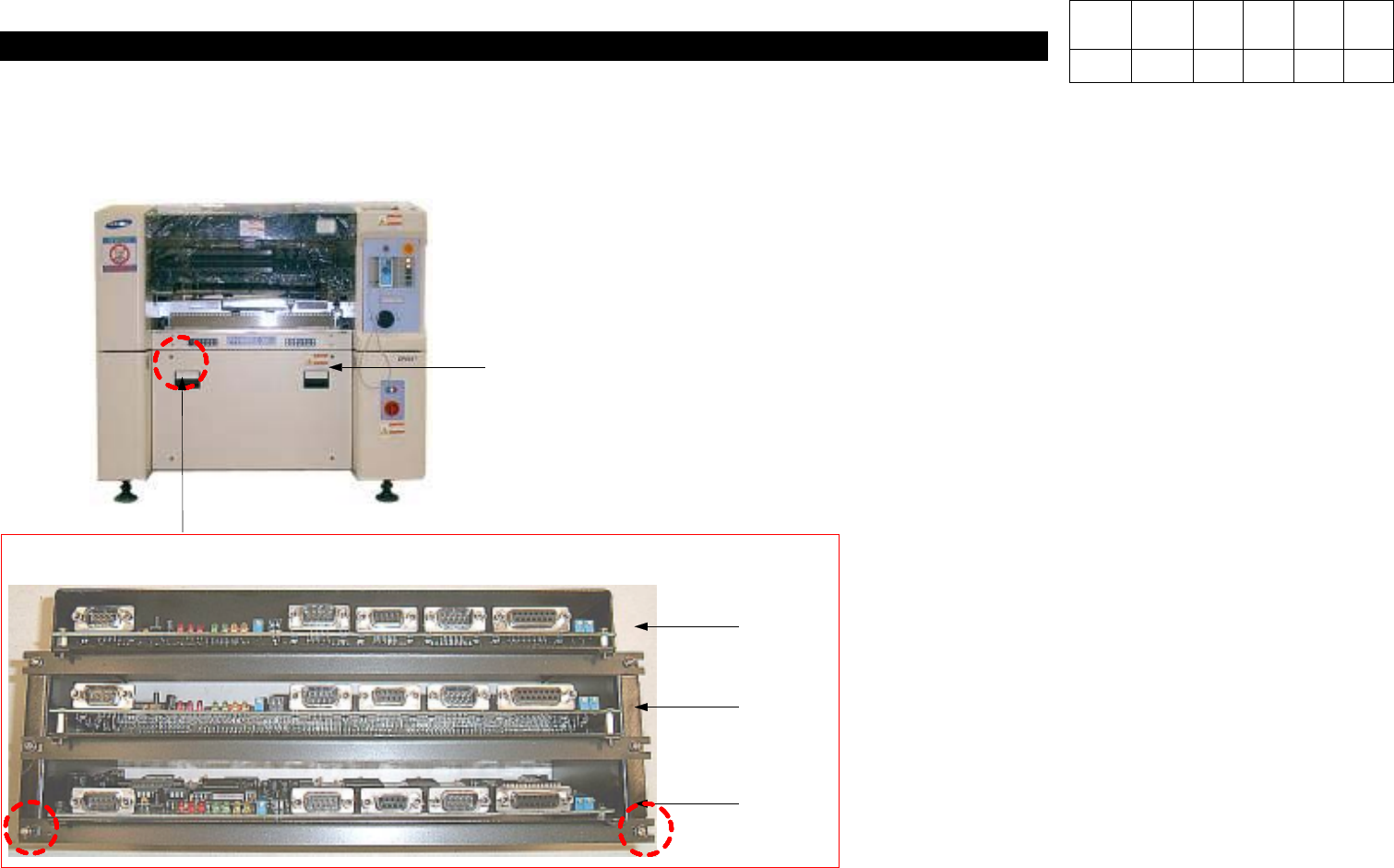

1-3-1. Align Board Replacement
1) Using a Cross-head Screwdriver, Loosen 4
Toras Bolts on the Front Cover.
2) Loosen both the Left-hand and the
Right-hand M3*8 Spherical Head Bolts of
Bracket in the Left Upper.
3) While Grasping the Front End of Faulty
Align Board with Both Hands, Pull them.
# Since Head 1, Head 2 and Head 3 are
located in order from the Top, Disconnect
Only Faulty Align Board(For Assembly,
Perform Reverse Procedures of
Disassembly).
Toras Bolt*4ea
Align Board
Head 1
Head 2
Head 3
M3*8SphericalHead
Version Date WA QA CA Note
00 Nov04 O O O
1. Head Part
(CP-40)

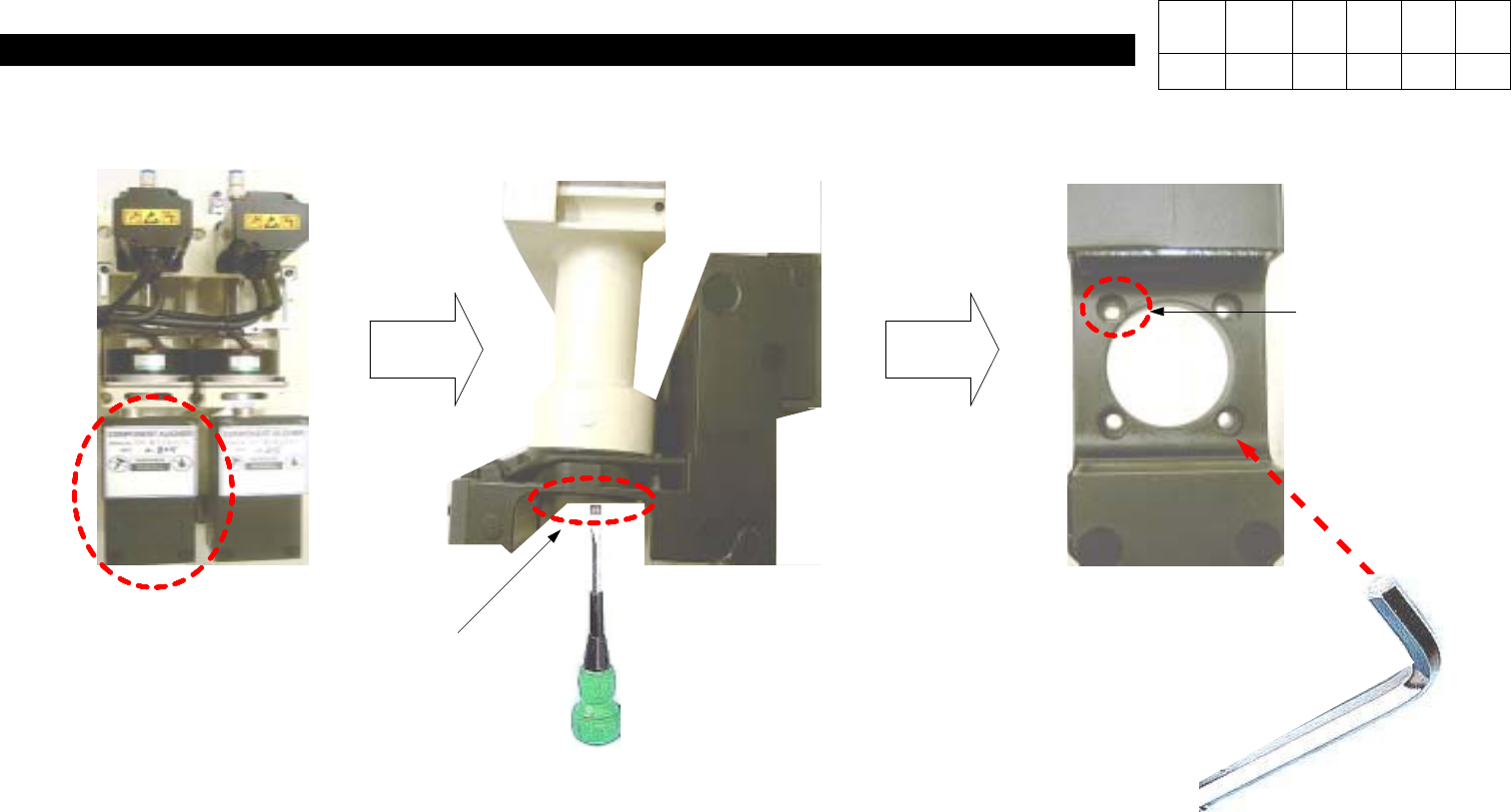

1-3-2. Align Replacement
Wori Aligner
J9059008A
Flat-head Screwdriver
CAP
Hexagon
Wrench Bolt
M4 Hexagon Wrench
1) Disconnect Connector on the Top of
Aligner (In Orders of Head 1, Head 2,
Head3fromLeft).
2) Using a Flat-head Screwdriver, Press
Left and Right Sides of Cap to
Remove Cap.
3) Using a M4 Hexagon Wrench, Loosen
4 Hexagon Wrench Bolts and Replace
Aligner.
Version Date WA QA CA Note
00 Nov04 O
