32-C 17連交換台車駆動部切替仕様(左側):NPM-WX Feeder cart drive changing unit(Left Side):NPM -W X パーツレイアウト Kit No. キット 品番 Kit Name キット名称 MTKA016351AA セクションNo. PARTS LAYOUT Section No. - - O141 ( KMTKA016351AA-03-3 )
Ref
No.
Remarks R
1
Q'ty
32-B
17連交換台車駆動部切替仕様(左側):NPM-WX
Feeder cart drive changing unit(Left Side):NPM-WX
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA016351AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BOLT
1
1 N210200346AB
BLOCK
1
2 MTPA004645AA
GUIDE
1
3 N210094054AC
SHAFT
1
4 N210161773AA
POST
10
5 N210200351AA
PLATE
1
6 MTPB013048AC
PLATE
1
7 MTPB013049AB
COVER
1
8 N210103092AD
BRACKET
1
9 KXFB00JJA01
NUT-PLATE
1
10 N210186760AA
SWITCH(400mm)
1
11 N610076513AA
BOLT
12
12 N510067830AA Ultra Low Head Cap Screw M8X12-A2-50
SPACER
2
13 N510038787AA 3382330-50120
CYLINDER
1
14 N510061079AA CDQ2D63-135DCZ-XB10
ROD-END
1
15 KXF088CAA00 POS10EC
SWITCH
1
16 N510037368AA
S
D4N-1122
SPEED-CONTROLLER
2
17 N510040089AA AS2201F-02-06S-8-X250
BOLT
9
18 N510017569AA
SSS 003 Hexagon socket button head screw M8X10-10.9 A2J (Trivalent)
PIN
4
19 KXF0CXHAA00 1017003-40008
SCREW
4
20 N510018280AA
Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent)
SHIM
2
21 N510061301AA BRF015024050-C
JOINT
1
22 KXF06F4AA00 53015030-WM
JOINT
1
23 KXF0CV1AA00 KK3P-06L
PLUG
1
24 MTNP001260AA KK4P-06L
JOINT
1
25 KXF0CVQAA00 KK3S-06E
JOINT
1
26 MTNP001261AA KK4S-06E
BRACKET
1
27 MTPB019124AA
VALVE
1
28 MTNP000843AA VQZ1321-5LOZ1-M5-X573-Q
O140
--
( KMTKA016351AA-03-2 )

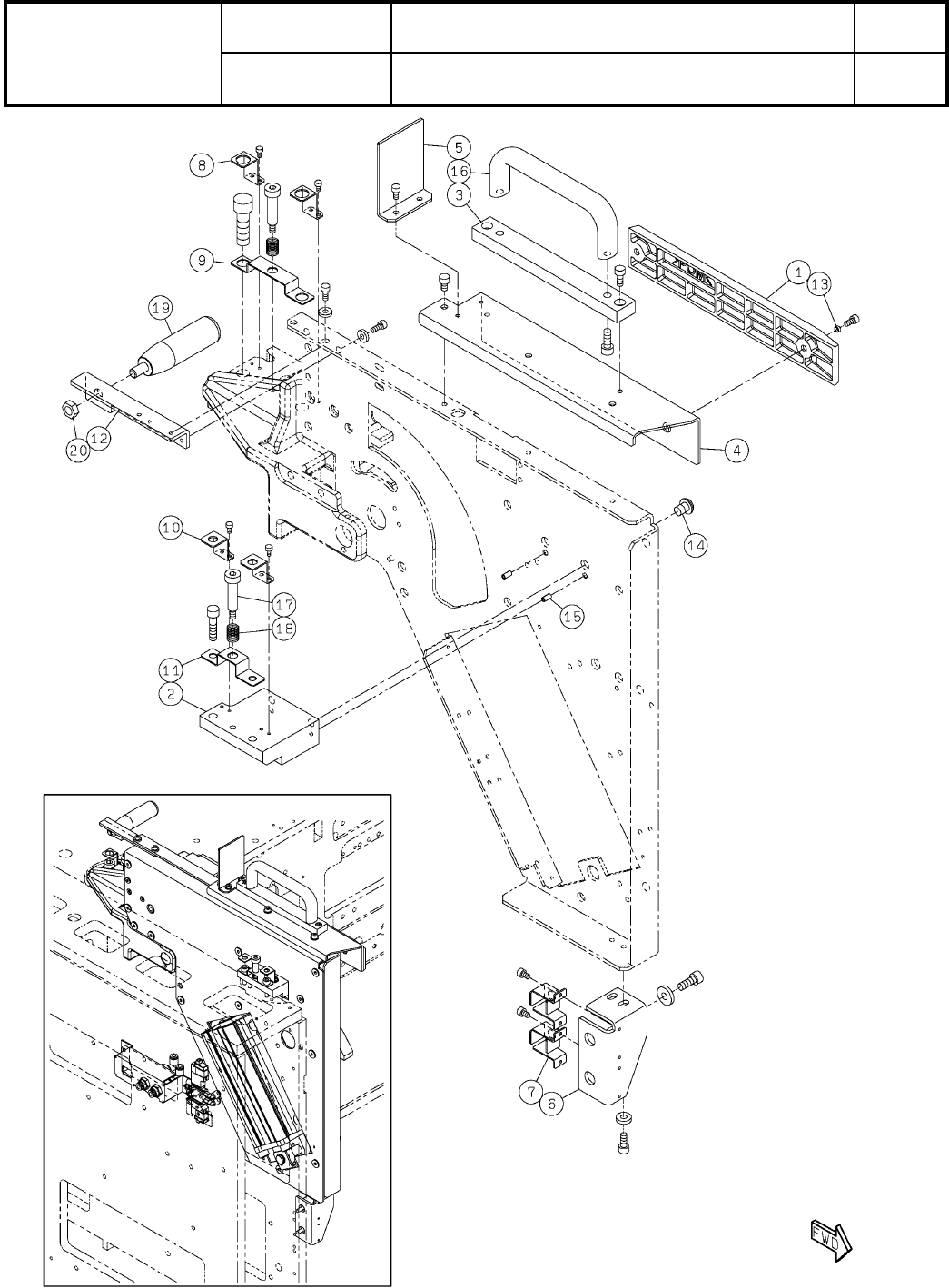

32-C
17連交換台車駆動部切替仕様(左側):NPM-WX
Feeder cart drive changing unit(Left Side):NPM-WX
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA016351AA
セクションNo.
PARTS LAYOUT
Section No.
--
O141
( KMTKA016351AA-03-3 )
Ref
No.
Remarks R
1
Q'ty
32-C
17連交換台車駆動部切替仕様(左側):NPM-WX
Feeder cart drive changing unit(Left Side):NPM-WX
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA016351AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
GUIDE
1
1 N210150031AB
BLOCK
1
2 MTPA029549AA
PLATE
1
3 MTPA025424AA
BRACKET
1
4 MTPB014741AA
COVER
1
5 MTPB001581AC
BRACKET
1
6 MTPB018817AA
BRACKET
2
7 MTPB018825AA
STOPPER
2
8 N210120641AA
PLATE
1
9 MTPB015734AB
STOPPER
2
10 MTPB015736AA
PLATE
1
11 MTPB015735AA
BRACKET
1
12 MTPB015737AA
SPACER
2
13 N510009576AA 3382330-40020
BOLT
2
14 N510017569AA
SSS 003 Hexagon socket button head screw M8X10-10.9 A2J (Trivalent)
PIN
2
15 KXF0CXHAA00 1017003-40008
HANDLE
1
16 N510045749AA UAF-20X128-BK
BOLT
2
17 N510032567AA MMSB8-30
SPRING
2
18 N510041160AA WWR10-35
GRIP
1
19 N510060641AA GTM-24XM8
NUT
1
20 N510017879AA
Hexagon nut Type-3 Best class M8-6H-4T A2J (Trivalent)
O142
--
( KMTKA016351AA-03-3 )
