5.5 PROGRAM SELECTION

This controller has 10 programs (memories) slots to allow 10 different

parameters setting storage. Follow steps below to select a desired program:

1. Press the Set button (3) to highlight the program number selection.

2. Press the (+) or (-) buttons to select desired program.

3. Press the Set button (3) to exit.

5.6 CYCLE COUNTER (Refer to Figure 9.0)

The cycle counter records the numbers of automatic dispense cycle being

activated. Up to 60,000 cycles can be recorded. To reset the counter, follow

steps below:

1. Press and hold Set button (3) for two seconds to enter setup screen.

2. Press and hold both Set button (3) and Mode button (2) simultaneously to

clear the counter.

3. Press and hold Set button (3) for two seconds to exit setup screen.

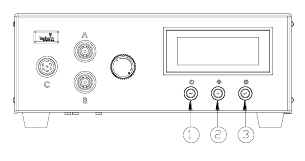

Figure 9.0

5.7 TO CHANGE PRESSURE UNIT DISPLAY (Refer to Figure 9.0)

The default pressure unit display is “psi”. To change pressure unit display to

“bar” follow steps below:

1. Press and hold Set button (3) for two seconds to enter setup screen.

2. Press both (+) and (-) button simultaneously two times. The unit “psi” will

be flashing.

3. Press both Set button (3) and (+) button simultaneously to change unit

display to “bar”. Repeat this step to change unit display back to “psi”

4. Press and hold Set button (3) for two seconds to exit setup screen.

5.8 MULTIPLE SHOTS SETTING

Up to ten individual or sequential shots can be stored in the TS500R. Sequential

mode is activated in numerical order.

1. Follow steps in sections “5.1.2 Program Selection” & “5.1.4 Automatic

Dispense Cycle Setting” to set dispense time in desired programs

2. Press and hold the Mode button (#2) for 2 seconds to turn on sequential mode

3. Press and release the Set button (#3) to enter the sequential program setup

mode

4. Press the (+) or (-) button to set the number of programs to be dispensed

5. Press and release the Set button (#3) to save selected sequential shot program

6. Depress Foot switch to activate sequential dispensed cycle

7. Press the Mode button (#2) for 2 seconds to exit sequential mode

6. TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

CORRECTION

LCD does not

light

 No power input

 Check power cord

connections

 Turn on power

System will not

actuate

 Supplied pressure

dropped below set

pressure

 Foot switch not plugged

in or improperly plugged

 Defective foot switch

 Broken wire or loose

connection inside unit

 Defective solenoid

 Defective PC board

 Increase supplied pressure

 Check foot switch

connection

 Foot switch needs to be

repaired or replaced

 Unplug power cord and

disconnect air supply.

Remove cover and check

for broken wires or loose

connections

 Replace solenoid

 Replace PC board

System will not

pressurize

 Insufficient air pressure

 Air hoses not plugged in

 Regulator defective

 Increase air supply

pressure

 Check connection

 Replace regulator

No Motor

Response

 Foot switch connection is

loose

 Motor cable connection is

loose

 Input Voltage is too low

 Dispense time is too low

 Check Foot switch

connection

 Check Motor cable

connection

 Increase input voltage

 Increase dispense time

Inconsistent

dispensing

 Air bubbles in adhesive

 Dispense time is too low

 Dispense needle started to

clog

 De-air material

 Increase dispensing time

 Replace needle

7. MAINTENANCE

The dispenser is designed and built to be relatively maintenance free. To assure

trouble free operation, please follow below steps:

1. Make certain air supply is clean and dry.

2. Avoid connecting the unit to excessive moisture or solvent saturation.

3. Avoid connecting air supply exceeding 100 psi (6.9 bar).

4. Use only Amyl Alcohol to clean outside surface of the main housing.

5. Use only soft cloth to clean the LCD.

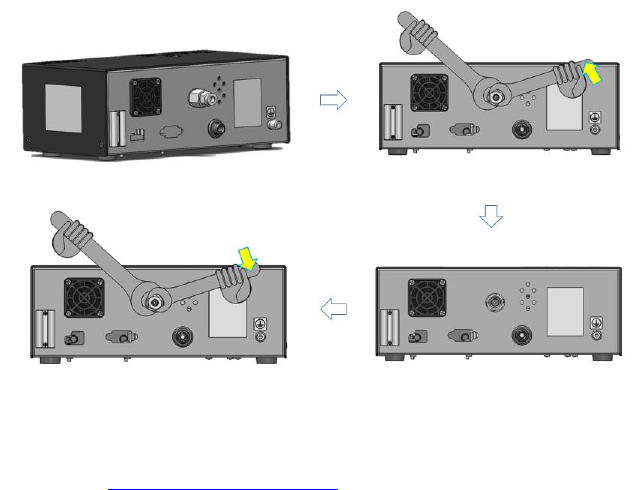

PULL/PUSH FITTING CHANGE GUIDE

NOTE: the wrench on the left is NOT allowed to move.

8. SPARE PARTS AND ACCESSORIES

For TS500R-PC spare parts and accessories information, please visit the User Guide

webpage at http://www.techconsystems.com

9. LIMITED WARRANTY

OK International warrants this product to the original purchaser for a period of two (2)

years from date of purchase to be free from material and workmanship defects but not

normal wear-and-tear, abuse and faulty installation. Defective product or subassembly

and components under warranty will be repaired or replaced (at OK

International's option) free of charge. Customer with defective product under warranty

must contact the nearest OK International office or distributor to secure a return

authorization prior to shipping the product to the assigned OK International authorized

service center. For nearest OK International office or distributor contact information,

please visit www.techconsystems.com. OK International reserves the right to make

engineering product changes without notice.
