3. SPECIFICATIONS
Size
254mm x 191mm x 102mm
(10” X 7.5” X 4.0”)
Weight
2.6 kg (5.8 lbs)
Input Voltage
24VDC
Output Voltage Range
0-24 VDC
Rated Power
65W
Air Input
100 psi (6.9 bar) Max.
Air Output
0-100 Psi (6.9 bar)
Pollution Degree
II
Installation Category
I
Indoor Use
Altitude up to 2,000m (6,562ft)
Operating Temperature
0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature
-10˚C to 60˚C (14˚F to 140˚F)
Max. Relative Humidity
80% for temperature up to 31˚C (87.8˚F) Decreasing
linearly to 50% relative humidity at 40˚C (104˚F)
Timer
0.008-60.000 seconds
Cycle Mode
Timed, Interrupt, Purge
Timing Repeat Tolerance
+/- 0.001%
LCD
20 X 4 display segments
5
4. FEATURES
Figure 1.0

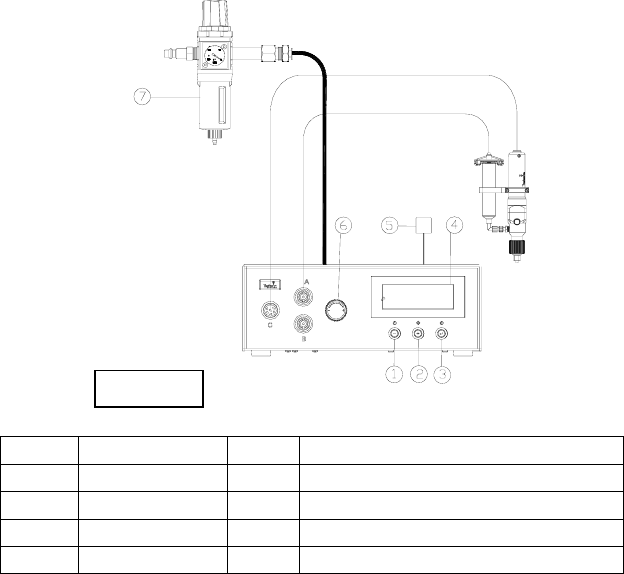

Items
Description
Items
Description
1
Power Button
8
Motor Drive Outlet
2
Mode Button
9
Foot Switch Receptacle
3
Set up/Save Button
10
Power Receptacle
4
Display
11
I/O Connection
5
Air Outlet (Unregulated)
12
Air Inlet
6
Air Pressure Regulator
13
Accessory Air Outlet
7
Air Outlet (Regulated)
6
TS8100
PC Pump
Compressed Air
Motor Cable
Compressed
Air
5. SETUP INSTRUCTIONS
CAUTION: A 5-micron filter (TSD800-6) must be installed with the unit to ensure proper air
filtration
Note: Make sure the controller is turned off when connecting
the motor cable to port C
5.1 Connect the valve to the controller: Refer to diagram above
1. Connect the power cord and foot switch to the back of the unit.
2. Connect Motor Cable to Port C. Notes: Make sure the controller is turned off
when connecting the motor cable to port C
3. Connect syringe air hose to a regulated air source
4. Set air pressure to feed the material to the pump
Notes: for low viscosity material the pressure setting should be 1 – 9 psi; for
medium viscosity material the pressure range setting should be 10-19 psi; for
high viscosity material the pressure range should be 20-80 psi
Do not set air pressure more than 30 psi (2 bar) for material viscosity of
1000 Cps or less.
5. Press the Power button (1) to turn on the unit.
Items
Description
Items
Description
1
Power Button
5
Power Adapter
2
Mode Button
6
Air pressure regulator knob
3
Set Button
7
Air Filter
4
LCD Display
Figure 6.0
