BARCODE READER

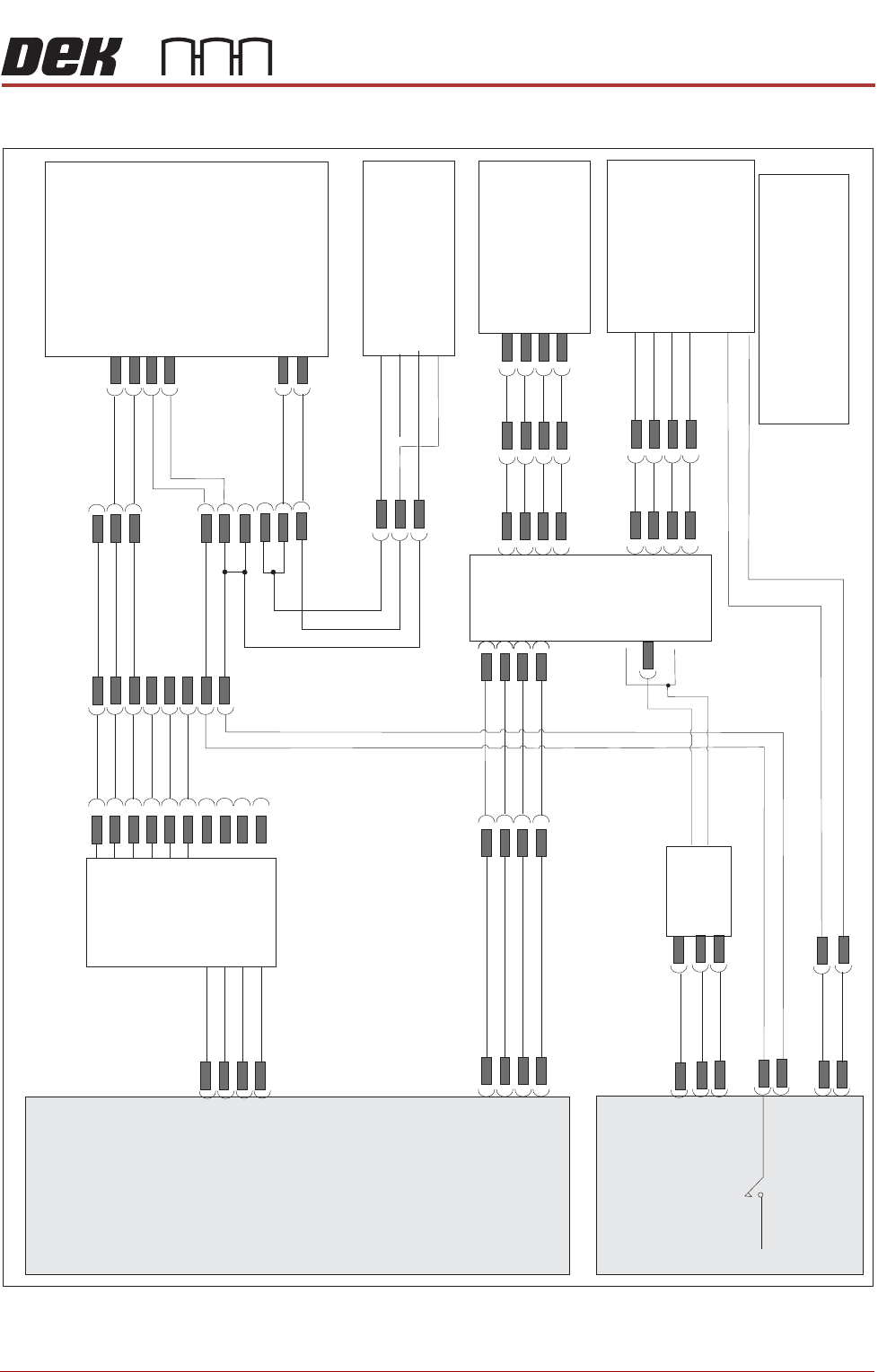

ELECTRICAL SCHEMATIC
Chapter Issue 3, Aug 14 Technical Reference Manual 23.5
ELECTRICAL SCHEMATIC
M37 Power Supply
+12V
CB30 1.5A
+12V
0V
0V
L
N
E
8PL65
8PL45
USB HUB
PSU
M37PL13
M37PL14
M37PL 33
Machine PC
Handheld
Barcode
Reader
(Option)
2D Handheld
Barcode
Reader
(Option)
6PL23
6PL23
NC
TX232
RX232
Signal GND
V+
IN+
Trigger
Trigger
Barcode
Scan
6SE07
+12V
0V
Signal
Alarm
Remote Barcode Reader
3PL57
4PL1
8PL37
4PL4
4PL4
4SK6
+5V
850PL
8SK38
14SK37
6PL17
6SK22
3PL20
USB to
RS232
Converter
See Note
3PL59
USB8
USB6
NOTE
The USB to RS232 Converter
is moulded into the 9 Pin D type
connector hood.
4 Port
USB Hub
BARCODE READER
REPALCEMENT PROCEDURES
23.6 Technical Reference Manual Chapter Issue 3, Aug 14
REPALCEMENT PROCEDURES
These procedures detail how to fit and set up the equipment.
Fitting the Remote
Barcode Reader
1. Select Shut Down and switch the mains isolator to OFF.
2. Securely mount the remote barcode reader on it’s mounting stand.
3. Mount the unit onto the upline conveyor, ensuring that the reader is in a
position to read the barcode on the product.
NOTE
Because conveyor systems vary, the remote barcode reader is supplied on
a fully adjustable mounting stand. This stand should be secured in a suitable
location on the input side of the conveyor.
4. Fit the trigger sensor just before the reader (a Velcro fastener is used for
attaching it).
NOTE
The leading edge of the incoming board, triggers the remote barcode
reader into activation, enabling it to read the barcode on the board. A
crosshair provides an alignment check to target the label in the correct
location.
5. Remove the printer’s rear panel to gain access to the PC.
NOTE
Style 4 Machine PC modules are located and accessed from the front of
the machine.
6. The Power and Signal (Barcode Reader) and the Trigger Sensor cables
are combined into one loom. Route the loom from the conveyor, under the
DEK printer exiting at the rear.
7. Attach the D type connector to the USB conversion cable - 9-pin D type
(USB to Serial (RS232)).
8. Power up the printer at the mains isolator.
9. On the MMI, select Start.
10. Select Run.
11. Type ‘pnpon’ in the command box.

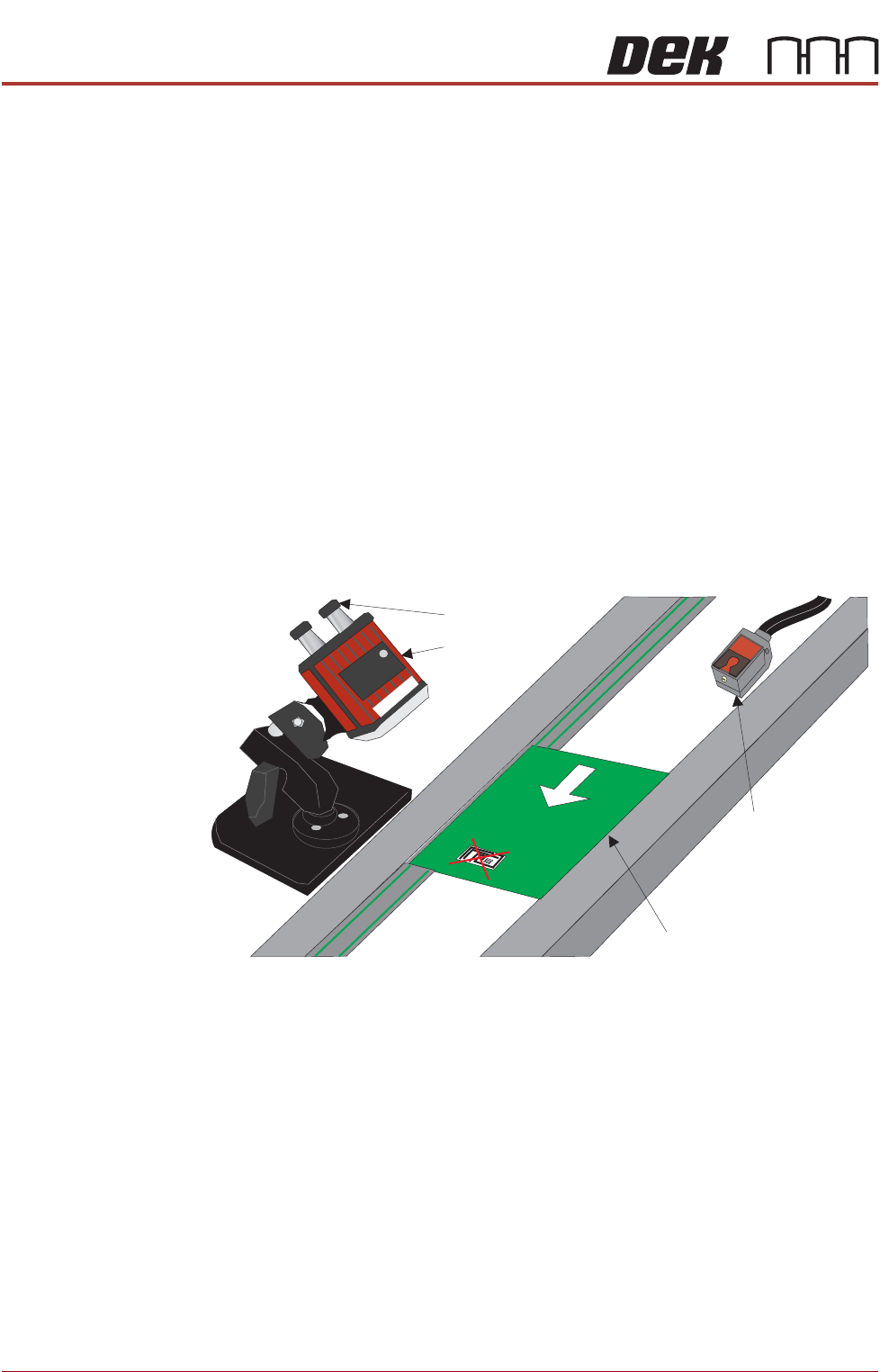

Product with Barcode Label
Trigger Sensor
Barcode Reader
Power and Signal
Board Feed Direction
BARCODE READER
REPALCEMENT PROCEDURES
Chapter Issue 3, Aug 14 Technical Reference Manual 23.7
12. Restart the computer.
13. Insert the ATEN USB to Serial (RS232) Driver Disc into the CD ROM
drawer on the PC.
14. The ATEN installation pane is displayed.
15. Select Next.
16. A windows information pane is posted; select Continue Anyway.
17. After installation completes select Finish.
18. Select Shut Down and switch the mains isolator to OFF.
19. Connect the USB plug to USB8 on the PC (extreme right hand location).
20. Remove and retain the four pan headed screws, which hold the M37
Power Supply Enclosure in place.
21. Slide the enclosure forward to gain access to the connectors at the rear.
22. Connect the power lead M37SK13.
23. Replace the M37 enclosure and secure it with the four screws previously
removed.
24. Power up the printer at the mains isolator.
25. Select Maintenance.
26. Select Machine Setup.
27. Select Barcodes.
28. Select Remote Barcode HW.
M37SK13
