BARCODE READER
REPALCEMENT PROCEDURES
Chapter Issue 3, Aug 14 Technical Reference Manual 23.7
12. Restart the computer.
13. Insert the ATEN USB to Serial (RS232) Driver Disc into the CD ROM
drawer on the PC.
14. The ATEN installation pane is displayed.
15. Select Next.
16. A windows information pane is posted; select Continue Anyway.
17. After installation completes select Finish.
18. Select Shut Down and switch the mains isolator to OFF.

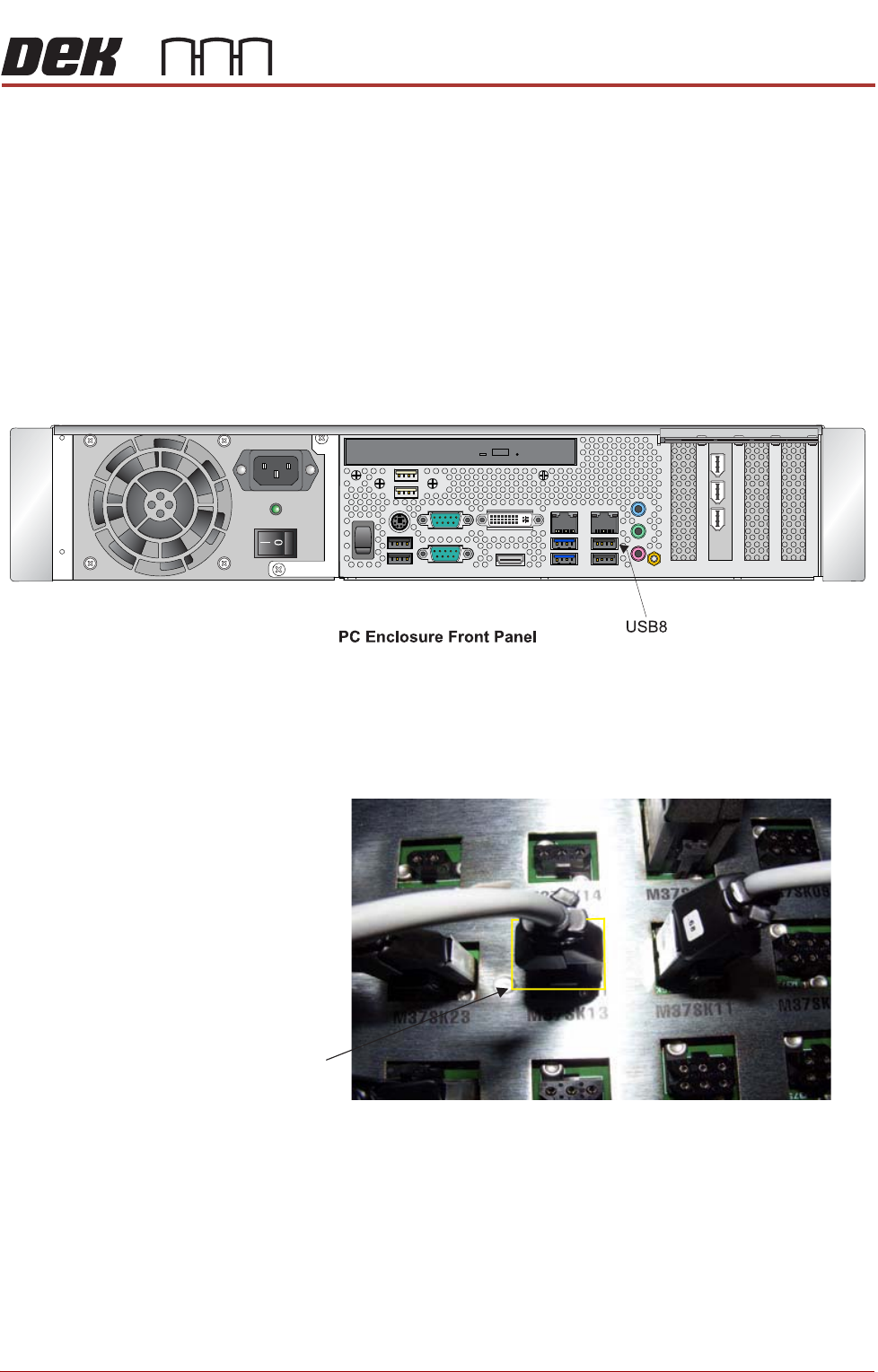

19. Connect the USB plug to USB8 on the PC (extreme right hand location).
20. Remove and retain the four pan headed screws, which hold the M37
Power Supply Enclosure in place.
21. Slide the enclosure forward to gain access to the connectors at the rear.
22. Connect the power lead M37SK13.
23. Replace the M37 enclosure and secure it with the four screws previously
removed.
24. Power up the printer at the mains isolator.
25. Select Maintenance.
26. Select Machine Setup.
27. Select Barcodes.
28. Select Remote Barcode HW.
M37SK13
BARCODE READER
REPALCEMENT PROCEDURES
23.8 Technical Reference Manual Chapter Issue 3, Aug 14
29. Select Fitted.
30. Select Accept.
31. Select Back.
32. Select Back.
33. Select Back.
34. Refit the rear panel ensuring that the cables are not trapped.
35. Use the configuration code cards to configure the remote barcode reader
(described later in this chapter).
Fitting the
Handheld Barcode
Reader
1. Select Shut Down and switch the mains isolator to OFF.

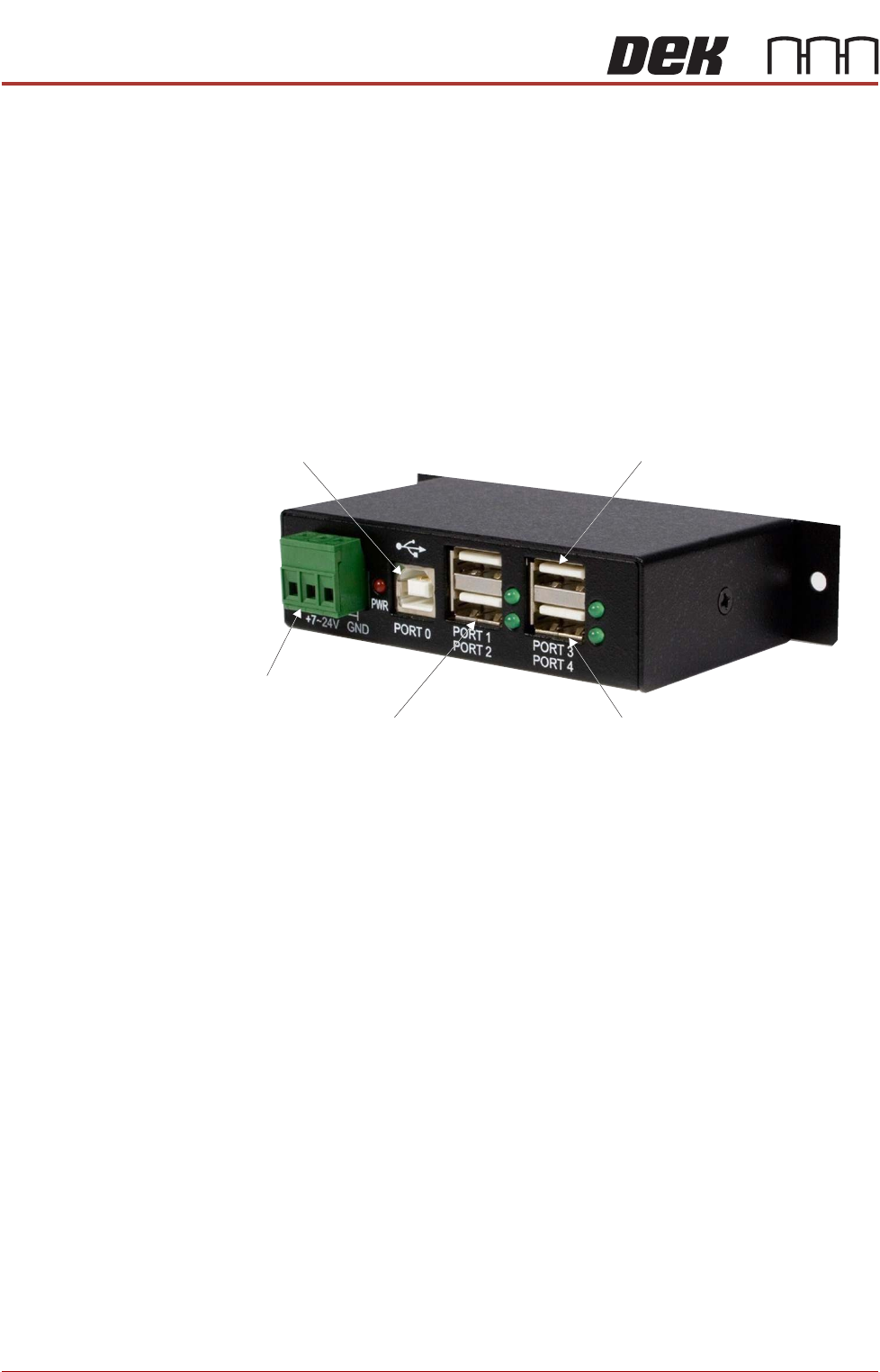

2. Gain access to the 4 port USB hub behind the front panel.
3. Connect the handheld barcode reader to a spare USB port on the hub.
4. Refit the front cover ensuring that the cable is routed between the MMI
monitor bracket and the front cover.
5. Power up the machine.
6. Select Maintenance.
7. Select Machine Setup.
8. Select Barcodes.
9. Select Handheld Barcode HW.
10. Select Fitted.
11. Select Accept.
12. Select Start Character.
13. Set the start character for the barcode (see barcode label below).
14. Select Accept.
15. Select Name Length.
16. Set the name length for the barcode.
17. Select Accept.
From PC
From M37
Touchscreen Monitor IR Receiver/Keyboard
Extension USB
BARCODE READER
REPALCEMENT PROCEDURES
Chapter Issue 3, Aug 14 Technical Reference Manual 23.9
NOTE
The barcode set up is shown in code format. The code format for a
barcode of length 14 starting at character 4 would be:
###PPPPPPPPPPPPPP###
18. Select Back.
19. Select Back.
20. Select Back.
Use the documentation supplied with the reader to setup the language,
keyboard format and barcode symbology.
Barcode Start
Character and
Name Length
A barcode may consist of many types of information, setting the start character
and the name length allows only part of the barcode to be considered whilst
ignoring the rest.
The start character is the numerical position in the barcode from which to start,
ignoring any previous characters.
The name length is the amount of characters to be considered, beginning with
the start character.

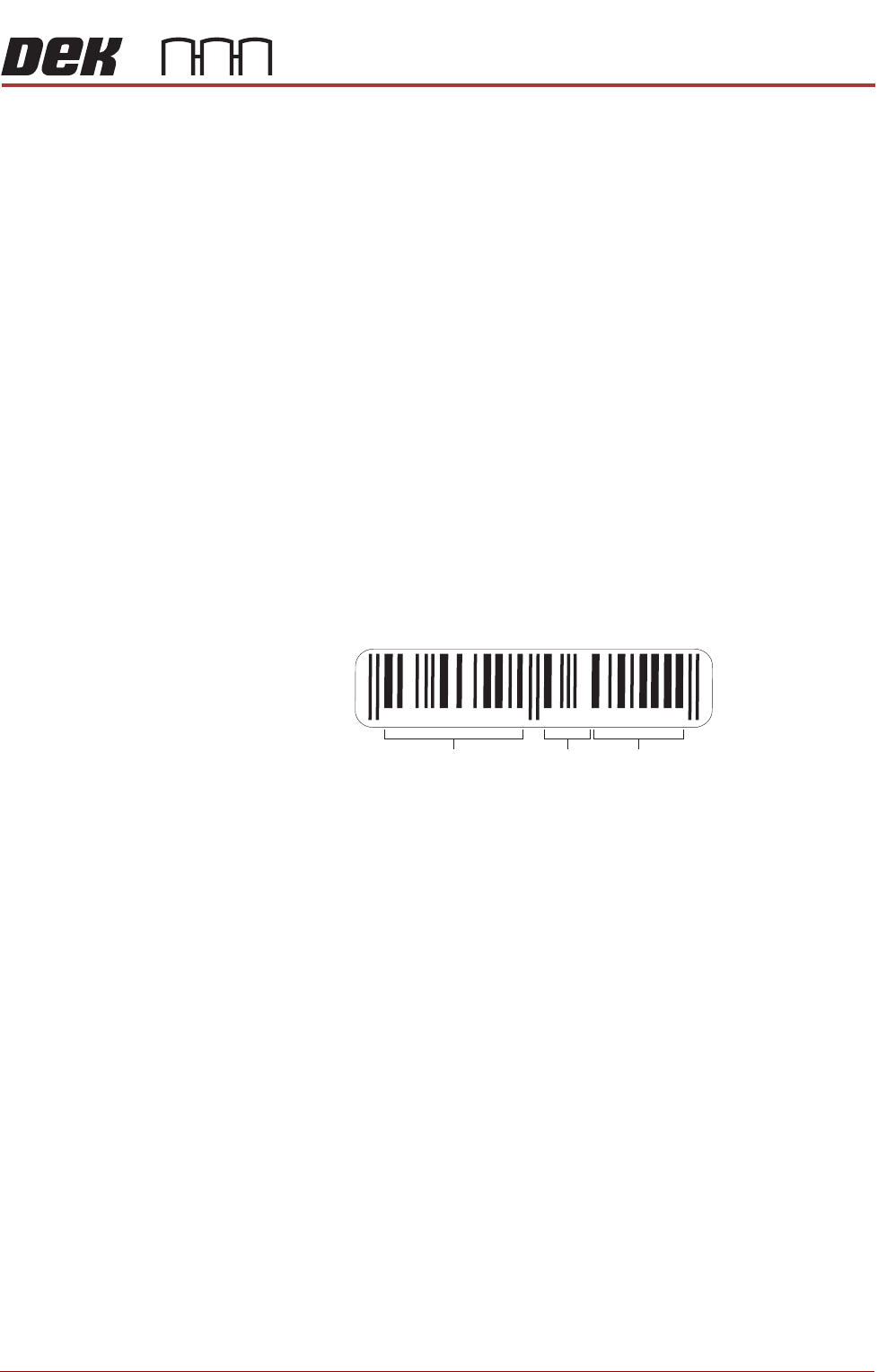

In the following example, the barcode is made up of the product type, batch
number and date code:
If the batch number was the only part of the barcode that needed to be
considered for verification, the start character would be 7 and the name length
would be 2.
NOTE
Once the start character and name length are set, i.e. for solvent, this is global.
Solvent in all the product files on this machine must use the same barcode
format.
To set the start character and name length for the required verification items,
use the following procedure:
1. Select Maintenance.
2. Select Machine Setup.
3. Select Barcodes.
987654 321012
Product
Type
Batch
Number
Date
Code
