3.2 Hardware components
3.2.1 Overview
The following diagrams show the hardware components of the computer system for the various
machine types:

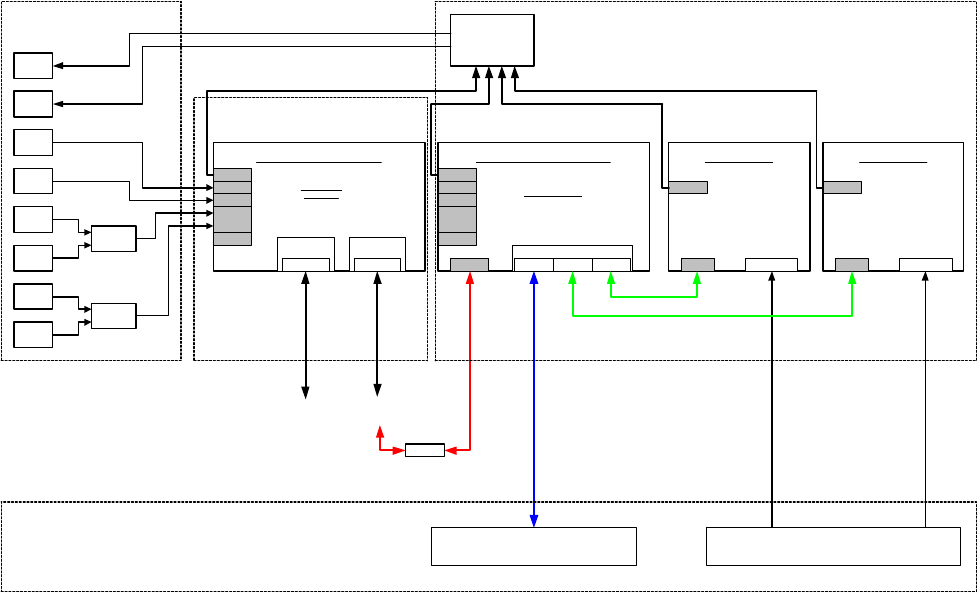

Station computer
COM 294
Hardware components of SIPLACE HF and HF/3 computer system
Monitor
1
Monitor
2
Videomux
Keyboard
1
Keyboard
2
Maus
1
Maus
2
Y-Key
Y-Mouse
Touch
screen 1
Touch
screen 2
Control unit
Local control / peripherals
(Axes, I/O, component tables, PCB
conveyor)
Camera systems
(PCB camera, component camera RV head,
IC camera Twin Head, FC camera and coplanarity)
SIPLACE LAN
(Line)
Customer LAN
(GEM)
Machine
6 - HubLAN 3
LAN 1
VGA
COM 1
COM 2
KBD /
Mouse
Simicro CPU 076
PIII 866 MHz, 192 MB
6 GB HD, FD, CD
USB
LAN 2
Machine controller
2 x COM352 oder COM354
LAN 1
VGA
COM 1
COM 2
KBD /
Mouse
USB
CAN
VISION 1
4 x cameraHS3L
ICOS
MVS340
VISION 2
4 x cameraHS3L
ICOS
MVS340
HS3L HS3L
Simicro CPU 076
PIII 566 MHz, 64 MB
6 GB HD, FD, CD
VGA VGA
Fig. 3-1: Hardware components of the computer system for the SIPLACE HF series
12 of 154
Installation Manual, Station Software Version 505.03 Edition 04/2005

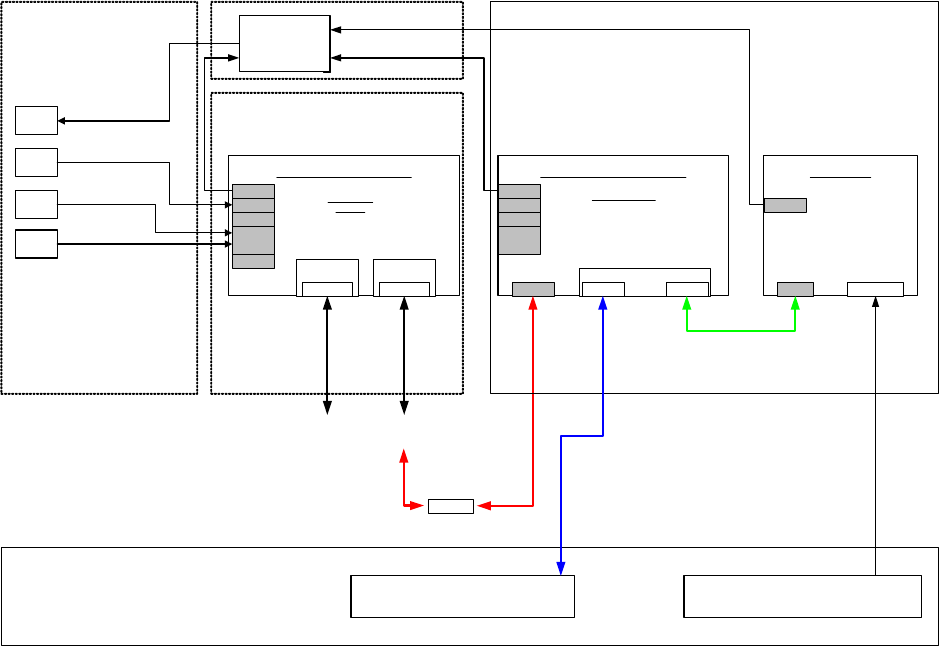

Station computer
Hardware components of SIPLACE S-25 HM and S-27 HM computer system
Monitor
Videomux
Keyboard
Mouse
Touch-
screen
Station computer
Local control / peripherals
(Axes, I/O, component tables,
PCB conveyors)
Camera systems
(PCB camera, component camera,
RV camera)
SIPLACE LAN
(line)
Customer LAN
(GEM)
Machine
Hub
VGA
COM 1
COM 2
KBD /
Mouse
Scenic N300
Desktop
Celeron 2.0 GHz, 256 MB
20 GB HD, FD, CD
USB
Machine controller
1 x COM352
LAN 1
VGA
COM 1
COM 2
KBD /
Mouse
CAN
VISION
4 x camera
HS3L
ICOS
MVS340
HS3L
Sicomp AMS M54
PI 100 MHz, 32 MB
504 MB HD, FD, CD
VGA
i865G Gbit
LAN
LAN 1
Intel, PRO
1000/MT
LAN 2
Control unit
Fig. 3-2: Hardware components of the computer system for the SIPLACE S-25 HM and S-27 HM
13 of 154

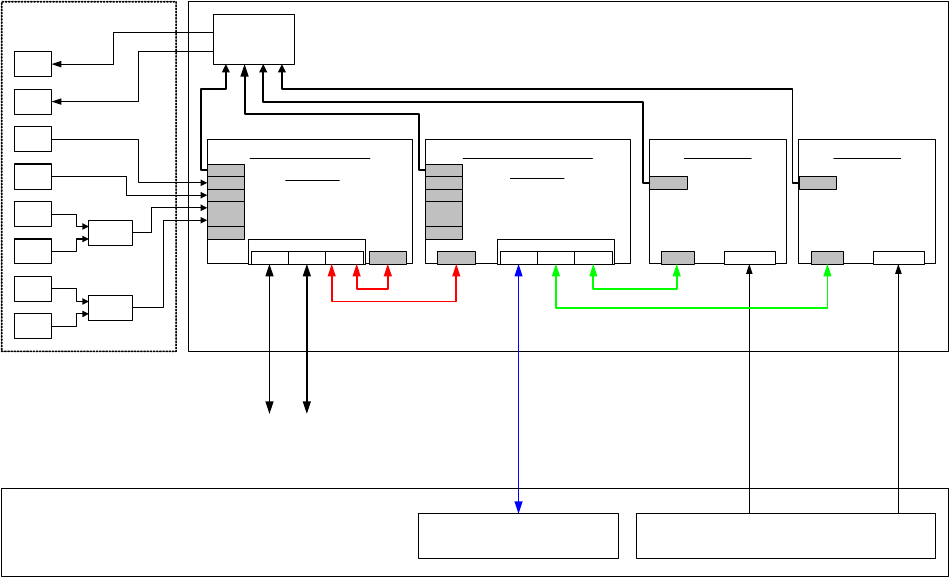

Installation Manual Station Software Version 505.03
Station computer
Hardware components of SIPLACE HS-50 and HS-60 computer system
Mo nit or
1
Mo nit or
2
Videomux
Keyboard
1
Keyboard
2
Mouse
1
Mouse
2
Y-Key
Y-Mouse
Touch-
screen 1
Touch-
screen 2
Control unit
Local control / peripherals
(Axes, I/O, component tables,
PCB conveyor)
Camera systems
(PCB camera, component camera, revolver head)
SIPLACE LAN
(line)
Customer LAN
(GEM)
Machine
VGA
COM 1
COM 2
KBD /
Mouse
Scenic P300
Min iTo w e r
Celeron 2.0 GHz, 256 MB
20 GB HD, FD, CD
USB
Machine controller
2 x COM352
LAN 1
VGA
COM 1
COM 2
KBD /
Mouse
USB
CAN
VISION 1
4 x camera
HS3L
ICOS
MVS340
VISION 2
4 x camera
HS3L
ICOS
MVS340
HS3L HS3L
Sicomp AMS M54
PI 100 MHz, 32 MB
504 MB HD, FD, CD
VGA VGA
i865G Gbit
LAN
LAN 1
Intel, PRO
1000/MT
LAN 2
Station Computer
Hub
Fig. 3-3: Hardware components of the computer system for the SIPLACE HS series
