Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE GS-IC100 341 21 1DE499 PLA TE 1 30918010C2-001 342 4U250260 UNIT_I/O 1 30918010C2-002 343 221DA106 MACHINE_SCREW 4 30918010C2-003 351 221DA212 MACHINE_SCREW 2 20918010CQ-0…
1009-001
Fig. D1

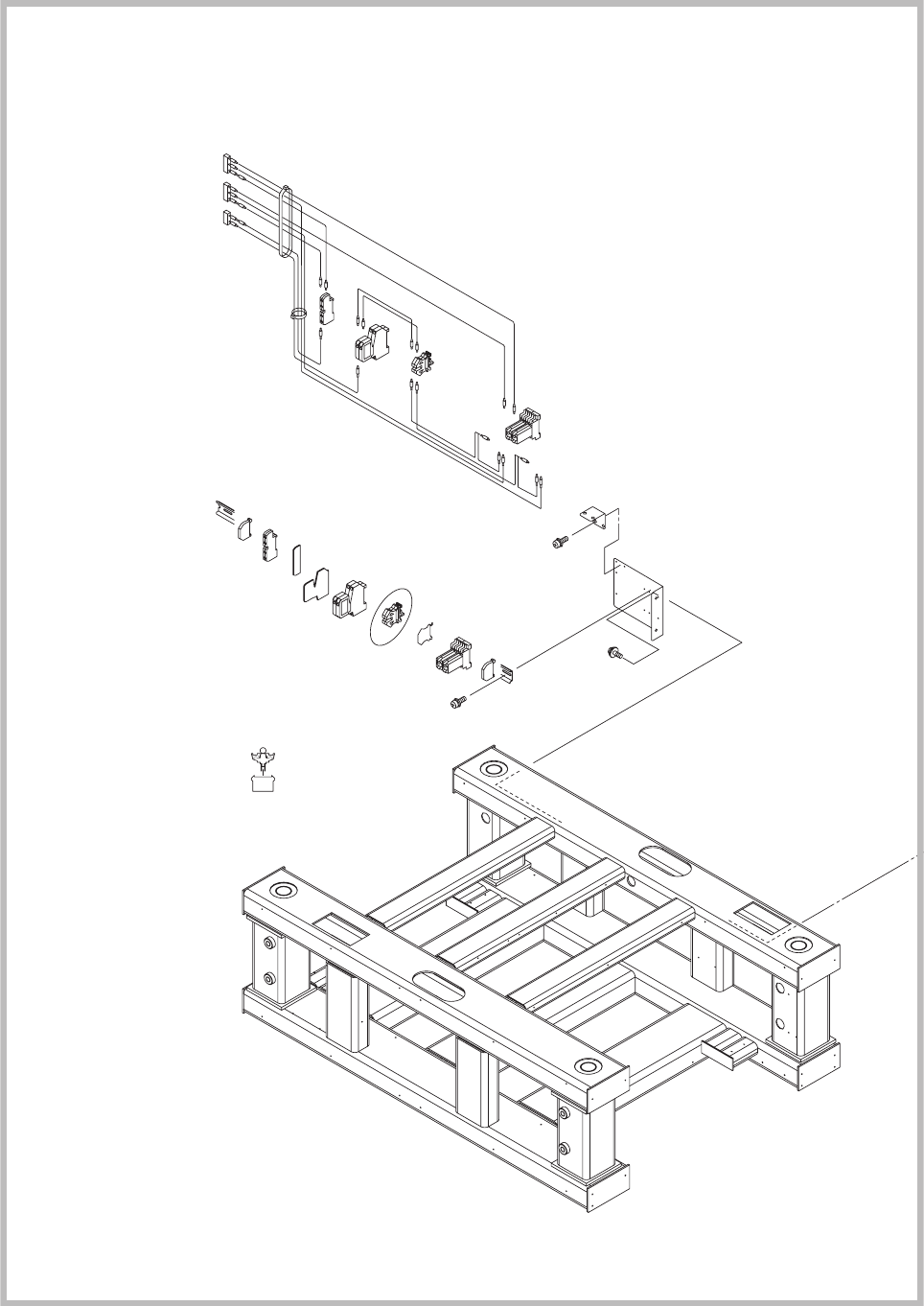

コプラナリティチェックユニット
(GS-IC100)
COPLANARITY CHECK UNIT(GS-IC100)
Fig. D1-4
中継パネル
Relay Panel
(BASE:Document No. P-310-00X
UNIT-3 Fig.D1-4)
X18512
X1�5
X18514
X1�6
342
371
373
353
360
341
343
351
See Fig. D2-3
Key No.214
See Fig. D3-8
Key No.7A8
See Fig. D3-8
Key No.7A7
X7310
X7305
X7306
352
371
373
351
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
GS-IC100
341 211DE499 PLATE 1 30918010C2-001
342 4U250260 UNIT_I/O 1 30918010C2-002
343 221DA106 MACHINE_SCREW 4 30918010C2-003
351 221DA212 MACHINE_SCREW 2 20918010CQ-001
352 221HA303 ROHS_WASHER 2 20918010CQ-002
353 221HA005 WASHER 2 20918010CQ-003
360 221AA031 ROHS_HEX-SCT 2 20918010CQ-010
371 23N30737 ACCESS_WIRING(M 2 20918010CQ-021
373 23N30632 WIRING 2 20918010CQ-023
Fig. D1-4
Fig. D1
1009-001
Fig. D1-5

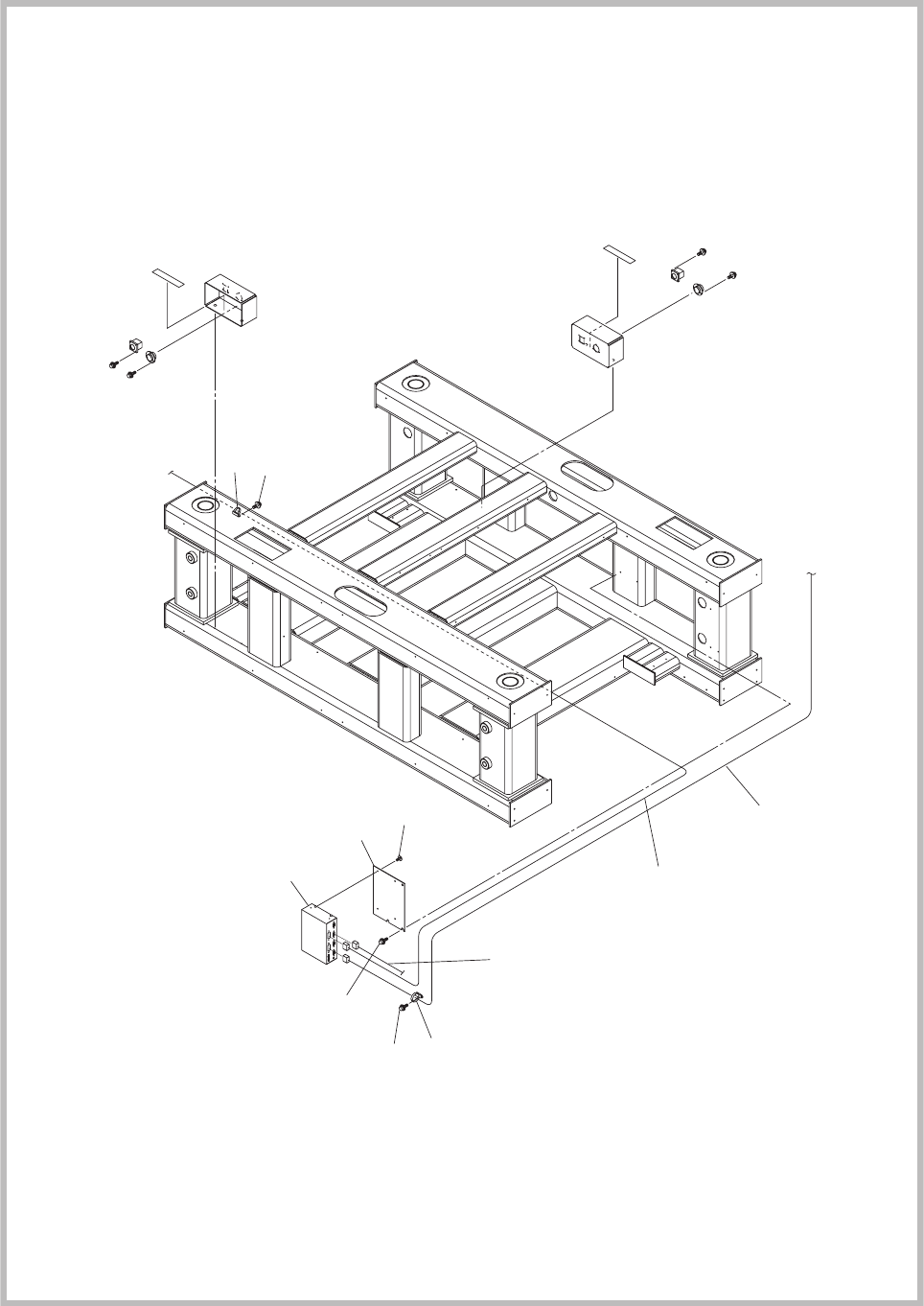

OP
パネル
OP Panel
1009-001
4C2
4A7
4A3
4A5
4A4
4A8
4A9
4B0
4B1
4A6
4C4
4C1
4C1
4C1 4C3
4C2
4C0
4C0
4C0
4B3
4B2
4B9
4B9
4A1
4E3
4D3
4C5
4C5
4E4
4E5
4E1
4D4
4D5
4D1
4E2
4D2
497
496
495
B
DETAIL”B”
4B3
4B2
DETAIL” ”
A
A
914A
914B
912B
912B
912B
912A
912A
912A
913A
913B
911A
911B
911A
911B
24G
10G
10G
A-X2140
10G
B-X2140
XS006-03
(BASE:Document No. P-310-00X
UNIT-3 Fig.D1-5)
Fig. D1
コプラナリティチェックユニット
(GS-IC100)
COPLANARITY CHECK UNIT(GS-IC100)
