1009-001
Fig. E3
コプラナリティチェックユニット
(GS-IC100)
COPLANARITY CHECK UNIT(GS-IC100)

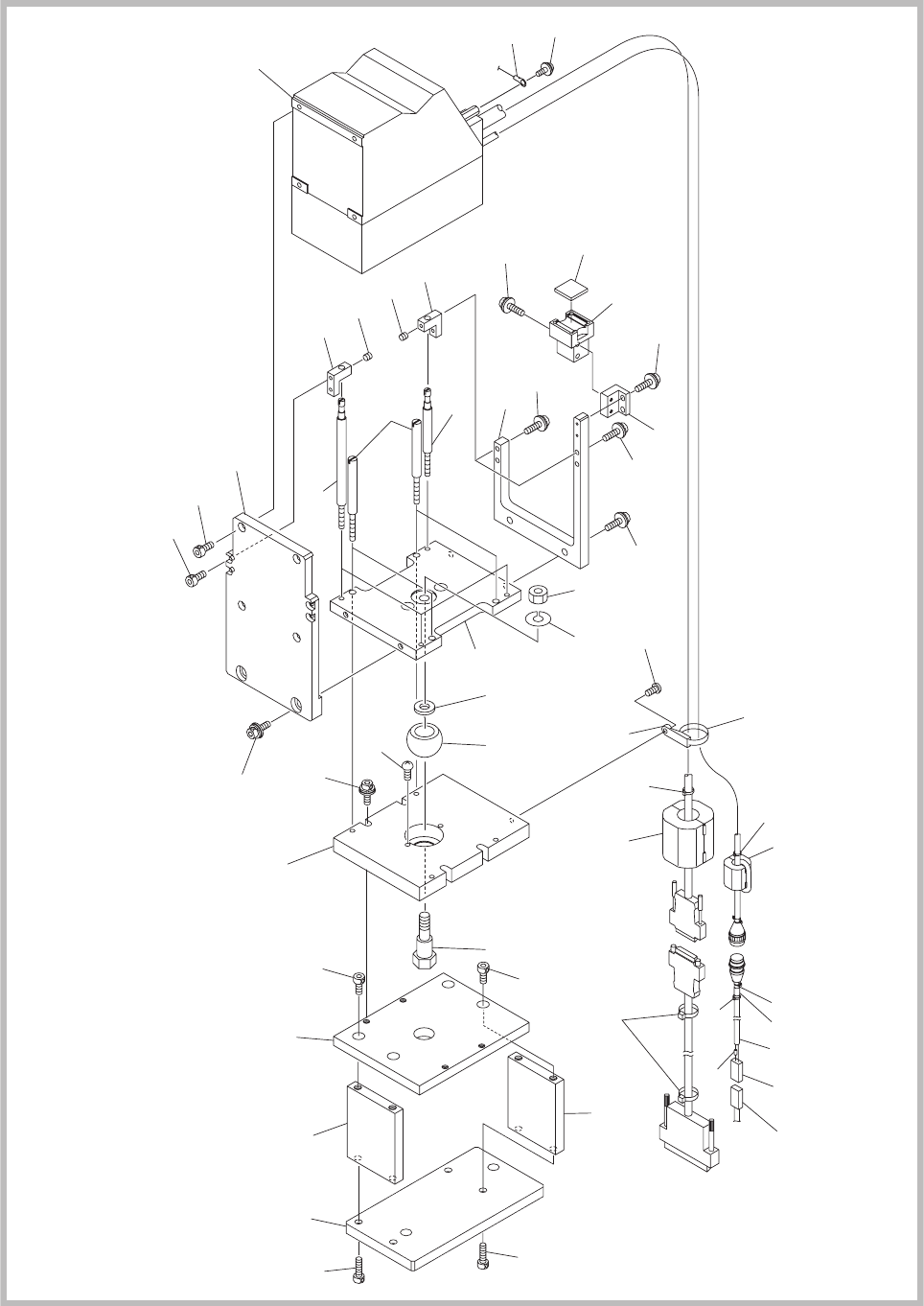

Fig. E3-3
センサヘッド
Sensor Head
206
205
207
207
208
211
210
237
262
237
254
255
254
237
263
237
251
252
253
257
256
237
202
204
217
218
216
214
215
213
203
212
212
226
221
222
223
230
231
232
227
228
228
222
223
224
224
224
224
209
229
222
223
224
235
261
235
233
See Fig.D2-3
Key No.241
See Fig.D2-3
Key No.284
225
236
230
231
232
231
232
234
231
232
233
264
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
GS-IC100
Fig. E3
1009-001
Fig. E3-3
202 211DE698 PLATE 1 10918010BA-002
203 211DE697 PLATE 1 10918010BA-003
204 211DE699 PLATE 1 10918010BA-004
205 211DE700 PLATE 1 10918010BA-005
206 0918G000 PLATE 1 10918010BA-006
207 0918G001 PLATE 2 10918010BA-007
208 0918G002 PLATE 1 10918010BA-008
209 0918G003 SHAFT 1 10918010BA-009
210 222B0103 ROD_END 1 10918010BA-010
211 216A1209 COLLAR 1 10918010BA-011
212 211G3799 BLOCK 4 10918010BA-012
213 211J1647 STAY 3 10918010BA-013
214 211J1648 STAY 1 10918010BA-014
215 211J1649 STAY 4 10918010BA-015
216 211D8367 PLATE 1 10918010BA-016
217 211G6275 BLOCK 1 10918010BA-017
218 211G6274 BLOCK 1 10918010BA-018
221 221AA032 ROHS_HEX-SCT 2 10918010BA-021
222 221HA005 WASHER 8 10918010BA-022
223 221HA105 WASHER 8 10918010BA-023
224 221AA030 ROHS_HEX-SCT 10 10918010BA-024
225 221AA016 ROHS_HEX-SCT 4 10918010BA-025
226 221FA014 NUT_HEX 1 10918010BA-026
227 221HA007 WASHER 1 10918010BA-027
228 221DA207 MACHINE_SCREW 3 10918010BA-028
229 221AA033 ROHS_HEX-SCT 4 10918010BA-029
230 221AA010 ROHS_HEX-SCT 4 10918010BA-030
231 221HA003 WASHER 8 10918010BA-031
232 221HA103 WASHER 8 10918010BA-032
233 221AA007 ROHS_HEX-SCT 6 10918010BA-033
234 221AA012 BOLT_HEX-SCT 2 10918010BA-034
235 221CB002 MACHINE_SCREW 4 10918010BA-035
236 23N30632 WIRING 1 10918010BA-036
237 0916D209 ACCESS_WIRING 10 10918010BA-037
251 0914B30D CORD 1 10918010BA-101
252 23K10017 CASE_CONN 1 10918010BA-102
253 4J300006 CABL JOIN TERM 2 10918010BA-103
254 23N20103 TUBE_WIRING 3 10918010BA-104
255 23N20116 TUBE_WIRING 1 10918010BA-105
256 0845J5A1 CONTRACT_TUBE 1 10918010BA-106
257 23N20110 TUBE_WIRING 2 10918010BA-107
261 221DA051 SEMS_PANHEADSCR 1 10918010BA-111
262 23N30179 ACCESS_WIRING 1 10918010BA-112
263 23N30173 ACCESS_WIRING 1 10918010BA-113
264 0918B0AA CORD 1 10918010BA-114
