Operation - Machine Overview 14 www.asm-smt.com Conveyor Single fixed rail front 1. Rear conveyor rail 2. Conveyor control unit 3. Fixed front rail 4. Lifting table 5. Stopper and sensors rail 6. Stopper
Operation - Machine Overview
13
www.asm-smt.com

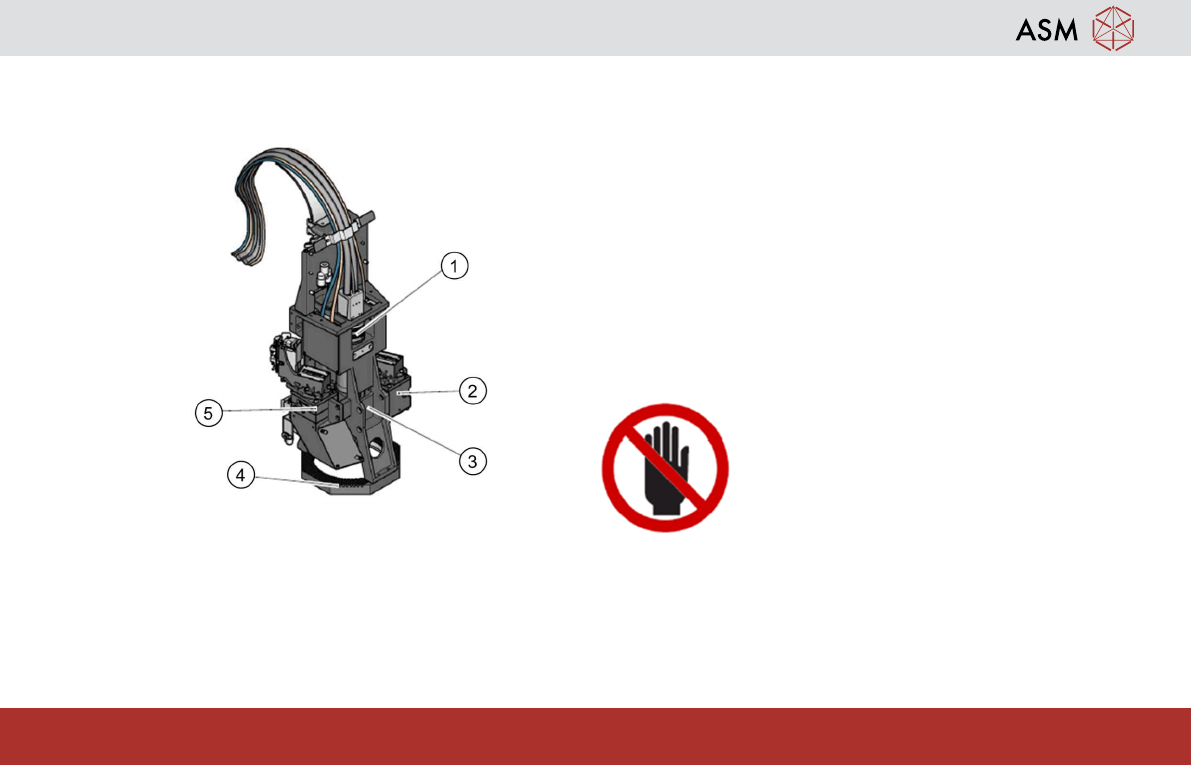

Image Module
1. Optical module (camera and lens mount)
2. Right source of 3D light
3. Top LED ring
4. Low LED ring
5. Left source of 3D light
The optics head module
– Performs the image taking function, and based on
which, the expected inspection results are given.
Do not touch the optical module
Operation - Machine Overview
14
www.asm-smt.com
Conveyor
Single fixed rail front
1. Rear conveyor rail
2. Conveyor control unit
3. Fixed front rail
4. Lifting table
5. Stopper and sensors rail
6. Stopper
Operation - Machine Overview
15
www.asm-smt.com
Conveyor
Dual fixed rail front
T1 Conveyor Lane 1
T2 Conveyor Lane 2
1. Input area
2. Placement area
3. Output area
4. Lifting tables
5. Conveyor drives
