Operation - Power Up/ Power Down 17 www.asm-smt.com 4 Operation - Power Up/ Power Down Power Up Sequence
Operation - Machine Overview
16
www.asm-smt.com
Programmable Tower Lamp With Buzzer
Red – ON Machine stop due to errors
Emergency stop activated
Amber flashing Reset
Green – On Inspection in-progress
Machine ready
Machine initializing
Waiting for board
Green – Flashing Waiting for production
Suspect defect, pending for verification
Buzzer Indicates when an alert has occurred
Operation - Power Up/ Power Down
17
www.asm-smt.com
4 Operation - Power Up/ Power Down

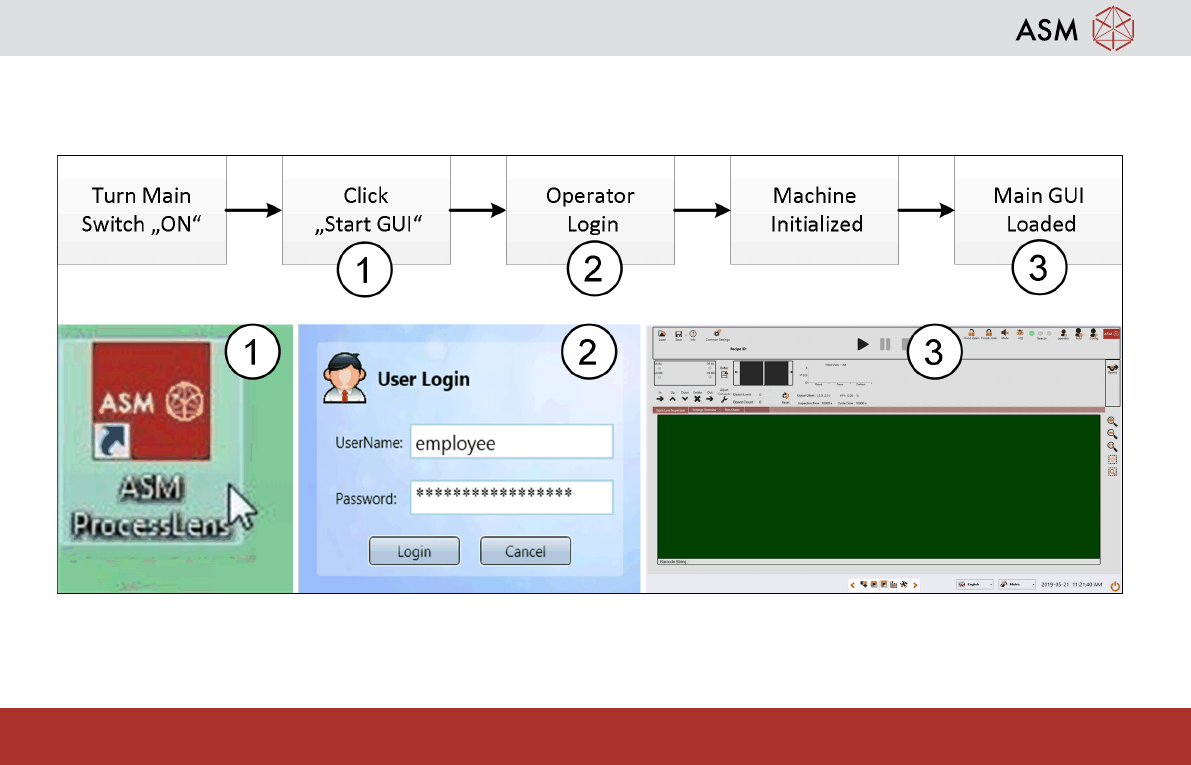

Power Up Sequence
Operation - Power Up/ Power Down
18
www.asm-smt.com
Power Down Sequence
