6 Operation - Load Recipe
Steps to load recipe for inspection
Operation - Load Recipe
24
www.asm-smt.com

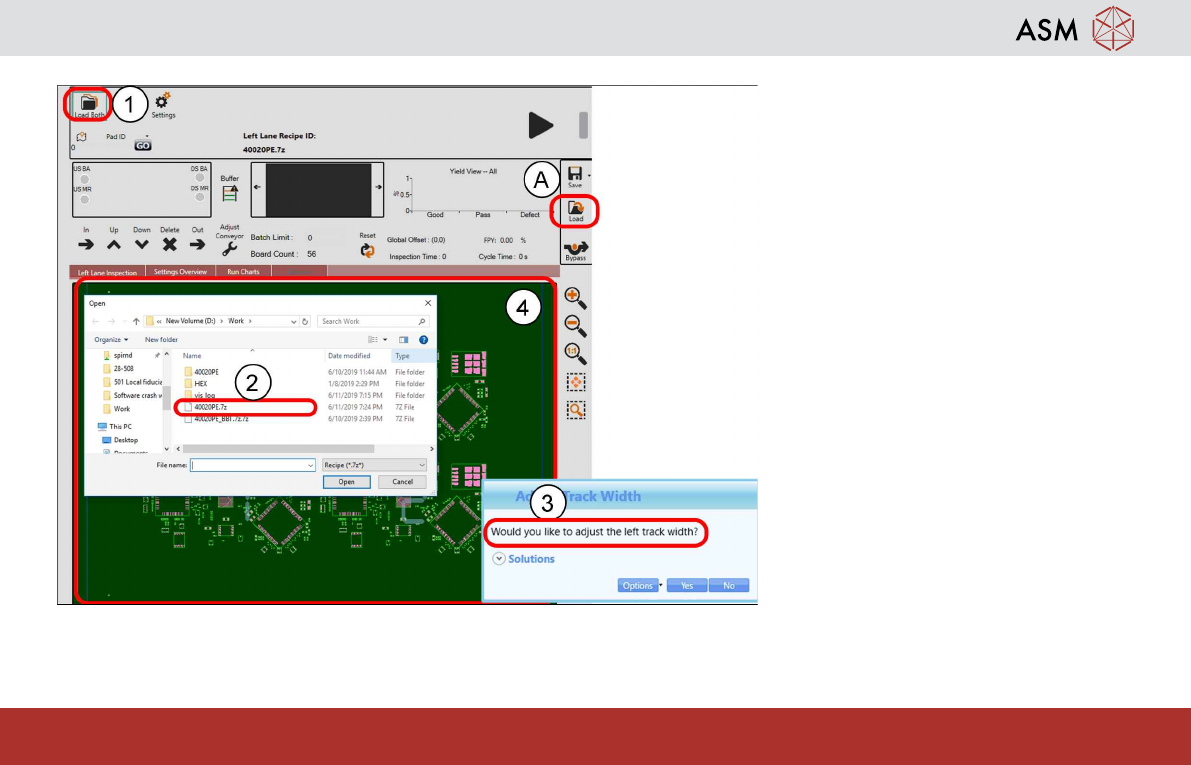

1. Click Load (1). List of files promp-
ted. A) for Dual lane if individual re-
cipe has to load separately on
"LEFT/RIGHT lane"
2. Select a Recipe (2) with x.7z, click
Open.
3. Confirm if conveyor width to be ad-
justed.
4. Compare PCB on GUI (4) and ac-
tual board for correct recipe load-
ing.
