MODEL TCM-X300S
0306-001
32
ࡈࠖ࡯࠳ࠠࡖ࡝࠶ࠫㇱ FEEDER CARRIAGE SECTION
Fig. C-7 ᄢ࡝࡯࡞ࡎ࡞࠳ฃߌ Large Reel Holder Receptacle
613
613
609
605
604
603
610
611
612
606
601
607
See Fig.C-1
Key No.9
608
608
607
606
See Fig.C-6
Key No.502
See Fig.C-6
Key No.514
616
605
604
603
610
611
612
608
609
613
606
602
606
607
608
607
See Fig.C-1
Key No.11
See Fig.C-6
Key No.502
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
33
C-7
601 630 116 5981 SUPPORT 1 814C--010-601
602 630 116 5998 SUPPORT 1 814C--010-602
603 411 141 4305 WASHER V 6X12.5X1.6 8 814C--010-603
604 411 141 3001 WASHER SPR 6 8 814C--010-604
605 630 000 7886 BOLT,HEX-SCT 8 814C--010-605
606 411 088 1702 WASHER V 5X10X1 16 814C--010-606
607 411 008 2109 WASHER SPR 5 16 814C--010-607
608 411 140 5105 BOLT HEX 5X14 16 814C--010-608
609 630 086 2720 SUPPORT 7 814C--010-609
610 411 141 4305 WASHER V 6X12.5X1.6 16 814C--010-610
611 411 141 3001 WASHER SPR 6 16 814C--010-611
612 630 000 7879 BOLT,HEX-SCT 16 814C--010-612
613 630 089 2284 NAME PLATE,INDEX 4 814C--010-613
616 630 114 8892 SUPPORT 1 814C--010-616
MODEL TCM-X300S
0306-001
34
ⓨ࿶೙ᓮㇱ PNEUMATIC SECTION

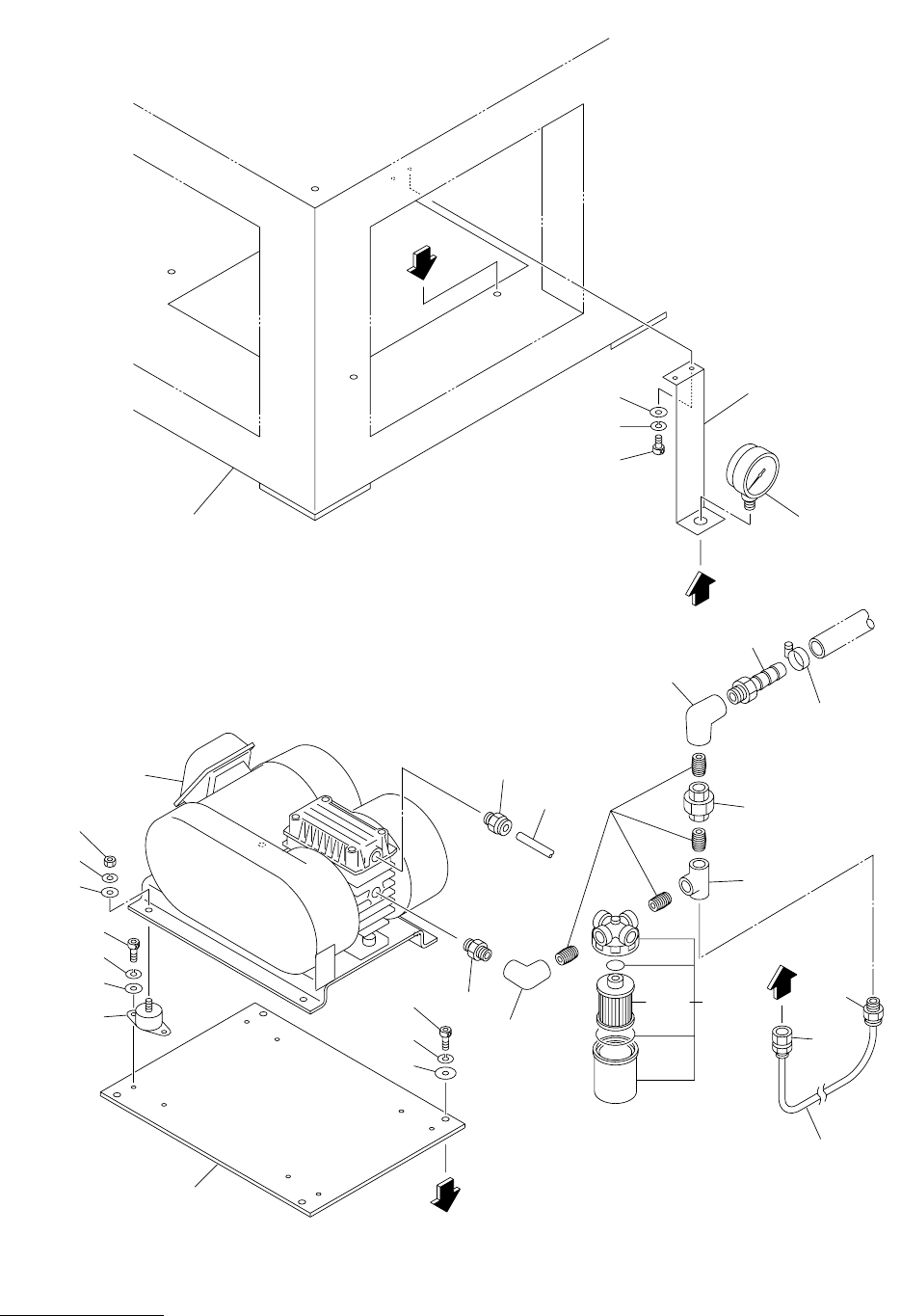

Fig. D-1 ⌀ⓨࡐࡦࡊ Vacuum Pump
A
A
9-20
29
24
21
23
22
25
9-109-11
10
34
B
B
11
12
13
14
35
15
19
8
7
3
4
5
16
17
18
9
2
6
1
20
See Fig.L-1
Key No.9
See Fig.B-1
Key No.45
