MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 43 E-2 10 1 630 085 5968 BASE 1 814E--010-101 10 2 630 000 7916 BO L T ,HEX-SCT 4 814E--010-102 10 3 41 1 141 3001 WAS HER SPR 6 4 814E- -010-1 0…

100%1 / 306
MODEL TCM-X300S
0306-001
42
ਛ㑆ࡌ࡯ࠬㇱ MIDDLE BASE SECTION
Fig. E-2
ㇱຠᆫ൓ᬌ಴ㇱޔࡁ࠭࡞ᬌ಴ㇱ
Component Posture Detector,
Nozzle Detector
See Fig.L-4
Key No.309
136
107
Key No.1
See Fig.L-1
See Fig.E-1
Key No.5
140
B
A
119
119
B
A
137
122
107
136
122
107
136
112
107
136
110
110
108
107
112
129
108
107
112
107
108
108
107
112
106
107
108
136
112
128
143
144
145
107
108
107
112
102
103
104
104
103
102
108
127
107
110
137
128
147
119
120
125
124
121
120
119
114
113
111
111
109
105
123
101
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
43
E-2
101 630 085 5968 BASE 1 814E--010-101
102 630 000 7916 BOLT,HEX-SCT 4 814E--010-102
103 411 141 3001 WASHER SPR 6 4 814E--010-103
104 411 141 4305 WASHER V 6X12.5X1.6 4 814E--010-104
105 630 086 1198 SUPPORT 1 814E--010-105
106 630 000 7787 BOLT,HEX-SCT 2 814E--010-106
107 411 141 6705 WASHER SPR 5 22 814E--010-107
108 630 001 0220 WASHER 14 814E--010-108
109 630 115 3964 SUPPORT 1 814E--010-109
110 630 000 7770 BOLT,HEX-SCT 6 814E--010-110
111 630 120 7537 SENSOR,PELEC 1 #VBA-S151 814E--010-111
112 630 000 7763 BOLT,HEX-SCT 12 814E--010-112
113 630 117 6611 SUPPORT 1 814E--010-113
114 630 117 6604 SUPPORT 1 814E--010-114
119 630 092 9355 ASSY,SWITCH,LIMIT 2 SQ2,SQ3 814E--010-119
120 630 029 4286 PIN,GUIDE 2 814E--010-120
121 630 086 1150 PLATE 1 814E--010-121
122 411 141 0505 NUT HEX 5 2 814E--010-122
123 630 111 4125 BASE 1 814E--010-123
124 630 117 6451 SUPPORT 1 814E--010-124
125 630 117 6437 SUPPORT 1 814E--010-125
127 630 122 0789 SUPPORT 1 814E--010-127
128 630 119 8132 SENSOR,PELEC 1 #VBA-S190 814E--010-128
129 411 113 0502 SCR PAN 3X14 2 814E--010-129
136 411 141 4107 WASHER V 5X10X1 8 814E--010-136
137 630 001 3030 SPRING,COMP 2 1035 814E--010-137
140 411 114 7807 SCR PAN+SW+W 4X10 4 814E--010-140
143 630 000 7640 BOLT,HEX-SCT 2 814E--010-143
144 411 008 1706 WASHER SPR 4 2 814E--010-144
145 411 119 2104 WASHER V 4X9X0.8 2 814E--010-145
147 630 111 4118 SUPPORT 1 814E--010-147
MODEL TCM-X300S
0306-001
44
ਛ㑆ࡌ࡯ࠬㇱ MIDDLE BASE SECTION

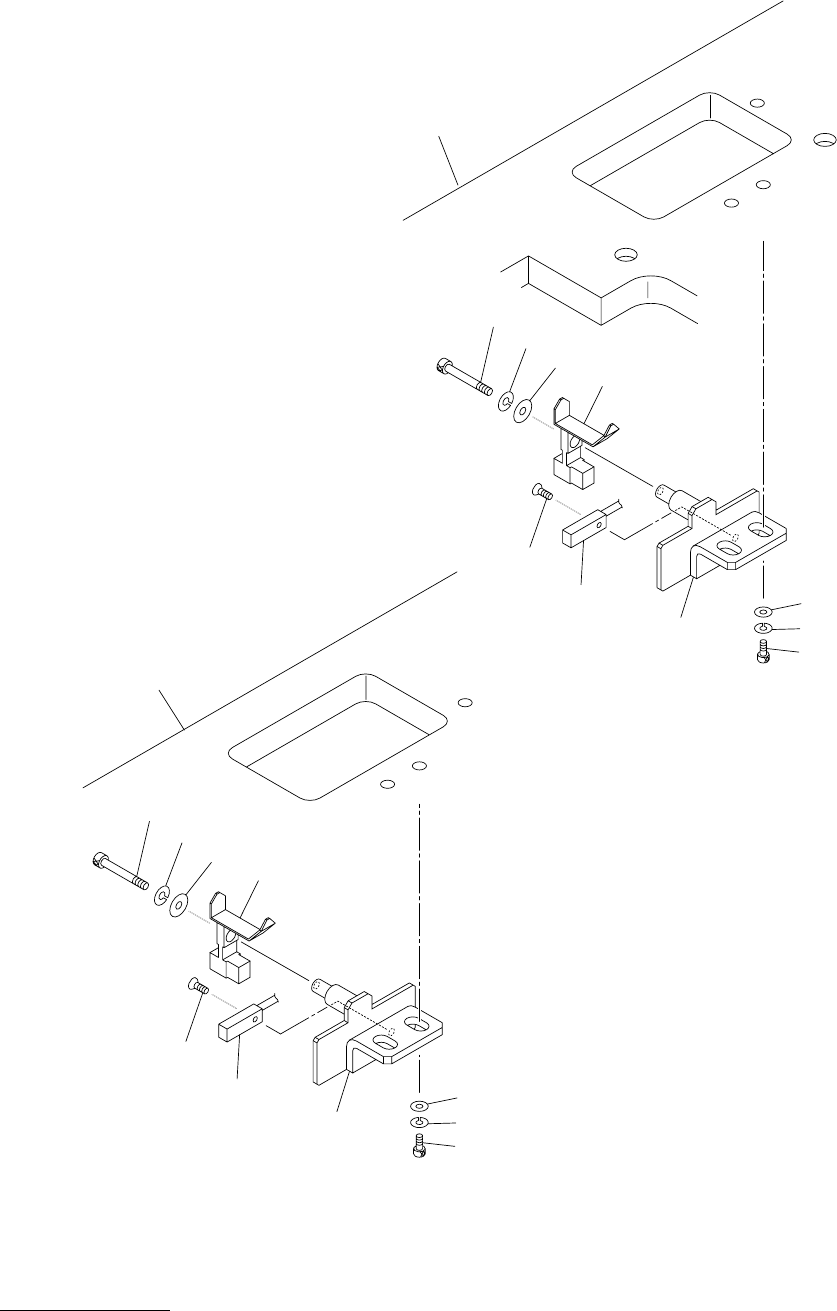

Fig. E-4
ࡈࠖ࡯࠳ࡈ࠶ࠢᄖࠇᬌ಴ㇱ Disengaged Feeder Hook Detector
Key No.5
See Fig.E-1
See Fig.E-1
Key No.23
302
303
304
313
312
310
309
301
306
311
302
303
304
313
312
310
309
301
306
311
