MODEL TCM-X300S 0306-001 62 ࠞ࠶࠲ㇱ CUTTER SECTION Fig. EC-2 ࠞ࠶࠲ࡠ࠶࠼ Cutter Rod 111 102 110 109 108 107 106 See Fig.KC-3 Key No.210 See Fig.KC-1 Key No.27 126
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
61
EC-1
1 630 121 9509 BLOCK(CUTTER BASE) 1 814EC-010-001
2 630 000 8029 BOLT,HEX-SCT 3 814EC-010-002
3 411 141 3100 WASHER SPR 8 4 814EC-010-003
4 411 141 4503 WASHER V 8X17X1.6 2 814EC-010-004
5 630 121 8830 PLATE(CUTTER) 1 814EC-010-005
6 630 000 7763 BOLT,HEX-SCT 2 814EC-010-006
7 411 141 6705 WASHER SPR 5 4 814EC-010-007
8 411 141 4107 WASHER V 5X10X1 2 814EC-010-008
9 630 000 8012 BOLT,HEX-SCT 1 814EC-010-009
12 630 116 6438 PLATE 1 814EC-010-012
13 630 089 7432 BOLT 3 814EC-010-013
14 630 092 7993 PIN,HINGE 1 814EC-010-014
15 630 033 7242 BEARING,PARTS(SHIM RING) 1 T0.5 814EC-010-015
16 630 033 7259 BEARING,PARTS(SHIM RING) 1 T0.3 814EC-010-016
17 630 033 7266 BEARING,PARTS(SHIM RING) 1 T0.1 814EC-010-017
18 630 087 2255 RING(0.02T) 5 T0.02 814EC-010-018
19 630 092 9294 BEARING,RADIAL 2 7000CTYSULP4 814EC-010-019
20 630 005 0868 BEARING,PARTS(LOCK NUT) 1 WBK10L-01 814EC-010-020
21 630 086 1488 COLLAR 1 814EC-010-021
24 630 086 1471 PLATE 1 814EC-010-024
25 630 000 7527 BOLT,HEX-SCT 3 814EC-010-025
26 630 000 7749 BOLT,HEX-SCT 2 814EC-010-026
27 630 117 0466 LEVER 1 814EC-010-027
28 630 117 0701 PLATE(CUTTER) 1 814EC-010-028
29 630 117 0893 PLATE 1 814EC-010-029
30 630 115 1731 COLLAR 4 T0.5 814EC-010-030
33 630 117 1661 SPRING,COMP 1 TY21X45 814EC-010-033
35 630 092 0758 BEARING,PARTS(SHIM RING) 2 T0.1 814EC-010-035
36 630 092 0765 BEARING,PARTS(SHIM RING) 2 T0.15 814EC-010-036
37 630 092 0772 BEARING,PARTS(SHIM RING) 2 T0.2 814EC-010-037
38 630 000 7510 BOLT,HEX-SCT 2 814EC-010-038
39 630 000 7879 BOLT,HEX-SCT 2 814EC-010-039
40 630 106 7476 RING(0.02T) 6 T0.02 814EC-010-040
41 630 112 1468 RING(0.01T) 2 T0.01 814EC-010-041
42 630 123 4793 BLOCK 1 814EC-010-042
43 630 120 6981 BOLT 1 814EC-010-043
44 630 123 1839 SHEET(SHIM) 2 T0.01 814EC-010-044
45 630 123 9705 SHEET(SHIM) 1 T0.03 814EC-010-045
MODEL TCM-X300S
0306-001
62
ࠞ࠶࠲ㇱ CUTTER SECTION

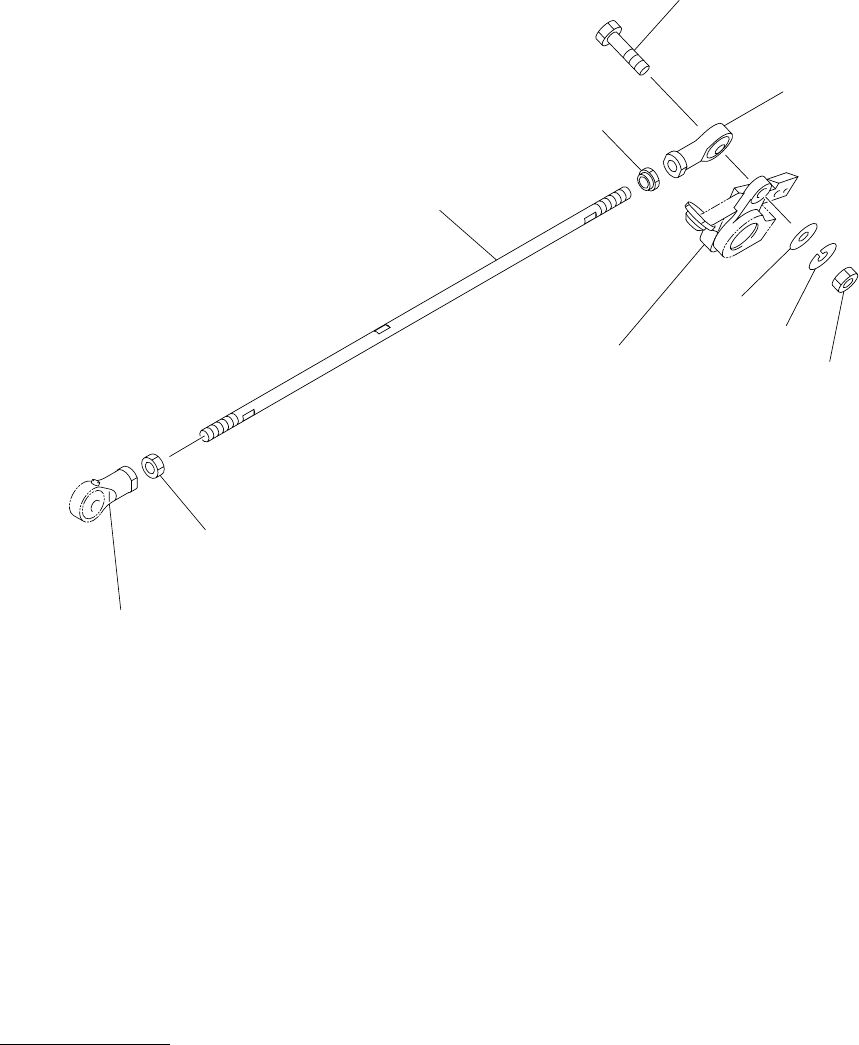

Fig. EC-2 ࠞ࠶࠲ࡠ࠶࠼ Cutter Rod
111
102
110
109
108
107
106
See Fig.KC-3
Key No.210
See Fig.KC-1
Key No.27
126
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
63
EC-2
102 630 090 9388 NUT,HEX 1 814EC-010-102
106 630 001 1081 ROD END 1 BRF8L 814EC-010-106
107 630 048 4960 PIN,HINGE 1 814EC-010-107
108 411 141 1007 NUT HEX 8 1 814EC-010-108
109 411 141 3100 WASHER SPR 8 1 814EC-010-109
110 411 141 4503 WASHER V 8X17X1.6 1 814EC-010-110
111 630 117 0909 ROD 1 814EC-010-111
126 411 108 8704 NUT HEX 8 1 814EC-010-126
