16
Placement heads
SIPLACE TwinStar (TH)
SIPLACE TwinStar (TH)
With component camera type 33
(fine pitch camera)
With component camera type 25
(flip chip camera)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the
component packaging tolerances and the component tolerances.
0402 to SO, PLCC, QFP, BGA, special
components, bare dies, flip-chips
0201 to SO, PLCC, QFP, sockets, plugs,
BGA, special components, bare dies, flip-
chips, shields
Component specs
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
b
b) Component plus nozzle or gripper.
25 mm / 50 mm
c
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
55 mm x 45 mm (single measurement)
Up to
200 mm x 125 mm (multiple measurement)
d
100 g to 240 g
e
c) Only with SIPLACE Very High Force Twin Star (VHF TH)
d) Further restrictions will apply, according to the component dimensions and the component supply. These will be automati-
cally taken into account by SIPLACE Pro.
e) Up to 100 g is standard. Over 100 g available with reduced acceleration. From 160 g only with SIPLACE Very High Force
Twin Star (VHF TH)
25 mm / 40 mm
c
250 µm
100 µm
140 µm
80 µm
0.6 mm x 0.3 mm
16 mm x 16 mm (single measurement)
Up to
55 mm x 55 mm (multiple measurement)
d
100 g to 240 g
e
Set-down force 1.0 N - 15 N
1.0 N - 30 N with OSC package
2.0 N - 70 N
c
2.0 N -100 N
f
f) Only with SIPLACE Very High Force Twin Star (VHF TH) and OSC package
1.0 N - 15 N
1.0 N - 30 N with OSC package
2.0 N - 70 N
c
2.0 N -100 N
f
Nozzle types
g
g) Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available online.
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
h
h) The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
± 26 µm/3 ± 22 µm/3
Angular accuracy ± 0.05° / 3 ± 0.05° / 3
Illumination levels 6 6
17
Placement heads

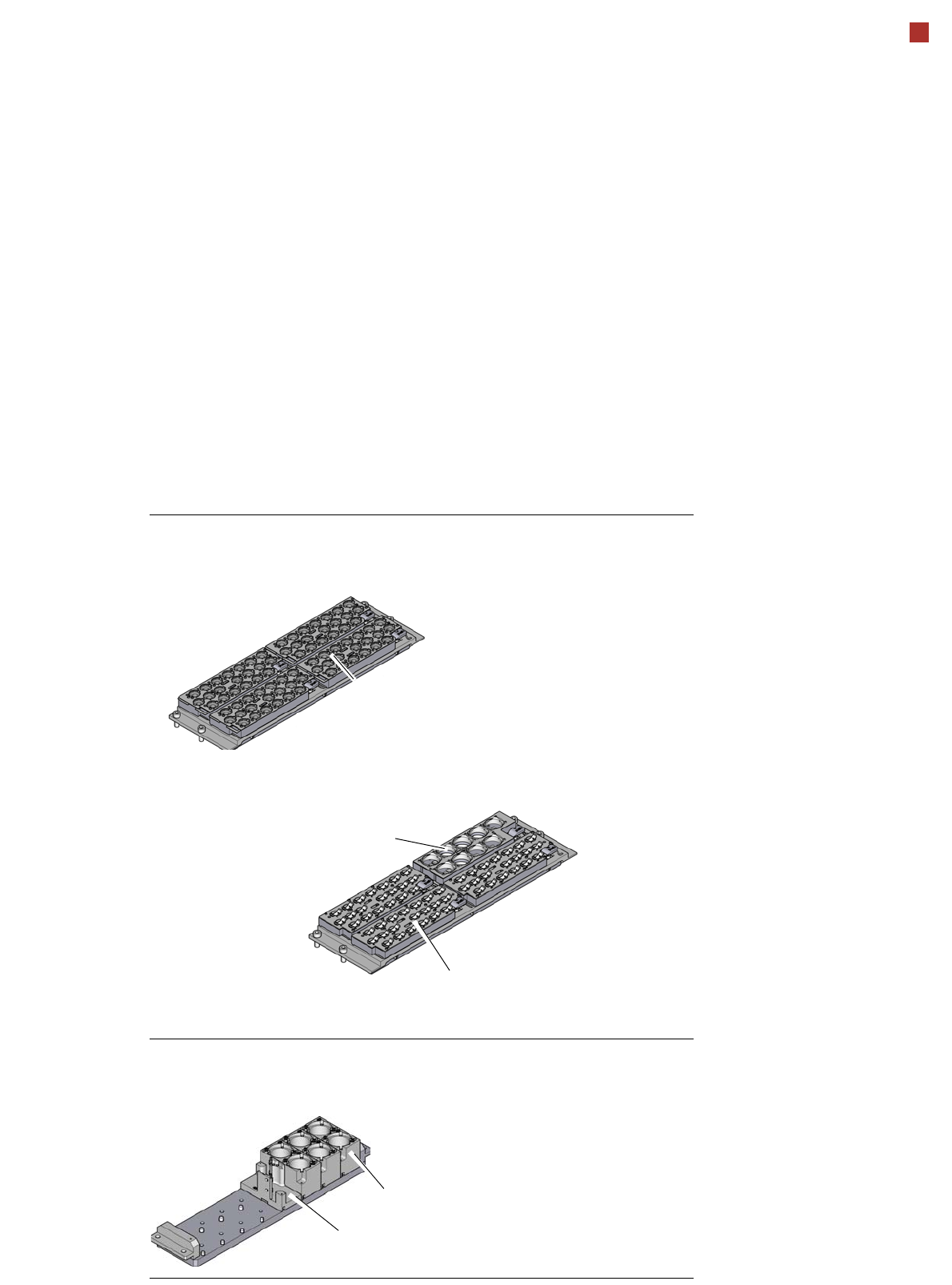

Nozzle changer
Nozzle changer for the SIPLACE SpeedStar (C&P20 P)
Nozzle changer for the SIPLACE MultiStar CPP
Nozzle changer for the SIPLACE TwinStar
Magazine for 20 nozzles of
type 40xx
Magazine for 9 nozzles of
type 28xx
Magazine for 20 nozzles of type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit. This checks whether the nozzle magazines
are seated correctly on the mount. In addition, the nozzle changers recognize whether the
magazines are for 10xx, 20xx or 28xx nozzles by the code.
18
Placement heads
Nozzle changer
Technical data
PLEASE NOTE: When you use the Smart Pin Support option, the maximum number of nozzle
changer magazines is reduced.
Nozzle changer for the SIPLACE SpeedStar
Number of magazines 4
a
a) All magazines in the nozzle changer must be configured.
Number of nozzle garages 80
Standard configuration 4 magazines with 80 nozzle garages
Nozzle types 40xx
Nozzle changer for the SIPLACE MultiStar
Number of magazines 4
a
Number of nozzle garages 69
Standard configuration 3 magazines with 60 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types 20xx, 28xx
Nozzle changer for the SIPLACE TwinStar
Number of magazines Max. 8 magazines for max. 16 nozzle garages
Number of nozzle garages may be freely configured
Standard configuration 3 magazines with two nozzle garages each
1 magazine with one nozzle garage
Nozzle types 4xx with adapter
5xx (standard)
9xx with adapter
Special nozzle, gripper
