47
Technical data
Machine dimensions
Machine center of gravity
X = 0 mm
Y = 0 mm
Z = 738.5 mm
48
Technical data

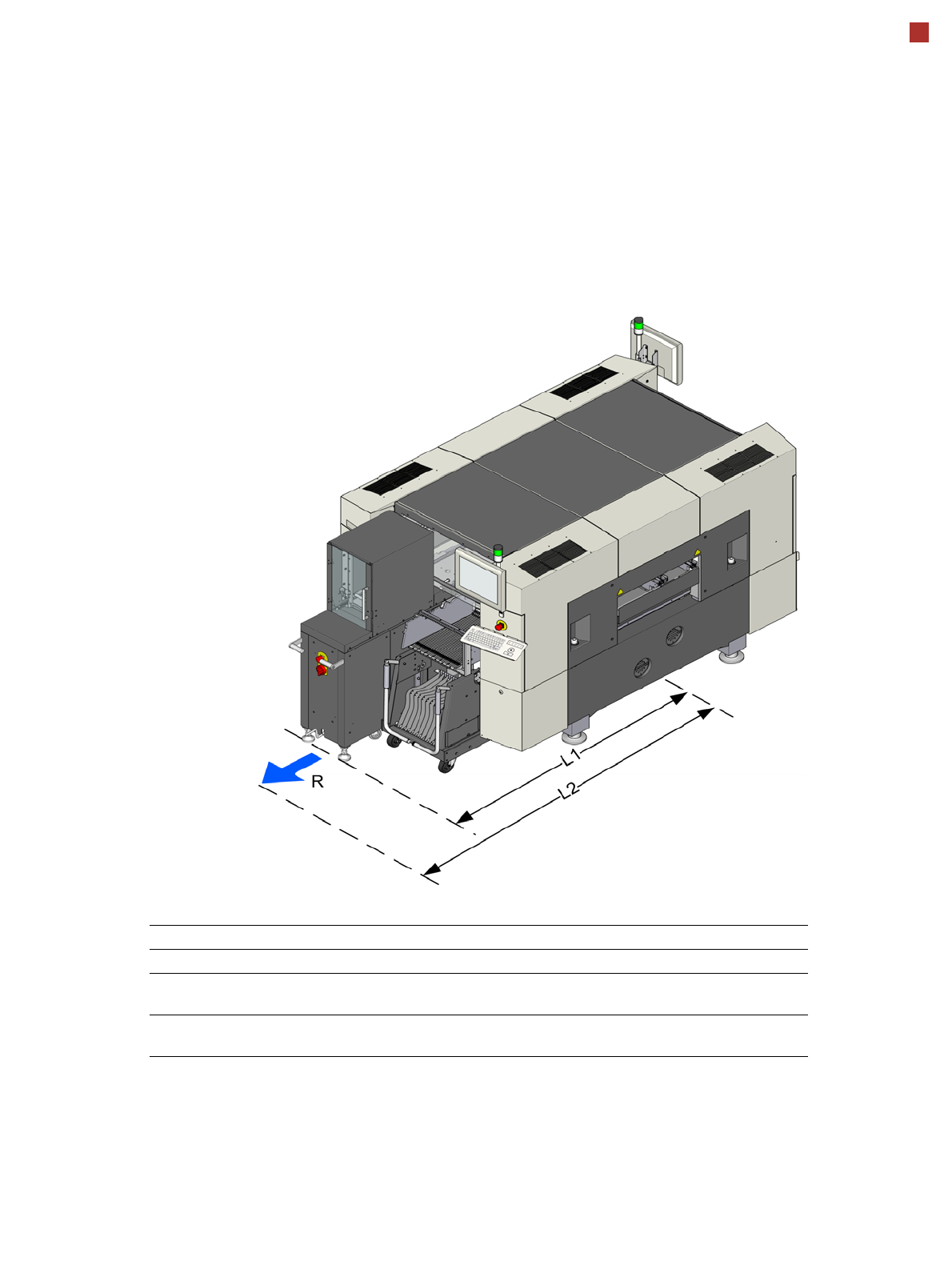

Maneuvering radii for the component trolleys
Location 1 (outside) Location 2 (inside)
Maneuvering radius R 760 mm 760 mm
Distance L1: Machine center to
outer edge of component trolley
1300 mm 1175 mm
Distance L2: Machine center to
wall
2060 mm 1935 mm
49
Technical data
Maneuvering radii for WPC5/WPC6
Location 1 Location 2
Maneuvering radius R 750 mm 750 mm
Distance L1: Machine center to
WPC outer edge
1860 mm 1860 mm
Distance L2: Machine center to
wall
2610 mm 2610 mm
