E-Series Binocular Conﬁguaration Minimum required components that comprise a binocular microscope system: • Eyepieces • Binocular Head • Zoom Body • Objective Lens E-Series Microsco pes congured as a binocular system wi…

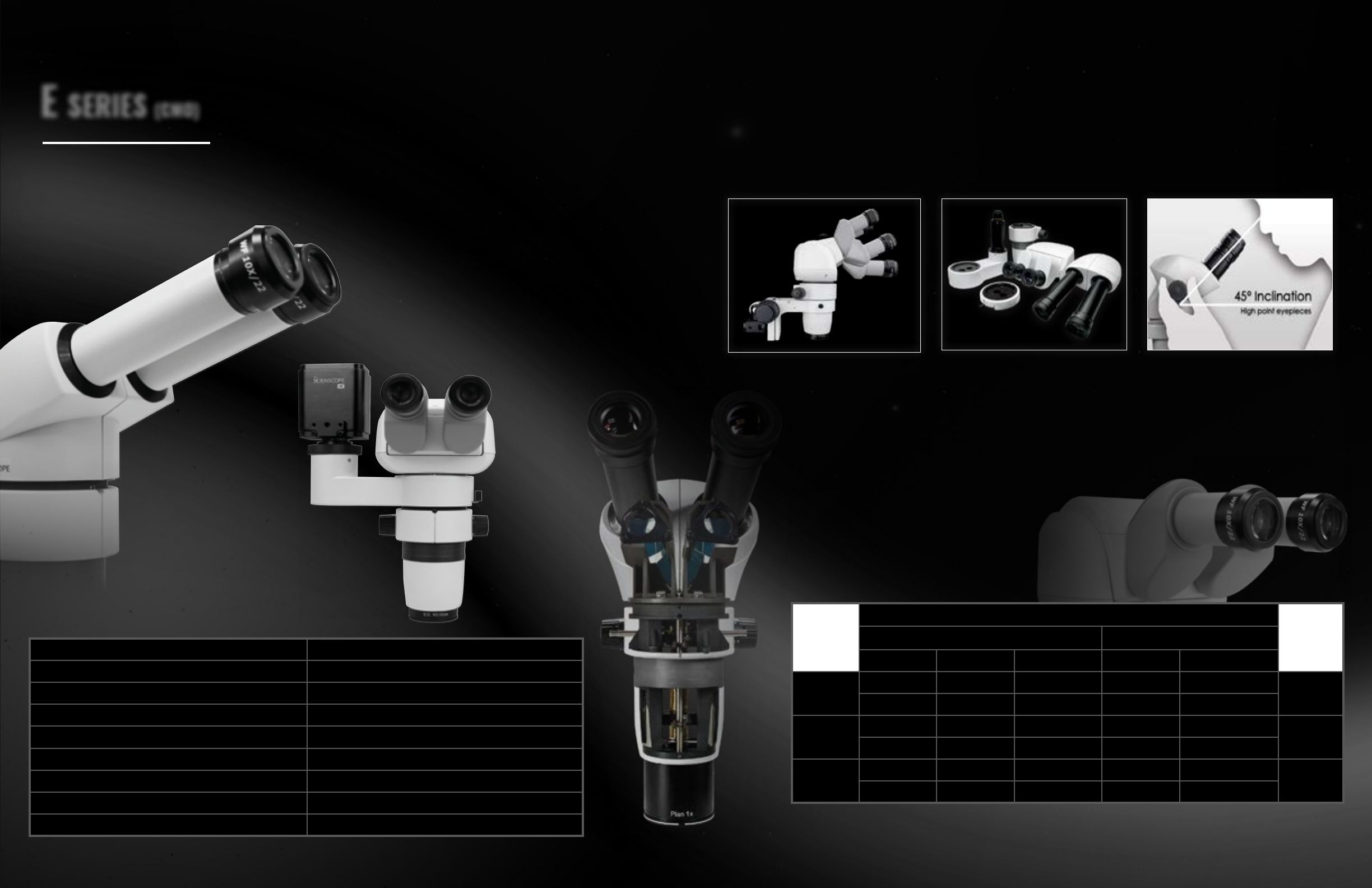

E SERIES (CMO)

Parallel Zoom Stereo Microscope

The E-Series offers higher magnication than standard models, enabling high-resolution observation

of small features. Improved aberration correction provides bright and sharp images throughout the

entire eld. The parallel optics allow ergonomic accessories and observation attachments for various

applications.

HIGHLIGHTS

• Ergonomic and customizable

• Infinity corrected optics

• Maintenance-free

• True trinocular

Data Sheet / E-Series (CMO) Specs

HIGHER PERFORMANCE

The NZ Series is well-suited for all industrial applications, featuring a zoom magnication of 5X and a

long working distance of 115mm. The airtight design allows for any environment where temperature

and humidity are high. The NZ series trinocular is a true trinocular using the highest quality beam split-

ter for an exceptionally at image.

E-Series (CMO) Binocular Optical Specs

Optical Magnication Formula

Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)

Less Operator FatigueOptimum User Comfort Stackable Accessories

An eyepiece inclination of 20° allows you

to observe without leaning forward, which

reduces fatigue during long hours of op-

eration.

A parallel innity-corrected optical sys-

tem allows for ergonomic customization

and stacking of several components with-

out distorting the image.

Eyepieces tilt and rotate to adjust for oper-

ator height. Eyepieces rotate 180 degrees

with three inches of travel. The inclination is

adjustable from 0 to 45 degrees.

EXCEPTONAL CLARITY AND COMFORT

Microscope Body Zoom Range 08X- 8X

Magnication 8X- 80X (w/ 10X eyepieces)

Zoom Ratio 1:10

Field of View 28.8mm- 2.9mm (w/10X eyepieces)

Work Distance 78mm

Dioptric Adjustment ±5

Interpupillary Adjustment 51- 75mm

Eyepieces Inclination 20°

Microscope Ring Mount Diameter 76mm

Objective

Lens

Eyepieces

Working

Distance

10x 20x

Body Zoom MAG FOV (mm) MAG FOV (mm)

0.5x

1:6 4x-25x 57.5-9.2mm 8x-50x 35-5.6mm

187mm

1:10 4x-40x 57.5-5.8mm 8x-80x 35.-3.5mm

(Default)

1:6 8x-50x 28.8-4.6mm 16x-100x 17.5-2.8mm

78mm

1:10 8x-80x 28.8-2.9mm 16x-160x 17.5-1.8mm

1:6 16x-100x 14.4-2.9mm 32x-200x 8.8-1.4mm

35mm

1:10 16x-160x 14.4-1.8mm 32x-320x 8.8-0.9mm

16 17

SERIES MICROSCOPES SERIES MICROSCOPES

E-Series

Binocular Conﬁguaration

Minimum required components that comprise

a binocular microscope system:

• Eyepieces

• Binocular Head

• Zoom Body

• Objective Lens

E-Series Microscopes congured as a binocular system

with 0°-45° Tilting Head.

E-Series

Trinocular Conﬁguaration

Minimum required components that comprise a

trinocular microscope system:

• Eyepieces

• Binocular Head

• Video Splitter

• Video Coupler

• Zoom Body

• Objective Lens

• Digital Camera

E-Series Microscopes are congured as a trinocular

system with an optional video splitter, video coupler,

and CMOS Camera.

E-SERIES MICROSCOPE CONFIGURATION CHART

CMO-LE-W10 (Pair)

10x Eyepieces

CMO-LE-W20 (Pair)

20x Eyepieces

CMO-BH2

20°Binocular Head

CMO-BHE

Tilting Binocular Head

CMO-CP-05

0.5x Video Coupler

CMO-BH23

Video Splitter

CMO-BD-16

Zoom Bodies

Zoom Ratio: 1:6

Zoom Range:

CMO-BD-110

Zoom Bodies

Zoom Ratio: 1:10

Zoom Range: 0.8x-8x

CMO-LA-05

ARCHROMATIC

0.5x Objective Lense

CMO-LA-10

PLAN

1x Objective Lense

18 19

SERIES MICROSCOPES SERIES MICROSCOPES

E-SERIES 20° BINOCULAR SYSTEMS

Package Contents

Packages w/choice of Lighting

• E-Series 20° Binocular Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 1x Objective Lens

CMO-PK2 (Dual LED Illuminated Track Stand

with reected and transmitted light)

Package Contents

Packages w/choice of Lighting

• E-Series 20° Binocular Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 1x Objective Lens

• Dual focus ergo-track stand with stage

CMO-PK2-AN (Fiber optic annular ring light

guide)

CMO-PK2-R3E (New super-bright, low-prole LED

Packages w/choice of Lighting

• E-Series 20° Binocular Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

CMO-PK3-E1 (Quadrant compact LED ring light)

CMO-PK3-R3E (NEW high-intensity LED ring light)

Package Contents

Packages w/choice of Lighting

• E-Series 20° Binocular Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• LED illuminator

• 76mm focus mount

CMO-PK5S-AN (Fiber optic annular ring light guide)

CMO-PK5S-R3E (New super-bright, low-prole LED ring light)

CMO-PK5S-E1 (Quadrant compact LED ring light)

Package Contents

Packages w/choice of Lighting

• E-Series 20° Binocular Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• LED illuminator

• 76mm focus mount

CMO-PK5D-AN (Fiber optic annular ring light guide)

CMO-PK5D-R3E (New super-bright, low-prole LED ring light)

CMO-PK5D-E1 (Quadrant compact LED ring light)

Package Contents

E-SERIES 0°- 45° BINOCULAR SYSTEMS

Package Contents

Packages w/choice of Lighting

• E-Series 0°-45° Tilting Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 1x Objective Lens

CMO-PK2E (Dual LED Illuminated Track

Stand with reected and transmitted light)

Package Contents

Packages w/choice of Lighting

• E-Series 0°-45° Tilting Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 1x Objective Lens

• Dual focus ergo-track stand with stage

CMO-PK2E-AN (Fiber optic annular ring light guide)

CMO-PK2E-R3E (New super-bright, low-prole LED

ring light)

Packages w/choice of Lighting

• E-Series 0°-45° Tilting Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

CMO-PK3-E1-E (Quadrant compact LED ring light)

CMO-PK3-R3E-E (NEW high-intensity LED ring light)

Package Contents

Packages w/choice of Lighting

• E-Series 0°-45° Tilting Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• LED illuminator

• 76mm focus mount

CMO-PK5S-AN-E (Fiber optic annular ring light guide)

CMO-PK5S-R3E-E (New super-bright, low-prole LED ring light)

CMO-PK5S-E1-E (Quadrant compact LED ring light)

Package Contents

Packages w/choice of Lighting

• E-Series 0°-45° Tilting Head

• 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• LED illuminator

• 76mm focus mount

CMO-PK5D-R3E-E (New super-bright, low-prole LED ring light)

CMO-PK5D-E1-E (Quadrant compact LED ring light)

Package Contents
