SS Z TRINOCULAR SYSTEM S Package Contents A vailable Packages with Choice of Lighting • SZ Stereo Zoom TRUE T rinocular • 10x eyepieces with eye guards • Dual arm boom stand with 76mm e-arm • 0.5x auxiliary lens • 0.5x v…

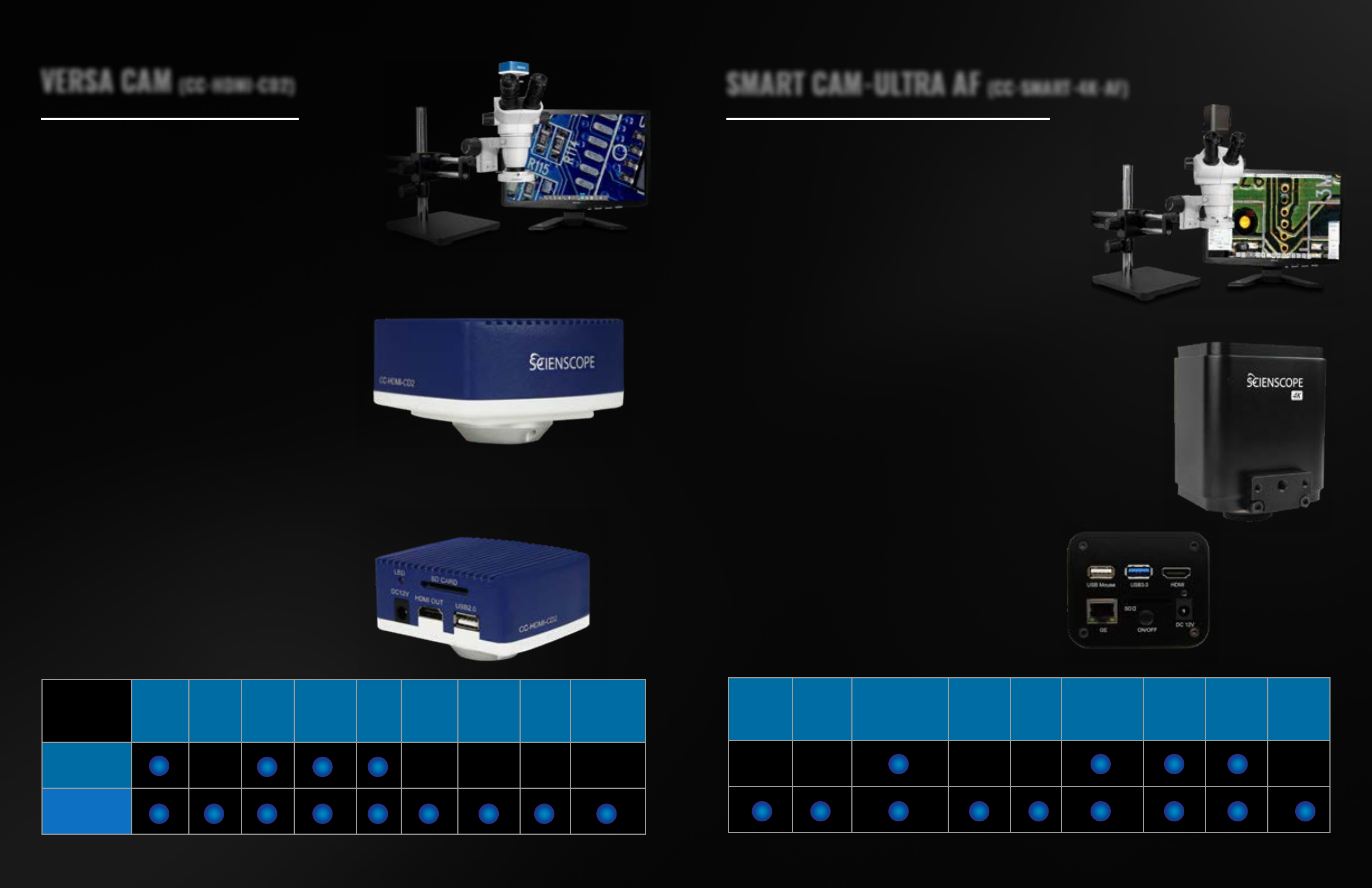

VERSA CAM (CC-HDMI-CD2)

1080p HDMI and 2 MP USB 2.0 Camera

Excellent HDMI camera with Direct/USB output and 1080p

Resolution. Very Fast refresh rate on Live Video at 60 Frames

Per SecondSensor. Digital Zoom for increasing magnication.

Image and Movie Capture are built into the camera on an SD

Card (No Computer Required). Compatible with all Scienscope

Lenses and Microscope including Macro Lens (CC-97-LN1)

and Micro Zoom (MZ7A-Zoom). Two USB Ports allow connec-

tion to a computer or network. Video Image Express Measurement Software is a great addition.

FEATURES USING HDMI CONNECTION

• On-screen control bar and setting menu

• Image and video capture to SD card

• Split-screen live image/captured image comparison

(picture in picture)

• Image and video gallery / Image and video review

• Wireless mouse control

FEATURES USING USB 2.0 CONNECTION

SPECS

• Image and video capture using Windows 10 camera app

• Image and video capture using the included software

• Annotation and drawing tools on live captured images

• Upgrade software with FOV measurement tools

• 1080p HD (1920x1080 @ 60 fps) HDMI

• 2 Megapixel (1920x1080 @ 30 fps) USB 2.0

1080p

Resolution

HDMI Live


USB 2.0 or

3.0 Connect

and capture

SD Card

Capture

USB Thumb

Drive

Capture

WiFi

Transmitter

and Connect

Autofocus

Integrated FOV

Measurement

VersaCam

(CC-HDMI-CD2

SmartCam- Ultra

(CC-SMART-4K-AF)

Measurement

Data Export

Live

Annotation

Live image/Captured

Image Compare

DXF Overlay

Onscreen

reticle

Digital Caliper /

Counting grid

Live Image

Processing

Digital Zoom

Settings

Export and

Import

SMART CAM-ULTRA AF (CC-SMART-4K-AF)

4K HDMI, 8.2 MP USB 3.0, and WiFi Camera w/ AutoFocus

Excellent HDMI camera with Direct/USB output and 1080p

Resolution. Very Fast refresh rate on Live Video at 60 Frames Per

Second Sensor. Digital Zoom for increasing magnication.

Image and Movie Capture are built into the camera on an SD Card

(No Computer Required). Compatible with all Scienscope Lenses

and Microscope including Macro Lens (CC-97-LN1) and Micro

Zoom (MZ7A-Zoom). Two USB Ports allow connection to a

computer or network. Video Image Express Measurement

Software is a great addition.

CAMERA FEATURES USING HDMI CONNECTION

• On-screen control bar and setting menu

• Image and video capture to SD card

• Split-screen live image/captured image comparison (picture in picture)

• Image and video gallery / Image and video review

• Wireless mouse control

CAMERA FEATURES USING USB 2.0 CONNECTION

• Image and video capture using Windows 10 camera app

• Image and video capture using the included software

• Annotation and drawing tools on live captured images

• Upgrade software with FOV measurement tools

SPECS

• 1080p HD (1920x1080 @ 60 fps) HDMI

• 2 Megapixel (1920x1080 @ 30 fps) USB 2.0

22 23

SERIES MICROSCOPES SERIES MICROSCOPES

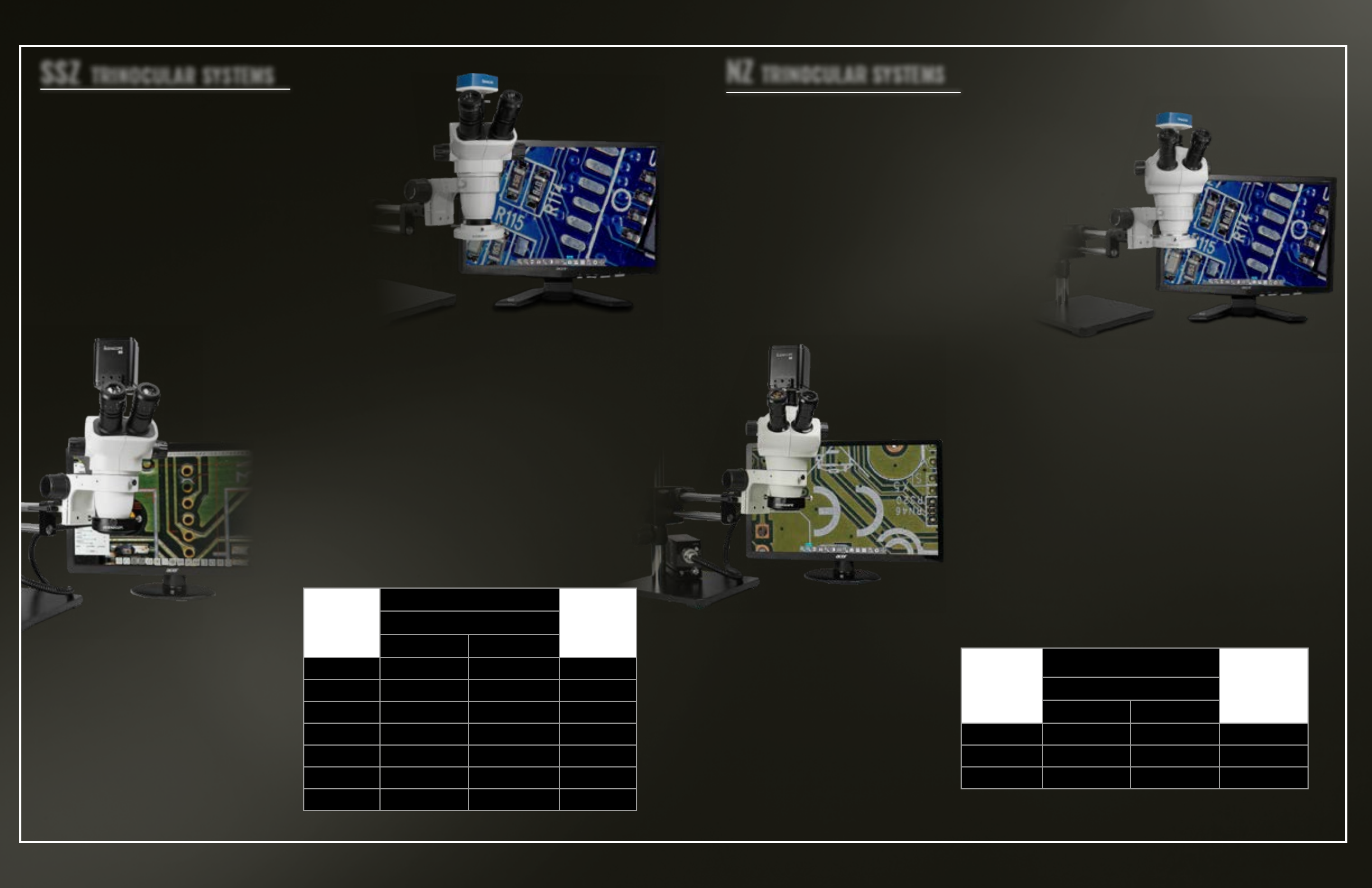

SSZ TRINOCULAR SYSTEMS

Package Contents

Available Packages with Choice of Lighting

• SZ Stereo Zoom TRUE Trinocular

• 10x eyepieces with eye guards

• Dual arm boom stand with 76mm e-arm

• 0.5x auxiliary lens

• 0.5x video coupler

• 1080p HDMI/USB camera (Includes SD card, USB cable, and mouse)

with 23” HD LCD monitor and capture software

SZ-PK10-AN (LED ber optic illuminator, Fiber optic annular ring light guide)

SZ-PK10-R3E (8-point LED right light)

SZ-Pk10-R3 (NEW high-intensity LED right light with polarizer)

SZ-PK10-E1 (Quadrant compact LED right light)

Package Contents

Available Packages with Choice of Lighting

• SZ Stereo Zoom TRUE Trinocular

• 10x eyepieces with eye guards

• Dual arm boom stand with 76mm e-arm

• 0.5x auxiliary lens

• 0.5x video coupler

• NEW 4K HDMI/USB/WiFi AutoFocu camera (Includes SD card, USB cable,

and mouse) with 26” 4K monitor and capture software

SZ-PK12-AN (LED ber optic illuminator, Fiber optic annular ring light guide)

SZ-PK12-R3E (8-point LED right light)

SZ-Pk12-R3 (NEW high-intensity LED right light with polarizer)

SZ-PK12-E1 (Quadrant compact LED right light)

NZ TRINOCULAR SYSTEMS

Package Contents

Available Packages with Choice of Lighting

• NZ Stereo Zoom TRUE Trinocular

• 10x eyepieces with eye guards

• Dual arm boom stand with 76mm e-arm

• 0.5x auxiliary lens

• 0.4x video coupler

• 1080p HDMI/USB camera (Includes SD card, USB cable, and mouse)

with 23” HD LCD monitor and capture software

NZ-PK10-AN (LED ber optic illuminator, Fiber optic annular ring light guide)

NZ-PK10-R3E ( New super-bright, low-prole LED ring light)

NZ-Pk10-R3 (NEW high-intensity LED right light with polarizer)

NZ-PK10-E1 (Quadrant compact LED right light)

Package Contents

Available Packages with Choice of Lighting

• NZ Stereo Zoom TRUE Trinocular

• 10x eyepieces with eye guards

• Dual arm boom stand with 76mm e-arm

• 0.5x auxiliary lens

• 0.4x video coupler

• NEW 4K HDMI/USB/WiFi AutoFocu camera (Includes SD card, USB cable,

and mouse) with 26” 4K monitor and capture software

NZ-PK12-AN (LED ber optic illuminator, Fiber optic annular ring light guide)

NZ-PK12-R3E ( New super-brigh, low-prole LED ring light)

NZ-Pk12-R3 (NEW high-intensity LED right light with polarizer)

NZ-PK12-E1 (Quadrant compact LED right light)

SSZ Trinocular Video Specs

VIDEO MAGNIFICATION FORMULA

Total Magnication = (Mag. of CCD) X (Mag. of the objective zoom range on body) X (Mag. of objective lens) X (Diagonal display)

NZ Trinocular Video Specs

VIDEO MAGNIFICATION FORMULA

Total Magnication = (Mag. of CCD) X (Mag. of the objective zoom range on body) X (Mag. of objective lens) X (Diagonal display)

Objective

Lens

Video Coupler

Working

Distance

0.5x

MAG FOV (mm)

0.3x 7x-47.1x 100-13mm 287mm

0.4x 9.4x-62.9x 75-10mm 217mm

0.5x 11.7x-78.6x 60-8mm 177mm

0.75x 17.5x-117.9x 40-5.3mm 117mm

(Default) 23.4x-157.2x 30-4mm 100mm

1.5x 35.1x-235.7x 20-2.6mm 47mm

2x 46.8x-314.3x 15-2mm 26mm

Objective

Lens

Video Coupler

Working

Distance

0.4x

MAG FOV (mm)

0.5x 11.2x - 69.9x 49.97-7.99mm 211mm

1x

(Default) 22.4x-139.7x 24.98-3.99mm 115mm

2x 44.7x-279.4x 12-2mm 43.5mm

24 25

SERIES MICROSCOPES SERIES MICROSCOPES

• E-Series 20° Binocular Head with 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• 76mm focus mount

• Dual arm boom stand

• 0.4x video coupler and beam splitter

• 1080p HDMI/USB camera (Includes SD card, USB

cable, and mouse) with 23” HD LCD monitor and

capture software

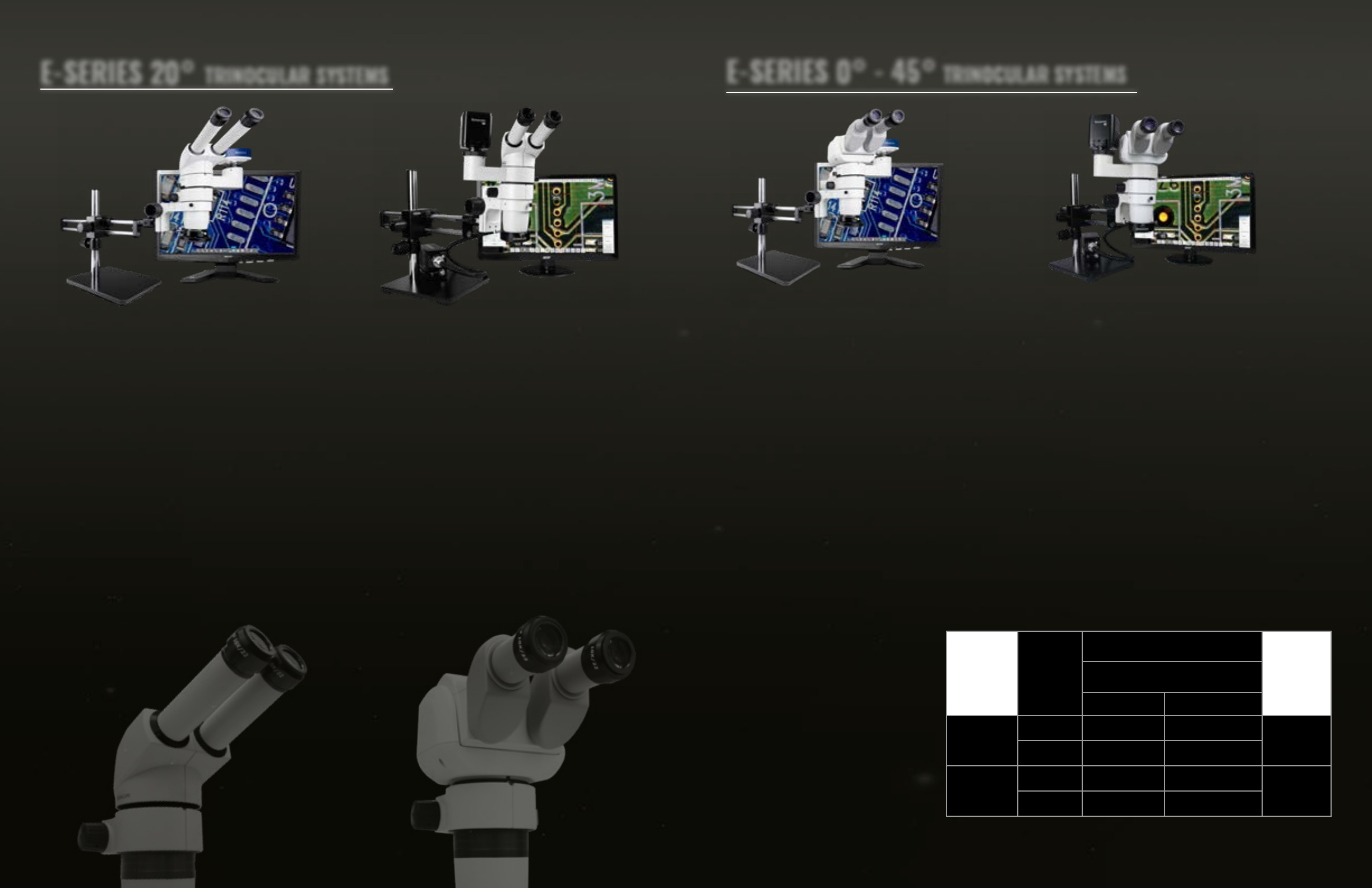

E-SERIES 20° TRINOCULAR SYSTEMS

E-SERIES 0° - 45° TRINOCULAR SYSTEMS

Package Contents

Available Packages w/choice of Lighting

CMO-PK10-AN (Dual LED Illuminator with Fiber optic

annular ring light)

CMO-PK10-R3E (NEW high-intensity LED ring light)

CMO-PK10-E1 (Quadrant compact LED ring light)

• E-Series 20° Binocular Head with 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• 76mm focus mount

• Dual arm boom stand

• 0.4x video coupler and beam splitter

• NEW 4K HDMI/USB/WiFi AF camera (Includes SD

card, USB cable, and mouse) with 26” 4K monitor and

capture software

Package Contents

Available Packages w/choice of Lighting

CMO-PK12-AN (Dual LED Illuminator with Fiber optic

annular ring light)

CMO-PK12-R3E (NEW high-intensity LED ring light)

CMO-PK12-E1 (Quadrant compact LED ring light)

• E-Series 40° Binocular Head with 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• 76mm focus mount

• Dual arm boom stand

• 0.4x video coupler and beam splitter

• 1080p HDMI/USB camera (Includes SD card, USB

cable, and mouse) with 23” HD LCD monitor and

capture software

Package Contents

Available Packages w/choice of Lighting

CMO-PK10-AN (Dual LED Illuminator with Fiber optic

annular ring light)

CMO-PK10-R3E (NEW high-intensity LED ring light)

CMO-PK10-E1 (Quadrant compact LED ring light)

• E-Series 40° Binocular Head with 10x Eyepieces (Pair)

• 1:6 Zoom Body (0.8x-5x)

• 0.5x Achromatic objective Lens

• 76mm focus mount

• Dual arm boom stand

• 0.4x video coupler and beam splitter

• NEW 4K HDMI/USB/WiFi AF camera (Includes SD

card, USB cable, and mouse) with 26” 4K monitor and

capture software.

Package Contents

Available Packages w/choice of Lighting

CMO-PK12-AN-E (Dual LED Illuminator with Fiber optic

annular ring light)

CMO-PK12-R3E-E (NEW high-intensity LED ring light)

CMO-PK12-E1-E (Quadrant compact LED ring light)

Objective

Lens

Zoom

Body

Video Coupler

working

distance

0.5x

MAG FOV (mm)

0.5x

1:6 14x-87.3x 35- 5.6mm

187mm

1:10 14x-139.7x 35- 3.5mm

1:6 27.9x-174.6x 17.5- 2.8mm

78mm

1:10 27.9x-279.4x 17.5- 1.8mm

VIDEO MAGNIFICATION FORMULA

Total Magnication = (Mag. of CCD) X (Mag. of the objective zoom range on body) X (Mag. of objective lens) X (Diagonal display)

E-Series Trinocular Video Specs
