S SZ-II BINOCULAR S YSTEM S Package Contents A vailable Packages with Choice of Lighting • SSZ-II Stereo Zoom Binocular • 10x eyepieces • ErgoPost Stand with 76mm focus r ack SZ-PK1-AN (Fiber optic annular ring light gui…

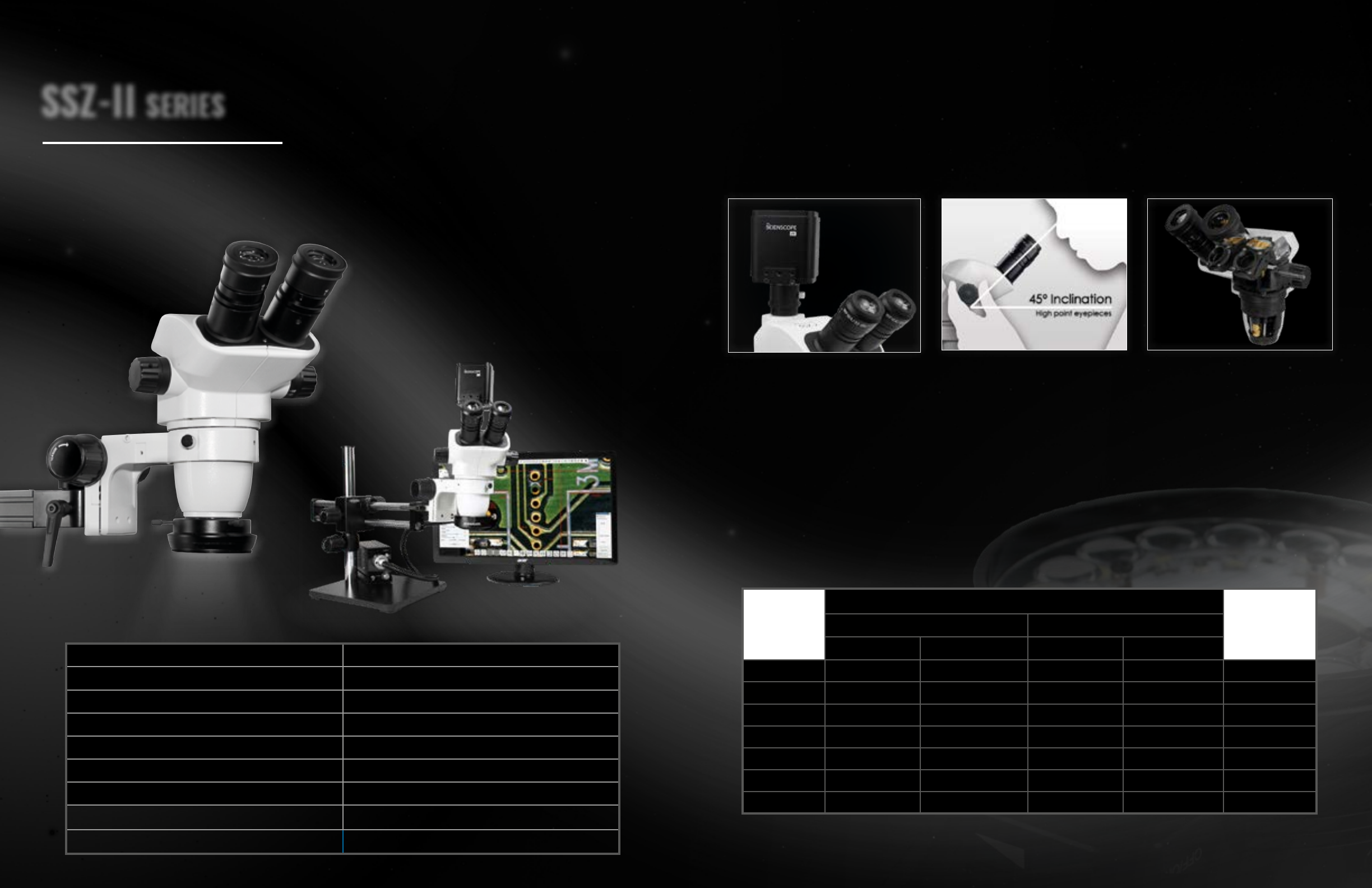

SSZ-II SERIES
Stereo Zoom Binocular/ Trinocular Microscopes
With long-term reliability and customer satisfaction in mind, we have redesigned the SSZ-II series
Stereo Zoom Microscopes. We have retained the core quality and technology while improving the
ergonomics, optics, and performance. We are condent you will experience the same long-term de-
pendability and enjoy the new features and benets.
HIGHLIGHTS
• Quality construction and optics
• Variety of accessories
• Cost-effective
• Great started microscope
Data Sheet / SSZ-II Body Specs
COMPACT & COST EFFECTIVE
The SSZ series is the cornerstone of the Scienscope stereo zoom microscope line. The compact and
durable design, incorporating the Greenough optical system, delivers exceptional atness, depth of
eld, clarity, and accurate color. Over 15 years of continued customer satisfaction, the SSZ has
remained Scienscope’s most popular microscope.
SSZ-II Binocular Optical Specs
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
Upgradable SystemHD Camera Options User Friendly-Ergonomic
Precision CNC machine parts assembled
to the leading industry standards extend
the microscope’s life and lower service
and maintenance costs.
High eye-point eyepieces and ergonomi-
cally located zoom control make for one
of the most comfortable user experiences
of any non-parallel zoom system.
View HD images in real-time on an HD LCD
monitor and capture images to an SD card
or connect to a computer via USB to capture
images, annotate, and draw with the includ-
ed software working environments.
PROVEN PERFORMANCE
Microscope Body Zoom Range
0.67X - 4.5X
Magnication
6.7X-45X (w/10X eyepieces)
Zoom Ratio
1:6.7
Field of View
32.8mm - 4.9mm (w/ 10X eyepieces)
Work Distance
100MM
Dioptric Adjustment
±5
Interpupillary Adjustment
50-76mm
Eyepieces Inclination 45°
Microscope Ring Mount Diameter 76mm
Objective
Lens
Eyepieces
Working
Distance
10x 20x
MAG FOV (mm) MAG FOV (mm)
0.3x 2x- 13.5x 109.5- 16.3mm 4x- 27x 59.7- 8.9mm 287mm
0.4x 2.7x- 18x 82.1- 12.2mm 5.4x- 36x 44.8- 6.7mm 217mm
0.5x 3.4x- 22.5x 65.7- 9.8mm 6.7x- 45x 35.8- 5.3mm 177mm
0.75x 5x- 33.8x 43.8- 6.5mm 10.1x- 67.5x 23.9- 3.6mm 117mm
1x
(Default) 6.7x- 45x 32.8- 4.9mm 13.4x- 90x 17.9- 2.7mm 100mm
1.5x 10.1x- 67.5x 21.9- 3.3mm 20.1x- 135x 11.9- 1.8mm 47mm
2x 13.4x- 90x 16.4- 2.4mm 26.8x- 180x 9- 1.3mm 26mm
8 9
SERIES MICROSCOPES SERIES MICROSCOPES

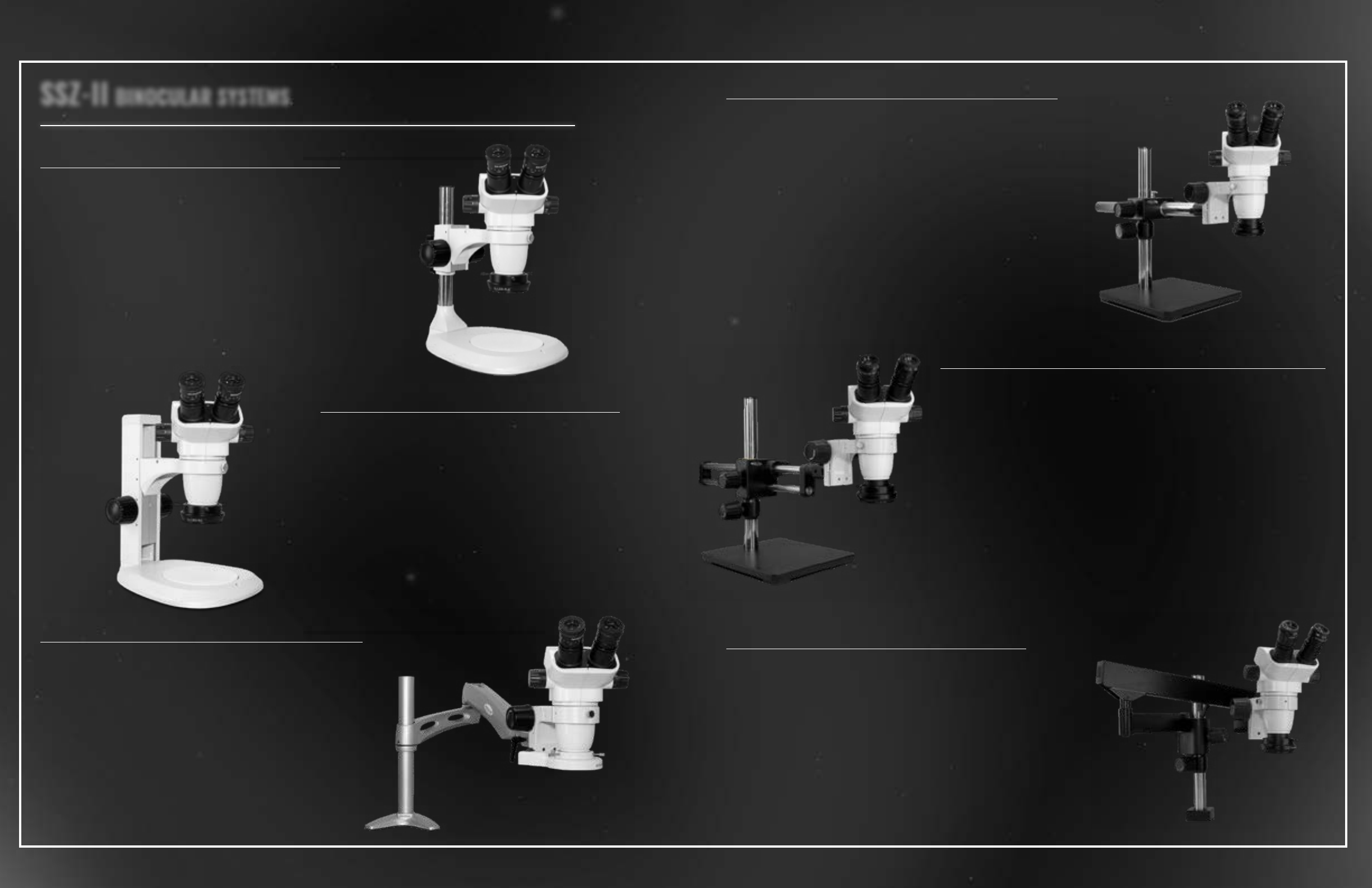

SSZ-II BINOCULAR SYSTEMS
Package Contents
Available Packages with Choice of Lighting
• SSZ-II Stereo Zoom Binocular
• 10x eyepieces
• ErgoPost Stand with 76mm focus rack
SZ-PK1-AN (Fiber optic annular ring light guide)
SZ-PK1-R3E (New super-bright, low-prole LED ring light)
SZ-PK1-R3 (New high-intensity LED ring light with polarizer)
SZ-PK1-E1 (Quadrant compact LED ring light)
SZ-PK1 Systems on post stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
• SSZ-II Stereo Zoom Binocular
• 10x eyepieces
• ErgoTrack Stand with 76mm focus rack
SZ-PK2-AN (Fiber optic annular ring light guide)
SZ-PK2-R3E (New super-bright, low-prole LED ring light)
SZ-PK2-R3 (New high-intensity LED ring light with polarizer)
SZ-PK2-E1 (Quadrant compact LED ring light)
SZ-PK2 Systems on track stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
SSZ-II Stereo Zoom Binocular, 10x eyepieces
•
Eye guards
•
Single-arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
SZ-PK5S-AN (Fiber optic annular ring light guide)
SZ-PK5S-R3E (New super-bright, low-prole LED ring light)
SZ-PK5S-R3 (New high-intensity LED ring light with polarizer)
SZ-PK5S-E1 (Quadrant compact LED ring light)
SZ-PK5S Systems on single-arm boom stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
SSZ-II Stereo Zoom Binocular
•
10x eyepieces
•
Dual arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
SZ-PK5D-AN (Fiber optic annular ring light guide)
SZ-PK5D-R3E (New super-bright, low-prole LED ring light)
SZ-PK5D-R3 (New high-intensity LED ring light with polarizer)
SZ-PK5D-E1 (Quadrant compact LED ring light)
SZ-PK5D Systems on dual-arm boom stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
SSZ-II Stereo Zoom Binocular
•
10x eyepieces
•
HEAVY DUTY articulating arm (15” vertical post & 76mm focus mount)
•
0.5x auxiliary lens
SZ-PK3FX-AN (Fiber optic annular ring light guide)
SZ-PK3FX-R3E (New super-bright, low-prole LED ring light)
SZ-PK3FX-R3 (New high-intensity LED ring light with polarizer)
SZ-PK3FX-E1 (Quadrant compact LED ring light)
SZ-PK3FX Systems on heavy-duty articulating arms w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
• SSZ-II Stereo Zoom Binocular
• 10x eyepieces
• Articulating arm with 76mm focus rack
• 0.5x auxiliary lens
SZ-PK3-AN (Fiber optic annular ring light guide)
SZ-PK3-R3E (New super-bright low-prole LED ring light)
SZ-PK3-R3 (New high-intensity LED ring light with polarizer)
SZ-PK3-E1 (Quadrant compact LED ring light)
SZ-PK3 Systems on articulating arms w/choice of lighting
10 11
SERIES MICROSCOPES SERIES MICROSCOPES
h

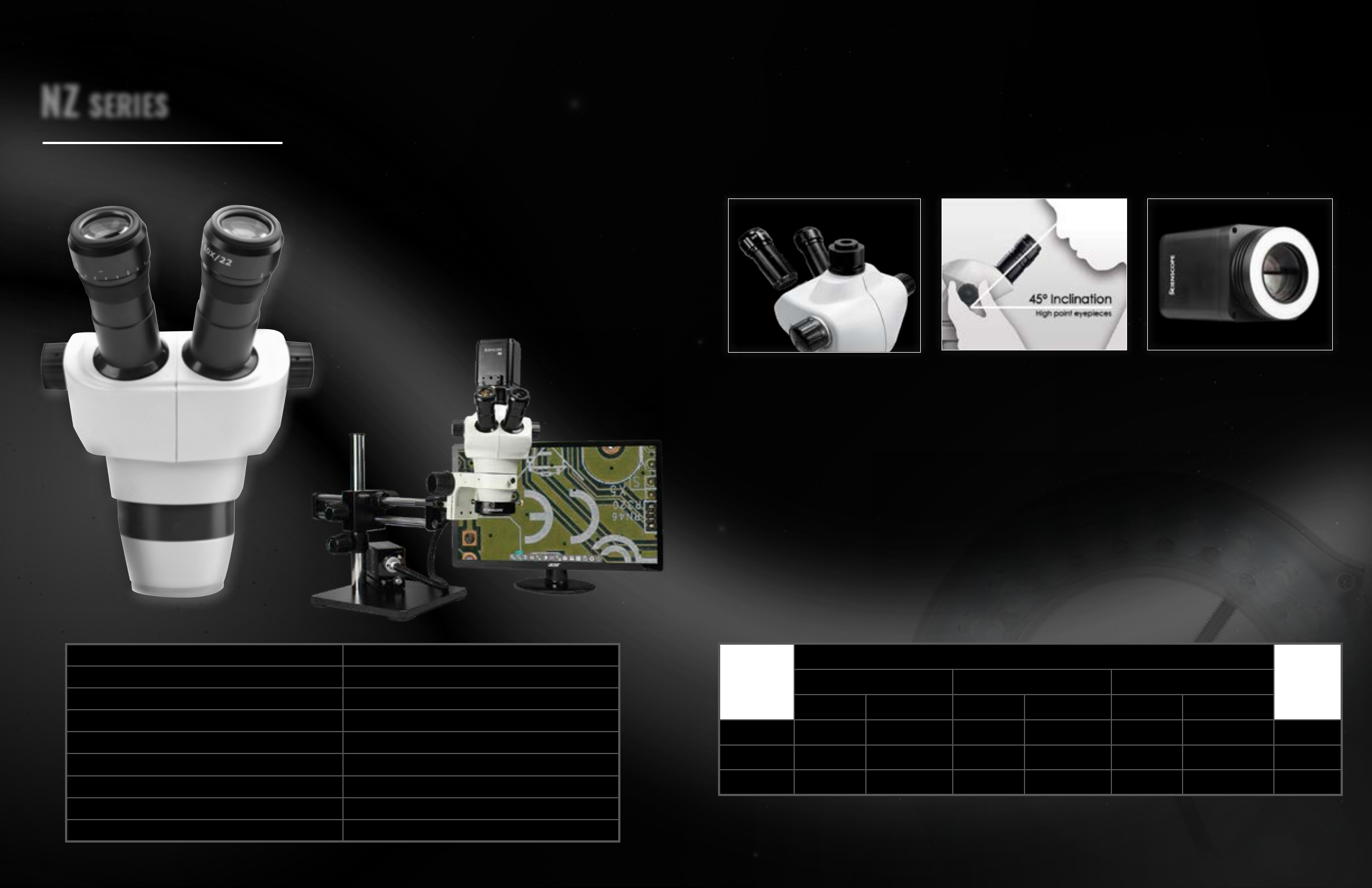

NZ SERIES
Stereo Zoom Binocular/ Trinocular Microscopes
Scienscope designed NZ Series Stereo Zoom Microscopes to meet users’ requirements who demand
superior features and higher performance optics from a stereo zoom microscope.
HIGHLIGHTS
• Quality construction and optics
• Long working distance
• Maintenance-free
• True trinocular
Data Sheet / NZ Body Specs
HIGHER PERFORMANCE
The NZ Series is well-suited for all industrial applications, featuring a zoom magnication of 5X and a
long working distance of 115mm. The airtight design allows for any environment where temperature
and humidity are high. The NZ series trinocular is a true trinocular using the highest quality beam split-
ter for an exceptionally at image.
SSZ-II Binocular Optical Specs
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
HD Camera OptionsMaintenance Free Precision Optics
The third viewport provides video output
and allows for training and documenting
your work to be a snap. Now, with 4K or
1080p options!
Precision polished optics provide a clear
and dened image for accurate inspec-
tion, manual assembly, micro-soldering,
or dissection.
Anti-mold and air-tight sealed body design
eliminates the need for regular maintenance
and adds additional reliability to most work-
ing environments.
Microscope Body Zoom Range 08X- 5X
Magnication 8X- 50X (w/10X eyepieces)
Zoom Ratio 1:6.3
Field of View 27.5mm- 4.4mm (w/10X eyepieces)
Work Distance 115mm
Dioptric Adjustment ±5
Interpupillary Adjustment 50-76mm
Eyepieces Inclination 45°
Microscope Ring Mount Diameter 76mm
SUPERIOR OPTICS AND MECHANICAL CONSTRUCTION
Objective
Lens
Eyepieces
Working
Distance
10x 15x 20x
MAG FOV (mm) MAG FOV (mm) MAG FOV (mm)
0.5x 4x- 25x 55- 8.8mm 6x- 37.5x 40- 6.4mm 8x- 50x 31.2- 5.0mm 211mm
1x
(Default) 8x- 50x 27.5- 4.4mm 12x- 75x 20- 3.2mm 16x- 100x 15.6- 2.5mm 115mm
2x 16x- 100x 13.8- 2.2mm 24x- 150x 10- 1.6mm 32x- 200x 7.8- 1.3mm 43.5mm
