ELZ SERIES
Mini Stereo Zoon Binocular Microscope
The ELZ microscope series is designed for entry-level users or companies that require good quality
on a budget. High-performance optics and a small package deliver a great scope at a very affordable
price.
HIGHLIGHTS
• Quality construction and optics
• Variety of accessories
• Cost-effective
• Great started microscope
Data Sheet / ELZ Body Specs
Microscope Body Zoom Range 0.7x - 3x
Magnication 7X-30X (w/10X eyepiece
Zoom Ratio 01:04.3
Field of View 31.4mm - 7.3mm (w/ 10X eyepieces)
Work Distance 100MM
Dioptric Adjustment ±5
Interpupillary Adjustment 46 - 76mm
Eyepieces Inclination 60°
Microscope Ring Mount Diameter 76mm
COMPACT & COST EFFECTIVE
The quality of Scienscope’s stereo zoom microscope series and optical design provides high-quali-
ty images with more outstanding atness. The coatings on lens surfaces provide clear, bright, and
high-contrast views of your most challenging applications.
ELZ Binocular Optical Specs
Objective
Lens
Eyepieces
Working
Distance
10x 15x 20x
MAG FOV (mm) MAG FOV (mm) MAG FOV (mm)
0.5x 3.5x- 15x 66.9- 15mm 5.3x- 22.5x 4.6- 11mm 7x-30x 36- 8.3mm 177mm
1x
(Default) 7x-30x 31.4- 7.3mm 10.5x-45x 22.9- 5.3mm 14x-60x 17.9- 4.1mm 100mm
2x 14x-60x 16- 3.7mm 21x-90x 11.4 - 8mm 28x - 120x 9 -6mm 26mm
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of the objective lens)
Upgradable System
Maintenance - Free
High Quality Optics
Upgrades available on eyepieces, objec-
tives, lenses, light sources, and many oth-
er microscope parts allow exible adapta-
tion to your changing workow.
Based on the NZ series microscope con-
struction, the ELZ surpasses many com-
petitors in the compact category.
Anti-mold and air-tight sealed body de-
sign eliminates the need for regular main-
tenance and adds additional reliability to
most.
working environments.
COMPACT PERFORMANCE
4 5
SERIES MICROSCOPES SERIES MICROSCOPES

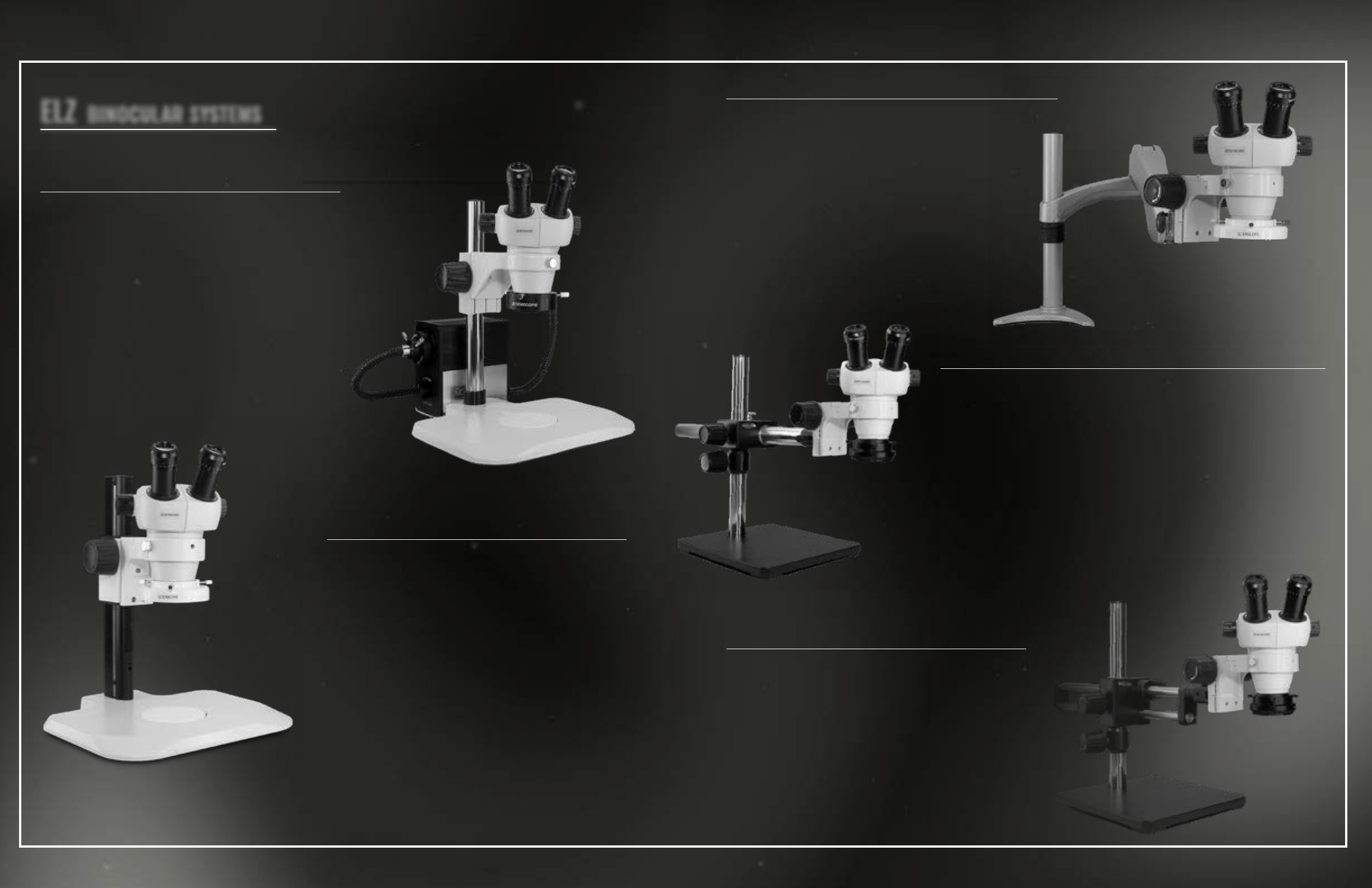

ELZ BINOCULAR SYSTEMS
Package Contents
Available Packages with Choice of Lighting
• ELZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoPost Stand with 76mm focus rack
ELZ-PK1-AN (Fiber optic annular ring light guide)
ELZ-PK1-R3E (New super-bright, low-prole LED ring light)
ELZ-PK1-R3 (New high-intensity LED ring light with polarizer)
ELZ-PK1-E1 (Quadrant compact LED ring light)
ELZ-PK1 System on Post Stand w/choice of Lighting
Package Contents
Available Packages with Choice of Lighting
• ELZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoTrack Stand with 76mm focus rack
ELZ-PK2-AN (Fiber optic annular ring light guide)
ELZ-PK2-R3E (New super-bright, low-prole LED ring light)
ELZ-PK2-R3 (New high-intensity LED ring light with polarizer)
ELZ-PK2-E1 (Quadrant compact LED ring light)
ELZ-PK2 System on Track Stand w/choice of Lighting
Package Contents
Available Packages with Choice of Lighting
•
ELZ Stereo Zoom Binocular
•
10x eyepieces
•
Articulating arm with 76mm focus rack
•
0.5x auxiliary lens
ELZ-PK3-AN (Fiber optic annular ring light guide)
ELZ-PK3-R3E (New super-bright, low-prole LED ring light)
ELZ-PK3-R3 (New high-intensity LED ring light with polarizer)
ELZ-PK3-E1 (Quadrant compact LED ring light)
ELZ-PK3 System on Articulating-Arm w/choice of Lighting
Package Contents
Available Packages with Choice of Lighting
•
ELZ Stereo Zoom Binocular, 10x eyepieces
•
Eye guards
•
Single-arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
ELZ-PK5S-AN (Fiber optic annular ring light guide)
ELZ-PK5S-R3E (New super-bright, low-prole LED ring light)
ELZ-PK5S-R3 (New high-intensity LED ring light with polarizer)
ELZ-PK5S-E1 (Quadrant compact LED ring light)
ELZ-PK5S System on Single-Arm Boom Stands w/choice of Lighting
Package Contents
Available Packages with Choice of Lighting
•
ELZ Stereo Zoom Binocular
•
10x eyepieces
•
Dual arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
ELZ-PK5D-AN (Fiber optic annular ring light guide)
ELZ-PK5D-R3E (New super-bright, low-prole LED ring light)
ELZ-PK5D-R3 (New high-intensity LED ring light with polarizer)
ELZ-PK5D-E1 (Quadrant compact LED ring light)
ELZ-PK5D System on Dual-Arm Boom Stands w/choice of Lighting
6 7
SERIES MICROSCOPES SERIES MICROSCOPES
SSZ-II SERIES
Stereo Zoom Binocular/ Trinocular Microscopes
With long-term reliability and customer satisfaction in mind, we have redesigned the SSZ-II series
Stereo Zoom Microscopes. We have retained the core quality and technology while improving the
ergonomics, optics, and performance. We are condent you will experience the same long-term de-
pendability and enjoy the new features and benets.
HIGHLIGHTS
• Quality construction and optics
• Variety of accessories
• Cost-effective
• Great started microscope
Data Sheet / SSZ-II Body Specs
COMPACT & COST EFFECTIVE
The SSZ series is the cornerstone of the Scienscope stereo zoom microscope line. The compact and
durable design, incorporating the Greenough optical system, delivers exceptional atness, depth of
eld, clarity, and accurate color. Over 15 years of continued customer satisfaction, the SSZ has
remained Scienscope’s most popular microscope.
SSZ-II Binocular Optical Specs
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
Upgradable SystemHD Camera Options User Friendly-Ergonomic
Precision CNC machine parts assembled
to the leading industry standards extend
the microscope’s life and lower service
and maintenance costs.
High eye-point eyepieces and ergonomi-
cally located zoom control make for one
of the most comfortable user experiences
of any non-parallel zoom system.
View HD images in real-time on an HD LCD
monitor and capture images to an SD card
or connect to a computer via USB to capture
images, annotate, and draw with the includ-
ed software working environments.
PROVEN PERFORMANCE
Microscope Body Zoom Range
0.67X - 4.5X
Magnication
6.7X-45X (w/10X eyepieces)
Zoom Ratio
1:6.7
Field of View
32.8mm - 4.9mm (w/ 10X eyepieces)
Work Distance
100MM
Dioptric Adjustment
±5
Interpupillary Adjustment
50-76mm
Eyepieces Inclination 45°
Microscope Ring Mount Diameter 76mm
Objective
Lens
Eyepieces
Working
Distance
10x 20x
MAG FOV (mm) MAG FOV (mm)
0.3x 2x- 13.5x 109.5- 16.3mm 4x- 27x 59.7- 8.9mm 287mm
0.4x 2.7x- 18x 82.1- 12.2mm 5.4x- 36x 44.8- 6.7mm 217mm
0.5x 3.4x- 22.5x 65.7- 9.8mm 6.7x- 45x 35.8- 5.3mm 177mm
0.75x 5x- 33.8x 43.8- 6.5mm 10.1x- 67.5x 23.9- 3.6mm 117mm
1x
(Default) 6.7x- 45x 32.8- 4.9mm 13.4x- 90x 17.9- 2.7mm 100mm
1.5x 10.1x- 67.5x 21.9- 3.3mm 20.1x- 135x 11.9- 1.8mm 47mm
2x 13.4x- 90x 16.4- 2.4mm 26.8x- 180x 9- 1.3mm 26mm
