NZ BINOCULAR SY STEMS Package Contents A vailable Packages with Choice of Lighting • NZ Stereo Zoom Binocular • 10x eyepieces • ErgoPost Stand with 76mm focus r ack NZ-PK1-AN (Fiber optic annular ring light guide) NZ-PK1…
h
NZ SERIES
Stereo Zoom Binocular/ Trinocular Microscopes
Scienscope designed NZ Series Stereo Zoom Microscopes to meet users’ requirements who demand
superior features and higher performance optics from a stereo zoom microscope.
HIGHLIGHTS
• Quality construction and optics
• Long working distance
• Maintenance-free
• True trinocular
Data Sheet / NZ Body Specs
HIGHER PERFORMANCE
The NZ Series is well-suited for all industrial applications, featuring a zoom magnication of 5X and a
long working distance of 115mm. The airtight design allows for any environment where temperature
and humidity are high. The NZ series trinocular is a true trinocular using the highest quality beam split-
ter for an exceptionally at image.
SSZ-II Binocular Optical Specs
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
HD Camera OptionsMaintenance Free Precision Optics
The third viewport provides video output
and allows for training and documenting
your work to be a snap. Now, with 4K or
1080p options!
Precision polished optics provide a clear
and dened image for accurate inspec-
tion, manual assembly, micro-soldering,
or dissection.
Anti-mold and air-tight sealed body design
eliminates the need for regular maintenance
and adds additional reliability to most work-
ing environments.
Microscope Body Zoom Range 08X- 5X
Magnication 8X- 50X (w/10X eyepieces)
Zoom Ratio 1:6.3
Field of View 27.5mm- 4.4mm (w/10X eyepieces)
Work Distance 115mm
Dioptric Adjustment ±5
Interpupillary Adjustment 50-76mm
Eyepieces Inclination 45°
Microscope Ring Mount Diameter 76mm
SUPERIOR OPTICS AND MECHANICAL CONSTRUCTION
Objective
Lens
Eyepieces
Working
Distance
10x 15x 20x
MAG FOV (mm) MAG FOV (mm) MAG FOV (mm)
0.5x 4x- 25x 55- 8.8mm 6x- 37.5x 40- 6.4mm 8x- 50x 31.2- 5.0mm 211mm
1x
(Default) 8x- 50x 27.5- 4.4mm 12x- 75x 20- 3.2mm 16x- 100x 15.6- 2.5mm 115mm
2x 16x- 100x 13.8- 2.2mm 24x- 150x 10- 1.6mm 32x- 200x 7.8- 1.3mm 43.5mm
12 13
SERIES MICROSCOPES SERIES MICROSCOPES

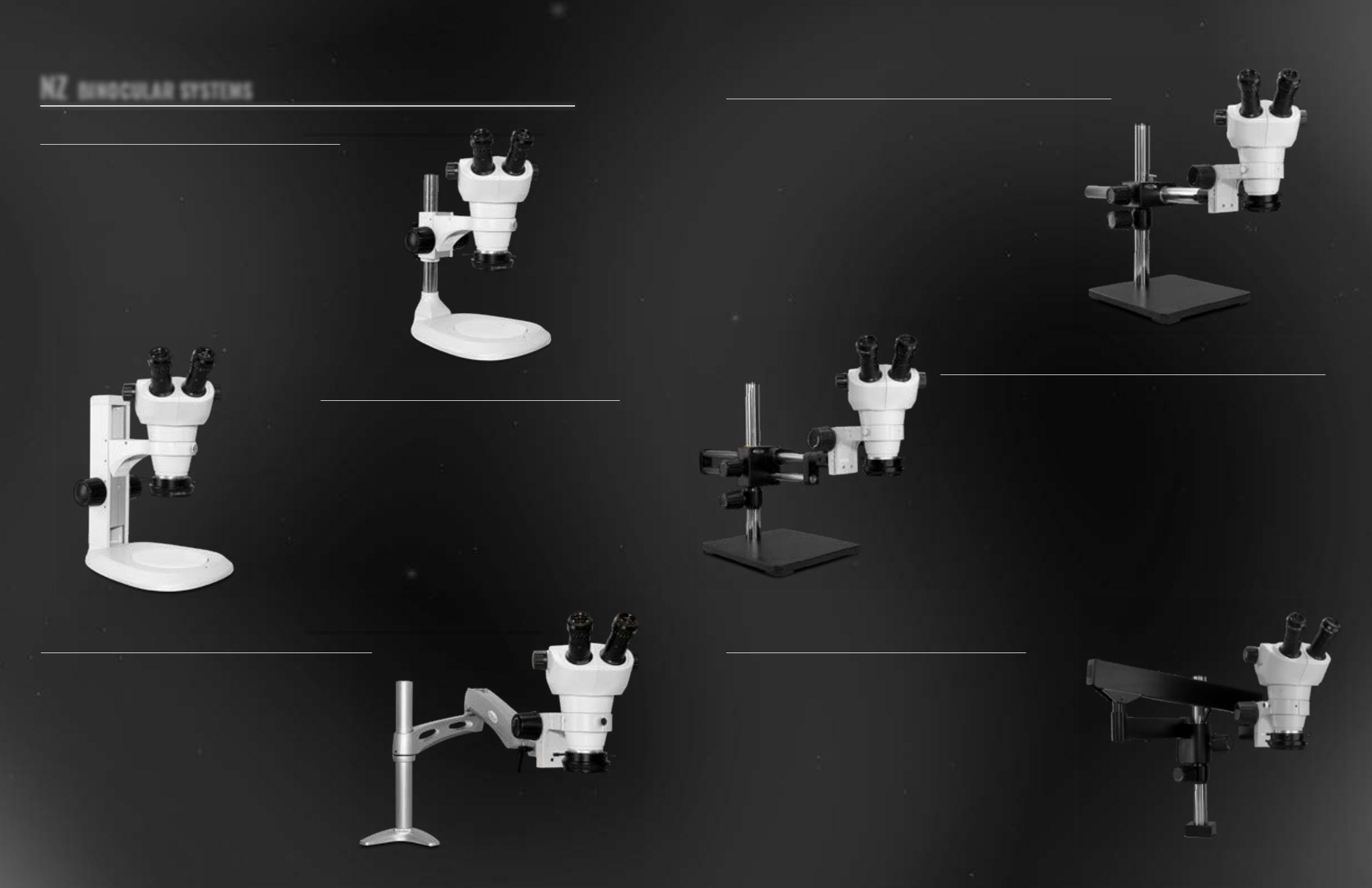

NZ BINOCULAR SYSTEMS
Package Contents
Available Packages with Choice of Lighting
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoPost Stand with 76mm focus rack
NZ-PK1-AN (Fiber optic annular ring light guide)
NZ-PK1-R3E (New super-bright, low-prole LED ring light)
NZ-PK1-R3 (New high-intensity LED ring light with polarizer)
NZ-PK1-E1 (Quadrant compact LED ring light)
NZ-PK1 Systems on post stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoTrack Stand with 76mm focus rack
NZ-PK2-AN (Fiber optic annular ring light guide)
NZ-PK2-R3E (New super-bright, low-prole LED ring light)
NZ-PK2-R3 (New high-intensity LED ring light with polarizer)
NZ-PK2-E1 (Quadrant compact LED ring light)
NZ-PK2 Systems on track stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
NZ Stereo Zoom Binocular, 10x eyepieces
•
Eye guards
•
Single-arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
NZ-PK5S-AN (Fiber optic annular ring light guide)
NZ-PK5S-R3E (New super-bright, low-prole LED ring light)
NZ-PK5S-R3 (New high-intensity LED ring light with polarizer)
NZ-PK5S-E1 (Quadrant compact LED ring light)
NZ-PK5S Systems on single-arm boom stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
NZ Stereo Zoom Binocular
•
10x eyepieces
•
Dual arm boom stand with 76mm e-arm
•
0.5x auxiliary lens
NZ-PK5D-AN (Fiber optic annular ring light guide)
NZ-PK5D-R3E (New super-bright, low-prole LED ring light)
NZ-PK5D-R3 (New high-intensity LED ring light with polarizer)
NZ-PK5D-E1 (Quadrant compact LED ring light)
NZ-PK5D Systems on dual arm boom stands w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
•
NZ Stereo Zoom Binocular
•
10x eyepieces
•
HEAVY DUTY articulating arm (5” vertical post and 76mm focus mount)
•
0.5x auxiliary lens
NZ-PK3FX-AN (Fiber optic annular ring light guide)
NZ-PK3FX-R3E (New super-bright, low-prole LED ring light)
NZ-PK3FX-R3 (New high-intensity LED ring light with polarizer)
NZ-PK3FX-E1 (Quadrant compact LED ring light)
NZ-PK5 Systems on heavy-duty articulating arms w/choice of lighting
Package Contents
Available Packages with Choice of Lighting
• NZ Stereo Zoom Binocular
• 10x eyepieces
• Articulating arm with 76mm focus rack
• 0.5x auxiliary lens
NZ-PK3-AN (Fiber optic annular ring light guide)
NZ-PK3-R3E (New super-bright, low-prole LED ring light)
NZ-PK3-R3 (New high-intensity LED ring light with polarizer)
NZ-PK3-E1 (Quadrant compact LED ring light)
NZ-PK3 Systems on articulating arms w/choice of lighting
14 15
SERIES MICROSCOPES SERIES MICROSCOPES
E SERIES (CMO)
Parallel Zoom Stereo Microscope
The E-Series offers higher magnication than standard models, enabling high-resolution observation
of small features. Improved aberration correction provides bright and sharp images throughout the
entire eld. The parallel optics allow ergonomic accessories and observation attachments for various
applications.
HIGHLIGHTS
• Ergonomic and customizable
• Infinity corrected optics
• Maintenance-free
• True trinocular
Data Sheet / E-Series (CMO) Specs
HIGHER PERFORMANCE
The NZ Series is well-suited for all industrial applications, featuring a zoom magnication of 5X and a
long working distance of 115mm. The airtight design allows for any environment where temperature
and humidity are high. The NZ series trinocular is a true trinocular using the highest quality beam split-
ter for an exceptionally at image.
E-Series (CMO) Binocular Optical Specs
Optical Magnication Formula
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
Less Operator FatigueOptimum User Comfort Stackable Accessories
An eyepiece inclination of 20° allows you
to observe without leaning forward, which
reduces fatigue during long hours of op-
eration.
A parallel innity-corrected optical sys-
tem allows for ergonomic customization
and stacking of several components with-
out distorting the image.
Eyepieces tilt and rotate to adjust for oper-
ator height. Eyepieces rotate 180 degrees
with three inches of travel. The inclination is
adjustable from 0 to 45 degrees.
EXCEPTONAL CLARITY AND COMFORT
Microscope Body Zoom Range 08X- 8X
Magnication 8X- 80X (w/ 10X eyepieces)
Zoom Ratio 1:10
Field of View 28.8mm- 2.9mm (w/10X eyepieces)
Work Distance 78mm
Dioptric Adjustment ±5
Interpupillary Adjustment 51- 75mm
Eyepieces Inclination 20°
Microscope Ring Mount Diameter 76mm
Objective
Lens
Eyepieces
Working
Distance
10x 20x
Body Zoom MAG FOV (mm) MAG FOV (mm)
0.5x
1:6 4x-25x 57.5-9.2mm 8x-50x 35-5.6mm
187mm
1:10 4x-40x 57.5-5.8mm 8x-80x 35.-3.5mm
1x
(Default)
1:6 8x-50x 28.8-4.6mm 16x-100x 17.5-2.8mm
78mm
1:10 8x-80x 28.8-2.9mm 16x-160x 17.5-1.8mm
2x
1:6 16x-100x 14.4-2.9mm 32x-200x 8.8-1.4mm
35mm
1:10 16x-160x 14.4-1.8mm 32x-320x 8.8-0.9mm
16 17
SERIES MICROSCOPES SERIES MICROSCOPES
