E-SERIES 20° BINOCULAR SY STEMS Package Contents Packages w/choice of Lighting • E-Series 20° Binocular Head • 10x Eyepieces (Pair) • 1:6 Zoom Body (0.8x-5x) • 1x Objective Lens CMO-PK2 (Dual LED Illuminated T rack Stand…

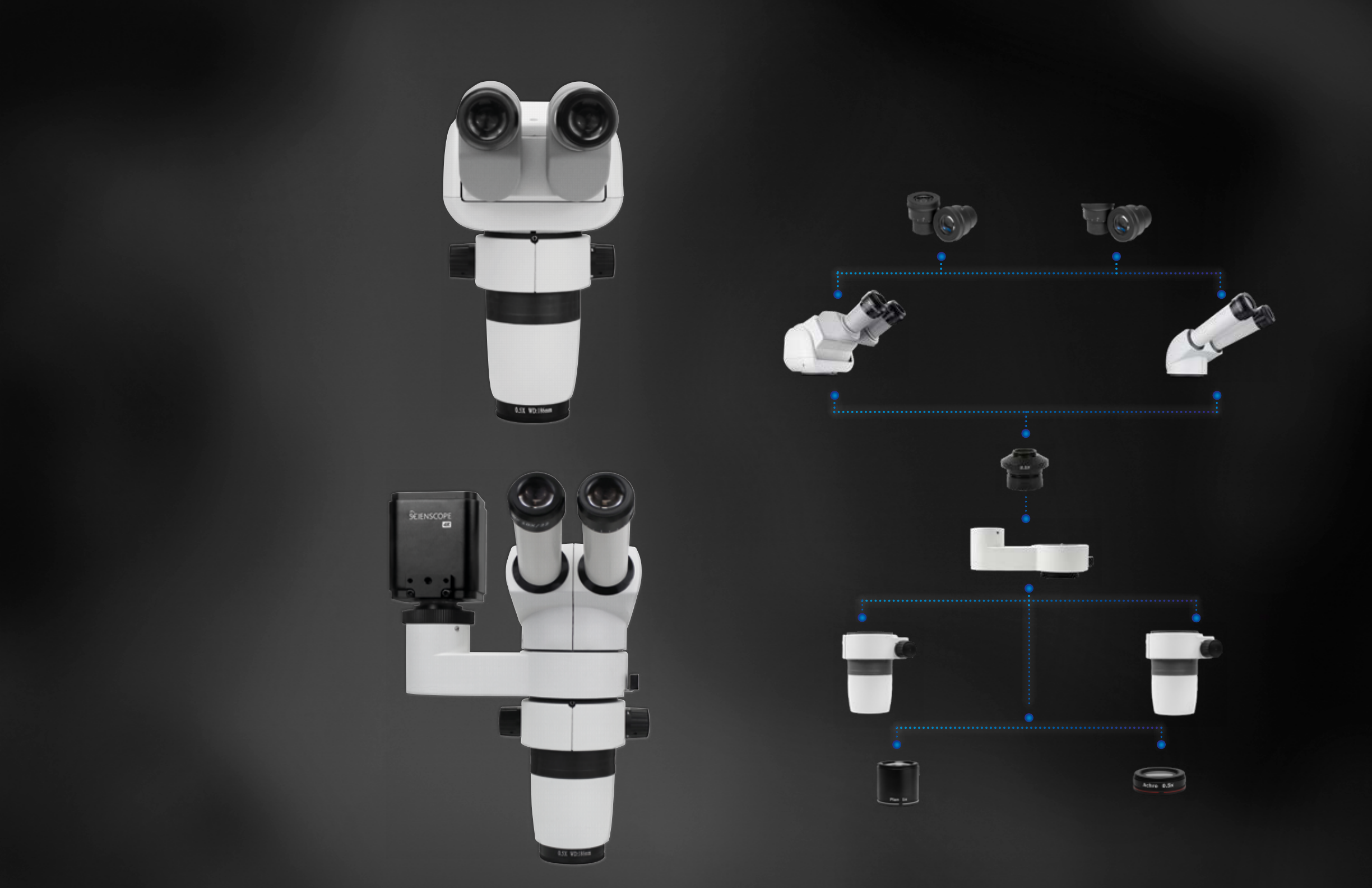

E-Series
Binocular Configuaration
Minimum required components that comprise
a binocular microscope system:
• Eyepieces
• Binocular Head
• Zoom Body
• Objective Lens
E-Series Microscopes congured as a binocular system
with 0°-45° Tilting Head.
E-Series
Trinocular Configuaration
Minimum required components that comprise a
trinocular microscope system:
• Eyepieces
• Binocular Head
• Video Splitter
• Video Coupler
• Zoom Body
• Objective Lens
• Digital Camera
E-Series Microscopes are congured as a trinocular
system with an optional video splitter, video coupler,
and CMOS Camera.
E-SERIES MICROSCOPE CONFIGURATION CHART
CMO-LE-W10 (Pair)
10x Eyepieces
CMO-LE-W20 (Pair)
20x Eyepieces
CMO-BH2
20°Binocular Head
CMO-BHE
Tilting Binocular Head
CMO-CP-05
0.5x Video Coupler
CMO-BH23
Video Splitter
CMO-BD-16
Zoom Bodies
Zoom Ratio: 1:6
Zoom Range:
CMO-BD-110
Zoom Bodies
Zoom Ratio: 1:10
Zoom Range: 0.8x-8x
CMO-LA-05
ARCHROMATIC
0.5x Objective Lense
CMO-LA-10
PLAN
1x Objective Lense
18 19
SERIES MICROSCOPES SERIES MICROSCOPES
E-SERIES 20° BINOCULAR SYSTEMS
Package Contents
Packages w/choice of Lighting
• E-Series 20° Binocular Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 1x Objective Lens
CMO-PK2 (Dual LED Illuminated Track Stand
with reected and transmitted light)
Package Contents
Packages w/choice of Lighting
• E-Series 20° Binocular Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 1x Objective Lens
• Dual focus ergo-track stand with stage
CMO-PK2-AN (Fiber optic annular ring light
guide)
CMO-PK2-R3E (New super-bright, low-prole LED
Packages w/choice of Lighting
• E-Series 20° Binocular Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
CMO-PK3-E1 (Quadrant compact LED ring light)
CMO-PK3-R3E (NEW high-intensity LED ring light)
Package Contents
Packages w/choice of Lighting
• E-Series 20° Binocular Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
• LED illuminator
• 76mm focus mount
CMO-PK5S-AN (Fiber optic annular ring light guide)
CMO-PK5S-R3E (New super-bright, low-prole LED ring light)
CMO-PK5S-E1 (Quadrant compact LED ring light)
Package Contents
Packages w/choice of Lighting
• E-Series 20° Binocular Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
• LED illuminator
• 76mm focus mount
CMO-PK5D-AN (Fiber optic annular ring light guide)
CMO-PK5D-R3E (New super-bright, low-prole LED ring light)
CMO-PK5D-E1 (Quadrant compact LED ring light)
Package Contents
E-SERIES 0°- 45° BINOCULAR SYSTEMS
Package Contents
Packages w/choice of Lighting
• E-Series 0°-45° Tilting Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 1x Objective Lens
CMO-PK2E (Dual LED Illuminated Track
Stand with reected and transmitted light)
Package Contents
Packages w/choice of Lighting
• E-Series 0°-45° Tilting Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 1x Objective Lens
• Dual focus ergo-track stand with stage
CMO-PK2E-AN (Fiber optic annular ring light guide)
CMO-PK2E-R3E (New super-bright, low-prole LED
ring light)
Packages w/choice of Lighting
• E-Series 0°-45° Tilting Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
CMO-PK3-E1-E (Quadrant compact LED ring light)
CMO-PK3-R3E-E (NEW high-intensity LED ring light)
Package Contents
Packages w/choice of Lighting
• E-Series 0°-45° Tilting Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
• LED illuminator
• 76mm focus mount
CMO-PK5S-AN-E (Fiber optic annular ring light guide)
CMO-PK5S-R3E-E (New super-bright, low-prole LED ring light)
CMO-PK5S-E1-E (Quadrant compact LED ring light)
Package Contents
Packages w/choice of Lighting
• E-Series 0°-45° Tilting Head
• 10x Eyepieces (Pair)
• 1:6 Zoom Body (0.8x-5x)
• 0.5x Achromatic objective Lens
• LED illuminator
• 76mm focus mount
CMO-PK5D-R3E-E (New super-bright, low-prole LED ring light)
CMO-PK5D-E1-E (Quadrant compact LED ring light)
Package Contents
20 21
SERIES MICROSCOPES SERIES MICROSCOPES
VERSA CAM (CC-HDMI-CD2)
1080p HDMI and 2 MP USB 2.0 Camera
Excellent HDMI camera with Direct/USB output and 1080p
Resolution. Very Fast refresh rate on Live Video at 60 Frames
Per SecondSensor. Digital Zoom for increasing magnication.
Image and Movie Capture are built into the camera on an SD
Card (No Computer Required). Compatible with all Scienscope
Lenses and Microscope including Macro Lens (CC-97-LN1)
and Micro Zoom (MZ7A-Zoom). Two USB Ports allow connec-
tion to a computer or network. Video Image Express Measurement Software is a great addition.
FEATURES USING HDMI CONNECTION
• On-screen control bar and setting menu
• Image and video capture to SD card
• Split-screen live image/captured image comparison
(picture in picture)
• Image and video gallery / Image and video review
• Wireless mouse control
FEATURES USING USB 2.0 CONNECTION
SPECS
• Image and video capture using Windows 10 camera app
• Image and video capture using the included software
• Annotation and drawing tools on live captured images
• Upgrade software with FOV measurement tools
• 1080p HD (1920x1080 @ 60 fps) HDMI
• 2 Megapixel (1920x1080 @ 30 fps) USB 2.0
1080p
Resolution
4K
Resolution
HDMI Live
USB 2.0 or
3.0 Connect
and capture
SD Card
Capture
USB Thumb
Drive
Capture
WiFi
Transmitter
and Connect
Autofocus
Integrated FOV
Measurement
VersaCam
(CC-HDMI-CD2
SmartCam- Ultra
(CC-SMART-4K-AF)
Measurement
Data Export
Live
Annotation
Live image/Captured
Image Compare
DXF Overlay
Onscreen
reticle
Digital Caliper /
Counting grid
Live Image
Processing
Menu
Digital Zoom
Settings
Export and
Import
SMART CAM-ULTRA AF (CC-SMART-4K-AF)
4K HDMI, 8.2 MP USB 3.0, and WiFi Camera w/ AutoFocus
Excellent HDMI camera with Direct/USB output and 1080p
Resolution. Very Fast refresh rate on Live Video at 60 Frames Per
Second Sensor. Digital Zoom for increasing magnication.
Image and Movie Capture are built into the camera on an SD Card
(No Computer Required). Compatible with all Scienscope Lenses
and Microscope including Macro Lens (CC-97-LN1) and Micro
Zoom (MZ7A-Zoom). Two USB Ports allow connection to a
computer or network. Video Image Express Measurement
Software is a great addition.
CAMERA FEATURES USING HDMI CONNECTION
• On-screen control bar and setting menu
• Image and video capture to SD card
• Split-screen live image/captured image comparison (picture in picture)
• Image and video gallery / Image and video review
• Wireless mouse control
CAMERA FEATURES USING USB 2.0 CONNECTION
• Image and video capture using Windows 10 camera app
• Image and video capture using the included software
• Annotation and drawing tools on live captured images
• Upgrade software with FOV measurement tools
SPECS
• 1080p HD (1920x1080 @ 60 fps) HDMI
• 2 Megapixel (1920x1080 @ 30 fps) USB 2.0
22 23
SERIES MICROSCOPES SERIES MICROSCOPES
