10 3. Moving-axis Section 3-2. Y-axis No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 LE2-M2601-00 BALL SCREW 1 2 LE2-M2602-00 LM GUIDE 1 3 LE2-M2605-00 HOLDER SET 1 4 LE2-M2606-00 HOLDER,N…
9
3. Moving-axis Section
3-2. Y-axis
18
11
24
10
9
4
22
16
19
6
7
8
17
20
19
3
2
2
26
Rear
S.T.D
25
13
14
15
5
21
3
25
12
23
24
1
18
11
24
10
9
4
22
16
19
6
7
8
17
20
19
3
2
2
26
Rear
S.T.D
25
13
14
15
5
21
3
25
12
23
24
1
10
3. Moving-axis Section
3-2. Y-axis
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M2601-00 BALL SCREW 1
2 LE2-M2602-00 LM GUIDE 1
3 LE2-M2605-00 HOLDER SET 1
4 LE2-M2606-00 HOLDER,NUT 1
5 LE2-M2607-00 STOPPER 2
6 LE2-M2608-00 SLIDER 1
7 LE2-M2609-00 SLIDER 1
8 LE2-M260A-00 SLIDER 1
9 LE2-M260B-01 DOG,Y 1
10 LE2-M260E-01 PLATE,NUT 1
11 LE2-M260F-00 BRKT,BEAR 1
12 LE2-M260G-01 DUCT 1
13 LE2-M2618-00 SLIDER 1
14 LE2-M2619-00 SLIDER 1
15 LE2-M261A-00 SLIDER 1
16 90990-41J119 COLLAR 1
17 90990-41J120 COLLAR 4
18 LE2-M26B0-00 CABLE BEAR ASSY 1
19 LC1-M26A9-00 SUPPORT UNIT 1
20 90933-01J000 BEARING 1
21 LC2-M2204-00 COUPLING 1
22 90990-33J001 BOLT,STOPPER 1
23 LE2-M6522-00 Y MOTOR ASSY. 1
24 LE2-M26H1-01 PHOTO SENSOR 2
25 LE2-M26H2-01 PHOTO SENSOR 1
26 LE2-M260H-00 ANGLE,DOG 1
11
4. X-Ray Section

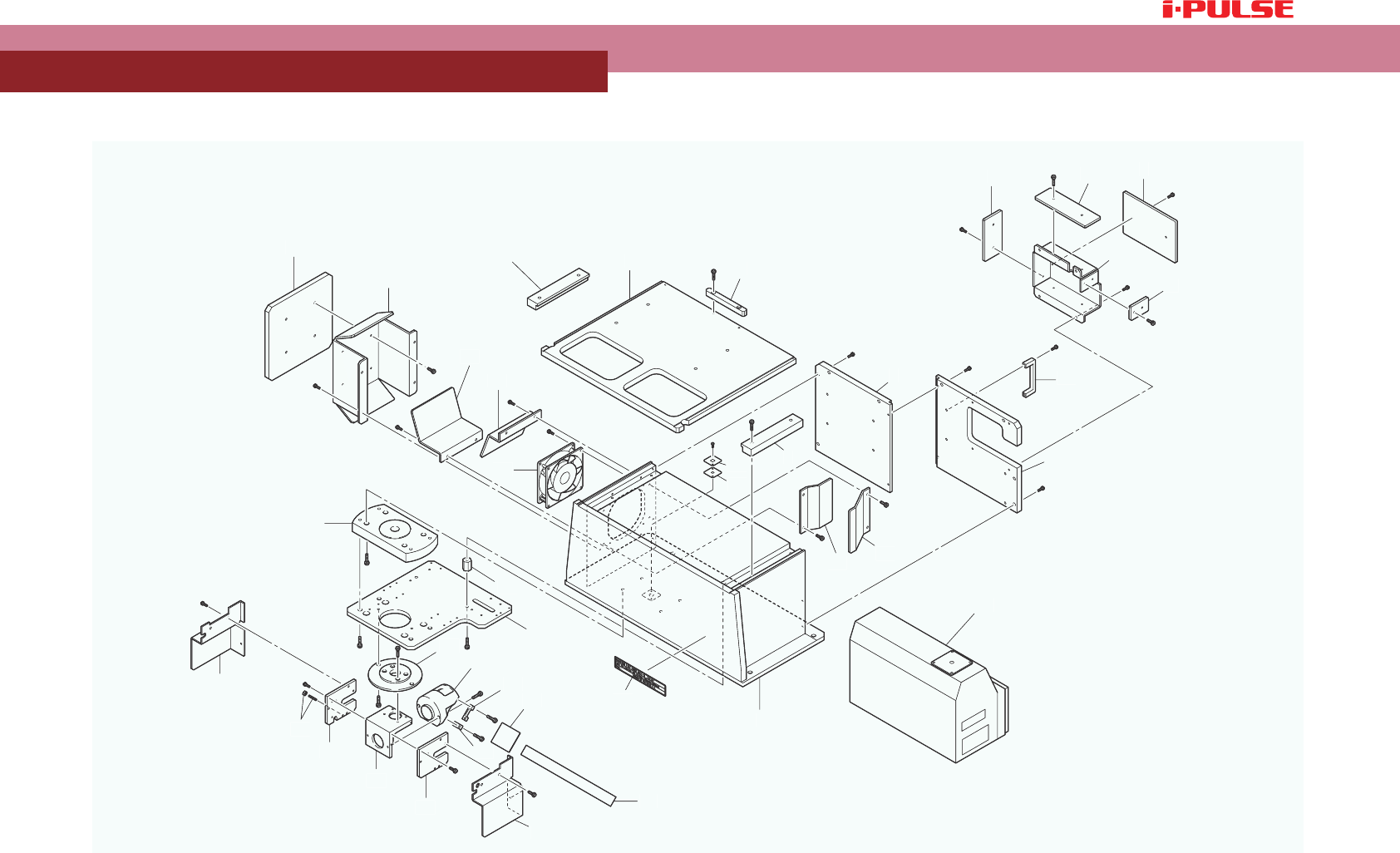

4-1. X-Ray
5
17
16
15
14
38
21
23
24
26
34
33
35
31
36
1
12
13
37
7
18
8
22
3
11
6
10
9
5
20
19
27
25
28
32
30
29
2
4
5
17
16
15
14
38
21
23
24
26
34
33
35
31
36
1
12
13
37
7
18
8
22
3
11
6
10
9
5
20
19
27
25
28
32
30
29
29
2
4
