15 5. Vision Head Section 5-1. Vision Head 2 29 14 19 1 17 32 26 38 16 36 39 39 39 37 18 31 12 8 39 24 35 37 34 23 1 1 5 30 21 27 28 15 20 22 34 35 39 3 10 6 31 12 33 4 25 39 33 7 13 9 2 29 14 19 1 17 32 26 38 16 36 39 3…
14
4. X-Ray Section
4-2. X-Ray Camera
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M714V-00 BASE,ACS 1
2 LE2-M7142-00 PLATE,CAMERA 1
3 LE2-M7143-00 PLATE,CAMERA 1
4 LE2-M714W-00 STAND,ACS 1
5 LE2-M7163-00 PLATE,ACS 1
6 LE2-M7146-01 GUIDE,ACS 2
7 LE2-M7147-00 BLOCK,ACS 1
8 LE2-M7148-00 BLOCK,ACS 1
9 LE2-M7164-00 BRACKET,CAMERA 1
10 LE2-M7216-00 BLOCK,STOPPER 1
11 LE2-M714B-00 BLOCK,CAMERA 1
12 LE2-M721A-00 PIN 2
13 LE2-M7162-00 PLATE,CAMERA 1
14 LE2-M714E-00 HOLDER,CAMERA 1
15 LE2-M714F-00 BLOCK,STOPPER 1
16 LE2-M714G-00 BRACKET,MIRROR 1
17 LE2-M714H-00 BLOCK,MIRROR 1
18 LE2-M714J-00 HOLDER,MIRROR 1
19 LE2-M7122-00 BLOCK,LIGHT 2
20 LE2-M714T-01 BRKT,ACS 1
21 LE2-M71A2-00 MIRROR 1
22 90990-49J003 BOLT ADJUST 1
23 90990-49J002 BOLT ADJUST 1
24 LE2-M71A6-00 URETHANE SHEET 1
25 90990-33J037 BOLT STOPPER 2
26 LE2-M714K-00 COVER,ACS 1
27 LE2-M714U-00 PLATE 1 (t=4)
28 LE2-M714L-00 COVER,ACS 1
29 LE2-M714M-00 COVER,ACS 1
30 LE2-M714N-00 COVER,ACS 1
31 LE2-M7165-01 HOLDER,LENS 1
32 LE2-M7161-00 PLATE,CAMERA 1
33 LE2-M71AJ-00 ACS 1
34 90990-20J011 PIN DOWEL 4
35 LE2-M71A7-00 CCTV LENS 1
36 LE2-M71AG-00 EXETENSION TUBE 1
37 LE2-M71AH-01 EXTENSION TUBE 1
38 LE2-M71AE-00 CCD CAMERA 1
39 LE2-M7123-00 BLOCK,LIGHT 2
40 LE2-M7154-00 RUBBER SHEET 1
41 90990-33J030 BOLT STOPPER 8
42 LG0-M11HC-01 GAURD,FINGER 2
43 LE2-M714U-10 PLATE 4 (t=0.5)
15

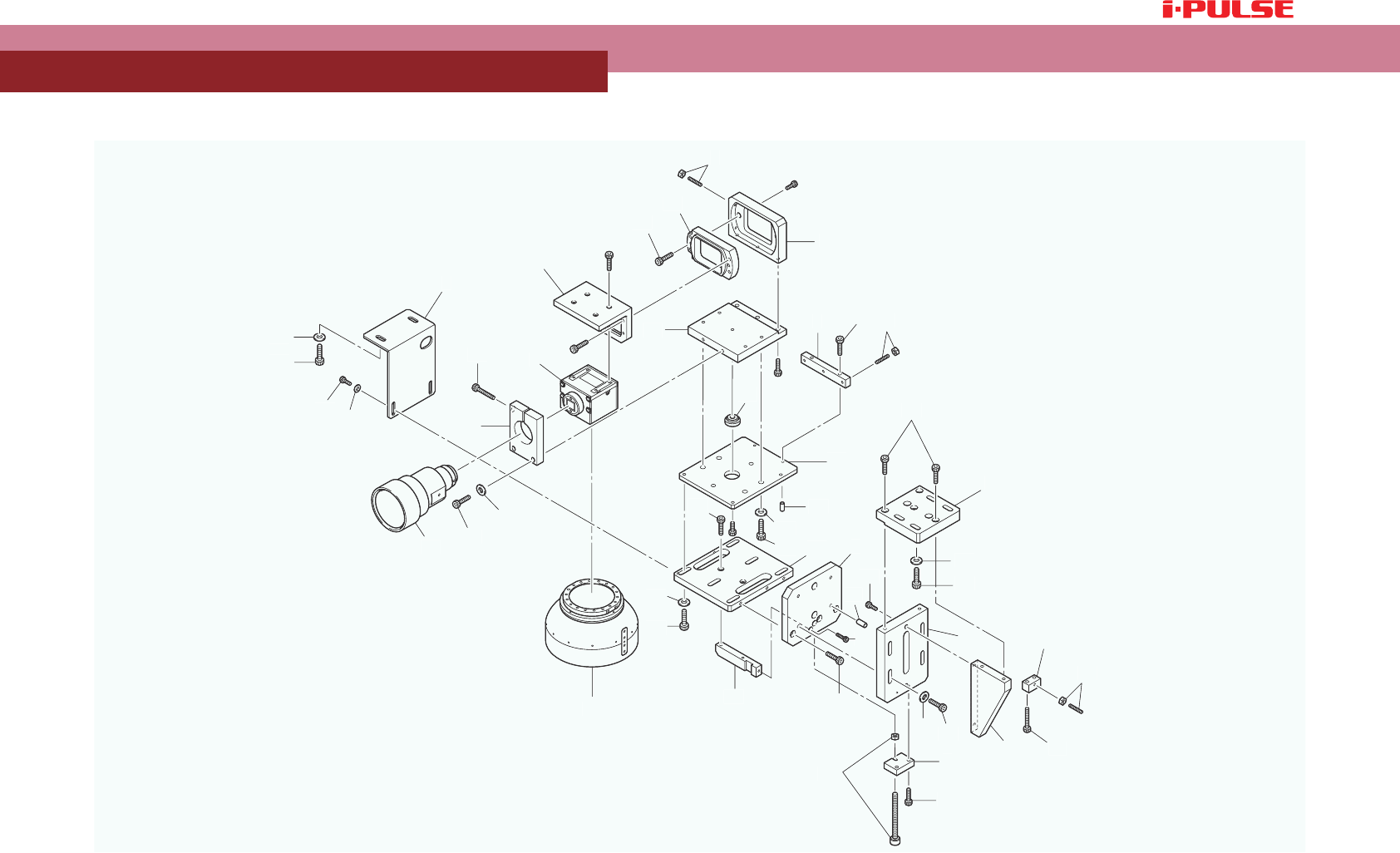

5. Vision Head Section
5-1. Vision Head
2
29
14
19
1
17
32
26
38
16
36
39
39
39
37
18
31
12
8
39
24
35
37
34
23
11
5
30
21
27
28
15
20
22
34
35
39
3
10
6
31
12
33
4
25
39
33
7
13
9
2
29
14
19
1
17
32
26
38
16
36
39
39
39
37
18
31
12
8
39
24
35
37
34
23
11
5
30
21
27
28
15
20
22
34
35
39
3
10
6
31
12
33
4
25
39
33
7
13
9
16
5. Vision Head Section
5-1. Vision Head
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M510A-00 BASE,GUIDE 1
2 LE1-M510B-01 HOLDER,PEN 1
3 LE1-M510C-00 STOPPER,PEN 1
4 LE1-M510D-00 HOOK 1
5 LE1-M510E-00 HOOK 1
6 LE1-M510F-01 PLATE,SENSOR 1
7 LE1-M5107-00 ADAPTER 1
8 LE1-M511A-01 PLATE 1
9 LE1-M511B-03 PLATE 1
10 LE1-M51AA-00 GUIDE 1
11 LE1-M51AB-00 GUIDE 1
12 90990-47J001 KNOB 1
13 90990-50J002 PIN HINGE 1
14 LE1-M51A4-00 SPRING 1
15 90990-33J005 BOLT STOPPER 1
16 LE1-M66M0-02 MOTOR ASSY 1
17 LE1-M66M1-02 MKUP ASSY 1
18 LE1-M66M6-02 MKDN ASSY 1
19 90115-02J004 BOLT HEX.SOCKET HEAD 2
20 91314-03004 BOLT HEX.SOCKET HEAD 3 M3X4
21 91314-03006 BOLT HEX.SOCKET HEAD 4 M3X6
22 91314-04010 BOLT HEX.SOCKET HEAD 3 M4X10
23 91317-03006 BOLT HEX.SOCKET HEAD 12 M3X6
24 91317-03008 BOLT HEX.SOCKET HEAD 8 M3X8
25 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10
26 91317-04020 BOLT HEX.SOCKET HEAD 3 M4X20
27 90990-01J040 BOLT HEX.SO.LO HEAD 4
